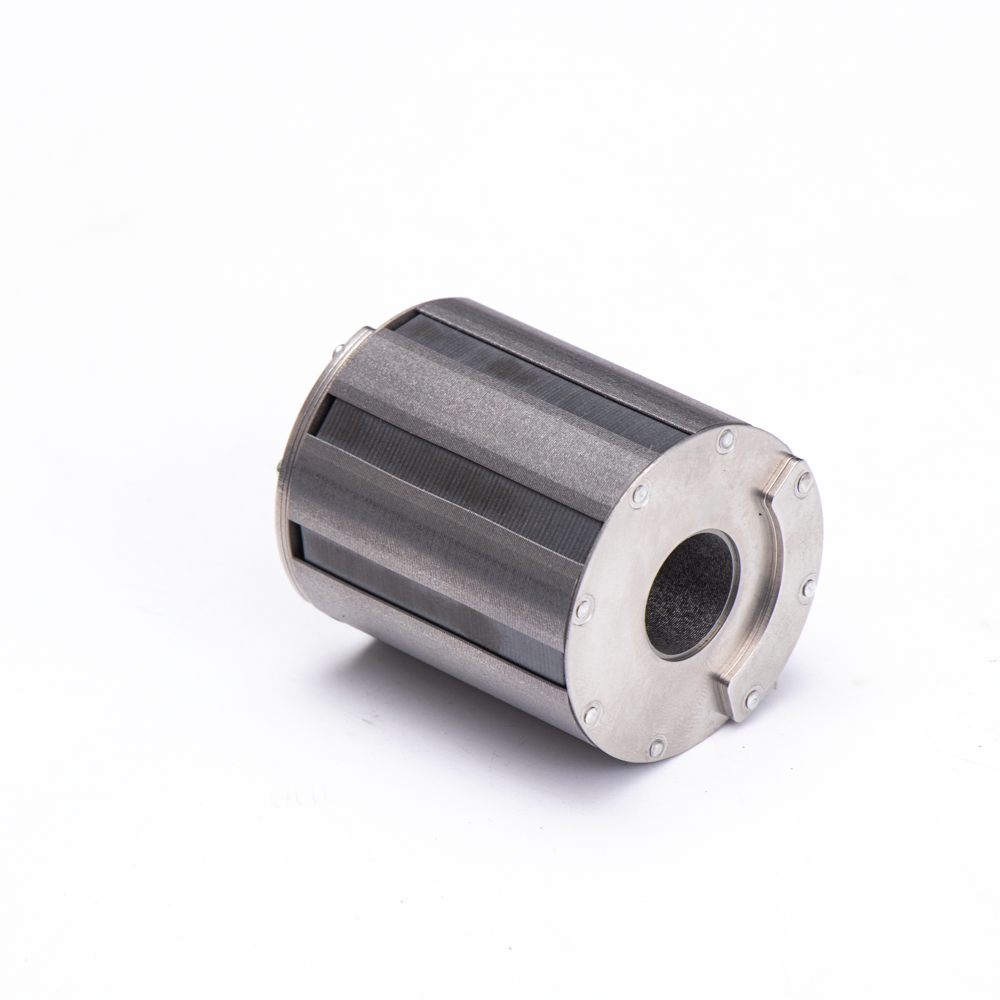

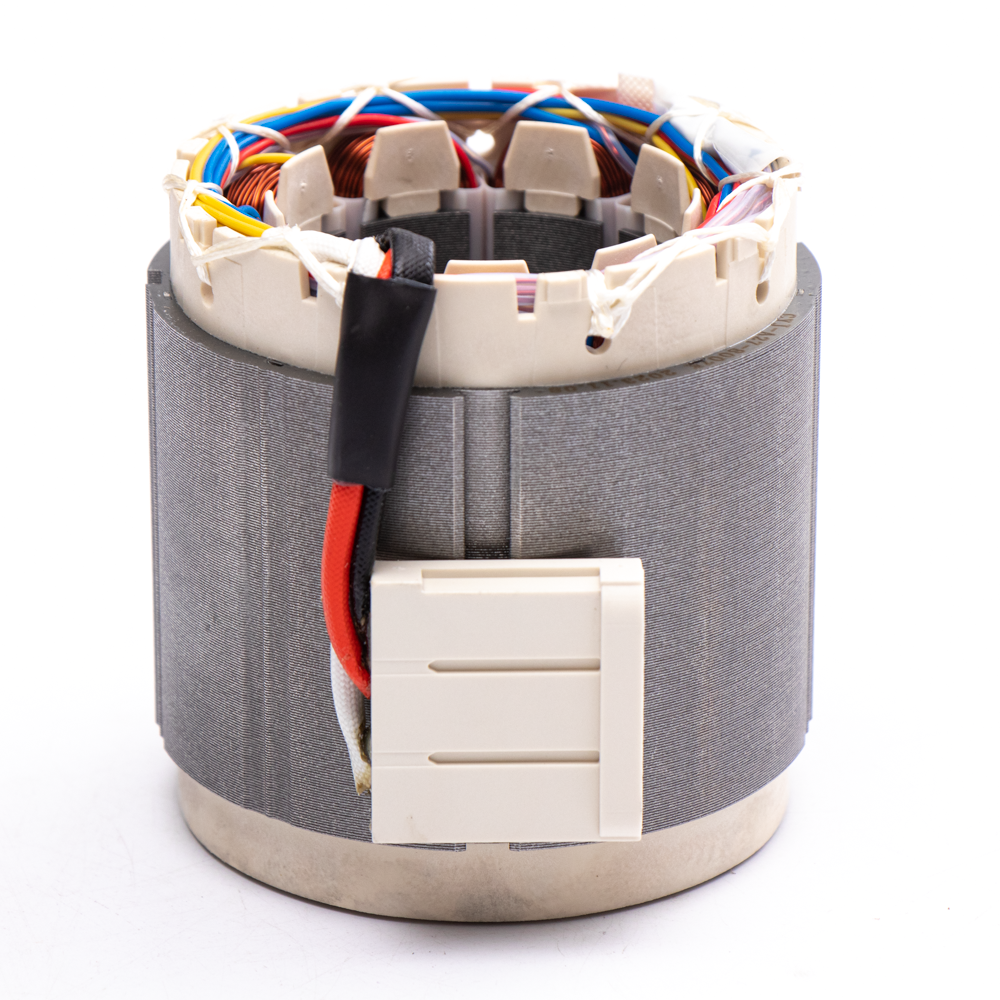

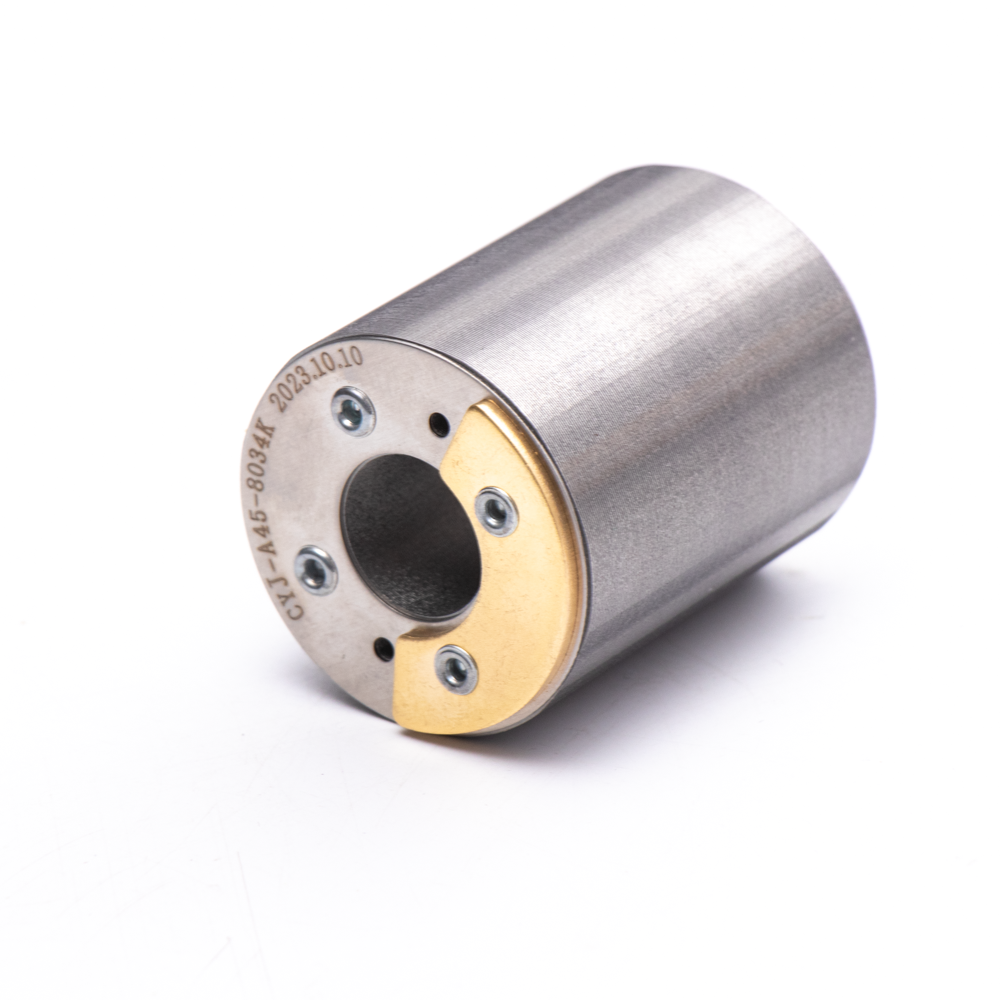

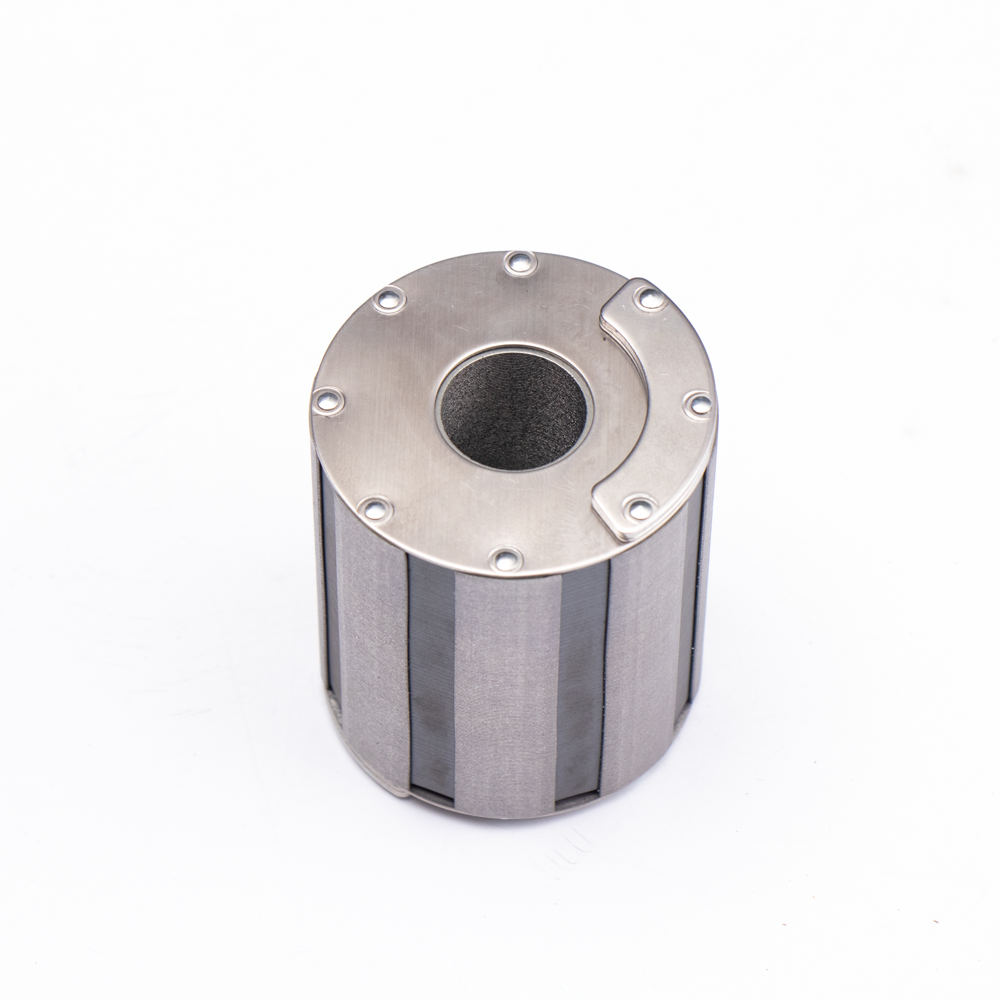

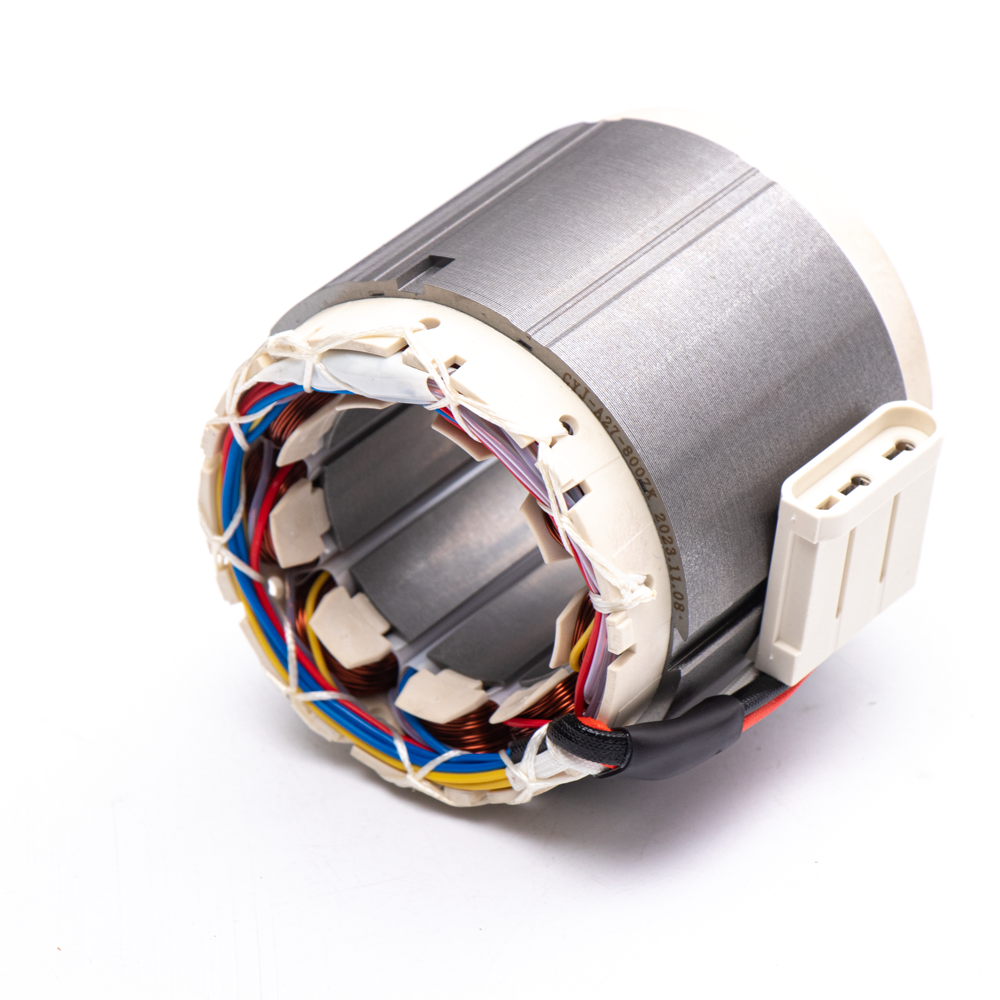

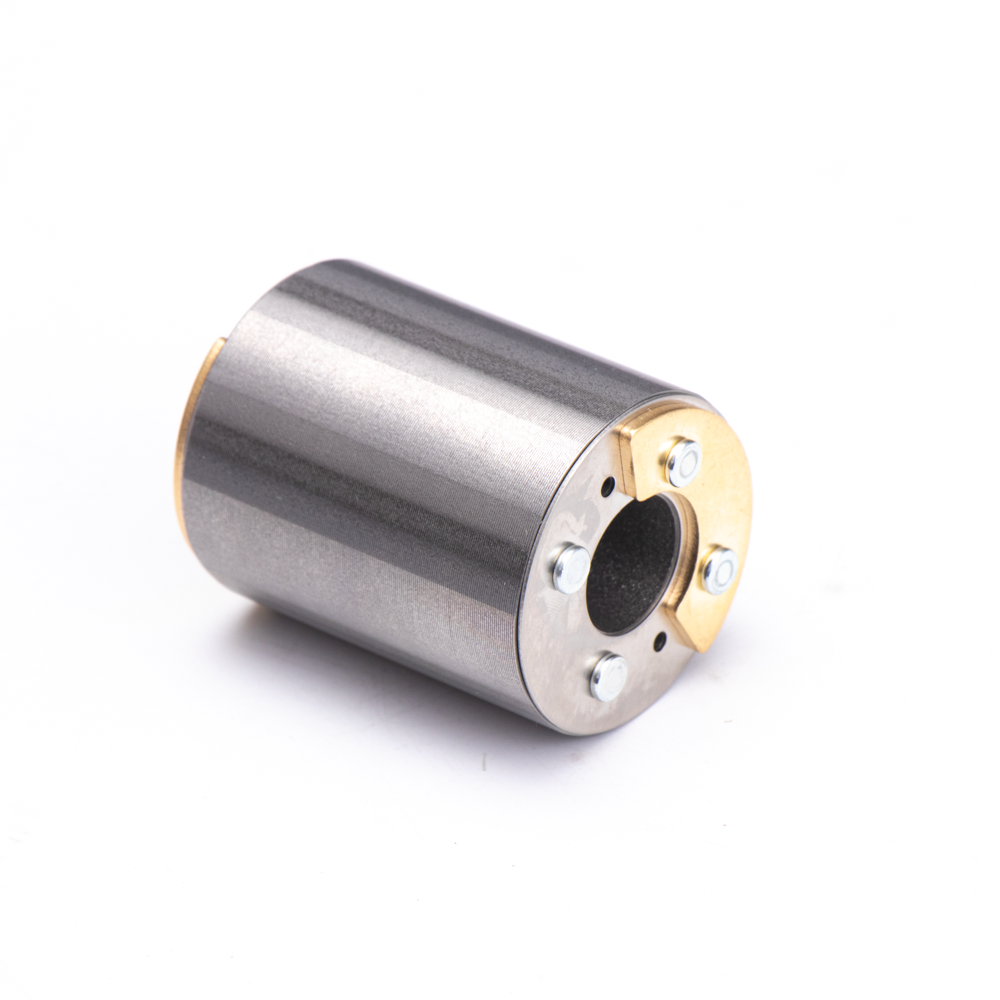

Typical Applications of 85mm Concentrated Winding Stator and Rotor

The 85mm concentrated winding stator and rotor is mainly used in applications that require compact motor size, simplified assembly, and efficient electromagnetic utilization.

In automotive electric compressors, this structure supports compact motor layouts while maintaining sufficient torque density. 85mm concentrated winding stator and rotor is frequently chosen for systems where packaging constraints exist, such as under-hood or integrated thermal modules.

In pump motor designs, the concentrated winding structure enables efficient assembly and stable operation for water and oil pump applications. The applicable CC range 12-34CC can be adjusted based on torque and flow requirements without changing the outer diameter platform.

Typical use cases include:

• Compact electric air conditioning compressors

• Integrated thermal management compressor modules

• Water pump motors with limited installation space

• Oil pump motors for automotive lubrication systems

• OEM motor platforms requiring simplified winding processes

Technical Specifications of 85mm Concentrated Winding Stator and Rotor

Series

The following technical data applies to the 85mm Concentrated Winding Stator and Rotor Series.

Electrical Parameters

• Rated voltage options: 0-800V.

• Rated speed: 0-8600rpm(customized)

• Rated Torque: 0-7.2N.m(customized)

• Output power range: 1.8-5.02kw(customized)

• Adapted pump displacement range: 12-34CC

Mechanical Parameters

• 85mm stator outer diameter

• 50/60mm rotor outer diamter




Optional Configurations

• Balance weght optional

• Shaft can be added and cutomized

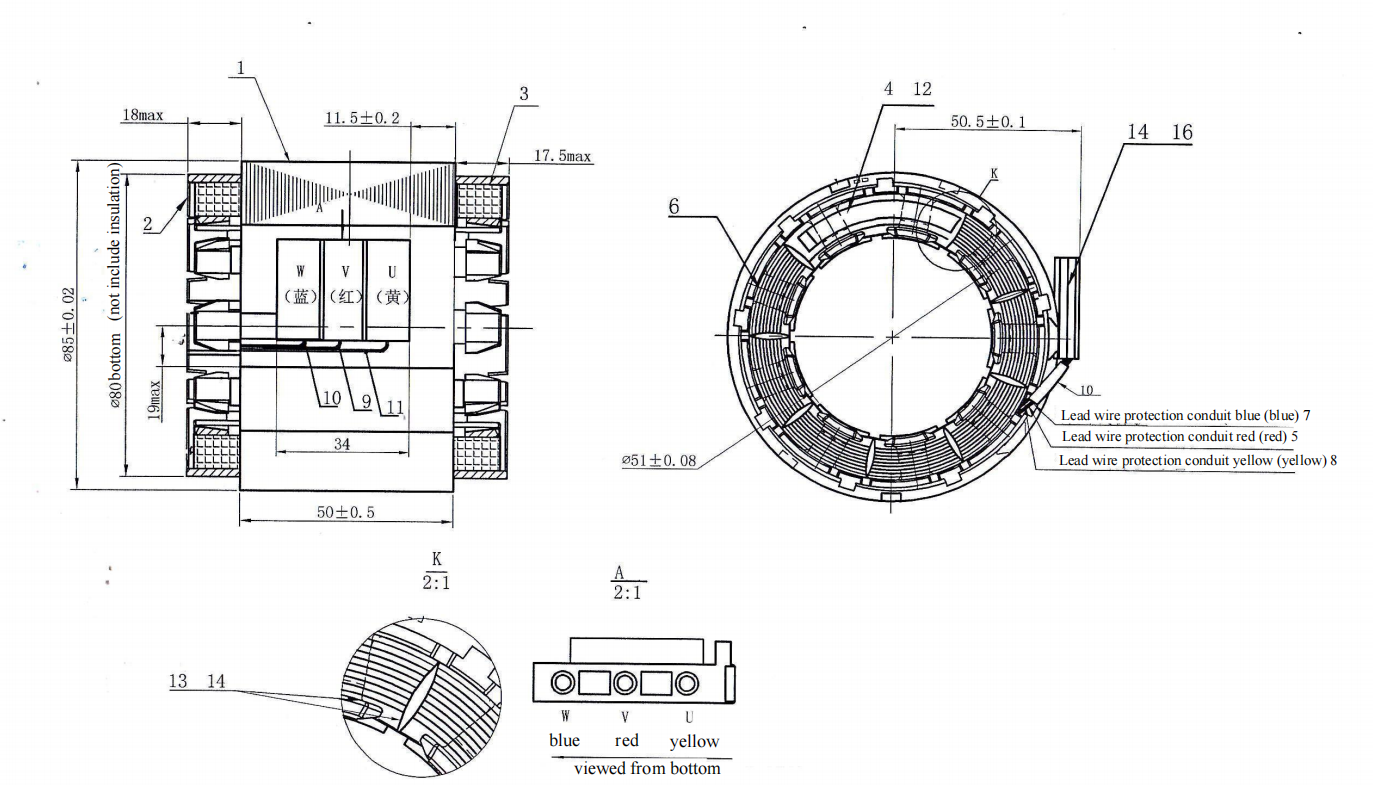

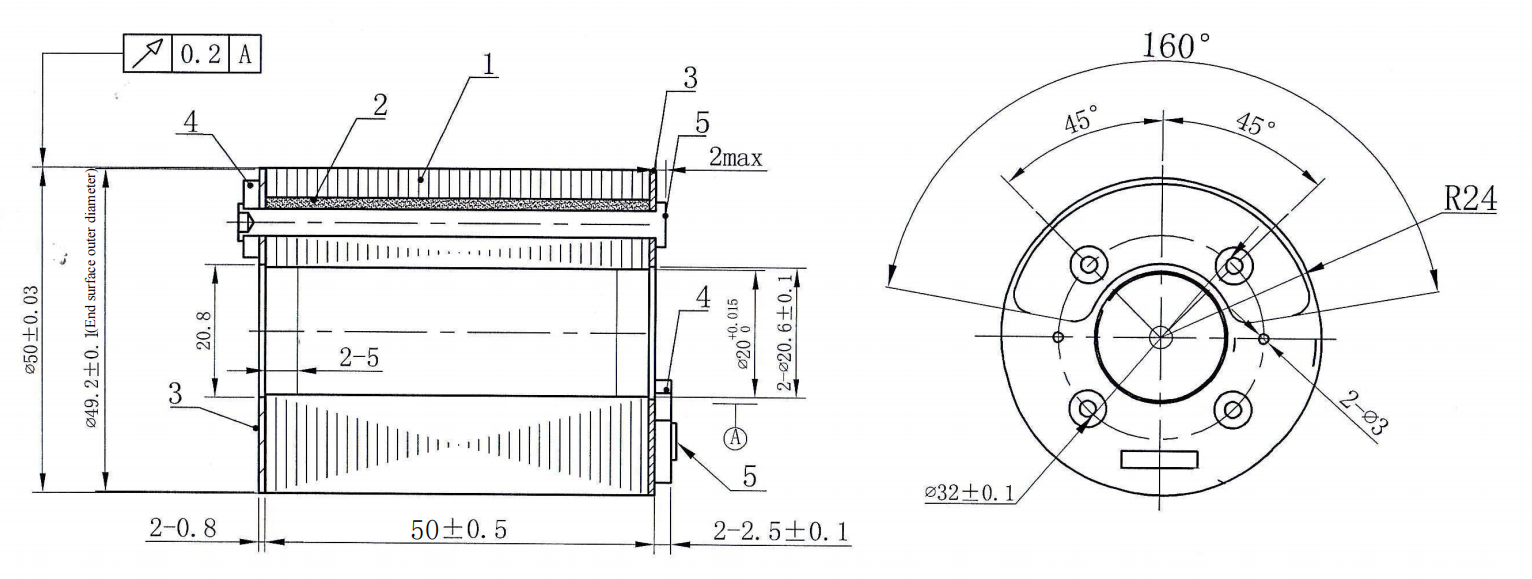

Model J85O.D. Parameters

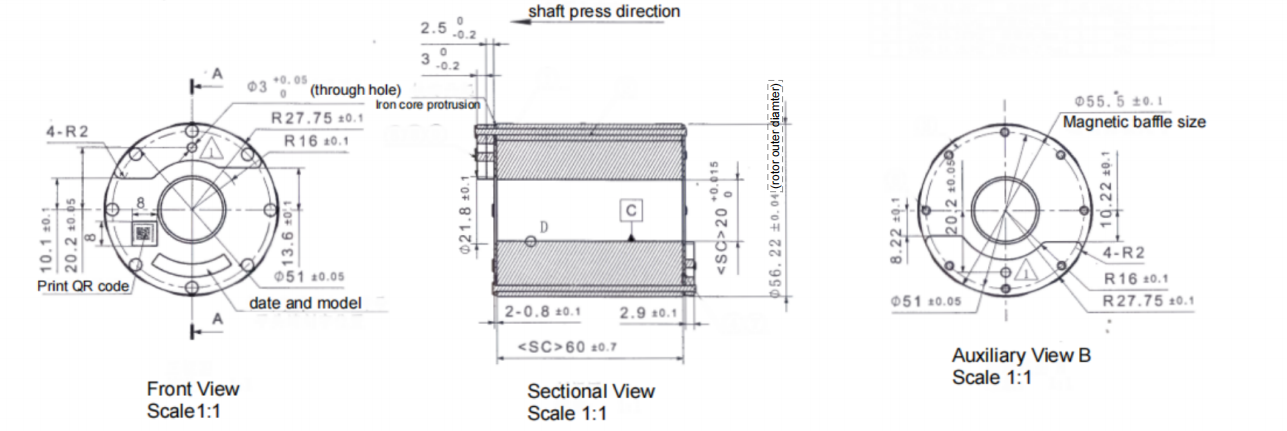

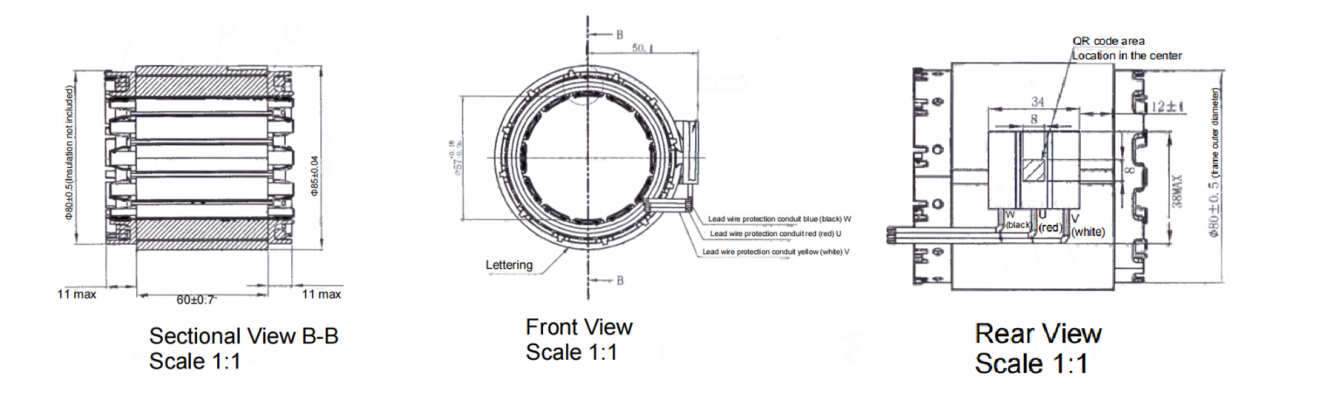

Model TT85O.D. Parameters

FAQ – 85mm Concentrated Winding Stator and Rotor

Q1: What distinguishes concentrated winding from distributed winding?

Concentrated winding features shorter end-turns and a more compact structure, suitable for space-constrained designs.

Q2: Is 85mm concentrated winding stator and rotor suitable for automotive compressors?

Yes, 85mm concentrated winding stator and rotor is commonly used in compact automotive electric compressor applications.

Q3: Can 85mm concentrated winding stator and rotor be used in pump motors?

Yes, both water pumps and oil pumps can be designed using 85mm concentrated winding stator and rotor.

Q4: Which voltage 85mm concentrated winding stator and rotor are supported?

Typical designs support 0-800V systems.

Q5: Can torque characteristics be customized?

Yes, winding and electromagnetic characteristics can be tailored per project.

Q6: Is 85mm concentrated winding stator and rotor suitable for mass production?

Yes, 85mm concentrated winding stator and rotor is designed for scalable OEM production.
