Typical Applications of 85mm Distributed Winding Stator and Rotor

This 85mm distributed winding stator and rotor is widely used in applications where smooth operation, continuous running, and thermal stability are essential.

In electric compressor systems, the distributed winding structure helps achieve more uniform magnetic flux distribution, which supports stable pressure output and quieter operation during long operating cycles. 85mm distributed winding stator and rotor is commonly applied in automotive and industrial compressor solutions that require consistent performance under variable load conditions.

In pump motor applications, 85mm distributed winding stator and rotor is also suitable for both water pumps and oil pumps, especially in systems where flow stability and reliability are prioritized. 85mm distributed winding stator and rotor can be adapted to different displacement classes (12~34CC ranges), depending on the motor design and system requirements.

Typical use cases include:

• Electric air conditioning compressors

• Battery cooling and thermal management compressors

• Water pump motors for thermal circulation systems

• Oil pump motors for lubrication and hydraulic subsystems

• Continuous-duty industrial compressor applications

Technical Specifications of 85mm Distributed Winding Stator and Rotor

Series

The following technical data applies to the 85mm Distributed Winding Stator and Rotor Series.

Electrical Parameters

• Rated voltage options: 0-800V.

• Rated speed: 0-8600rpm(customized)

• Rated Torque: 0-7.2N.m(customized)

• Output power range: 1.6-5.02kw(customized)

• Adapted pump displacement range: 12-34CC

Mechanical Parameters

• 85mm stator outer diameter

• 54mm rotor outer diamter




Optional Configurations

• Balance weght optional

• Shaft can be added and cutomized

standard stator drawing

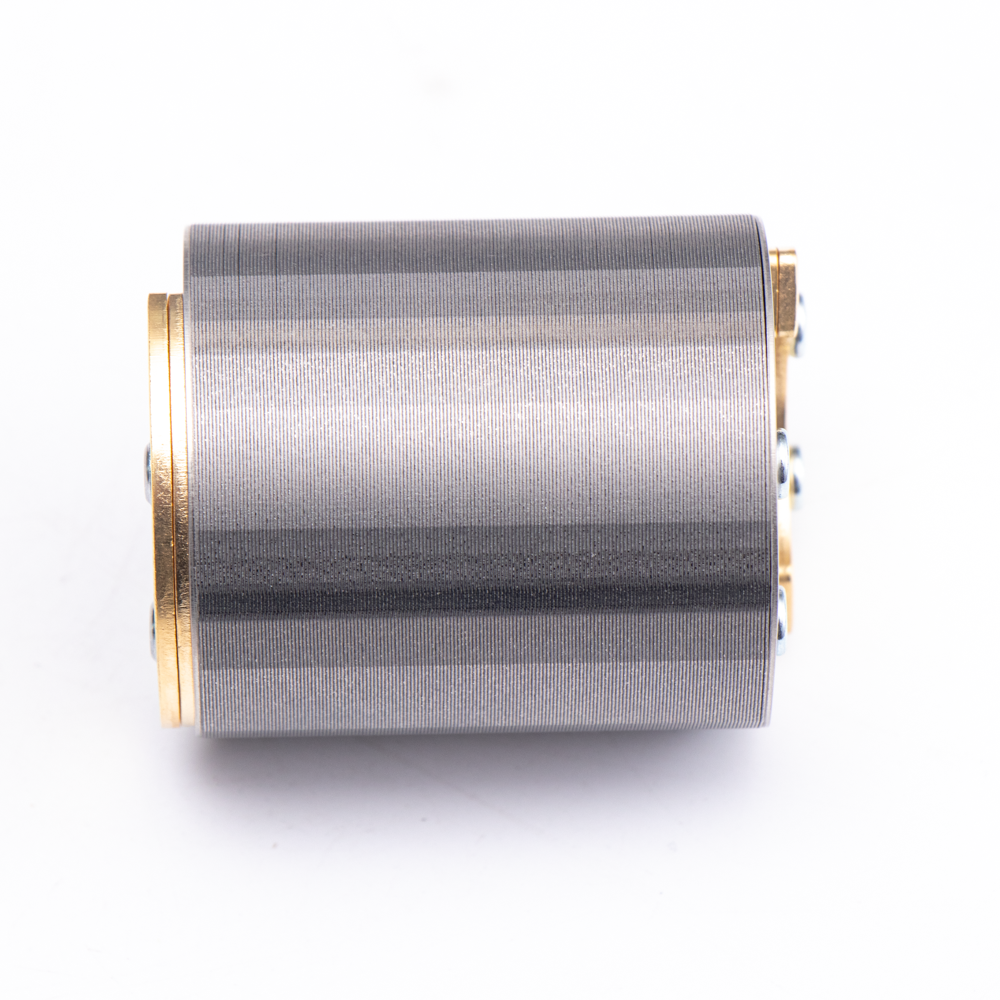

standard rotor drawing

FAQ – 85mm Distributed Winding Stator and Rotor

Q1: What is the main advantage of distributed winding in this 85mm stator?

Distributed winding helps reduce torque ripple and electromagnetic noise, making it suitable for smooth and continuous operation.

Q2: Is 85mm distributed winding stator and rotor suitable for electric compressors?

Yes, 85mm distributed winding stator and rotor is widely used in electric compressor motors requirng stable pressure output and low vibration.

Q3: Can 85mm distributed winding stator and rotor be used for pump motors as well?

Yes, 85mm distributed winding stator and rotor can be applied to both water pump and oil pump motors, depending on system design.

Q4: Which voltage systems does 85mm distributed winding stator and rotor support?

85mm distributed winding stator and rotor is commonly designed for 0-800V automotive electric platforms.

Q5: Can 85mm distributed winding stator and rotor be customized for different CC ranges?

Yes, the applicable displacement 12-34CC range depends on motor design and can be adjusted according to project needs.

Q6: Can the balance weight on 85mm distributed winding stator and rotor be removed?

Yes, the balance weight can be removed.
