How Stator Winding Design Affects BLDC Motor Efficiency

Introduction: Why Engineers Should Care About Winding Design

Let’s be honest—when selecting or designing a BLDC motor, most people instinctively focus on magnets, controllers, or even bearings.

But here’s a question worth asking:

What if the biggest efficiency gain is hidden in the stator winding?

Think of it like plumbing in a building. You can have the best pump in the world, but if the pipes are poorly designed, everything underperforms.

That’s exactly what happens in high-efficiency BLDC motor design for industrial OEM applications—winding design quietly determines whether your motor is average… or exceptional.

Understanding BLDC Motor Efficiency Fundamentals

Definition of Efficiency in BLDC Motors

Efficiency is simply:

Output Mechanical Power / Input Electrical Power

But in real-world motors, energy doesn’t disappear—it gets lost.

Key Loss Components in BLDC Motors

The main losses include:

• Copper loss (dominant)

• Iron loss (core loss)

• Mechanical loss

• Switching loss (controller-related)

Among these, stator winding design directly controls copper loss, making it one of the most critical design factors.

Anatomy of a Stator Winding

Materials Used in Stator Windings

Most windings use:

• Enameled copper wire

• High-temperature insulation

• Slot liners and wedges

Some advanced designs even use rectangular conductors or litz wire for high efficiency brushless DC motor manufacturing.

Electrical and Magnetic Roles

The stator winding does two jobs:

1. Conduct current

2. Generate magnetic fields

Its geometry determines how effectively electrical energy converts into motion.

Core Design Parameters of Stator Windings

Turns per Phase

More turns = higher voltage constant (Ke), but also higher resistance.

It’s like adding more lanes to a road—but making each lane narrower.

Wire Diameter and Current Density

Thicker wire:

• Reduces resistance

• Improves efficiency

• Increases cost and space usage

Optimizing current density is essential in custom BLDC motor solutions for high-load applications.

Slot Fill Factor

This is a big one.

Slot fill factor = copper area / slot area

Higher fill factor means:

• Less air gap inside slots

• Lower resistance

• Better thermal conduction

This is why high slot fill stator design for BLDC motors is heavily searched in B2B procurement.

Coil Pitch and Distribution

Short-pitch windings:

• Reduce harmonics

• Improve efficiency

Full-pitch windings:

• Maximize EMF

Designers often compromise between the two.

Advanced Winding Configurations

Distributed vs Concentrated Windings

Distributed windings:

• Smooth torque

• Lower noise

Concentrated windings:

• Compact

• Easier manufacturing

• Lower copper usage

Widely used in compact BLDC motors for robotics and automation systems.

Fractional Slot Windings

These are increasingly popular because they:

• Reduce cogging torque

• Improve efficiency at partial loads

Perfect for precision BLDC motors for medical and instrumentation equipment.

Hairpin and Formed Windings

Hairpin windings:

• Extremely high fill factor

• Better cooling

• Ideal for EVs

They are becoming standard in high power density electric drive motors.

Electromagnetic Impact of Winding Design

Harmonics and Losses

Poor winding layout introduces harmonics, which:

• Increase losses

• Cause vibration

• Reduce efficiency

Good design minimizes these unwanted effects.

Cogging Torque Reduction

Slot/pole combinations + winding design = cogging behavior

Lower cogging torque is critical for:

• Robotics

• CNC machines

• Medical devices

Copper Loss Deep Dive

I⊃2;R Loss Mechanism

Copper loss = I⊃2; × R

Even a small increase in resistance can significantly reduce efficiency.

Skin Effect and Proximity Effect

At higher frequencies:

• Current shifts to the conductor surface

• Effective resistance increases

Advanced winding techniques help reduce this, especially in high-speed BLDC motor applications.

Iron Loss Interaction with Winding

Interestingly, winding design also affects iron loss.

How?

By shaping the magnetic field.

Better winding → smoother flux → lower core loss

Thermal Behavior and Heat Dissipation

Hotspot Formation

Bad winding design creates:

• Uneven current distribution

• Localized overheating

This reduces lifespan dramatically.

Cooling Path Optimization

Efficient designs consider:

• Heat conduction paths

• Slot insulation thermal resistance

• Cooling airflow

Some experienced suppliers subtly optimize this in their custom BLDC motor manufacturing processes, even if it’s not highlighted in specs.

Impact on Motor Performance

Torque Constant (Kt)

Better winding design improves torque output per amp.

Meaning:

• Less energy consumption

• Higher efficiency

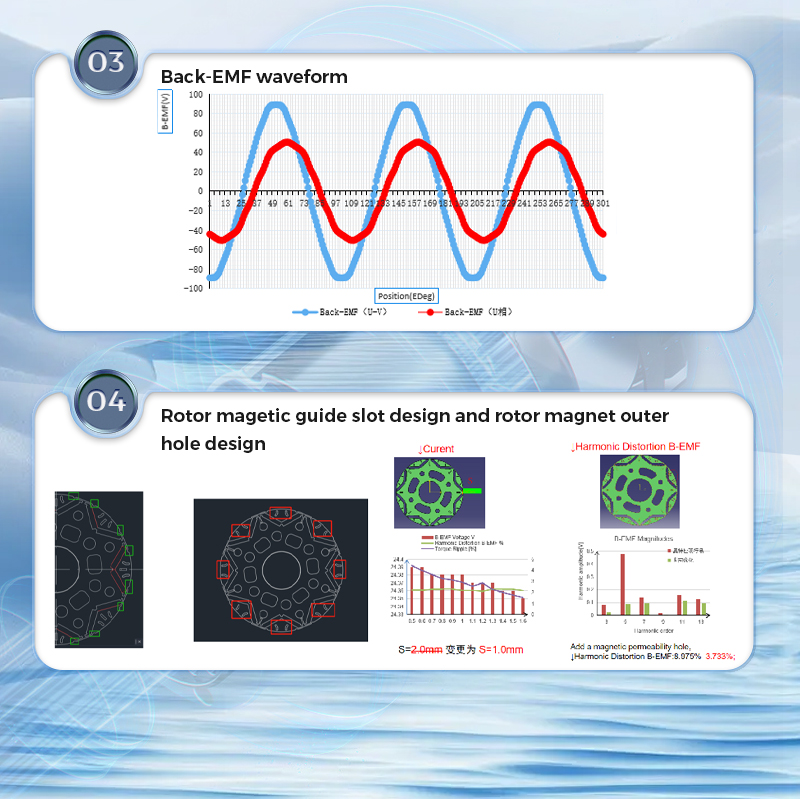

Back EMF Constant (Ke)

Ke is directly tied to winding turns and layout.

Optimized Ke ensures:

• Stable performance

• Better efficiency at target speed

Efficiency Curve Optimization

A great motor isn’t just efficient at one point.

It stays efficient across a range.

That’s where winding design really shines.

Manufacturing Constraints and Real-World Tradeoffs

Manual vs Automated Winding

Automation provides:

• Repeatability

• Precision

• Scalability

Manual winding can’t match consistency for OEM BLDC motor mass production.

Quality Control Challenges

Common issues include:

• Uneven tension

• Insulation damage

• Misalignment

These small defects can cause major efficiency losses.

Application-Specific Winding Optimization

Industrial Equipment

Focus on:

• Reliability

• Continuous duty

• Thermal stability

Electric Vehicles

Need:

• Maximum efficiency

• High power density

• Advanced cooling

Robotics

Require:

• Compact size

• Low noise

• High precision

Medical Devices

Demand:

• Ultra-low vibration

• High consistency

• Long lifespan

Cost vs Efficiency Tradeoff

Here’s the reality:

Better winding design = higher upfront cost

But:

• Lower energy consumption

• Longer lifespan

• Reduced maintenance

In B2B scenarios, efficiency almost always wins long-term.

Common Engineering Mistakes

• Ignoring thermal effects

• Overcrowding slots

• Poor winding symmetry

• Choosing wrong slot/pole combination

These mistakes are surprisingly common—even in commercial products.

Future Innovations in Winding Technology

The future is exciting:

• AI-assisted electromagnetic design

• Fully automated winding lines

• New conductor materials

• Integrated cooling structures

Companies focusing on advanced BLDC motor design for global OEM customers are already moving in this direction.

Conclusion: Choosing the Right BLDC Motor Partner

At the end of the day, stator winding design is not just a technical detail—it’s a competitive advantage.

If you’re sourcing motors, don’t just compare price.

Ask deeper:

• What’s the winding type?

• What’s the fill factor?

• How is heat managed?

Because the difference between a “working motor” and a “high-efficiency motor” often comes down to details you can’t see.

And in many cases, working with an experienced manufacturer—one that understands both engineering and real-world applications—makes all the difference.
