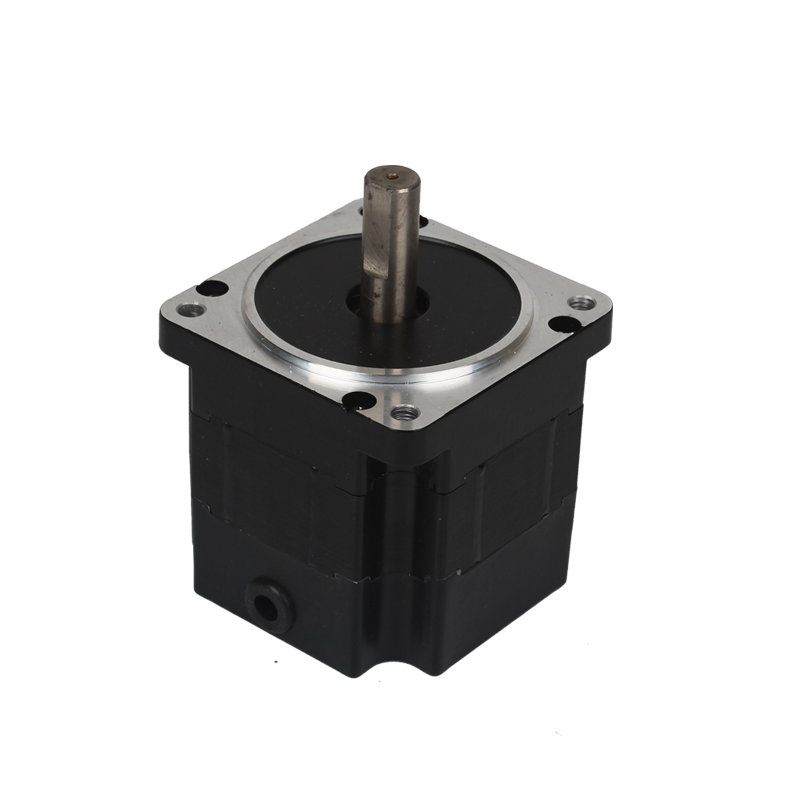

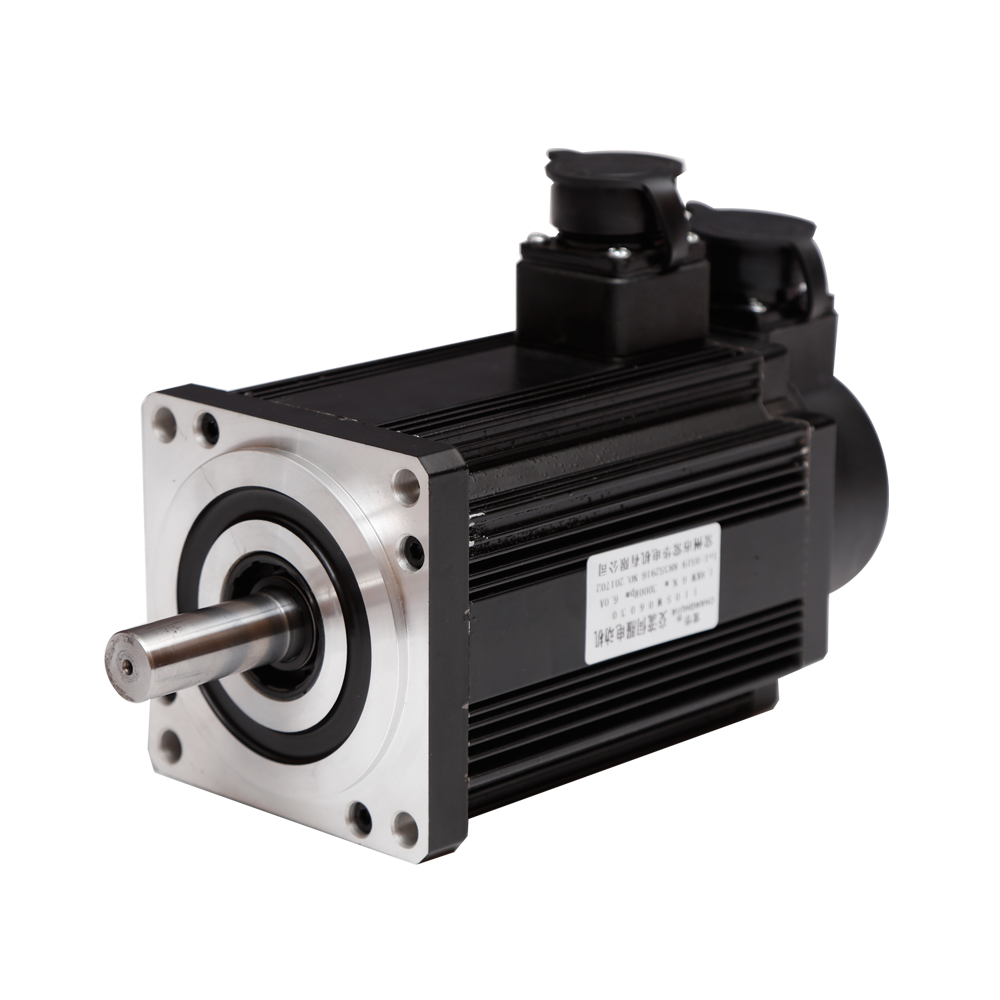

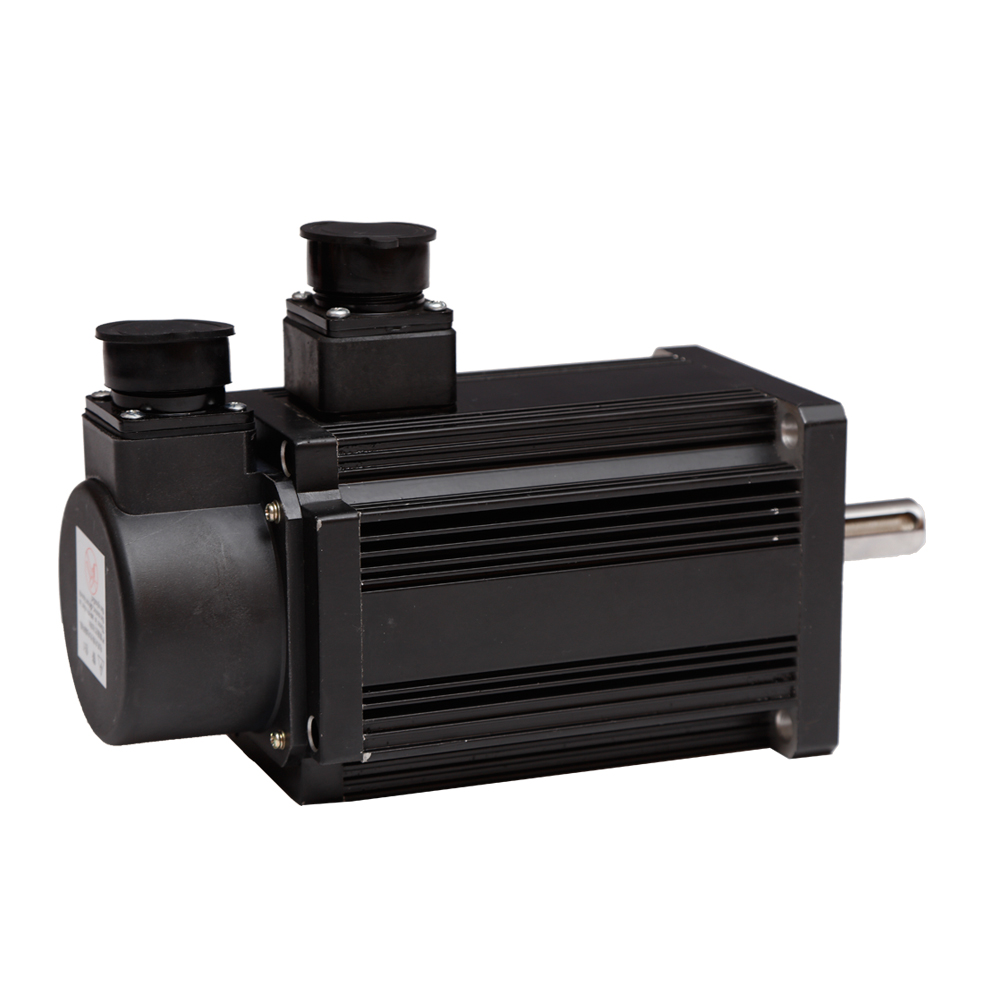

110BLF BLDC Motor | 110mm High Power Industrial Brushless DC Motor

Typical Applications of 110BLF 110mm BLDC motor

110BLF 110mm BLDC motor series is intended for high-power and heavy-duty industrial applications, where continuous torque output and mechanical strength are critical. This frame size is commonly used in industrial systems that operate under high load conditions for extended periods.

In heavy industrial machinery, automated industrial systems, and large-scale drive units, 110BLF 110mm BLDC motors deliver strong and reliable power output. Their reinforced mechanical design supports long service life even in challenging industrial environments.

110BLF 110mm BLDC motor series is also suitable for large automation systems and industrial drive solutions, where power stability and durability directly impact system efficiency and uptime.

Common application areas include:

• Heavy industrial machinery

• Large-scale automation systems

• Industrial drive units

• High-power OEM equipment

Technical Specifications of 110BLF 110mm BLDC motor Series

The following technical data applies to the 110BLF 110mm BLDC motor Series.

Electrical Parameters

• Rated voltage options: 48V/310V etc.

• Rated speed: 3000rpm(customized)

• Rated Torque: 3.2-9.6N.m(customized)

• Output power range: 500-3000W(customized)

Mechanical Parameters

• 110mm outer diameter

• Customized shaft diameter and length

• Customized Mounting size

Optional Configurations

• Optional controller, encoder and gearbox

• Different shaft types

• Various cable and terminal




brushless dc motor specification.pdf

Customization Options

Available options include gearbox, controller, encoder and installation dimension.

Electrical Specifications
Model	Voltage	RATED LOAD				Peak Torque	Torque constant	V/kRPM	Rotor inertia	Body Length	Mass
		speed	Torque	Current	Power
Model	V	rpm	Nm	A	W	Nm	N.M/A	V/kRPM	kg.mm2	L:mm	Kg
110BL110-430	48	3000	3.2	28	1000	9.6	0.12	8.4	730	110	4.5
110BL110-630	310	3000	3.2	4.2	1000	9.6	0.79	55	730	110	4.5
110BL140-430	48	3000	4.8	42	1500	14.4	0.12	8.5	1100	140	5.5
110BL140-630	310	3000	4.8	6.3	1500	14.4	0.79	55	1100	140	5.5
110BL170-630	310	3000	6.4	8.4	2000	19.2	0.79	55	1460	170	7
110BL230-630	310	3000	9.6	12.6	3000	28.8	0.76	55	2200	230	9
★We also manufacture products according to customer,s requirements.
Mechanical Dimensions
Wiring Diagram

FAQ – 110BLF 110mm BLDC motor

Q1: Is 110BLF 110mm BLDC motor suitable for high-power applications?

A: Yes, 110BLF 110mm BLDC motor is designed for high-output industrial systems.

Q2: Can 110BLF 110mm BLDC motor operate continuously?

A: Yes, suitable for long-term industrial operation.

Q3: What industries commonly use 110BLF 110mm BLDC motor?

A: Heavy industry and large-scale automation.

Q4: Are customization options available?

A: Yes, extensive customization is supported.

Q5: Does 110BLF 110mm BLDC motor support industrial controllers?

A: Compatible with common industrial BLDC controllers.

Q6: Is 110BLF 110mm BLDC motor suitable for OEM integration?

A: Yes, specifically designed for OEM and system integrators.
