Typical Applications of 60BLF 60mm BLDC motor

60BLF 60mm BLDC motor series series is widely applied in OEM industrial and commercial systems that require a balance between power output, efficiency, and compact integration. This frame size is particularly suitable for equipment manufacturers looking for a versatile motor solution that can adapt to various operating conditions.

In industrial control cabinets, automated machinery, and commercial equipment, 60BLF 60mm BLDC motor series deliver stable performance with optimized heat dissipation. Their balanced power density makes them ideal for systems operating in enclosed environments or requiring extended operating cycles.

Additionally, 60BLF 60mm BLDC motor series is often used in custom-built machinery where moderate torque and flexible mounting options are required for integration into existing system designs.

Common application areas include:

• Industrial control and automation systems

• Commercial equipment drives

• Custom OEM machinery

• Automated production units

Technical Specifications of 60BLF 60mm BLDC Motor Series

The following technical data applies to the 60BLF 60mm BLDC Motor Series.

Electrical Parameters

• Rated voltage options: 24V/48V etc.

• Rated speed: 3000rpm(customized)

• Rated Torque: 0.32-1.27N.m(customized)

• Output power range: 100-400W(customized)

Mechanical Parameters

• 60mm outer diameter

• Shaft diameter and length variations

• Installation dimensions customization

Optional Configurations

• Hall sensors and encoder feedback options

• Different shaft and types choices

• Customized cable and terminal

brushless dc motor specification.pdf

Customization Options

Available options include gearbox, controller, encoder and flanges.

Electrical Specifications
Model	Voltage	RATED LOAD				Peak Torque	Torque constant	V/kRPM	Rotor inertia	Body Length	Mass
		speed	Torque	Current	Power
Model	V	rpm	Nm	A	W	Nm	N.M/A	V/kRPM	kg.mm2	L:mm	Kg
60BL78-430	48	3000	0.32	3	100	0.96	0.114	8.93	24	78	0.85
60BL99-430	48	3000	0.65	6	200	1.95	0.122	8.93	48	99	1.25
60BL120-430	48	3000	0.95	8.8	300	2.85	0.126	8.93	72	120	1.65
60BL140-430	48	3000	1.27	11.5	400	3.81	0.127	8.93	96	140	2.05
★We also manufacture products according to customer,s requirements.

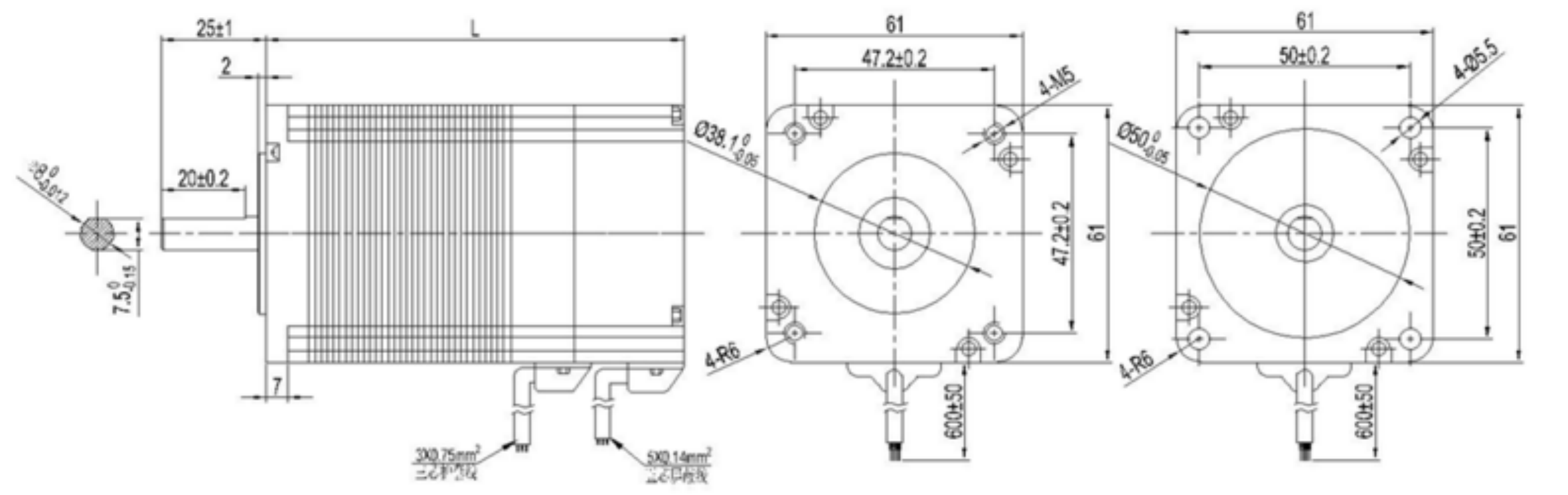

Mechanical Dimensions
Wiring Diagram

FAQ – 60BLF 60mm BLDC Motor

Q1: What makes 60BLF 60mm BLDC motors suitable for OEM systems?

A: Their balance of size, performance, and adaptability.

Q2: Can 60BLF 60mm BLDC motor operate in compact housings?

A: Yes, with optimized heat dissipation design.

Q3: Are customization services available?

A: Yes, electrical and mechanical customization is supported.

Q4: Is 60BLF 60mm BLDC motor suitable for commercial applications?

A: Yes, 60BLF 60mm BLDC motor is used in both industrial and commercial systems.

Q5: What voltage ranges are supported?

A: Voltage options can be configured based on requirements.

Q6: Does 60BLF 60mm BLDC motor support encoder integration?

A: Encoders can be integrated upon request.
