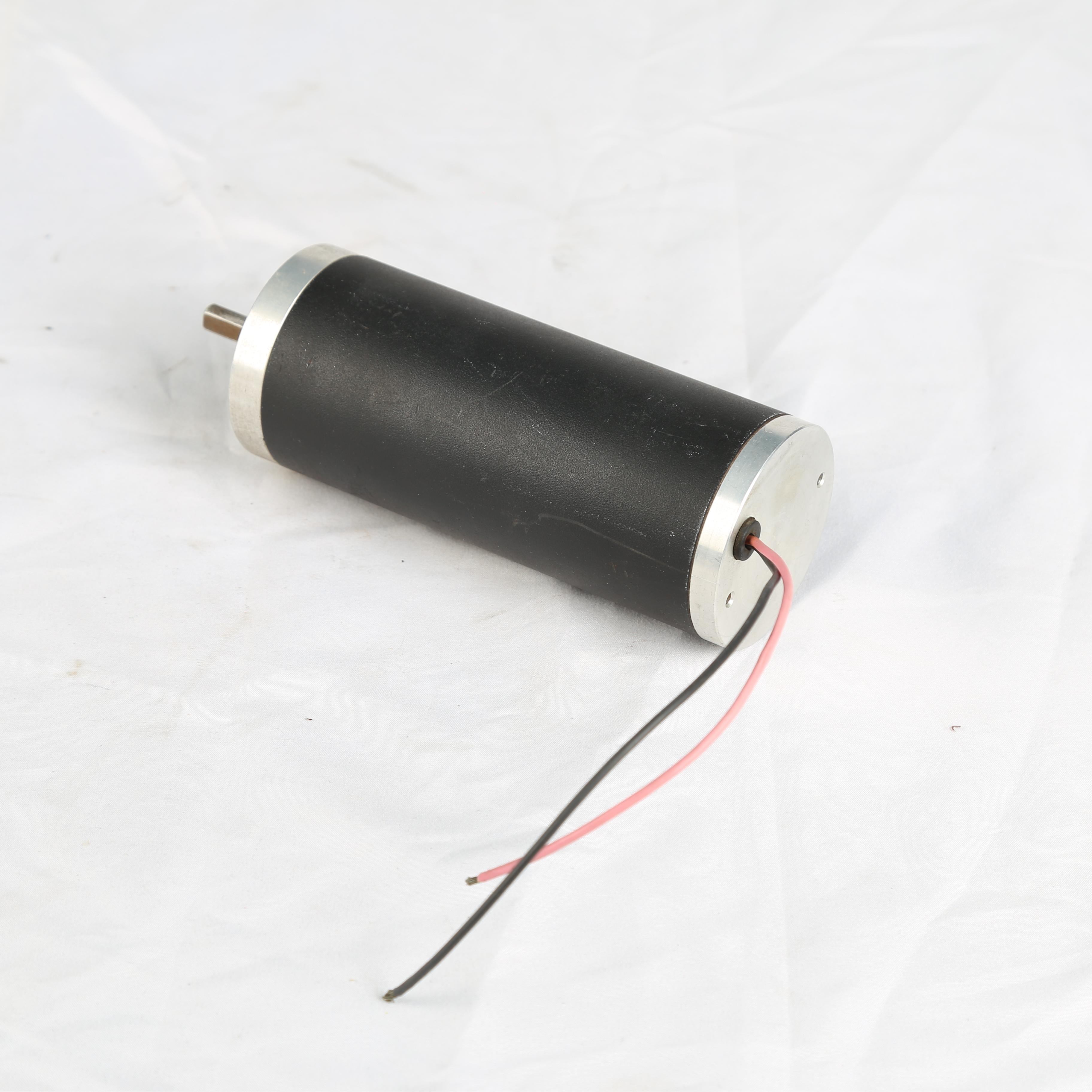

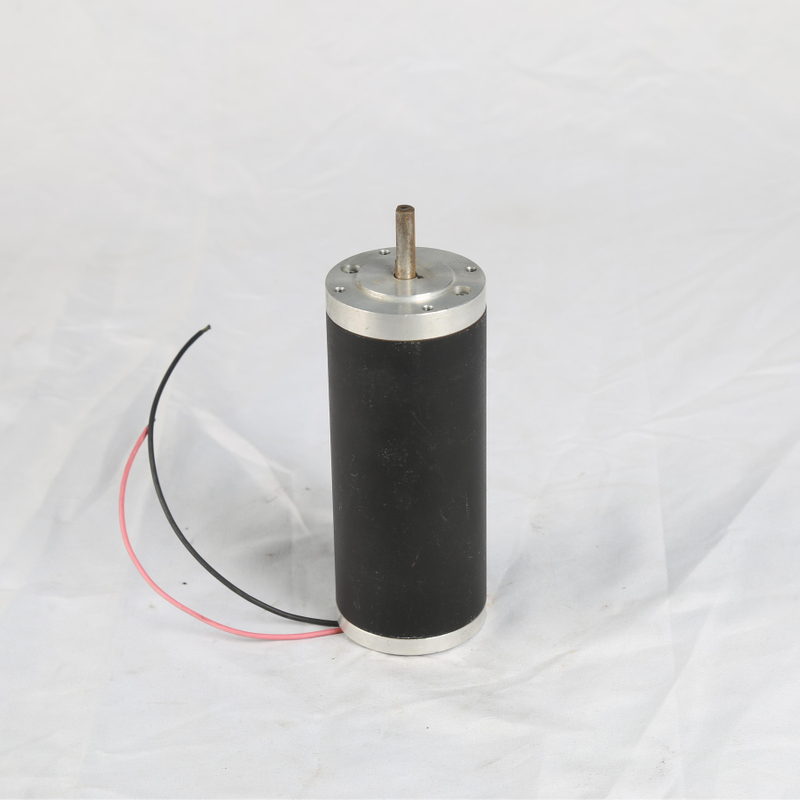

63mm 63ZYT Brushed DC Motor – Product Overview

The 63ZYT brushed DC motor is designed for applications requiring higher torque and stronger mechanical output.
With its 63mm frame size, 63ZYT brushed DC motor supports increased load capacity while maintaining stable speed characteristics.

63ZYT brushed DC motor is often chosen for equipment that operates under heavier loads or requires stronger starting torque, making it suitable for demanding industrial applications.

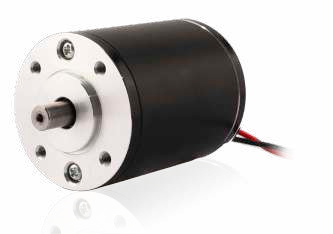

63ZYT DC Motor

Key Features

63mm frame size brushed DC motor
High torque capability
Robust construction for industrial use
Stable performance at varying load conditions
Suitable for customized OEM motor programs

Typical Applications of 63mm 63ZYT Brushed DC Motor

The 63ZYT motor is widely applied in systems where torque output and durability are more important than compact size.

In pump applications, 63ZYT brushed DC motor is suitable for higher-capacity water pumps and oil pumps that require stronger driving force. 63ZYT brushed DC motor allows adaptation to different system displacements and pressure requirements.

In industrial machinery, 63ZYT brushed DC motor is often used in drive mechanisms that operate continuously or under fluctuating mechanical loads.

Typical application scenarios include:

Medium to high-capacity pump systems
Industrial automation machinery
Conveyor and drive systems
Power tools and industrial equipment
OEM custom drive solutions

Technical Specifications of 63mm 63ZYT Brushed DC Motor

The following technical data applies to the 63mm 63ZYT Brushed DC Motor.

Electrical Parameters

Rated voltage options: 24V etc.
Rated speed: 3200rpm(customized)
Rated Torque: 0.27N.m(customized)
Output power range: 90W(customized)

Mechanical Parameters

63mm outer diameter
Customized cover mounting size
Customized cable length and terminal

Optional Configurations

can be customized with gearbox and also designed as various linear actuators

Brushed DC Motor.pdf

Motor Characteristics

Motor part number

63ZYTC125-1

Rated voltage

V

24

Rated torque

N·m

0.27

Rated speed

RPM

3200

Rated current

A

6.0

No-load speed

RPM

3650

No-load current

A

1.0

Rated power

W

90

Stall torque

N·m

1.6

Stall current

A

29

Torque constant

mNm/A

62

Back emf constant

V/Krpm

6.01

Terminal resistance

Ω

0.82

Terminal inductance

mH

1.6

Rotor inertia

kg.cm²

0.8

Starting torque

mN·m

42

Noise (ambient noise 20dB, test distance 1m)

dB

<50

Life span

H

>3000

Insulation resistance

-

100M Ω/250V

Duty cycle

-

S1

Motor weight

Kg

1.6

63ZYTC125-1 63mm Motor Drawing

63ZYTC125-1 63mm Motor Performance Curve

63ZYT brushed dc motor performance curve 1

FAQ – 63mm 63ZYT Brushed DC Motor

Q1: Is the 63ZYT brushed DC motor suitable for heavy loads?

Yes, 63ZYT brushed DC motor is designed for higher torque and load conditions.

Q2: Can 63ZYT brushed DC motor run continuously?

Yes, with appropriate thermal management.

Q3: Is 63ZYT brushed DC motor suitable for pump motors?

Yes, including higher-capacity water and oil pumps.

Q4: Can voltage and winding be customized?

Yes, customization is supported.

Q5: Is 63ZYT brushed DC motor used in industrial machinery?

Yes, 63ZYT brushed DC motor is widely used in industrial environments.

Q6: Do you provide long-term supply support?

Yes, for OEM and series production.
