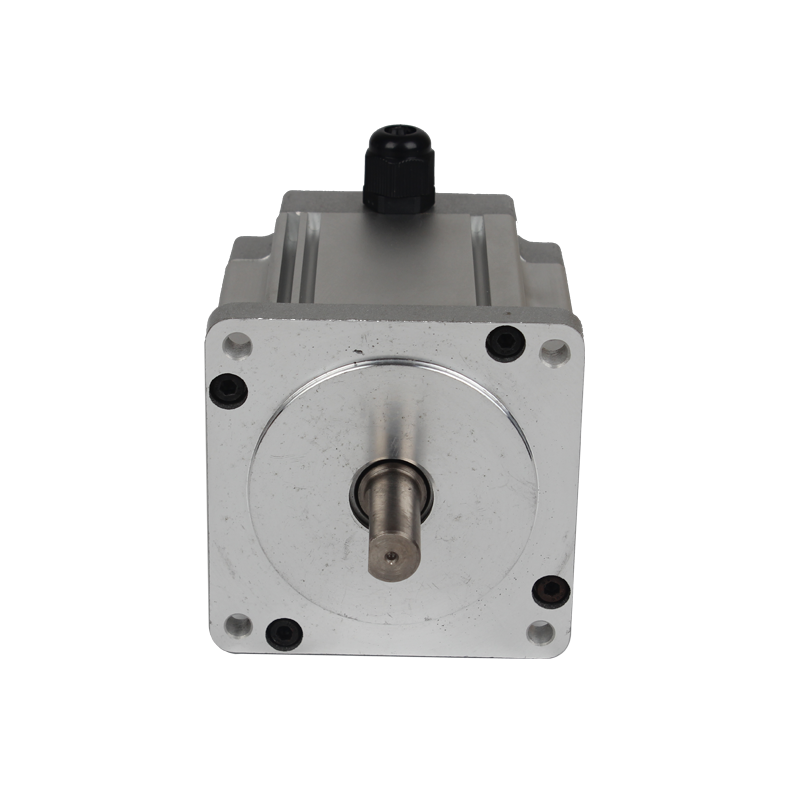

80BLF BLDC Motor | 80mm High Power Brushless DC Motor for Industrial Systems

Typical Applications of 80BLF 80mm BLDC motors

80BLF 80mm BLDC motor series is designed for high-load and high-power industrial applications, where smaller frame sizes may not provide sufficient torque or thermal capacity. 80BLF 80mm BLDC motor series is frequently used in demanding industrial environments requiring continuous operation and reliable performance.

In industrial machinery and automated production lines, 80BLF 80mm BLDC motors support heavier mechanical loads while maintaining stable speed control. The increased frame size allows for improved thermal management, making this series suitable for long-duty cycles in manufacturing facilities across Europe and North America.

80BLF 80mm BLDC motor series is also applied in drive systems and industrial processing equipment, where consistent power delivery and structural durability are essential to system reliability.

Common application areas include:

• Industrial machinery and processing equipment

• Automated production and assembly lines

• Heavy-duty industrial drive systems

• Manufacturing automation solutions




Technical Specifications of 80BLF 80mm BLDC motor

The following technical data applies to the 80BLF 80mm BLDC Motor Series.

Electrical Parameters

• Rated voltage options: 24V/48V/310V etc.

• Rated speed: 3000-6000rpm(customized)

• Rated Torque: 0.4-3.5N.m(customized)

• Output power range: 125-750W(customized)

Mechanical Parameters

• 80mm outer diameter

• Customized shaft diameter and length choices

• Mounting size customization

Optional Configurations

• Encoder feedback  and gearbox optional

• Various shaft types

• Customized cable and terminal

brushless dc motor specification.pdf

Customization Options

Available options include gearbox, controller, encoder and mouting size.

Electrical Specifications
Model	Voltage	RATED LOAD				Peak Torque	Torque constant	V/kRPM	Rotor inertia	Body Length	Mass
		speed	Torque	Current	Power
Model	V	rpm	Nm	A	W	Nm	N.M/A	V/kRPM	kg.mm2	L:mm	Kg
80BL86-430	48	3000	0.4	3.2	126	1.2	0.126	9.1	39	86	1.5
80BL106-430	48	3000	0.7	5.5	220	2.1	0.127	9	53	106	2.1
80BL106-660	310	6000	0.7	1.7	440	2.1	0.4	31	53	106	2.1
80BL126-430	48	3000	1.27	10	400	3.81	0.127	8.7	65	126	2.7
80BL126-450	48	5000	1.27	17	665	3.81	0.076	5.1	65	126	2.7
80BL126-630	310	3000	1.27	1.6	400	3.81	0.82	55	65	126	2.7
80BLF100-430	48	3000	1.27	11	400	3.81	0.115	8.4	53	100	2.1
80BLF100-445	48	4500	0.85	11	400	2.55	0.077	5.6	53	100	2.1
80BLF110-430	48	3000	1.6	14	500	4.8	0.114	8.4	66	110	2.6
80BLF110-445	48	4500	1.06	13.5	500	3.18	0.078	5.6	66	110	2.6
80BLF115-630	310	3000	1.75	2.3	550	5.25	0.76	55	73	110	2.7
80BLF130-630	310	3000	2.38	3.2	750	7.14	0.74	55	99	130	3.3
80BLF130-615	310	1500	3.5	2.4	550	10.5	1.45	95	99	130	3.3
★We also manufacture products according to customer,s requirements.

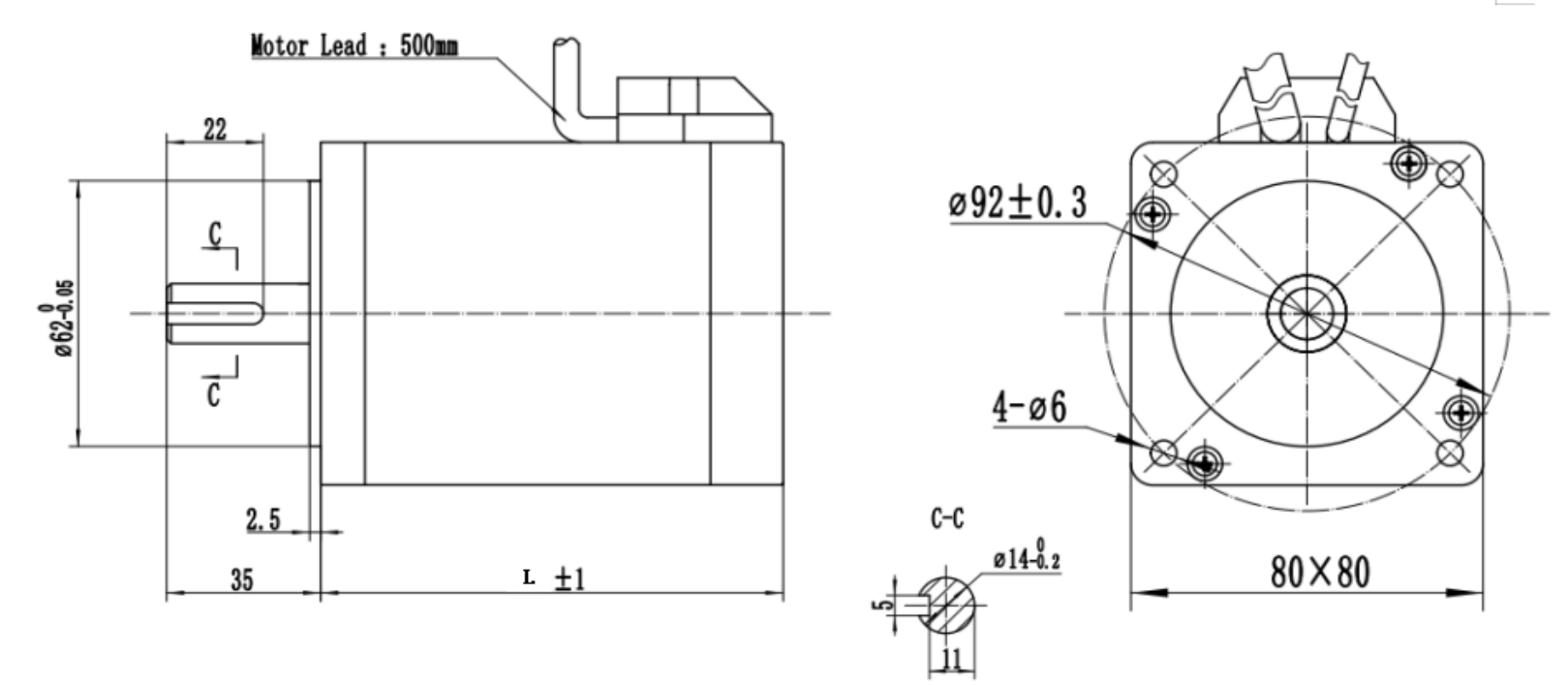

Mechanical Dimensions
Wiring Diagram

FAQ – 80BLF 80mm BLDC motor

Q1: Is 80BLF 80mm BLDC motor suitable for heavy-duty equipment?

A: Yes, 80BLF 80mm BLDC motor is designed for high-load industrial operation.

Q2: Can 80BLF 80mm BLDC motor run continuously?

A: Yes, 80BLF 80mm BLDC motor supports long-term continuous duty.

Q3: What industries commonly use 80BLF 80mm BLDC motor?

A: Automation, machinery manufacturing, and industrial processing.

Q4: Are custom shafts available?

A: Shaft designs can be customized.

Q5: Does 80BLF 80mm BLDC motor support closed-loop control?

A: Yes, encoder options are available.

Q6: Is 80BLF 80mm BLDC motor suitable for OEM integration?

A: Designed specifically with OEM applications in mind.
