Choosing Balance Weights for Electric Motor Rotors: A Practical Guide Engineers Often Overlook in 2026

Rotor balance is one of those topics most engineers understand in theory—yet still underestimate in practice.

When vibration or noise appears late in a motor project, attention often turns to bearings, control tuning, or housing stiffness. Only then does rotor balance resurface as a suspect, usually after weeks of iteration. In many cases, the real issue is not whether the rotor is balanced, but how the balance weights were selected, positioned, and validated.

In 2026, as motors spin faster, shrink in size, and operate closer to mechanical limits, balance weight selection has quietly become a critical design decision rather than a manufacturing afterthought.

This article breaks down how engineers should think about balance weights on motor rotors—what they really do, where mistakes occur, and how experienced teams avoid late-stage surprises.

Why Rotor Balance Still Matters More Than Data Sheets Suggest

Rotor imbalance generates centrifugal force that grows exponentially with speed. At low speeds, its impact may be negligible. At high speed, even a fraction of a gram placed incorrectly can dominate system behavior.

For modern BLDC motors, coreless motors, and frameless motors—especially those used in robotics, medical devices, and HVAC compressors—imbalance can lead to:

• Excessive vibration

• Audible noise and tonal whining

• Premature bearing wear

• Reduced efficiency at operating speed

• Inconsistent product quality across batches

Balance weight selection is often the first line of defense against these risks.

What Balance Weights Actually Do on a Rotor

At its core, a balance weight compensates for uneven mass distribution. That unevenness may come from:

• Magnet tolerances

• Shaft eccentricity

• Lamination stacking variation

• Adhesive overflow or curing shrinkage

• Asymmetric rotor features

Adding or removing mass at a precise angular and axial position counteracts the imbalance.

However, not all balance weights work the same way, and treating them as generic corrections is a common mistake.

Common Types of Rotor Balance Weights

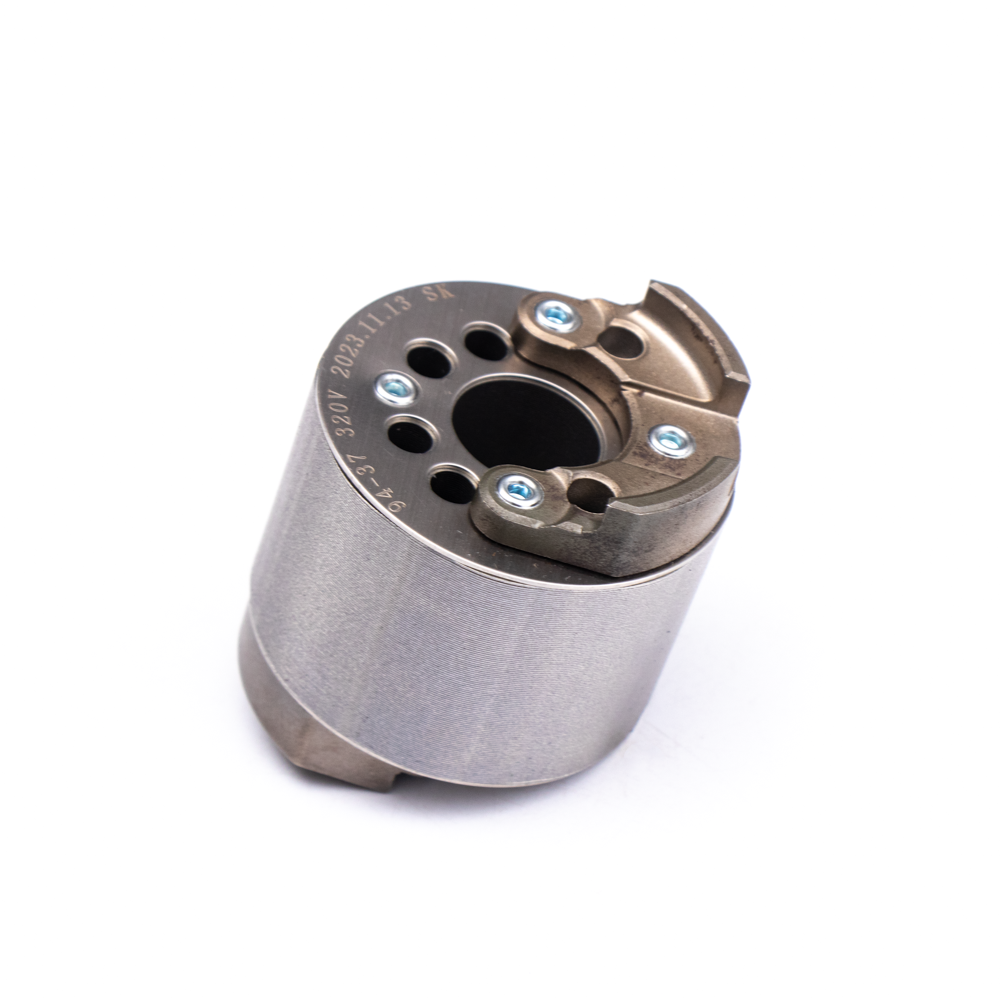

Clip-On or Press-Fit Balance Weights

These are typically used in higher-volume production where repeatability is critical.

They allow:

• Fast adjustment

• Minimal process interruption

• Good long-term retention if properly designed

However, poor material matching or insufficient retention force can cause weight migration at high speed.

Adhesive-Applied Balance Weights

Bonded weights offer more flexibility in geometry and placement.

They are common in:

• Compact BLDC motors

• Coreless motors

• Custom rotors with limited space

Adhesive selection, curing method, and surface preparation become just as important as the weight itself.

Material Removal as a Balancing Method

In some designs, balance is achieved by selectively removing material instead of adding weight.

This is effective in:

• Larger rotors

• High-stiffness assemblies

But it reduces post-processing flexibility and requires excellent upstream consistency.

Weight Material Selection: More Than Just Density

Choosing the material for balance weights is not simply about density.

Engineers must consider:

• Centrifugal force at max speed

• Thermal expansion compatibility

• Magnetic interaction with rotor fields

• Corrosion resistance

• Long-term adhesion reliability

Steel, brass, tungsten alloys, and even engineered polymers all appear in balance weight design depending on the application.

High-Speed Operation Changes Everything

As operating speeds exceed 10,000 rpm—and in some cases 30,000 rpm—the physics of balance become unforgiving.

At high speed:

• Minor mass errors are amplified

• Adhesives experience extreme shear stress

• Weight geometry affects airflow and noise

• Axial imbalance becomes as critical as radial imbalance

Experienced manufacturers design balance weights together with rotor geometry, not as a corrective patch at the end.

Single-Plane vs Two-Plane Balancing

Another frequently overlooked decision is how many planes to balance.

Single-Plane Balancing

Common in short rotors and lower-speed motors.

• Faster

• Lower cost

• Often sufficient for small diameters

Two-Plane Balancing

Increasingly common in 2026 due to higher speed and tighter vibration limits.

• Better vibration control

• Improved bearing life

• More stable noise signature

Two-plane balancing often pairs naturally with segmented balance weights.

Placement Strategy: Axial and Angular Precision

Balance weights are only effective if placed correctly.

Errors occur when:

• The correction plane is too close to the shaft center

• Weight is placed where airflow disturbance increases noise

• Angular resolution is insufficient during balancing

Modern balancing equipment can detect imbalance accurately, but placement still depends on mechanical accessibility and rotor design foresight.

Interaction With Bearings and Housing

Rotor balance does not exist in isolation.

An “acceptable” imbalance on a test rig may create resonance once installed in the actual housing. Bearings, preload, and mounting stiffness all modify how imbalance manifests.

This is why balance strategies increasingly consider the motor as an installed system, not just a standalone component.

Where Many Projects Go Wrong

Across different industries, similar failure patterns repeat:

• Balance weights selected too late in the design

• Overreliance on adhesive weights without long-term validation

• No correlation between balancing speed and real operating speed

• Treating all motors in a family as balance-equivalent

These shortcuts may pass initial testing but surface as field failures months later.

What Experienced Manufacturers Do Differently

Manufacturers with mature motor programs—often medium-scale specialists rather than large conglomerates—tend to integrate balancing logic early.

They:

• Design balance weight pockets into rotors

• Validate adhesive and material at max speed

• Maintain strict process consistency

• Balance representative samples under real conditions

Companies such as Modar Motor often approach balance weight decisions as part of the rotor design language itself, not merely a corrective step. This mindset reduces late-stage changes and improves batch-to-batch consistency.

How Balance Strategy Has Evolved by 2026

Several trends define modern balance weight selection:

• Higher-speed validation becoming standard

• Increased use of two-plane balancing

• Better simulation of imbalance effects

• Tighter vibration and noise thresholds

• Greater collaboration between design and manufacturing teams

What once lived in production now increasingly starts at the design table.

Final Thoughts: Balance Weights Are Small, Consequences Are Not

Rotor balance weights may be small components, but their influence is anything but minor.

In precision motors, balance strategy touches noise, efficiency, reliability, and customer perception. The difference between a stable motor and a problematic one is often measured in milligrams placed with intention—or without.

In 2026, successful motor projects treat balance weight selection as a design discipline, not a last-minute fix.
