42mm 42ZYT Brushed DC Motor – Product Overview

The 42ZYT brushed DC motor is a compact 42mm frame size DC motor designed for space-constrained drive systems requiring stable speed control and reliable torque output.
With a simple brushed structure, 42ZYT brushed DC motor series offers cost efficiency, easy control, and flexible customization for a wide range of OEM applications.

The 42ZYT brushed DC motor is suitable for both intermittent and continuous duty, making it a practical solution for small machinery and integrated electromechanical systems.

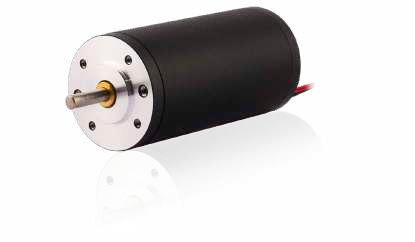

42ZYT MOTOR

Key Features

42mm outer diameter brushed DC motor
Compact structure for limited installation space
Stable torque and speed characteristics
Easy voltage and speed control
Designed for OEM and custom motor project

Typical Applications of 42mm 42ZYT Brushed DC Motor

The 42ZYT brushed DC motor is widely used in applications where compact size, cost efficiency, and simple control are required.

42ZYT brushed DC motor is suitable for small drive units integrated into equipment with limited mounting space, as well as devices that require reliable low-to-medium power output.

Typical application areas include:

Small pumps and fluid handling devices
Electric actuators and linear motion systems
Automation equipment and control units
Medical and laboratory instruments
Compact machinery and consumer-grade industrial devices

Technical Specifications of 42mm 42ZYT Brushed DC Motor

The following technical data applies to the 42mm 42ZYT Brushed DC Motor.

Electrical Parameters

Rated voltage options: 24V etc.
Rated speed: 3150rpm(customized)
Rated Torque: 57mN.m(customized)
Output power range: 19W(customized)

Mechanical Parameters

42mm outer diameter
Customized shaft diameter and length
Customized cover dimensions

Optional Configurations

can be customized with gearbox and also designed as various linear actuators

Brushed DC Motor.pdf

Motor Characteristics

Motor part number

42ZYTC85-1

Rated voltage

V

24

Rated torque

mN·m

57

Rated speed

RPM

3150

Rated current

A

1.45

No-load speed

RPM

4000

No-load current

A

0.3

Rated power

W

19

Stall torque

mN·m

256

Stall current

A

5.5

Torque constant

mNm/A

64.5

Back emf constant

V/Krpm

6.7

Terminal resistance

Ω

4.65

Terminal inductance

mH

3

Rotor inertia

g·cm²

110

Starting torque

mN·m

20

Noise (ambient noise 20dB, test distance 1m)

dB

<50

Life span

H

>2500

Insulation resistance

-

100M Ω/250V

Duty cycle

-

S1

Motor weight

Kg

0.43

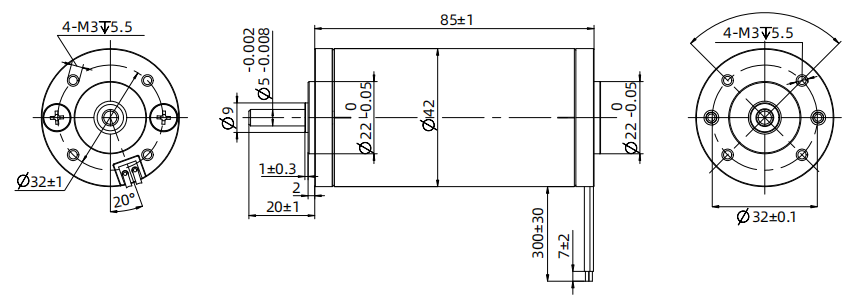

42ZYTC85-1 42mm Motor Drawing

42ZYTC85-1 42mm Motor Performance Curve

42ZYT brushed dc motor Performance Curve

FAQ – 42mm 42ZYT Brushed DC Motor

Q1: Is the 42ZYT brushed DC motor suitable for continuous operation?

Yes, with proper thermal design, 42ZYT brushed DC motor can support continuous duty applications.

Q2: Can 42ZYT brushed DC motor be speed controlled easily?

Yes, brushed DC motors allow simple speed control via voltage adjustment.

Q3: Is customization available for 42ZYT brushed DC motor?

Yes, voltage, winding and shaft options can be customized.

Q4: What industries commonly use 42ZYT brushed DC motor?

Automation, medical devices, small pumps, and compact machinery.

Q5: Does 42ZYT brushed DC motor include a gearbox?

Gearboxes are optional and can be supplied based on project needs.

Q6: Do you support OEM and long-term supply?

Yes, 42ZYT brushed DC motor series is designed for OEM projects and stable production.

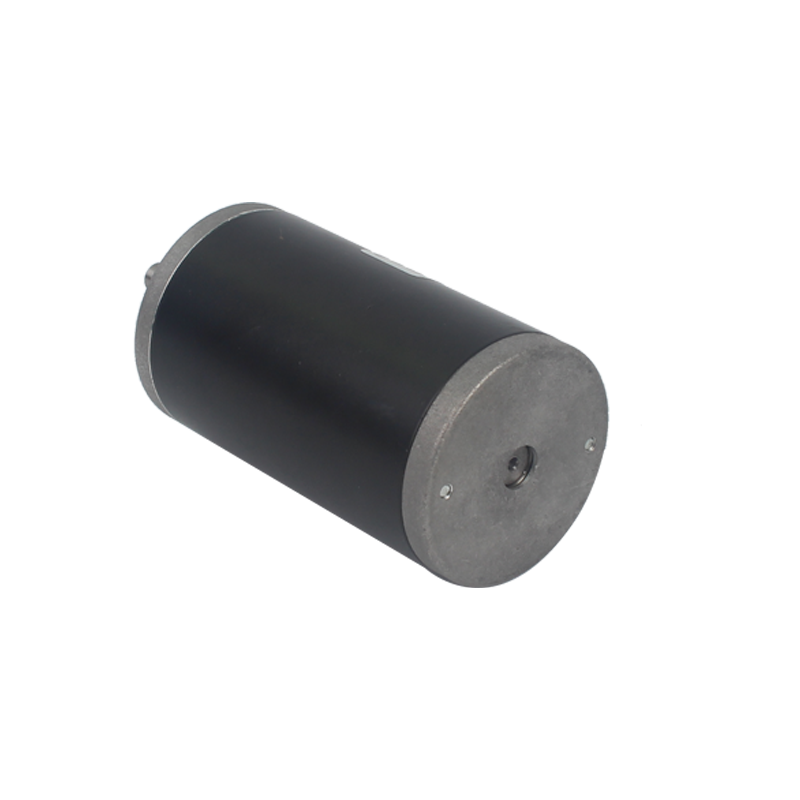

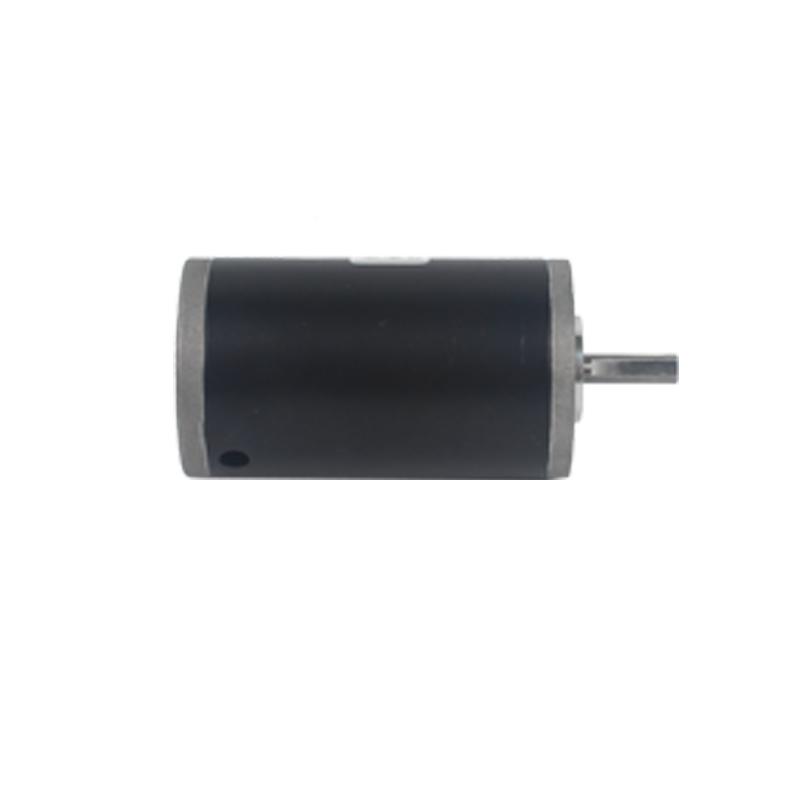

42ZYT Brushed DC Motor – 42mm DC Motor for Compact Drive Systems

42ZYTC85-1 Brush DC Motor has 24V Rated voltage of DC Motor and it can run at Max. 3,150RPM.
It can generate 57mN.m of rated torque and customized with gearbox and also designed as various linear actuators.
