80mm 80ZYT Brushed DC Motor – Product Overview

The 80ZYT brushed DC motor is a heavy-duty DC motor platform with an 80mm frame size, developed for applications requiring high torque, strong load capacity, and long-term stability.

80ZYT brushed DC motor's robust mechanical structure and high electromagnetic capacity make 80ZYT brushed DC motor suitable for demanding industrial environments where continuous operation and reliability are critical.

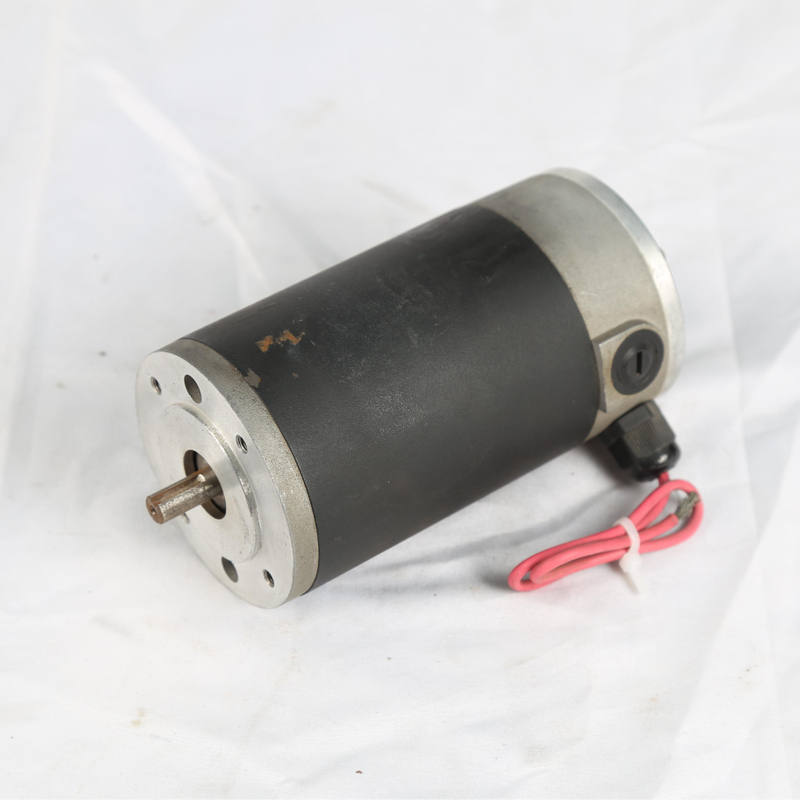

80ZYT Brushed Motor

Key Features

80mm frame size brushed DC motor
Designed for heavy-duty operation
High torque and power capability
Stable performance under continuous load
Ideal for OEM industrial motor platforms

Typical Applications of 80mm 80ZYT Brushed DC Motor

80ZYT brushed DC motor is primarily used in high-load and industrial-grade applications.

In pump systems, 80ZYT brushed DC motor is well suited for large water pumps and oil pumps that operate under higher pressure or flow requirements.
In industrial drive systems, 80ZYT brushed DC motor is integrated into machinery that demands reliable torque output over long operating cycles.

Typical application scenarios include:

Heavy-duty water pump motors
Oil pump and hydraulic-related equipment
Industrial drive and transmission systems
Large automation machinery
OEM heavy industrial motor projects

Technical Specifications of 80mm 80ZYT Brushed DC Motor

The following technical data applies to the 80mm 80ZYT Brushed DC Motor.

Electrical Parameters

Rated voltage options: 24V etc.
Rated speed: 2500rpm(customized)
Rated Torque: 0.25N.m(customized)
Output power range: 65W(customized)

Mechanical Parameters

80mm outer diameter
Customized shaft and cover mounting size
Customized terminal optional

Optional Configurations

can be customized with gearbox and also designed as various linear actuators

Brushed DC Motor.pdf

Motor Characteristics

Motor part number

80ZYTC102-1

Rated voltage

V

24

Rated torque

N·m

0.25

Rated speed

RPM

2500

Rated current

A

4.5

No-load speed

RPM

3200

No-load current

A

0.6

Rated power

W

65

Stall torque

N·m

1.2

Stall current

A

19

Torque constant

mNm/A

61

Back emf constant

V/Krpm

6.4

Terminal resistance

Ω

1.3

Terminal inductance

mH

1.8

Rotor inertia

kg.cm²

1.6

Starting torque

mN·m

52

Noise (ambient noise 20dB, test distance 1m)

dB

<50

Life span

H

>3000

Insulation resistance

-

100M Ω/250V

Duty cycle

-

S1

Motor weight

Kg

1.7

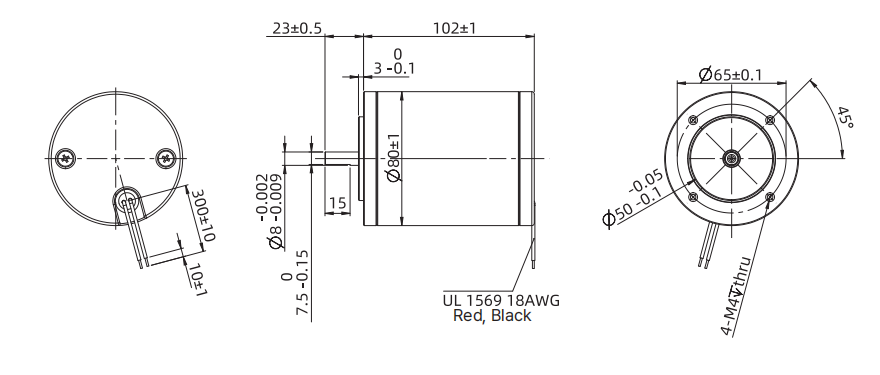

80ZYTC102-1 63mm Motor Drawing

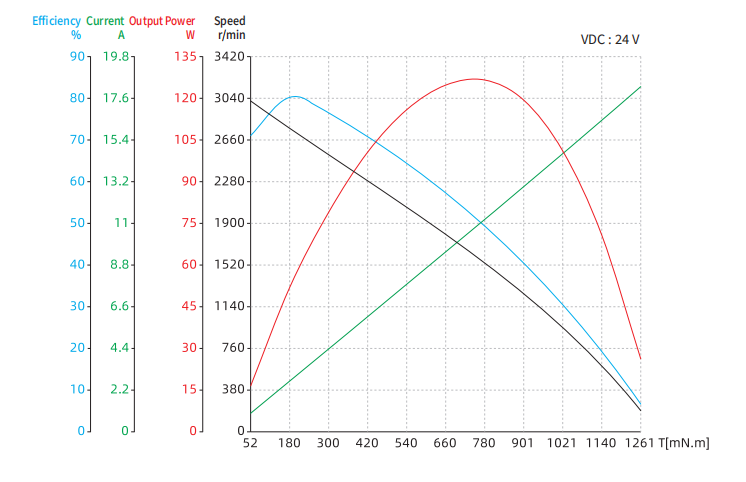

80ZYTC102-1 63mm Motor Performance Curve

80ZYT brushed dc motor performance curve 1

FAQ – 80mm 80ZYT Brushed DC Motor

Q1: Is 80ZYT brushed DC motor suitable for continuous industrial operation?

Yes, 80ZYT brushed DC motor is designed for continuous and heavy-duty use.

Q2: What type of load can 80ZYT brushed DC motor handle?

80ZYT brushed DC motor supports high torque and heavy mechanical loads.

Q3: Is customization available for industrial projects?

Yes, electrical and mechanical customization is supported.

Q4: Can 80ZYT brushed DC motor be used in pump applications?

Yes, especially in high-capacity water and oil pumps.

Q5: Is 80ZYT brushed DC motor suitable for harsh environments?

Yes, with proper protection and system design.

Q6: Do you support long-term OEM cooperation?

Yes, 80ZYT brushed DC motor is intended for long-term industrial supply.
