Brushless Gearmotor Selection Guide for OEM Automation Projects: How to Match Torque, Speed, Gear Ratio, and Application Requirements

Introduction: Why Brushless Gearmotors Matter for Modern OEM Equipment

In modern automation equipment, motion control is no longer only about making something rotate. OEM buyers now need compact motors that can deliver stable torque, controlled speed, long service life, low noise, and reliable operation under repeated duty cycles. Whether the final product is an automated conveyor, medical device, packaging machine, intelligent vending system, robot joint, AGV, AMR, security equipment, or custom industrial actuator, the motor system directly affects the performance and reliability of the whole product.

This is why brushless gearmotors are becoming a preferred solution for many OEM motion projects. A brushless gearmotor combines a brushless DC motor with a precision gearbox, allowing the system to reduce speed while increasing output torque. Compared with traditional brushed gear motors, brushless gearmotors offer better efficiency, longer life, less maintenance, smoother speed control, and improved reliability in demanding applications.

For B2B buyers, however, choosing the right brushless gearmotor is not always simple. A motor that looks similar in size may perform very differently depending on voltage, rated speed, gear ratio, gearbox type, output torque, shaft design, controller compatibility, duty cycle, encoder requirement, and mounting structure. If the motor is selected only by diameter or price, the final equipment may face problems such as insufficient torque, overheating, unstable speed, high noise, short gearbox life, or installation failure.

This article is written for OEM engineers, purchasing managers, equipment manufacturers, and distributors who need to select or customize brushless gearmotors for real industrial and commercial applications. It explains how brushless gearmotors work, where they are used, which specifications matter most, and how to communicate requirements with a professional motor supplier.

What Is a Brushless Gearmotor?

Basic Definition of a Brushless Gearmotor

A brushless gearmotor is a compact motion solution that integrates a brushless DC motor with a gearbox. The brushless motor provides high-speed rotation and efficient electrical performance, while the gearbox reduces the speed and increases the output torque. This combination allows the motor to drive loads that require stronger torque at lower speeds.

In simple terms, a brushless gearmotor is designed for applications where a standard motor rotates too fast but does not provide enough usable torque directly. By adding a gearbox, the motor output becomes more suitable for practical mechanical systems such as wheels, rollers, actuators, rotating arms, lifting mechanisms, positioning devices, and compact transmission systems.

How a Brushless Gearmotor Works

A brushless DC motor uses electronic commutation instead of mechanical brushes. The rotor usually contains permanent magnets, while the stator contains windings. The motor controller switches current through the windings to create a rotating magnetic field. This drives the rotor smoothly and efficiently.

When the brushless motor is connected to a gearbox, the high-speed motor rotation is converted into lower-speed, higher-torque output. The gear ratio determines how much the speed is reduced and how much torque is increased. For example, a higher gear ratio generally provides higher output torque but lower output speed.

This makes brushless gearmotors highly useful for applications where controlled motion and mechanical strength are both required.

Brushless Gearmotor vs Standard Brushless Motor

A standard brushless motor is suitable when the application needs high speed and relatively direct rotation. A brushless gearmotor is more suitable when the application needs controlled low-speed motion and higher output torque.

For example, a fan may use a standard brushless motor because the motor can directly drive the blade at a high speed. However, an AGV wheel, automatic door mechanism, conveyor roller, or medical adjustment actuator usually needs more torque and lower speed. In these cases, a brushless gearmotor is often a better choice.

Why OEM Buyers Choose Brushless Gearmotors

Higher Efficiency for Energy-Sensitive Equipment

Brushless motors are generally more efficient than brushed motors because they do not rely on carbon brushes for commutation. Less friction and lower electrical loss can help reduce power consumption and heat generation. For battery-powered equipment such as AGVs, AMRs, portable medical devices, and intelligent robots, higher efficiency can extend operating time and improve system performance.

For OEM buyers, efficiency is not only a technical advantage. It can also become a selling point for the final product. Equipment with lower energy consumption is often more attractive in industrial automation, medical, commercial, and smart device markets.

Longer Service Life

One of the biggest advantages of brushless gearmotors is their long service life. Since there are no brushes wearing down during operation, the motor part requires less maintenance and can run longer under suitable working conditions.

For equipment manufacturers, longer motor life means fewer after-sales issues, lower maintenance cost, and improved customer satisfaction. This is especially important for products installed in remote locations, commercial sites, factories, hospitals, or public service equipment where downtime is expensive.

Low Maintenance Design

Traditional brushed motors require attention to brush wear, carbon dust, and commutator condition. Brushless gearmotors eliminate these brush-related problems. This makes them suitable for equipment that needs stable long-term operation with minimal maintenance.

In B2B applications, low maintenance is a strong advantage because OEM customers often care about the total cost of ownership, not only the initial purchase price.

Compact High Torque Output

A gearbox allows a brushless motor to generate higher output torque in a compact size. This is valuable for machines with limited installation space. Many modern devices need smaller motors but stronger performance. Examples include compact robotics, smart locks, automatic dispensers, medical beds, electric actuators, and portable automation equipment.

A well-designed brushless gearmotor can help OEM engineers reduce system size while maintaining reliable torque output.

Precise Speed Control

Brushless motors can work with controllers to achieve smooth and accurate speed regulation. When combined with an encoder, the motor can provide feedback for more precise control. This is useful for applications such as robotics, positioning systems, laboratory instruments, packaging equipment, and automatic doors.

For projects requiring repeatable motion, stable speed, or controlled acceleration and deceleration, brushless gearmotors offer strong advantages.

Common Applications of Brushless Gearmotors

Industrial Automation Equipment

Brushless gearmotors are widely used in industrial automation systems, including conveyors, sorting machines, indexing tables, small actuators, packaging lines, and automatic feeding equipment. These systems often require stable operation, long service life, and reliable torque output.

In many factories, automation equipment runs for long hours. A motor failure can stop the production line and cause costly downtime. Therefore, choosing a durable brushless gearmotor is important for machine builders and OEM manufacturers.

Robotics and Robot Joints

Robotic systems require compact motors with controlled torque and smooth motion. Brushless gearmotors can be used in robot joints, grippers, rotating bases, mobile robot wheels, and small automation arms.

For robotics applications, motor size, weight, torque, backlash, encoder compatibility, and control precision are very important. A suitable brushless gearmotor can help improve motion accuracy and mechanical reliability.

AGV and AMR Systems

Autonomous guided vehicles and autonomous mobile robots need reliable drive motors. Brushless gearmotors are often used for wheel drive systems because they provide high efficiency, controlled speed, and strong torque in compact structures.

For AGV and AMR buyers, important motor factors include rated voltage, torque, wheel load, duty cycle, braking requirement, encoder feedback, controller compatibility, and protection level. The motor must be stable during frequent start-stop operation and continuous movement.

Medical Equipment

Medical equipment often requires smooth, quiet, and reliable motion. Brushless gearmotors can be used in medical beds, rehabilitation devices, sample handling equipment, infusion systems, laboratory instruments, and diagnostic equipment.

In these applications, noise control, smooth operation, compact size, and long service life are very important. The motor should also provide stable performance under controlled working conditions.

Security Systems

Brushless gearmotors can be used in security cameras, access control devices, automatic gates, smart locks, surveillance platforms, and positioning mechanisms. These applications often require quiet operation, accurate motion, and long-term reliability.

For outdoor or semi-outdoor security products, protection level and temperature resistance should be considered carefully.

Commercial Smart Devices

Many commercial smart devices use compact gearmotors. Examples include vending machines, payment terminals, automatic kiosks, coffee machines, electric curtains, display equipment, and smart storage systems.

For these products, motor reliability directly affects the end user experience. A jammed motor, unstable speed, or high noise can reduce product quality and increase maintenance complaints.

Main Types of Gearboxes Used with Brushless Gearmotors

Planetary Gearbox

A planetary gearbox is one of the most common gearbox types for brushless gearmotors. It has a compact structure, relatively high torque density, good efficiency, and stable transmission. Planetary gearmotors are often used in robotics, automation equipment, AGVs, medical equipment, and precision devices.

For OEM buyers, planetary gearboxes are suitable when the application needs compact size, higher torque, and better transmission performance.

Spur Gearbox

A spur gearbox uses simple straight gears to reduce speed and increase torque. It is often cost-effective and suitable for applications where the load is not extremely high and the mechanical structure is relatively simple.

Spur gearmotors are commonly used in commercial devices, small automation mechanisms, vending equipment, and general motion systems.

Worm Gearbox

A worm gearbox can provide high reduction ratios in a compact space. It may also offer self-locking characteristics in some designs, depending on gear angle and efficiency. Worm gearmotors are often used in lifting mechanisms, adjustment devices, doors, valves, and positioning systems.

However, worm gearboxes may have lower efficiency than planetary gearboxes, so thermal performance and duty cycle should be carefully considered.

Right-Angle Gearbox

A right-angle gearbox changes the output direction by 90 degrees. This is useful when the installation space does not allow a straight motor layout. Right-angle brushless gearmotors can be used in compact equipment, packaging machines, and special automation systems.

For OEM buyers, the main advantage is space-saving mechanical design.

Key Parameters to Confirm When Selecting a Brushless Gearmotor

Voltage

Voltage is one of the first parameters to confirm. Common brushless gearmotor voltages include 12V, 24V, 36V, 48V, and other customized options. The correct voltage depends on the power supply, control system, safety requirement, and application environment.

For battery-powered equipment, 24V and 48V are often used. For smaller devices, 12V or 24V may be enough. For industrial automation, voltage should match the system design and controller capability.

Rated Speed

The output speed of a brushless gearmotor is determined by the motor speed and gearbox ratio. Buyers should confirm the required output speed at the shaft after reduction.

If the speed is too high, the equipment may operate too fast or become unstable. If the speed is too low, the machine may fail to meet production efficiency or movement requirements.

Rated Torque

Torque is one of the most important selection factors. The motor must provide enough torque to move the load under actual working conditions. Buyers should consider not only rated torque but also starting torque, peak torque, load variation, friction, acceleration, and safety margin.

For applications with frequent start-stop operation, torque margin is especially important.

Gear Ratio

The gear ratio determines how much the speed is reduced and how much the torque is increased. A higher gear ratio generally results in lower output speed and higher torque. However, gearbox efficiency, noise, backlash, size, and service life must also be considered.

Choosing the correct gear ratio requires understanding the load, target speed, and torque requirement.

Gearbox Type

Different gearbox types have different advantages. Planetary gearboxes are compact and efficient. Spur gearboxes are simple and cost-effective. Worm gearboxes are useful for high reduction ratios and certain holding applications. Right-angle gearboxes save installation space.

OEM buyers should select the gearbox based on mechanical structure, torque demand, space limitation, noise target, and budget.

Shaft Size and Shape

The output shaft must match the mechanical connection of the final product. Important details include shaft diameter, shaft length, flat position, keyway, thread, D-shaft design, round shaft design, and tolerance.

A small shaft mismatch can cause assembly failure, vibration, or poor torque transmission. Therefore, shaft drawings should be confirmed before sample production.

Mounting Method

Mounting type affects installation compatibility. Brushless gearmotors may use flange mounting, foot mounting, threaded holes, custom brackets, or integrated mounting structures.

For OEM projects, the mounting dimensions should match the equipment housing. If the buyer is replacing an existing motor, the mounting hole distance and output shaft position should be carefully checked.

Duty Cycle

Duty cycle describes how long the motor runs and rests during operation. Some applications require continuous operation, while others only run intermittently. A motor suitable for intermittent duty may overheat if used continuously.

OEM buyers should provide real working conditions, including running time, stop time, load level, ambient temperature, and expected operating hours per day.

Controller Compatibility

A brushless gearmotor needs a compatible controller or driver. The controller must match the motor voltage, current, Hall sensor type, speed control method, and feedback requirement.

If the motor needs speed regulation, direction control, braking, or communication with a control board, these requirements should be confirmed early.

Encoder Requirement

Encoders are used for feedback control. If the application requires speed feedback, position feedback, or precise motion control, an encoder may be necessary.

Common encoder options include Hall feedback, incremental encoder, ABZ encoder, and other customized feedback solutions. The required resolution should be selected according to the control accuracy needed by the equipment.

Brake Requirement

Some applications require a brake to hold position when power is off or to stop movement quickly. Examples include lifting devices, vertical actuators, medical equipment, and safety-related motion systems.

If braking is required, the buyer should confirm holding torque, power-off brake type, voltage, installation space, and control logic.

Noise Requirement

Noise level is important for medical devices, commercial equipment, office automation, household devices, and indoor robots. Gearbox type, gear precision, bearing quality, motor design, load condition, and mounting structure can all affect noise.

If the final product is used near people, acceptable noise level should be defined during sample testing.

Protection Level

For outdoor, dusty, humid, or industrial environments, the motor may need a higher protection level. Buyers should confirm IP rating, sealing requirements, operating temperature, humidity, and exposure conditions.

A motor used in a clean indoor device has different protection requirements from a motor used in outdoor security equipment or industrial machinery.

Brushless Gearmotor vs Brushed Gear Motor

Service Life Difference

The biggest difference is service life. Brushed gear motors use carbon brushes, which wear over time. Brushless gearmotors do not have brushes, so they can achieve longer motor life under suitable conditions.

For OEM products that need long-term reliability, brushless gearmotors are often a better solution.

Maintenance Difference

Brushed motors may require maintenance or replacement after brush wear. Brushless motors reduce this concern. This is important for equipment installed in factories, hospitals, commercial buildings, or remote operating locations.

Control Difference

Brushless gearmotors usually require controllers, but they can offer better speed control and feedback options. Brushed motors are simpler to drive, but they may not provide the same level of control precision and efficiency.

Cost Difference

Brushed gear motors are often cheaper in initial cost. Brushless gearmotors usually cost more, but they can provide better long-term value through longer life, higher efficiency, lower maintenance, and better performance.

For B2B buyers, the decision should be based on total cost of ownership, not only unit price.

Brushless Gearmotor vs Stepper Gear Motor

Motion Control Difference

Stepper gear motors are useful for open-loop positioning and controlled movement. Brushless gearmotors are often better for continuous rotation, higher efficiency, smoother operation, and applications requiring long service life.

Efficiency Difference

Brushless gearmotors usually have better efficiency than stepper motors in many continuous motion applications. Stepper motors can consume power even when holding position, while brushless motors can be more energy-efficient when properly controlled.

Application Difference

Stepper gear motors are common in positioning systems, 3D printers, small CNC equipment, and indexing devices. Brushless gearmotors are often used in AGVs, robotics, medical equipment, conveyors, and continuous motion systems.

The best choice depends on the control requirement, speed range, torque demand, and duty cycle.

How to Calculate Gear Ratio for a Brushless Gearmotor

Basic Formula

The basic formula for gear ratio is:

Gear Ratio = Motor Speed / Required Output Speed

For example, if a brushless motor rotates at 3000 rpm and the required output speed is 100 rpm, the gear ratio is 30:1.

This is only a simplified calculation. In real applications, buyers should also consider gearbox efficiency, load torque, acceleration torque, duty cycle, and safety margin.

Torque Consideration

Output torque increases after gear reduction. However, the increase is not perfectly equal to the gear ratio because every gearbox has efficiency loss.

A simplified formula is:

Output Torque = Motor Torque × Gear Ratio × Gearbox Efficiency

This means the gearbox type and efficiency have a major impact on actual output performance.

Avoid Choosing Gear Ratio Only by Speed

Some buyers choose a gear ratio only based on output speed. This can lead to torque problems. The correct selection should balance speed, torque, efficiency, gearbox life, noise, and available motor power.

For critical projects, it is better to provide real load information to the motor supplier and request technical support.

Common Mistakes OEM Buyers Should Avoid

Choosing by Motor Diameter Only

Many brushless gearmotors look similar from the outside, but their internal winding, magnet design, gearbox structure, gear material, torque capacity, and service life may be different. Choosing only by diameter can result in poor performance.

Motor diameter is useful as a reference, but it should not be the only selection factor.

Ignoring Starting Torque

Some applications require high starting torque. If the motor is selected only according to rated running torque, it may fail to start under load.

Applications such as conveyors, doors, actuators, and wheel drive systems often need careful starting torque evaluation.

Not Considering Gearbox Backlash

Backlash is the mechanical clearance inside the gearbox. For precision applications such as robotics or positioning systems, backlash can affect accuracy. Buyers should confirm acceptable backlash before ordering.

Planetary gearboxes usually offer better precision options than simple spur gearboxes, but the final performance depends on design and manufacturing quality.

Underestimating Heat

Even efficient brushless gearmotors generate heat under load. Gearbox friction, continuous operation, high torque, and poor ventilation can all increase temperature.

OEM buyers should test the motor under real operating conditions before mass production.

Ignoring Controller Matching

A brushless motor cannot operate properly without a suitable controller. Incorrect controller selection may cause unstable operation, low torque, overheating, noise, or motor damage.

Buyers should confirm Hall sensor wiring, phase wires, voltage, current, speed control signal, braking function, and communication interface when needed.

Skipping Sample Testing

Sample testing is necessary for customized brushless gearmotor projects. It allows buyers to check installation fit, torque, speed, noise, temperature rise, controller matching, shaft strength, and long-term running performance.

Skipping this step can create serious problems during mass production.

What OEM Buyers Should Provide When Sending an Inquiry

Application Description

A clear application description helps the supplier recommend a suitable motor. Buyers should explain what the motor will drive, how the load moves, where the motor is installed, and what working environment it will face.

For example, “brushless gearmotor for AGV wheel drive” gives much more useful information than simply saying “need 24V motor.”

Required Voltage and Power Supply

The power supply voltage should be clearly stated. If the system is battery-powered, the voltage range should also be provided because battery voltage can change during discharge.

Output Speed Requirement

Buyers should provide the required output speed after gear reduction. If there is a speed range, it should be listed clearly.

Torque or Load Requirement

Torque requirement is essential. If exact torque is unknown, buyers can provide load weight, wheel diameter, movement speed, friction condition, lifting angle, or mechanical structure. A professional supplier can help estimate the needed torque.

Gearbox Preference

If the buyer already knows the preferred gearbox type, such as planetary, spur, worm, or right-angle gearbox, it should be mentioned. If not, the supplier can recommend the suitable structure.

Shaft and Mounting Drawing

Drawings are very helpful for customized projects. A 2D drawing should include shaft size, mounting holes, overall length, flange size, and key tolerances. A 3D file is even better for mechanical integration.

Controller and Feedback Requirement

If the motor needs Hall sensors, encoder, brake, or a specific controller interface, these details should be confirmed early.

Quantity and Project Stage

Buyers should mention whether the project is in the sample stage, prototype stage, pilot production, or mass production. Estimated annual quantity also helps the supplier recommend a practical solution.

How Modar Motor Supports Brushless Gearmotor OEM Projects

Practical Customization for B2B Buyers

Modar Motor supports customized motor solutions for OEM buyers who need more than a standard catalog product. For brushless gearmotor projects, customization may include voltage, speed, gear ratio, shaft design, mounting structure, lead wire, connector, encoder, brake, controller matching, and packaging.

This is important for equipment manufacturers because real applications often have unique mechanical and electrical requirements. A motor that works in one machine may not directly fit another machine without adjustment.

Support from Requirement Confirmation to Sample Testing

A successful brushless gearmotor project usually begins with requirement confirmation. Modar Motor can help buyers review key parameters such as load, output speed, torque, voltage, gear ratio, duty cycle, and installation structure.

After the specification is confirmed, sample production and testing can help verify fit and performance before mass production. This process reduces the risk of wrong selection and helps buyers shorten development time.

Suitable for Automation, Robotics, Medical, and Commercial Equipment

Brushless gearmotors from Modar Motor can be developed for various applications, including industrial automation, robotics, AGV and AMR systems, medical equipment, security systems, smart commercial devices, and custom motion systems.

For buyers who need stable supply and flexible customization, working with a responsive motor manufacturer can make project communication much easier.

Engineering-Oriented Communication

For OEM motor projects, fast and accurate technical communication is valuable. Modar Motor can support buyers with specification review, drawing confirmation, sample adjustment, and production follow-up.

This helps B2B customers avoid common issues such as incorrect shaft size, unsuitable gear ratio, insufficient torque, wrong wiring, controller mismatch, and mounting incompatibility.

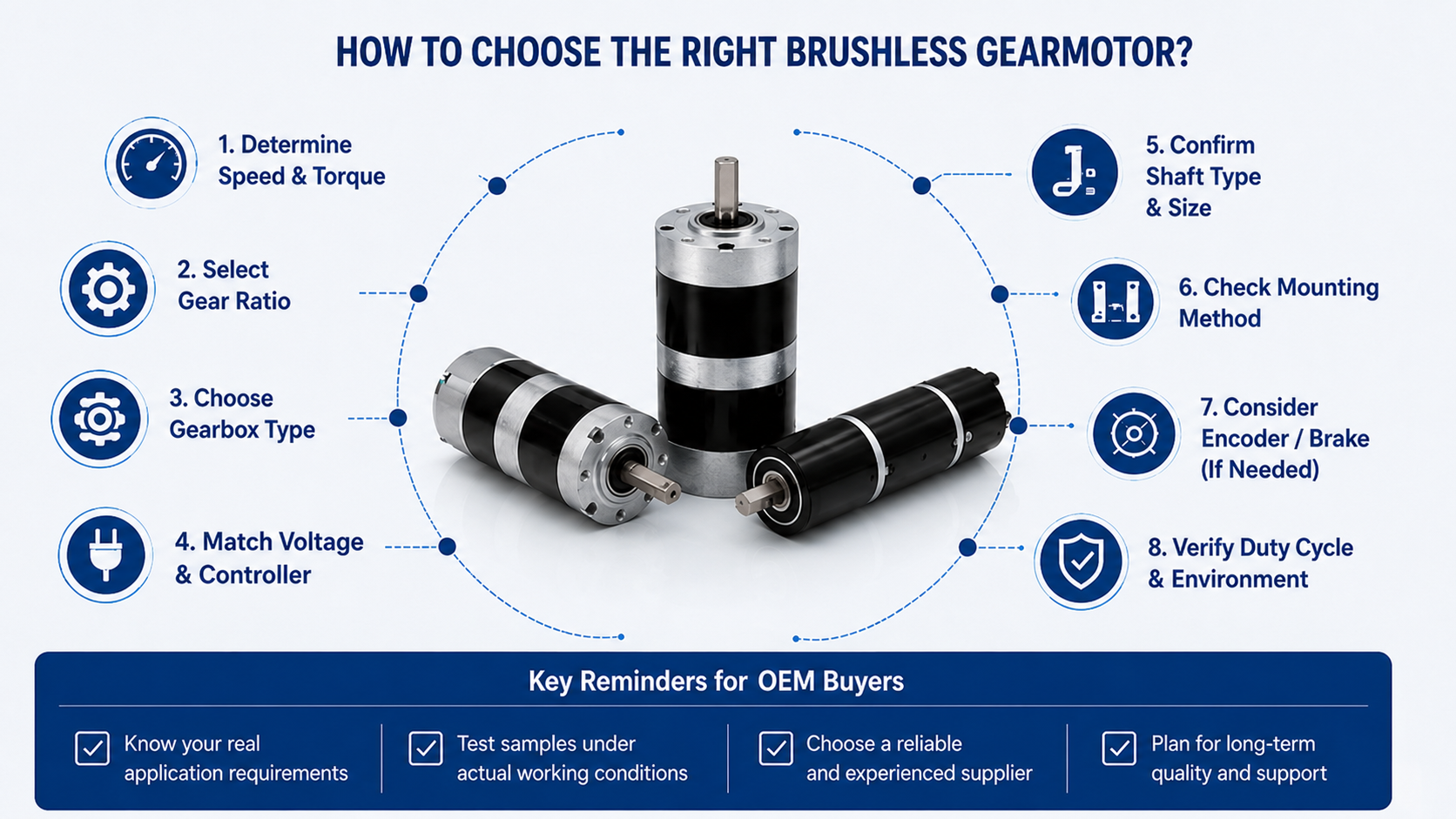

Recommended Brushless Gearmotor Selection Process

Step 1: Define the Application

Start with the real application. What does the motor drive? Is it a wheel, roller, belt, arm, actuator, door, pump, or rotating platform? The application determines the basic motor structure and performance requirement.

Step 2: Confirm Speed and Torque

The required output speed and torque should be confirmed before selecting the gear ratio. If the load changes during operation, peak torque and starting torque should also be considered.

Step 3: Select Gearbox Type

Choose the gearbox based on torque density, efficiency, noise, cost, precision, and installation space. Planetary gearboxes are suitable for compact high-torque applications, while other gearbox types may be better for special structures.

Step 4: Confirm Mechanical Dimensions

Check motor diameter, overall length, shaft size, mounting holes, flange size, and available installation space. Mechanical mismatch is one of the most common causes of project delay.

Step 5: Confirm Electrical Interface

Confirm voltage, current, controller type, Hall sensor wires, encoder signal, brake wires, and connector type. This helps ensure smooth integration with the control system.

Step 6: Test Samples Under Real Load

The motor should be tested with the actual equipment, not only under no-load conditions. Real-load testing helps confirm torque, speed, temperature rise, noise, vibration, and control stability.

Step 7: Finalize Specification for Mass Production

After sample approval, the final specification should be locked, including drawings, wiring diagram, label, packaging, test standard, and inspection requirements.

Quality Factors That Affect Brushless Gearmotor Performance

Winding Quality

The motor winding affects efficiency, torque, temperature rise, and service life. Stable winding production helps ensure consistent motor performance from batch to batch.

Magnet Quality

Permanent magnets affect motor power density and efficiency. Good magnet quality helps the motor maintain stable performance under load.

Gear Material

Gear material affects gearbox strength, noise, wear resistance, and service life. Metal gears, powder metallurgy gears, plastic gears, and precision machined gears may be selected depending on the application.

Bearing Quality

Bearings affect noise, smoothness, load capacity, and life. For low-noise or high-duty-cycle applications, bearing selection is very important.

Assembly Precision

Poor assembly can cause vibration, noise, uneven gear wear, and reduced service life. Precision assembly is especially important for planetary gearboxes and compact high-torque designs.

Testing Process

Reliable motor suppliers should perform necessary testing, such as no-load current, load performance, speed, noise, temperature rise, insulation, and appearance inspection. For OEM orders, customized testing standards can also be discussed.

Brushless Gearmotor Buying Tips for International OEM Buyers

Do Not Compare Only Price

Price is important, but the lowest price may not offer the best value. A motor with poor gearbox quality or unstable performance can cause expensive after-sales issues.

Buyers should compare specification, quality control, customization capability, testing support, communication efficiency, and delivery stability.

Ask for Drawings Before Sample Confirmation

Drawings help avoid misunderstanding. Before ordering samples, buyers should confirm dimensions, mounting structure, shaft design, wiring, and connector details.

Confirm Real Working Conditions

A motor selected without real load information may fail during application testing. Provide as much information as possible about load, duty cycle, environment, and expected service life.

Consider Future Mass Production

A sample motor may work well, but buyers should also consider whether the supplier can support consistent mass production, stable delivery, packaging, inspection, and long-term cooperation.

Choose a Supplier with Customization Experience

Many brushless gearmotor projects require customized design. A supplier with OEM experience can help solve practical problems faster than a supplier that only sells standard models.

Product FAQ: Brushless Gearmotor

What is a brushless gearmotor?

A brushless gearmotor is a motion component that combines a brushless DC motor with a gearbox. The brushless motor provides efficient rotation, while the gearbox reduces speed and increases output torque for practical mechanical applications.

What is the difference between a brushless gearmotor and a brushed gear motor?

A brushed gear motor uses carbon brushes for commutation, while a brushless gearmotor uses electronic commutation. Brushless gearmotors usually offer longer service life, higher efficiency, lower maintenance, and better speed control.

Where are brushless gearmotors commonly used?

Brushless gearmotors are used in industrial automation, robotics, AGV and AMR systems, medical equipment, security systems, smart commercial devices, conveyors, actuators, and customized motion systems.

How do I choose the correct gear ratio?

The gear ratio should be selected based on the required output speed and torque. A higher gear ratio reduces speed and increases torque, but gearbox efficiency, noise, backlash, and service life should also be considered.

Can brushless gearmotors be customized?

Yes. Brushless gearmotors can be customized for voltage, speed, torque, gear ratio, shaft size, mounting method, lead wire, connector, encoder, brake, controller compatibility, label, and packaging.

Do brushless gearmotors need a controller?

Yes. Brushless motors require a controller or driver for electronic commutation. The controller must match the motor voltage, current, Hall sensor type, speed control method, and feedback requirement.

Can a brushless gearmotor include an encoder?

Yes. Encoders can be added when the application requires speed feedback, position feedback, or precise motion control. Buyers should confirm encoder type and resolution before ordering.

Can a brushless gearmotor include a brake?

Yes. A brake can be added for applications that require position holding or quick stopping. Brakes are often used in lifting systems, vertical actuators, medical equipment, and safety-related devices.

What affects the service life of a brushless gearmotor?

Service life is affected by motor design, gearbox structure, gear material, bearing quality, lubrication, load condition, duty cycle, temperature, and installation environment.

What information should I provide for a brushless gearmotor inquiry?

You should provide application, voltage, required output speed, torque or load information, gear ratio, gearbox type, shaft size, mounting method, duty cycle, controller requirement, encoder or brake requirement, and estimated quantity.

Is a planetary brushless gearmotor better than a spur gearmotor?

A planetary brushless gearmotor usually offers higher torque density, compact size, and better transmission performance. A spur gearmotor may be more cost-effective for simpler applications. The better choice depends on the application requirement.

How can I reduce noise in a brushless gearmotor application?

Noise can be reduced by selecting the right gearbox type, improving gear precision, using quality bearings, optimizing speed and load, improving mounting structure, and testing the motor under real working conditions.

Can Modar Motor help with custom brushless gearmotor projects?

Yes. Modar Motor can support OEM buyers with customized brushless gearmotor solutions, including motor selection, gear ratio matching, shaft and mounting design, wiring, encoder, brake, controller matching, sample development, and mass production support.

Conclusion: Choose the Brushless Gearmotor Based on the Whole System, Not Only the Motor Size

A brushless gearmotor is a powerful solution for modern motion systems because it combines the efficiency and long life of brushless motor technology with the torque advantage of gear reduction. It is widely used in automation equipment, robotics, AGVs, AMRs, medical devices, security systems, and smart commercial products.

For OEM buyers, the most important point is to select the motor based on the whole system requirement. Voltage, output speed, torque, gear ratio, gearbox type, shaft design, mounting structure, duty cycle, controller compatibility, encoder, brake, noise level, and working environment should all be considered before placing an order.

A suitable brushless gearmotor can improve equipment reliability, reduce maintenance, increase energy efficiency, and support better user experience. A poorly selected motor, however, can create installation problems, overheating, unstable motion, and after-sales risk.

For buyers looking for customized brushless gearmotor solutions, Modar Motor can provide practical support from requirement confirmation to sample testing and mass production. By working with an engineering-oriented motor supplier, OEM manufacturers can select a motor that truly fits their application, instead of relying only on catalog parameters.
