Introduction: Why Motor Structure Matters

When people compare electric motors, they usually talk about voltage, power, speed, torque, size, or price. That makes sense. These are the numbers buyers see first on a datasheet. But here is the thing: behind those numbers, the motor structure often decides how the motor actually performs in real life.

One of the most important structural differences is whether the motor is an internal rotor motor or an outrunner motor. At first glance, both may look similar, especially if you are comparing brushless DC motors. They both use a stator, rotor, magnets, windings, bearings, and a shaft. They both convert electrical energy into mechanical rotation. But the way they are built is quite different.

Think of it like comparing two athletes. One is a sprinter: fast, sharp, and quick to respond. The other is a weightlifter: strong, stable, and able to deliver heavy force at lower speed. Both are powerful, but they are not designed for the same job. That is exactly how internal rotor motors and outrunner motors differ.

In this article, we will break down the difference between internal rotor motors and outrunner motors in a simple, practical way. We will look at structure, working principle, torque, speed, cooling, applications, advantages, disadvantages, and how to choose the right motor for your project.

What Is an Internal Rotor Motor?

An internal rotor motor, also called an inrunner motor, is a motor where the rotor is located inside the stator. The stator stays fixed on the outside, while the rotor spins inside it. This is one of the most common motor structures used in industrial motors, servo motors, brushless DC motors, pumps, fans, compressors, power tools, automation systems, and many precision motion applications.

In simple words, the rotating part is in the center. The stationary part surrounds it. The shaft is connected directly to the inner rotor, and when the motor runs, the shaft rotates with the rotor.

This design is widely used because it can provide high speed, good control accuracy, compact structure, and strong mechanical stability. Internal rotor motors are often chosen when the system needs fast response, precise positioning, high RPM, or a protected rotating structure.

How an Internal Rotor Motor Works

The working principle of an internal rotor motor is based on electromagnetic interaction. The stator contains copper windings. When current flows through these windings, it creates a rotating magnetic field. The rotor, which contains permanent magnets or conductive elements depending on the motor type, follows this rotating magnetic field and begins to spin.

Because the rotor is located close to the center, it usually has lower rotational inertia than an outrunner motor. Lower inertia means the motor can accelerate and decelerate faster. This is why internal rotor motors are commonly used in applications requiring quick speed changes or precise control.

For example, in a robotic arm joint, CNC equipment, electric pump, or servo drive, the motor may need to start, stop, reverse, or adjust speed repeatedly. An internal rotor motor can handle this kind of motion very well.

Key Features of Internal Rotor Motors

Internal rotor motors are usually known for high speed, compact design, better dynamic response, and easier enclosure protection. Since the rotor is inside the motor body, it is easier to protect the rotating components from dust, impact, and external interference.

They also tend to work well with gearboxes, encoders, brakes, and other control components. This makes them very suitable for automation and industrial systems where precision matters.

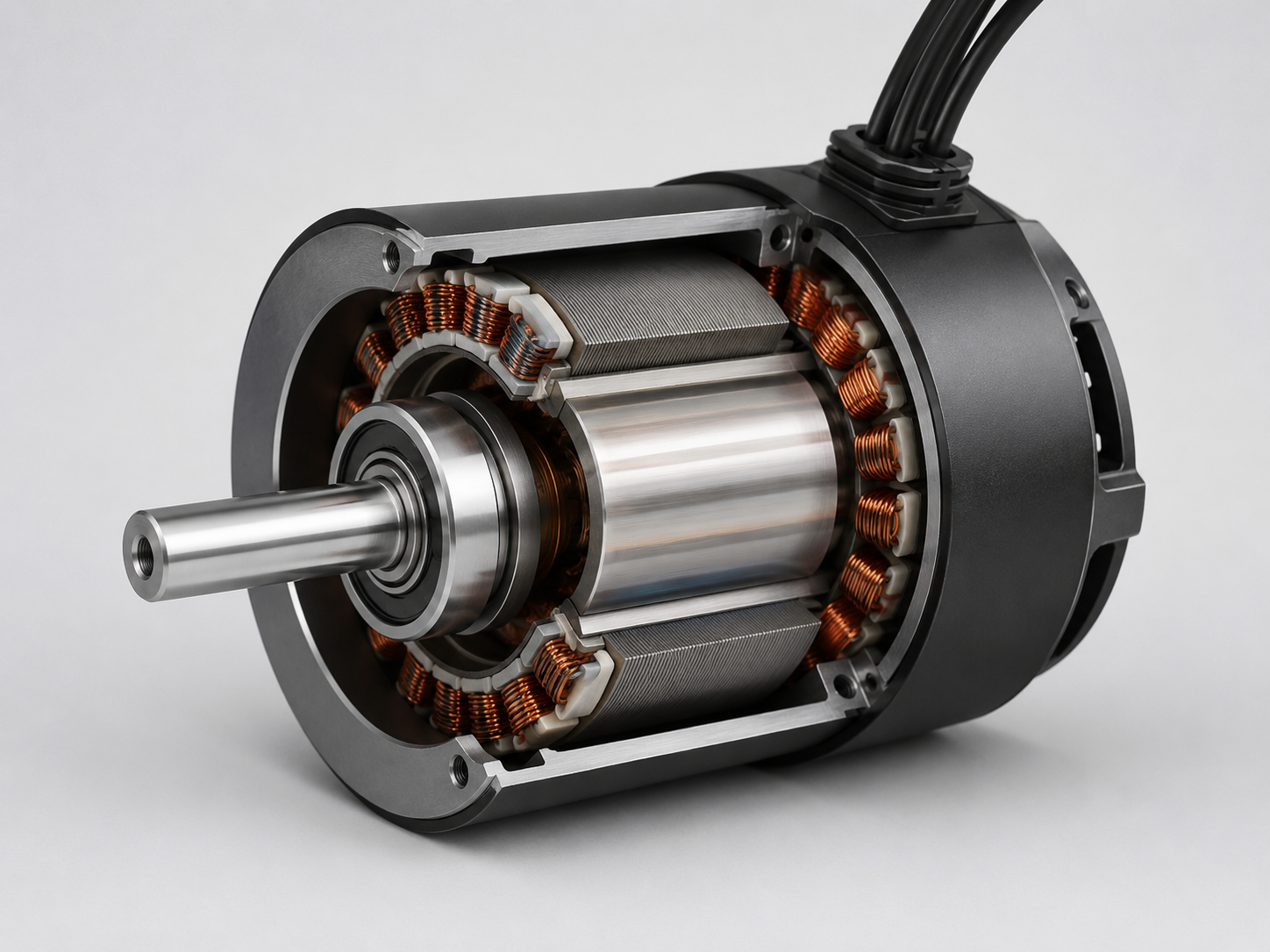

Typical Internal Rotor Motor Structure

A typical internal rotor motor includes an outer stator, inner rotor, shaft, bearings, housing, end caps, and sometimes Hall sensors or an encoder. The stator is fixed inside the housing. The rotor rotates inside the stator. The shaft passes through the rotor and transfers mechanical power to the load.

Because the outside housing is usually fixed, the motor can be installed easily into machines, brackets, pumps, compressors, and actuators. This gives engineers more flexibility when designing compact mechanical systems.

What Is an Outrunner Motor?

An outrunner motor is a motor where the rotor is located on the outside and rotates around the inner stator. Instead of the rotor spinning inside the stator, the outer shell itself becomes the rotating part. This structure is very common in drones, RC aircraft, electric skateboards, gimbals, fans, direct-drive systems, and some compact torque-demanding applications.

In an outrunner motor, the stator sits in the center and stays fixed. The magnets are attached to the inside surface of the outer rotating shell. When the stator windings create a magnetic field, the outer rotor spins around the stator.

This design gives the motor a larger rotor diameter, which helps it produce higher torque at lower speeds. That is why outrunner motors are popular in applications where direct drive is preferred and high torque is needed without a gearbox.

How an Outrunner Motor Works

Like an internal rotor motor, an outrunner motor works through electromagnetic force. The stator windings generate a rotating magnetic field. The permanent magnets on the outer rotor follow this field, causing the outside rotor shell to rotate.

The key difference is the radius. Because the rotor is on the outside, the magnets are farther from the center of rotation. This creates a longer lever arm, which helps the motor generate more torque.

Imagine using a wrench. If you hold the wrench near the bolt, it is harder to turn. If you hold the far end of the wrench, the same hand force creates more turning power. An outrunner motor works in a similar way. The larger rotor radius helps increase torque.

Key Features of Outrunner Motors

Outrunner motors are known for high torque, good power density, smooth low-speed operation, and strong direct-drive capability. They are often used where the motor needs to drive a propeller, wheel, fan blade, or rotating load directly.

However, because the outer shell rotates, installation and protection can be more challenging. Engineers must leave enough clearance around the motor so that the rotating housing does not touch cables, brackets, covers, or other nearby parts.

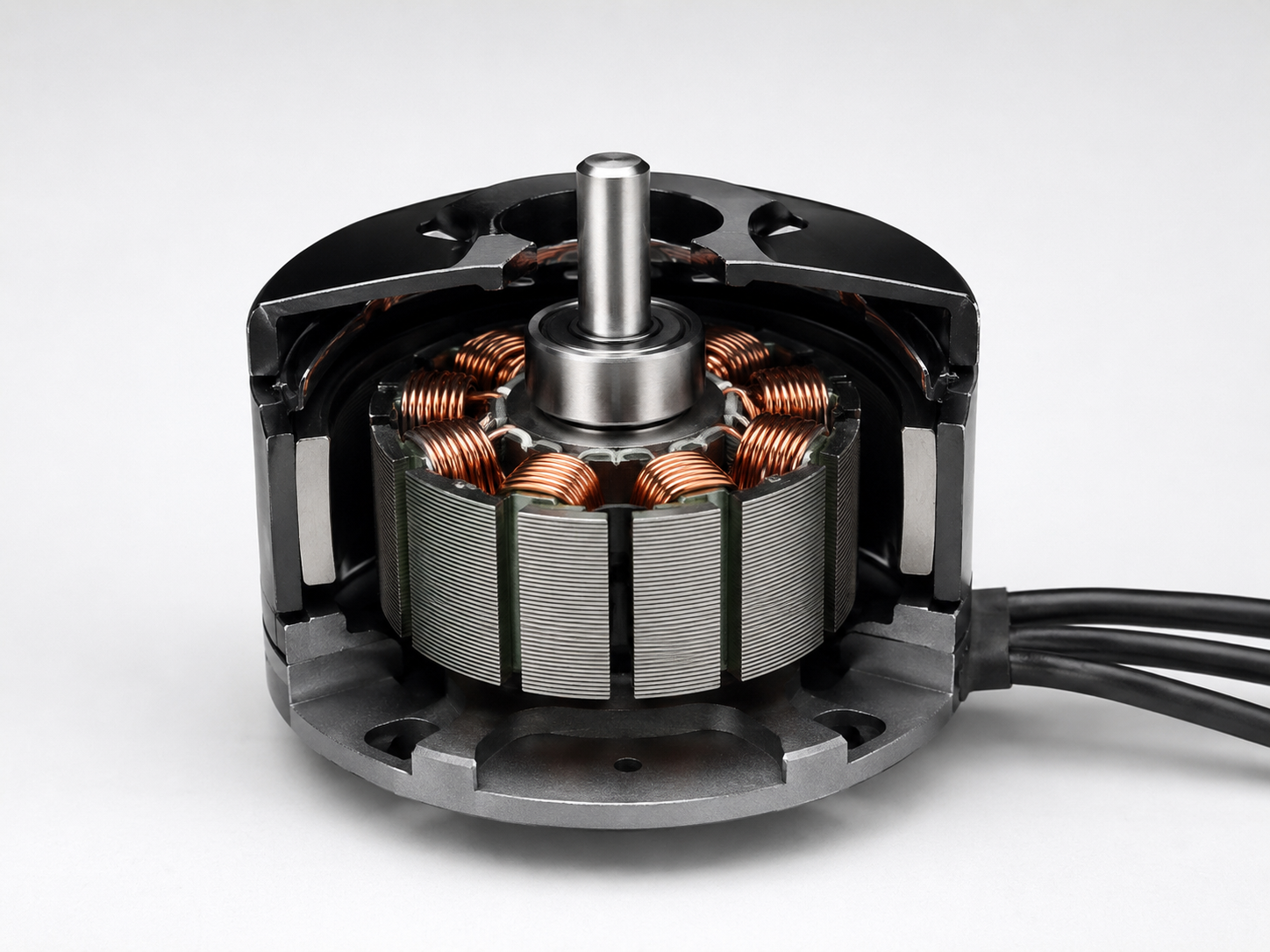

Typical Outrunner Motor Structure

A typical outrunner motor includes an inner stator, outer rotor shell, permanent magnets, shaft, bearings, mounting base, and winding assembly. The stator is fixed in the center. The rotor shell rotates around it. In many designs, the shaft may rotate together with the outer rotor, depending on the structure.

Because the outside part rotates, outrunner motors often have an open or semi-open structure. This can help airflow, but it also means dust, debris, or mechanical contact can become a concern in harsh environments.

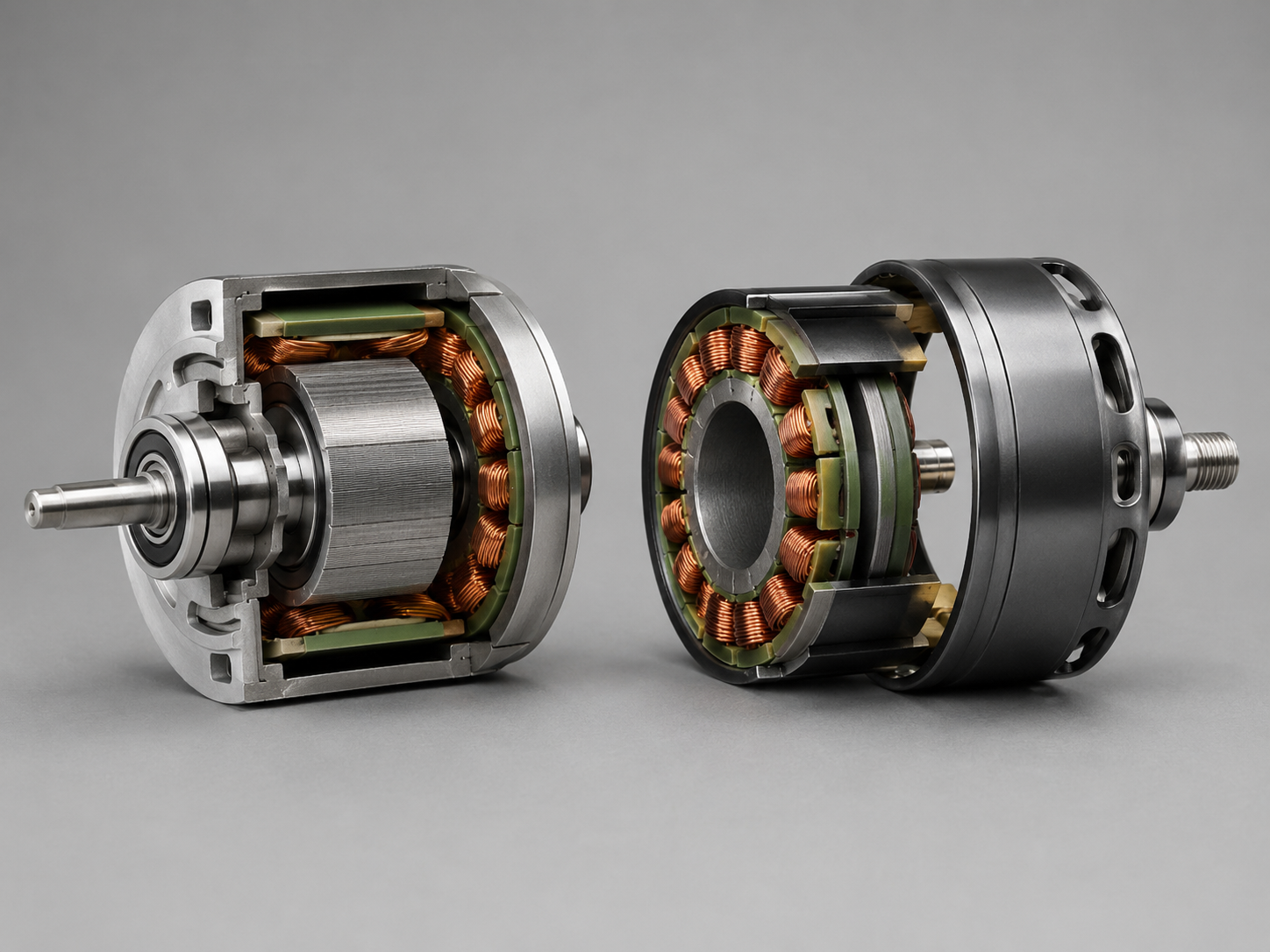

Internal Rotor Motor vs Outrunner Motor: Core Difference

The simplest difference is this: in an internal rotor motor, the rotor spins inside the stator. In an outrunner motor, the rotor spins outside the stator.

But that simple structural change leads to many performance differences. It affects torque, speed, cooling, control response, size, installation method, safety, and application suitability. Let’s compare them one by one.

Rotor Position

In an internal rotor motor, the rotor is located in the center of the motor. The stator surrounds it. This design keeps the rotating part protected inside the housing.

In an outrunner motor, the rotor is located outside the stator. The outer motor shell rotates during operation. This gives the motor a larger effective diameter and stronger torque output.

This is the foundation of all other differences. Once you understand rotor position, the rest becomes much easier to understand.

Torque Output

Outrunner motors usually produce higher torque at lower speeds compared with internal rotor motors of similar size. This is because the rotor has a larger diameter, giving it better leverage.

Internal rotor motors can still produce strong torque, especially with proper winding design, magnet selection, and gearbox matching. But if you compare two motors with similar power and size, the outrunner often has an advantage in direct-drive torque.

This is why drones, model aircraft, electric skateboards, and some fans often use outrunner motors. They need strong torque to spin large propellers or wheels without relying heavily on a gearbox.

Speed Performance

Internal rotor motors usually perform better at high speed. Since the rotor is smaller and lighter, it can spin faster with better mechanical stability.

Outrunner motors generally have higher inertia because the rotating mass is farther from the center. This makes them less ideal for extremely high-speed operation. They can still run fast, but their strength is usually torque rather than maximum RPM.

So, if your application needs very high speed, an internal rotor motor is often the better choice. If your application needs strong torque at moderate or low speed, an outrunner motor may be more suitable.

Cooling Efficiency

Cooling depends heavily on motor design, housing, airflow, and application conditions. Still, the two motor types have different cooling characteristics.

Internal rotor motors often transfer heat from the windings to the stator and then to the outer housing. Since the housing is fixed, it can be connected to a heat sink, machine frame, or cooling structure. This is useful in industrial applications.

Outrunner motors may benefit from natural airflow because the outer shell rotates. In drones and RC aircraft, the spinning propeller also creates airflow around the motor. However, in enclosed systems, cooling can become more difficult because the rotating shell cannot be easily attached to a fixed heat sink.

Size and Power Density

Outrunner motors often provide high torque in a compact axial length. Their wider diameter helps increase torque without making the motor very long. This makes them useful when the application has enough radial space but limited length.

Internal rotor motors are often more compact in diameter and easier to integrate into cylindrical spaces. They are suitable for pumps, compressors, precision tools, medical equipment, and automation devices where the motor must fit inside a housing or mechanical assembly.

In short, outrunner motors often win in torque density. Internal rotor motors often win in installation flexibility and protected structure.

Inertia and Response

Internal rotor motors usually have lower inertia. This gives them faster acceleration, faster deceleration, and better response in control systems.

Outrunner motors have higher rotational inertia because the rotor mass is located farther from the center. This can make them smoother in some applications, but slower to respond in rapid start-stop motion.

For servo systems, robotics, and precision automation, low inertia is often a major advantage. For propellers, fans, and wheels, higher inertia may not be a problem and can even help maintain smooth rotation.

Advantages of Internal Rotor Motors

Internal rotor motors have several strong advantages. First, they are excellent for high-speed operation. The smaller rotor diameter and lower inertia allow stable rotation at higher RPM.

Second, they offer good dynamic response. When paired with sensors, encoders, or servo drives, internal rotor motors can deliver accurate speed and position control.

Third, they are easier to protect. Since the rotating rotor is inside the motor, the fixed housing can protect the internal components from dust, impact, and accidental contact.

Fourth, they are easier to integrate with gearboxes, brakes, encoders, fans, pumps, and mechanical frames. This makes them a popular choice in industrial and commercial equipment.

Disadvantages of Internal Rotor Motors

Internal rotor motors are not perfect. Compared with outrunner motors, they may produce lower direct-drive torque at the same outer diameter. If high torque is required, engineers may need a gearbox or a larger motor.

They may also require more careful thermal design at high power levels. Since the rotor is inside and the windings are surrounded by the housing structure, heat paths must be designed properly.

Another point is cost. High-quality internal rotor motors used in servo or precision applications may require advanced magnets, sensors, bearings, and controllers, which can increase the total system cost.

Advantages of Outrunner Motors

The biggest advantage of outrunner motors is torque. Their larger rotating diameter helps generate strong torque without a large gearbox. This is why they are loved in drone motors, RC aircraft motors, hub-style drives, and direct-drive fans.

Outrunner motors can also be compact in length. If your product has limited axial space but enough outer diameter, an outrunner design may be very attractive.

They often provide smooth rotation at lower speeds. This makes them suitable for applications where the motor directly drives a propeller, wheel, fan, or rotating platform.

Another advantage is simple direct-drive design. Removing a gearbox can reduce noise, backlash, mechanical loss, and maintenance.

Disadvantages of Outrunner Motors

Outrunner motors also have limitations. The most obvious one is that the outer shell rotates. This means the motor needs clearance around it. You cannot simply mount parts close to the outside surface like you can with a fixed-housing motor.

Safety is another concern. Since the external rotor spins, accidental contact can be dangerous. Protective covers may be needed in many applications.

Outrunner motors are also generally less suitable for very high-speed precision systems. Their higher inertia can limit rapid acceleration and deceleration.

In addition, integration with encoders, brakes, and sealed housings can be more challenging. For harsh industrial environments, an internal rotor motor may be easier to protect and control.

Applications of Internal Rotor Motors

Internal rotor motors are widely used in industrial automation, robotics, medical equipment, pumps, compressors, electric tools, fans, precision instruments, and servo systems.

In automation equipment, they are often used where accurate speed control and stable operation are required. In pumps and compressors, the protected structure makes installation easier. In medical devices, compact size and controlled performance are important.

Internal rotor brushless DC motors are also common in applications that need long life, low maintenance, and high efficiency. When combined with a gearbox, they can provide both speed control and torque output in a compact package.

Applications of Outrunner Motors

Outrunner motors are very common in drones, RC aircraft, electric skateboards, electric bicycles, direct-drive fans, gimbals, and compact propulsion systems.

In drones, outrunner motors are popular because they can spin propellers directly with strong torque. In electric skateboards, they can help drive wheels efficiently. In fans, they can provide smooth rotation and compact structure.

Outrunner motors are also used in some robotic and motion systems where high torque and compact axial length are more important than full enclosure protection.

Which Motor Should You Choose?

Choosing between an internal rotor motor and an outrunner motor is not about which one is better. It is about which one fits your application better.

A motor is like a pair of shoes. Running shoes are great for running, but not for climbing a mountain. Work boots are strong, but you would not wear them for a marathon. Internal rotor motors and outrunner motors are the same. Each has its best use case.

Choose Internal Rotor Motors When…

Choose an internal rotor motor when your application needs high speed, fast response, precise control, easy installation, better protection, or integration with gearboxes and sensors.

This type is often better for servo systems, industrial automation, medical devices, pumps, compressors, robotic joints, and equipment where the motor housing must remain fixed.

If your system needs frequent start-stop motion, accurate positioning, or a compact cylindrical motor body, an internal rotor motor is usually the safer choice.

Choose Outrunner Motors When…

Choose an outrunner motor when your application needs high torque, direct drive, smooth low-speed performance, compact axial length, or propeller/wheel driving capability.

This type is often better for drones, RC aircraft, electric skateboards, fans, and applications where the rotating outer shell does not create installation or safety problems.

If your system has enough radial space and you want to avoid using a gearbox, an outrunner motor can be a very efficient solution.

Common Misunderstandings About Both Motor Types

One common misunderstanding is that outrunner motors are always stronger. They usually provide better direct-drive torque, but that does not mean they are better in every way. For high-speed precision control, internal rotor motors can be much more suitable.

Another misunderstanding is that internal rotor motors cannot produce high torque. They absolutely can, especially with optimized electromagnetic design or a gearbox. The difference is that outrunner motors often produce more torque directly at lower speed.

Some people also think outrunner motors are only for hobby products. That is not true. While they are very common in drones and RC models, the structure can also be used in professional applications when designed properly.

Finally, some buyers focus only on motor power. But power alone does not tell the full story. A 500W internal rotor motor and a 500W outrunner motor may behave very differently because their torque, speed, inertia, and cooling characteristics are different.

Conclusion

The main difference between internal rotor motors and outrunner motors is the rotor position. In an internal rotor motor, the rotor spins inside the stator. In an outrunner motor, the rotor spins outside the stator.

This structural difference creates different performance advantages. Internal rotor motors are usually better for high speed, fast response, precision control, protected installation, and industrial integration. Outrunner motors are usually better for high torque, direct drive, low-speed smoothness, and compact axial design.

So, which one should you choose? If your project needs speed, control, and protection, choose an internal rotor motor. If your project needs torque, direct drive, and strong low-speed performance, choose an outrunner motor.

The best motor is not always the most powerful one. It is the one that fits your application like a key fits a lock.

FAQs About Internal Rotor Motors and Outrunner Motors

What is the biggest difference between an internal rotor motor and an outrunner motor?

The biggest difference is rotor position. An internal rotor motor has the rotor inside the stator, while an outrunner motor has the rotor outside the stator. This affects torque, speed, cooling, inertia, and installation.

Is an outrunner motor more powerful than an internal rotor motor?

Not always. Outrunner motors usually provide higher torque at lower speeds, but internal rotor motors can perform better at high speeds and in precision control systems. Power depends on the full motor design, not only the rotor type.

Which motor is better for drones?

Outrunner motors are commonly better for drones because they provide strong torque to drive propellers directly. Their structure allows good thrust performance without needing a gearbox.

Which motor is better for industrial automation?

Internal rotor motors are often better for industrial automation because they offer high speed, fast response, good control accuracy, and easier integration with encoders, gearboxes, and protective housings.

Do outrunner motors need a gearbox?

Many outrunner motors can drive loads directly because they produce high torque at lower speeds. However, some applications may still use a gearbox depending on speed and torque requirements.

Are internal rotor motors more durable?

They can be more durable in harsh environments because the rotating parts are protected inside the housing. However, durability also depends on bearings, sealing, thermal design, materials, and manufacturing quality.

Which motor has better cooling?

It depends on the design. Internal rotor motors can transfer heat to a fixed housing or heat sink. Outrunner motors may benefit from airflow around the rotating shell, especially in propeller applications.

Which motor should I choose for a custom project?

Choose based on speed, torque, space, control requirements, environment, and installation method. If you need high speed and precise control, consider an internal rotor motor. If you need direct-drive torque and compact length, consider an outrunner motor.
