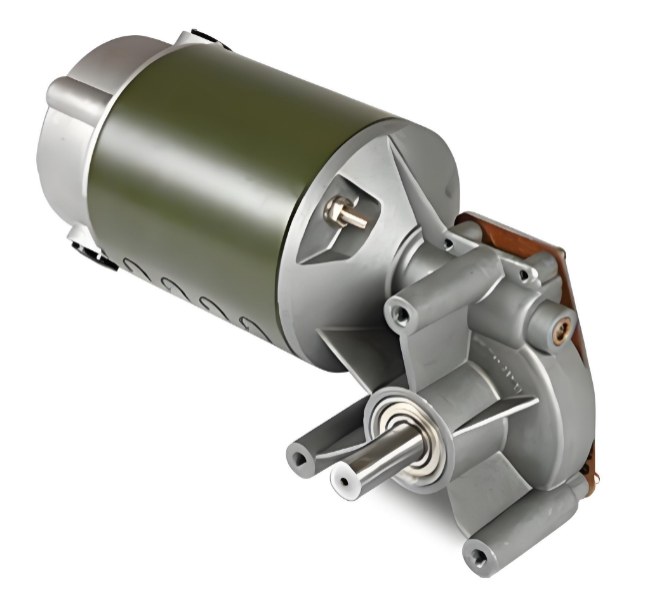

Understanding the Core Technology: What is a Worm Gear Brushed Motor?

Before diving into the “who,” let’s grasp the “what.” A worm gear brushed motor is an integrated electromechanical device. Think of it as a perfect partnership: the brushed DC motor is the energetic sprinter, converting electrical energy into rotational motion, while the worm gear reducer is the strong, steady weightlifter, trading that high speed for immense, controllable force.

The Brushed DC Motor: Simplicity and Control

At its heart lies the brushed DC motor, a timeless design. Its operation is elegantly straightforward. When power is applied, the electromagnetic forces between the permanent magnets in the stator and the wound coils on the rotor (or armature) create rotation. The critical “brushed” component is the physical carbon brush and commutator system that continually switches the current direction in the coils to keep the motor spinning. This design offers superb starting torque, simple speed control via voltage, and a cost structure that’s hard to beat for many applications.

The Worm Gear Reducer: Torque and Locking

Attached to the motor’s output shaft is the worm gear reducer. This is a gear arrangement consisting of a threaded screw (the worm) that meshes with a toothed wheel (the worm gear). The magic here lies in the gear ratio. A single rotation of the worm may only advance the worm gear by one tooth, resulting in a massive reduction in speed but an equally massive multiplication of torque. Furthermore, due to the friction and angle of engagement, the system is often self-locking—the load cannot drive the motor backward, a crucial safety feature in applications like conveyors or lifts.

The Combined Advantage: Why This Hybrid System Reigns

When combined, these two systems create a component with unique benefits:

• High Torque at Low Speed: Ideal for applications requiring slow, powerful movement like automated gates, medical beds, or robot joints.

• Compact Design: The inline configuration of worm gears allows for a relatively space-efficient package for the torque delivered.

• Controlled Motion and Self-Locking: Enhances safety and stability in holding positions without additional brakes.

• Cost-Effectiveness: Compared to brushless or servo systems with similar torque, the brushed DC and worm gear combo often provides a more economical solution.

However, challenges like potential axial movement of the worm under inertial loads, which can cause noise and affect lifespan, are areas where leading manufacturers innovate with axial limiting structures and fine-tuning mechanisms.

The Chinese Manufacturing Landscape: A Global Powerhouse

China’s dominance in this sector isn’t accidental. It’s the result of decades of strategic development, creating an ecosystem that is both broad and deep.

Industrial Clusters and Supply Chain Mastery

Major manufacturing hubs are concentrated in the Pearl River Delta (Guangdong province) and the Yangtze River Delta (Zhejiang and Jiangsu provinces). Cities like Shenzhen, Dongguan, and Yueqing are epicenters of motor production. This clustering creates unparalleled supply chain efficiency. Within a short radius, manufacturers can access precision machining for gears, magnet production, specialized bearing suppliers, and advanced molding for casings. This reduces lead times and costs dramatically, a key competitive advantage on the global stage.

From Volume to Value: The Innovation Shift

While China built its reputation on large-scale, cost-effective manufacturing, the leading players have decisively pivoted toward value-added innovation. This is evidenced by significant investments in R&D, with companies holding numerous utility model and invention patents related to motor efficiency, noise reduction, and longevity. The focus is shifting from being just a factory to being a solutions provider, offering custom engineering, rigorous quality control (with common certifications like ISO9001, CE, and RoHS), and full OEM/ODM services. The global worm gear reducer market, valued in the billions, sees Chinese players competing not just on price but on technological sophistication and reliability.

The Top 10 Manufacturers: Profiles of Excellence

Here is an in-depth look at ten manufacturers who stand at the forefront of China’s worm gear brushed motor industry.

1. TaiBang Motor Industry Group Co., Ltd.

A titan in the industry, TaiBang is more than just a manufacturer—it’s a comprehensive motion solutions powerhouse. Established in 2004 and employing over 1,300 people, they boast a staggering product range that includes induction motors, reversible motors, DC brush gear motors, DC brushless gear motors, and of course, worm gear motors. Their strength lies in vertical integration and scale, allowing them to control quality from raw material to finished product. They serve a global market and are particularly strong in applications requiring reliable, continuous duty cycles.

2. Boshine Industrial Co., Ltd.

Based in Hubei, Boshine has carved out a strong niche since its founding in 2012. They position themselves as specialists in power transmission, with core products being gear reducer motors and worm gearboxes. With an annual export value in the range of US$2.5-5 million to markets like Australia, Canada, and Germany, they have proven their ability to meet international standards. Their focus on durability and compliance with international safety standards makes them a reliable partner for industrial and automotive applications.

3. TT MOTOR (Guangdong)

TT MOTOR exemplifies the agile, customer-centric model common in Guangdong. They shine in providing highly customizable DC gear motor solutions, offering adjustable parameters like voltage, power, speed, and torque. With strong online sales channels and a reputation for responsiveness, they are a go-to for businesses needing tailored solutions in moderate volumes for applications in smart homes, automotive, and appliances. Their product listings often highlight versatility, catering to a broad spectrum of voltage requirements (6V, 12V, 24V).

4. Changzhou Modar Intelligent Technology Co., Ltd

This manufacturer focuses on a compelling market segment: high-torque in a miniaturized package. Their motors, such as the 80JBX+76ZYT series, claim torque up to  1.5N.M-217.4N.M  while maintaining a compact 76mm diameter. Built with features like stainless steel construction and waterproofing, they target demanding applications in robotics, high-performance fans, and home appliances where space is at a premium but power cannot be compromised.

5. GPG (TaiBang Motor Industry Group)

Operating under the esteemed TaiBang umbrella, GPG leverages the group’s resources while showcasing specific expertise in high-efficiency brushless and brushed DC gear motors. They emphasize quality certifications (ISO9001, CE, UL) and cater to specialized markets like automated pet equipment, where reliability and quiet operation are paramount. Their product descriptions highlight constant speed operation and protection-type casings, indicating a focus on consistent performance in varied environments.

6. Guangzhou Huiyun Science & Technology Co., Ltd.

A major force with a workforce above 1,000 and an annual turnover exceeding one billion USD, Guangzhou Huiyun represents large-scale manufacturing capability. Their primary focus areas include motors for packaging machinery and goods. For buyers with high-volume OEM requirements, especially in the packaging and logistics sectors, they offer significant production capacity and economies of scale.

7. Johnson Electric

A truly global player headquartered in Hong Kong with extensive operations in mainland China, Johnson Electric is a tier-1 supplier to the world’s leading industries. They move beyond component manufacturing to design and produce complete drive subsystems. Their deep R&D capabilities and understanding of application-level challenges (in automotive, building automation, etc.) make them a partner for complex, high-reliability projects where system integration is key.

8. MOONS’ (Shenzhen Zhaowei Machinery & Electronics)

Originally known for exceptional stepper motors, MOONS’ has expanded into a premier motion control specialist. Their worm gear brushed and brushless motors are characterized by high precision, low noise, and excellent durability. They are a preferred choice for applications requiring fine control and long operational life, such as in precision medical instruments, advanced office automation, and collaborative robotics.

9. ABB Ltd. (China Operations)

The Swiss-Swedish multinational ABB brings its global engineering excellence to the Chinese market through its extensive local manufacturing and R&D centers. While offering a broad portfolio, their strength in worm gear motor applications lies in the industrial and heavy-duty sector. Their motors are engineered for mission-critical applications in process industries, energy, and large-scale automation, where failure is not an option.

10. Nidec (China) Ltd.

As the world’s foremost comprehensive motor manufacturer, Nidec’s presence in China is massive. Their approach is one of relentless innovation and market coverage. From tiny vibration motors in phones to powerful drives in factory robots, Nidec’s technical expertise is vast. For worm gear brushed motors, they offer cutting-edge solutions that often incorporate material science and efficiency advancements from their broader R&D pipeline.

Choosing the Right Partner: A Buyer’s Selection Framework

Selecting a manufacturer is a strategic decision. Here’s a framework to guide your evaluation beyond a simple price comparison.

Technical Specifications: Reading Beyond the Datasheet

• Torque & Speed Curves: Don’t just look at peak torque. Understand the continuous duty rating and how performance changes with load and voltage.

• Efficiency & Thermal Performance: Inefficiency creates heat. For enclosed gearboxes, thermal management is critical to longevity. Look for efficiency ratings (e.g., IE1, IE2) and ask about thermal protection.

• Noise and Lifespan: These are often linked to gear precision, bearing quality, and brush material. A motor with a 10,000-hour brush life is very different from one with a 2,000-hour rating.

• Construction & Materials: Metal gears (brass, steel) versus plastic, quality of shaft bearings, and ingress protection (IP) ratings for dust/water resistance are decisive for durability.

Commercial and Operational Factors

• Certifications & Compliance: Essential certifications include CE (EU safety), RoHS (restricted substances), and often UL or CCC depending on the target market. ISO9001 certification indicates a managed quality system.

• Customization Capability (OEM/ODM): Can they modify shaft dimensions, add encoders, change connectors, or adjust gear ratios? What are the minimum order quantities (MOQs) for custom work?

• Supply Chain Stability & Lead Times: Inquire about raw material sourcing and their typical lead times in peak vs. off seasons. A supplier with a diversified supply chain is more resilient.

• Technical Support & After-Sales: Do they offer application engineering support? What is their warranty policy (e.g., 1-year standard)? How do they handle returns or field failures?

Industry Trends Shaping the Future

The worm gear brushed motor is not a static technology. Leading Chinese manufacturers are driving and adapting to several key trends.

Smart Integration and IoT Readiness

The next generation of motors is becoming “smarter.” This doesn’t always mean a brushless design. We’re seeing increased integration of Hall-effect sensors or optical encoders into brushed motor assemblies to provide precise position and speed feedback. This enables simple, cost-effective closed-loop control, making these motors more attractive for automated systems where basic feedback is needed without the full cost of a servo drive.

The Push for Higher Efficiency and Sustainability

Global energy standards and corporate sustainability goals are trickling down to component-level design. Innovations are focused on:

• Improved Magnetic Circuits: Using higher-grade permanent magnets and optimized stator laminations to reduce electrical losses.

• Advanced Brush & Commutator Materials: Research into new composites extends brush life, reduces electrical noise (EMI), and minimizes dust.

• Lubrication for Life: Sealed, long-life lubricants in the gearbox reduce maintenance needs and extend service intervals.
  The industry analysis of the broader worm gear market indicates sustained growth, driven by automation, which in turn pressures component makers to innovate.

Conclusion: Gearing Up for the Right Partnership

China’s top worm gear brushed motor manufacturers offer a spectrum of choices, from agile specialists like TT MOTOR and XYT to industrial titans like TaiBang, Johnson Electric, and Nidec. The right choice hinges on aligning your project’s specific technical demands, volume requirements, and quality expectations with a manufacturer’s core competencies.

The landscape is no longer just about finding the lowest cost producer. It’s about finding a capable, innovative, and reliable partner who can contribute to your product’s success. By thoroughly evaluating technical specs, supply chain robustness, and value-added services, you can leverage China’s manufacturing prowess to build better, more competitive products for the global market. The power—and the precision—is at your fingertips.

Frequently Asked Questions (FAQs)

1. What are the main advantages of a worm gear brushed motor over a brushless (BLDC) motor with a gearbox?
The primary advantages are cost and control simplicity. Brushed DC motors require a simpler, cheaper drive circuit (often just a switch or variable resistor). Worm gear brushed motor combos provide an economical solution for applications needing high torque at low speed where precise speed regulation or ultra-high efficiency is not the top priority.

2. How do I determine the right torque and speed specifications for my application?
Calculate the load torque required to move your mechanism, factoring in friction and any safety margin. Then determine the necessary output speed. The motor’s rated torque should exceed your load torque at your desired operating speed, ideally operating at 50-80% of its stall torque for good efficiency and thermal performance. Most reputable suppliers offer application engineering support for these calculations.

3. Are Chinese-manufactured worm gear motors reliable for long-term, critical applications?
Yes, from the top-tier manufacturers profiled. The key is supplier selection. Manufacturers like Johnson Electric, Nidec, ABB, and TaiBang operate with global quality management systems (ISO certified) and supply major international brands. Always review certifications, ask for lifetime test data, and request samples for your own validation testing before committing to large orders.

4. What is a typical lead time for custom or large-volume orders from China?
For standard models, lead times can be as short as 2-4 weeks. For customized designs or very large orders, expect 8-16 weeks, accounting for tooling, sample approval, and production scheduling. Always confirm this during the quotation process, as it can vary significantly by manufacturer and season.

5. Can these motors be used outdoors or in wet environments?
This depends on the Ingress Protection (IP) rating. A standard motor might be IP40 (protected against solid objects >1mm). For damp or outdoor environments, you need to specify a higher rating like IP54 (dust and water splashes) or IP65 (dust-tight and protected against water jets). Sealed gearboxes and special shaft seals are required, which most manufacturers can provide as a customization.
