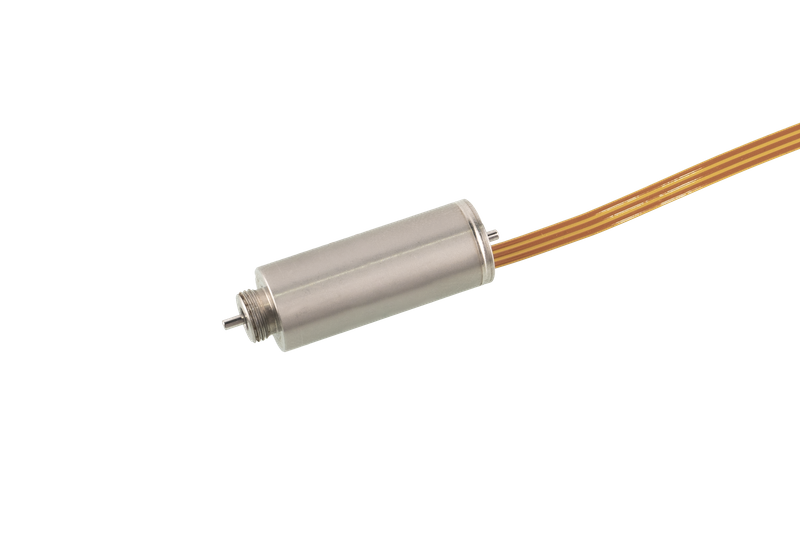

13mm Slotless Brushless DC Motor for Precision Instruments

Typical Applications of 13mm Slotless Brushless DC Motor

13mm slotless brushless DC motor is optimized for miniaturized precision systems requiring smooth and stable motion under tight spatial constraints.

Common application scenarios include:

• Precision optical adjustment mechanisms

• Compact laboratory instruments

• Micro fluid control actuators

• Handheld medical and diagnostic devices

• Miniature automation modules




Application Highlights

• Smooth low-speed rotation for fine positioning

• Minimal electromagnetic interference near sensors

• High reliability in continuous or intermittent operation

• Ideal for battery-powered precision devices

Technical Specifications of 13mm Slotless Brushless DC Motor

The following technical data applies to the 13mm slotless brushless DC motor.

Electrical Parameters

• Rated voltage options: 24V etc.

• Rated speed: 43500rpm(customized)

• Rated Torque: 2.7mN.m(customized)


• Output power: 11W(customized)

Optional Configurations

• Hall sensors or encoder feedback

• Customized shaft or connector types

• Cable or terminal variations




Slotless motor.pdf



Motor Characteristics

Motor part number

13ZWWC37

Pole pairs

-

1

Terminal resistance, Phase-Phase

Ω

3.65

Terminal inductance, Phase-Phase

mH

0.113

Winding connection method

-

Delta connection

Insulation class

-

B

Duty type

-

S2

Feedback method

-

Hall sensor

Commutation angle

-

120°

Insulation strength (Withstand voltage)

-

300VAC/1KHz/1mA/1s

Insulation resistance

-

100MΩ/300VDC

Weight

g

28.6

Rated voltage

V

24

Rated power

W

11

Rated torque

mN·m

2.7

Rated speed

RPM

43500

Rated current

A

0.66

No load speed

RPM

46800

No load current

A

0.086

Motor efficiency

%

69

Noise (Ambient noise 20dB, test distance 1m)

dB

<50

Thermal Resistance (No-load)

K/W

3.70

Ambient temperature

℃

22.3

Max winding temperature

℃

63

Torque constant

mN·m/A

4.06

Back-EMF constant - peak value

V/Krpm

0.6

Back-EMF constant - effective value

V/Krpm

0.43

Peak torque

mN·m

26.73

Peak current

A

7

Rotor inertia

g·cm²

0.14

Mechanical time constant

ms

3.09

End bell

-

Stainless steel

Bearing

-

Deep groove ball bearing

Magnet

-

Sinter NdFeB

Rotation shaft

-

Carbon steel

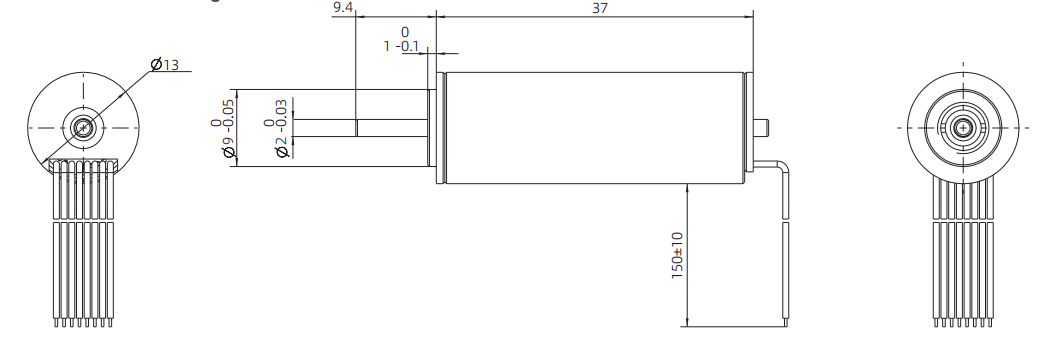

Dimension Drawing of 13mm slotless brushless motor 13ZWWC37

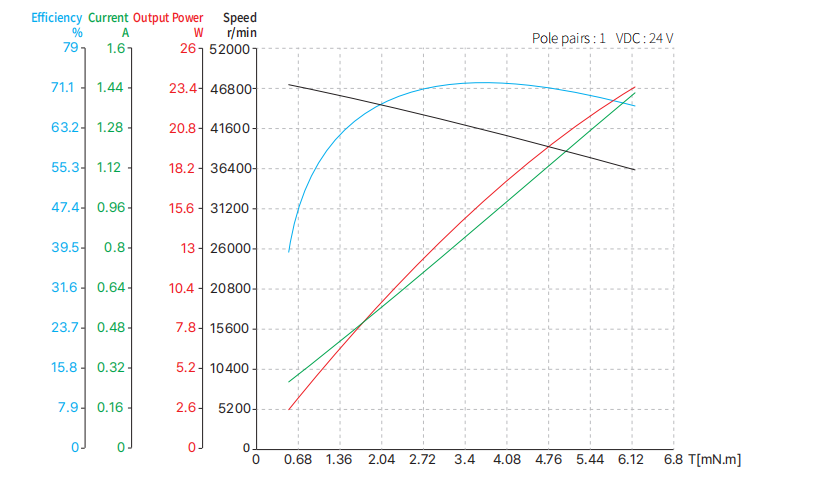

Performance Curve of 13mm slotless brushless motor 13ZWWC37

FAQ –13mm Slotless Brushless DC Motor

Q1: Is 13mm slotless brushless DC motor suitable for very low-speed precision control?

Yes. The slotless structure provides zero cogging torque, enabling smooth low-speed operation.

Q2: Can 13mm slotless brushless DC motor be used in medical or laboratory equipment?

Yes. Its low noise and smooth motion make it ideal for sensitive devices.

Q3: Does 13mm slotless brushless DC motor include a gearbox?

No. 13mm slotless brushless DC motor is supplied as a standalone motor and can be paired with external gearboxes if required.

Q4: Can voltage and winding be customized?

Yes. Electrical parameters can be tailored for your application.

Q5: Is encoder feedback supported?

Yes. 13mm slotless brushless DC motor supports integration with external encoders.

Q6: Is 13mm slotless brushless DC motor suitable for OEM mass production?

Absolutely. 13mm slotless brushless DC motor is designed specifically for long-term OEM supply projects.
