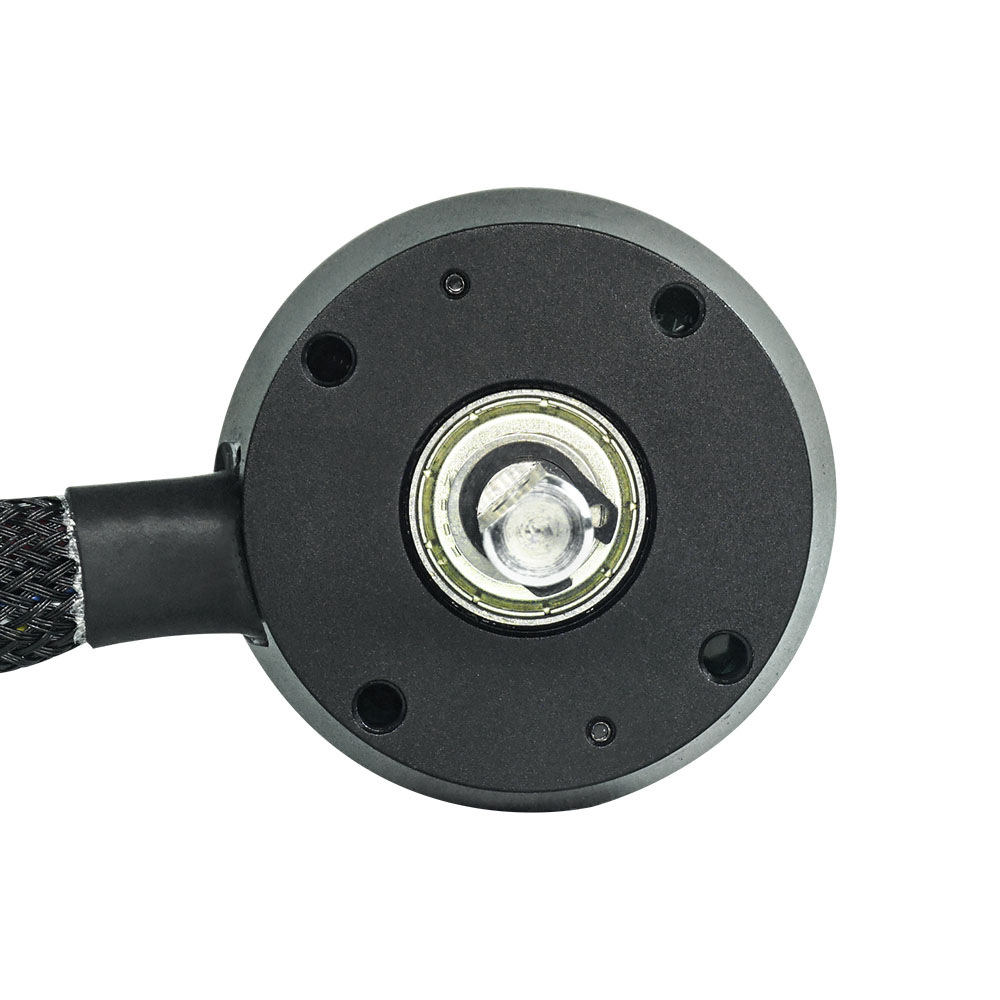

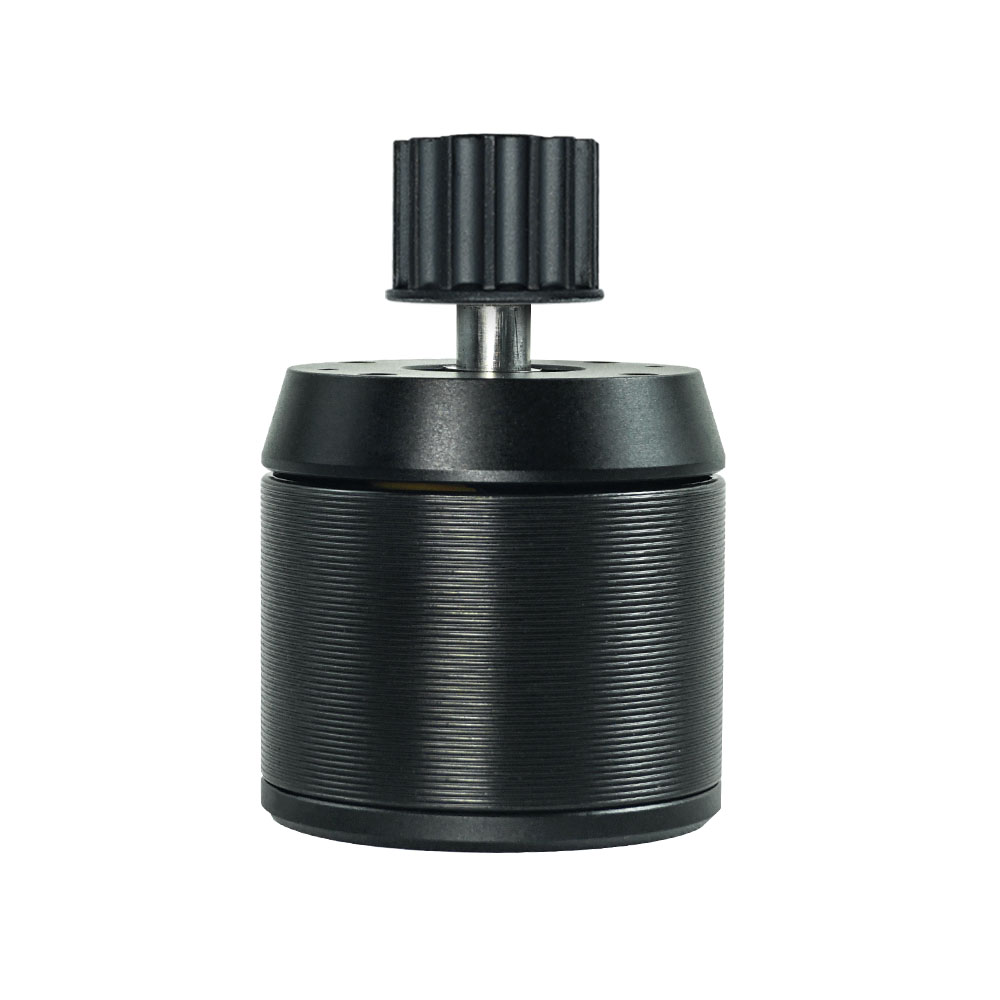

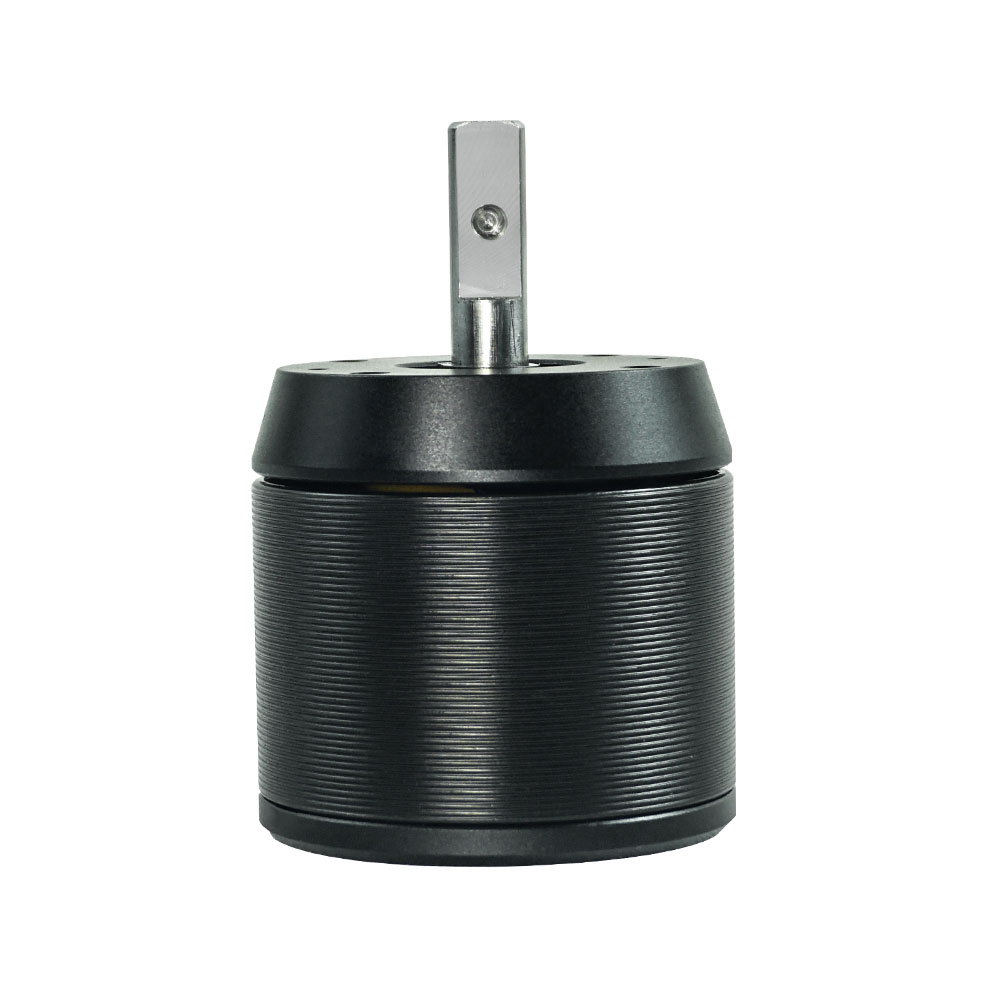

Battle Hardened 200KV 1300W Sensored Outrunner BLDC Brushless DC Motor 5048 for DIY Electric Skateboard

Max power 1300W
Max current 36A
Max volts 12S
Recommend ESC VESC4&VESC6(3-12S )
Weight ~400g
The motor length 48mm
Shaft 8mm D shaft

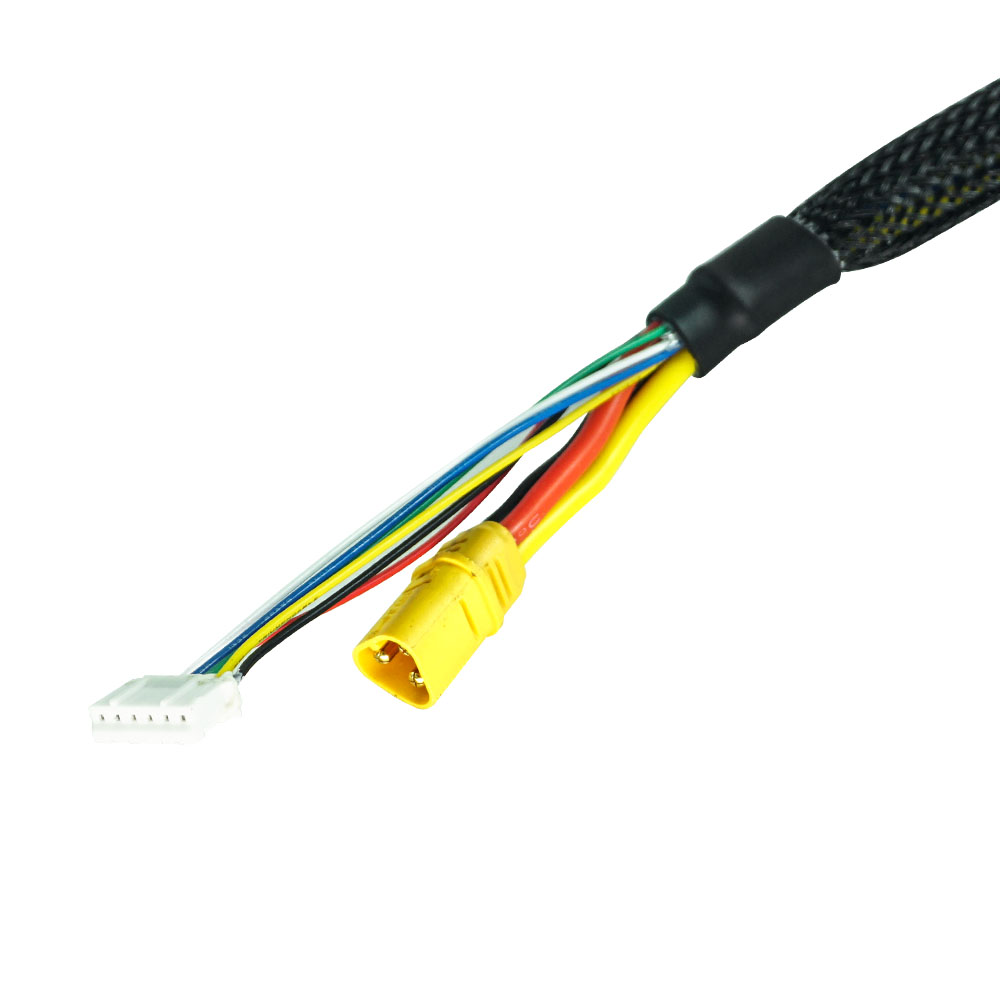

Wire configuration Blue = A Black = B Yellow = C
The number of pole 14

  • 5048

  • Modar Motor

  • 50mm

  • 1300W

  • 0.2N.m

  • 3-12S

  • 100% pure copper

  • 2

  • about 5-7 days

Availability:
Inquire Add to Basket

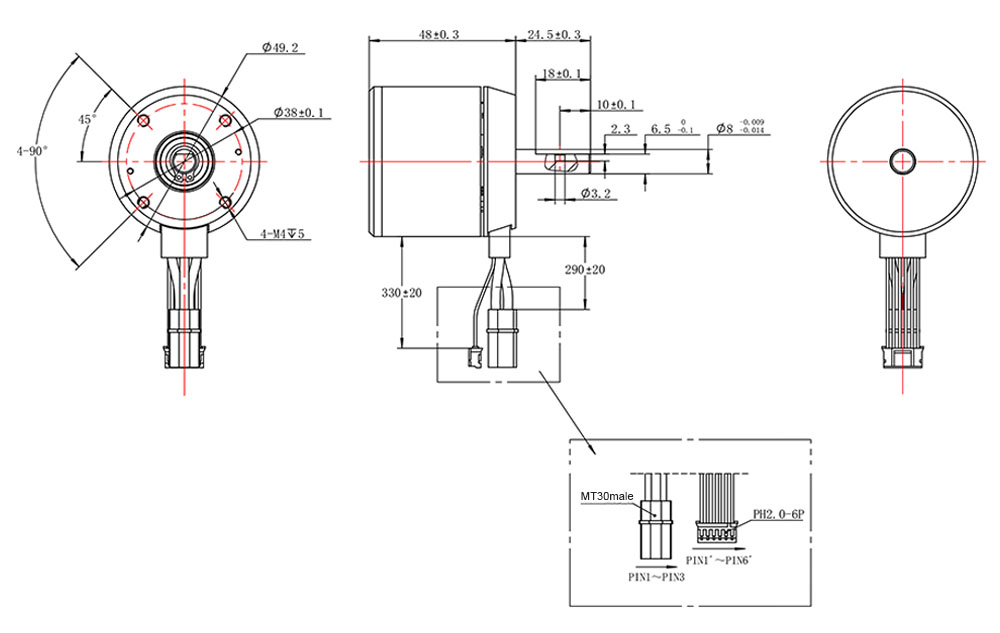

5048 motor drawingScreenShot_2026-01-21_095136_93186172



Typical Applications


Application Positioning

The Battle Hardened 200KV 1300W Sensored Outrunner BLDC Brushless DC Motor 5048 is designed for e-skateboard ebike escooter robotics RC car.




Technical Specifications

The following technical data applies to the Battle Hardened 200KV 1300W Sensored Outrunner BLDC Brushless DC Motor 5048 for DIY Electric Skateboard.


Max power 1300W
Max current 36A
Max volts 12S
Recommend ESC VESC4&VESC6(3-12S )
Weight ~400g
The motor length 48mm
Shaft 8mm D shaft
Wire configuration Blue = A    Black = B    Yellow = C
The number of pole 14
