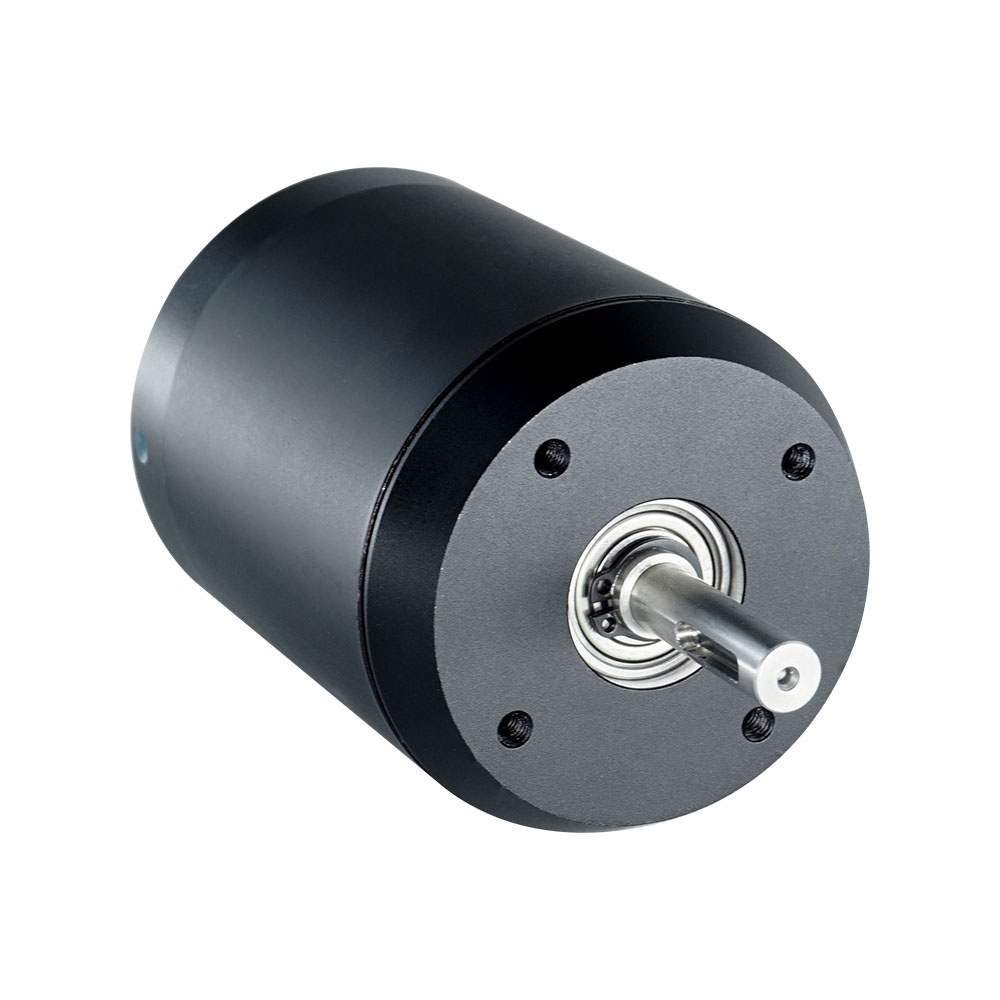

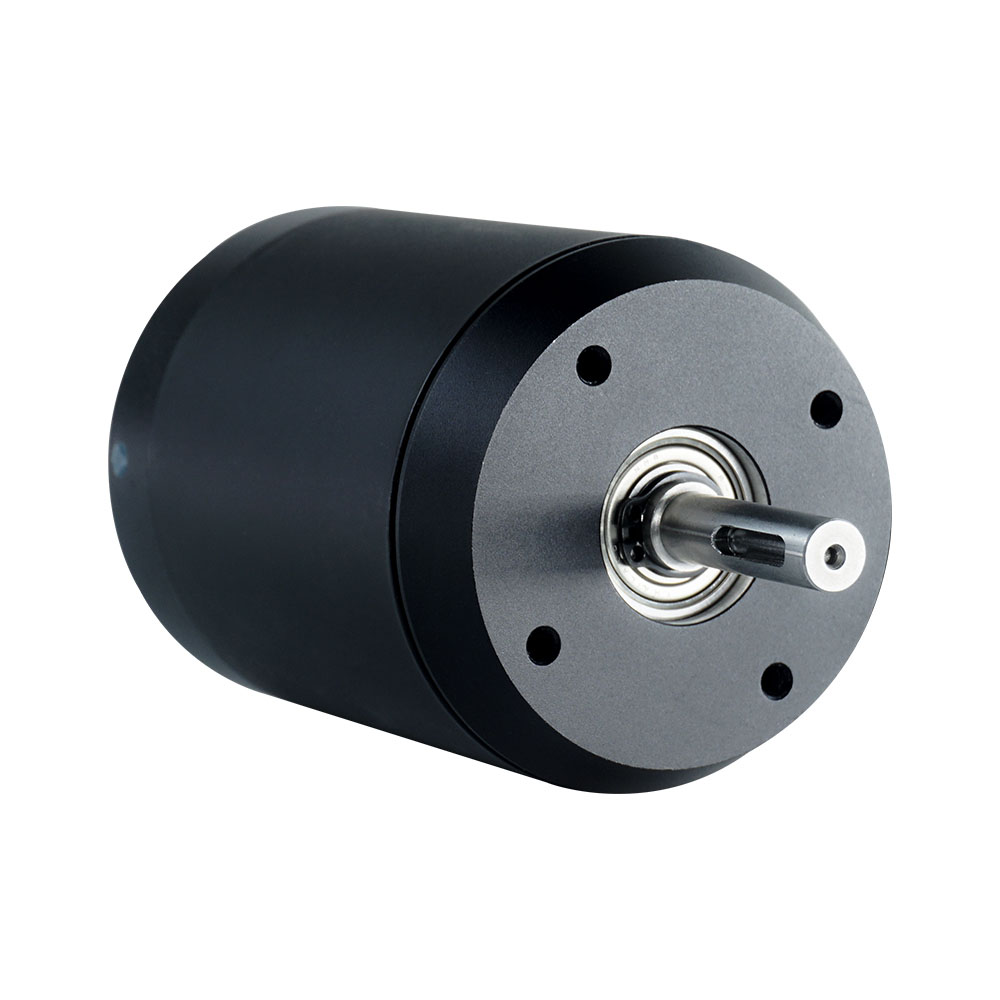

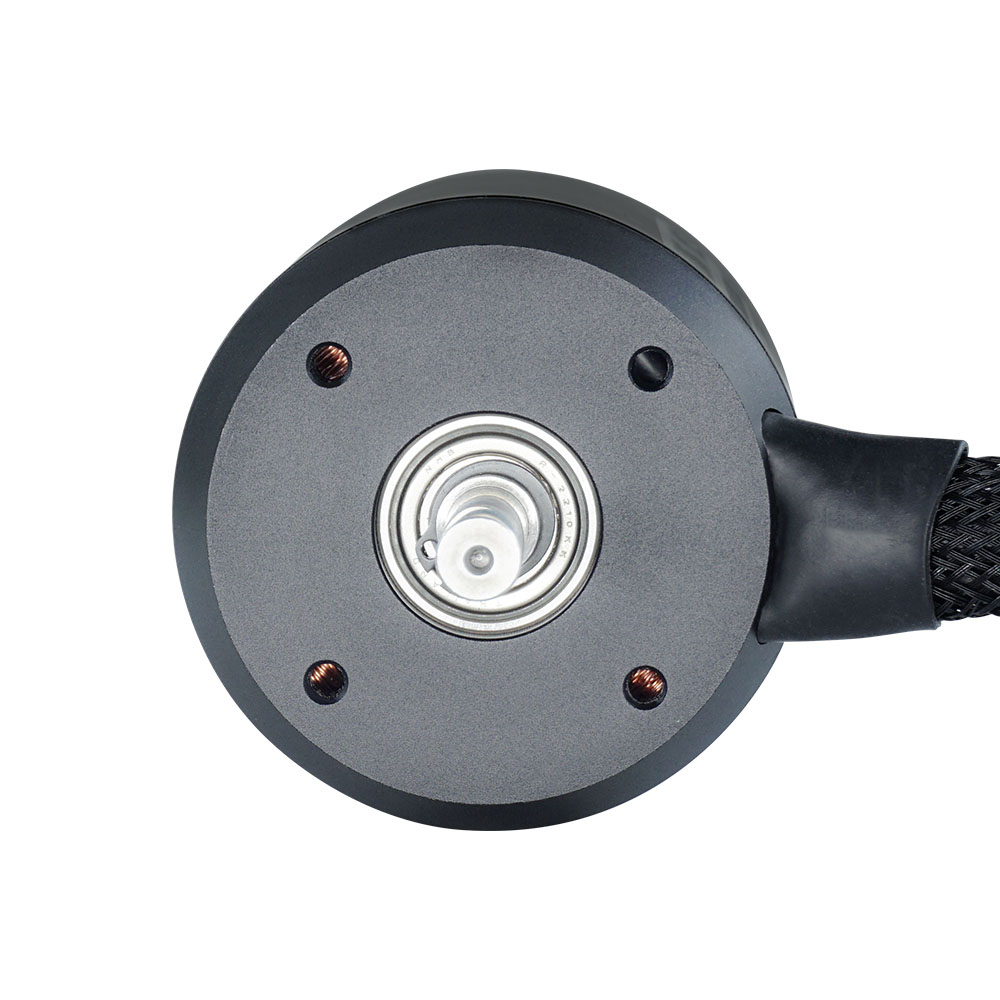

Battle Hardened Motor 6384 4000W 190KV 170KV Skateboard Motor

Spec:
Motor Size OD 63*L84mm KV Value 170KV/Customized Motor Resistance 0.05Ohm
Max Power 4000W Max Voltage 12S (48V) Shaft 8/10mm, length 34mm
Max Current 95Amps Max Torque 9N.m Number of Pole 14

  • 6384

  • Modar Motor

  • 63mm

  • 4000W

  • 9N.m

  • 48V

  • 100% pure copper

  • 2

  • about 5-7 days

Availability:
Inquire Add to Basket

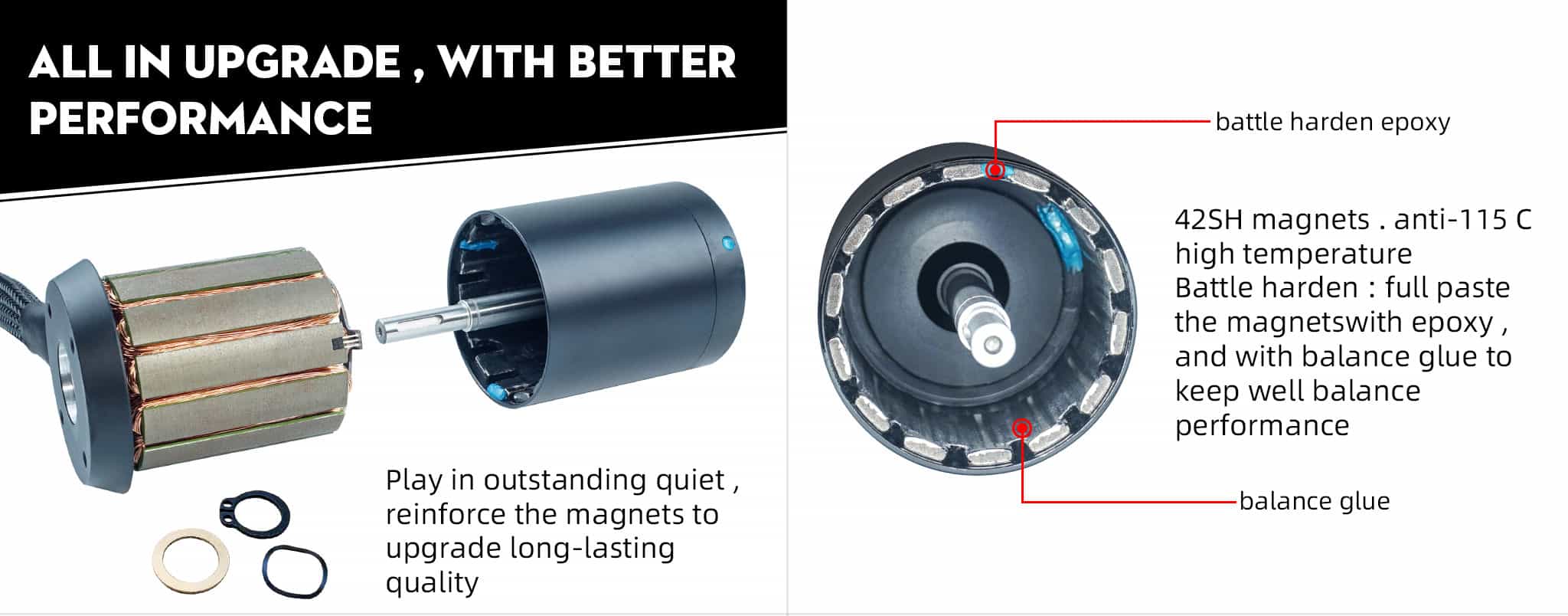

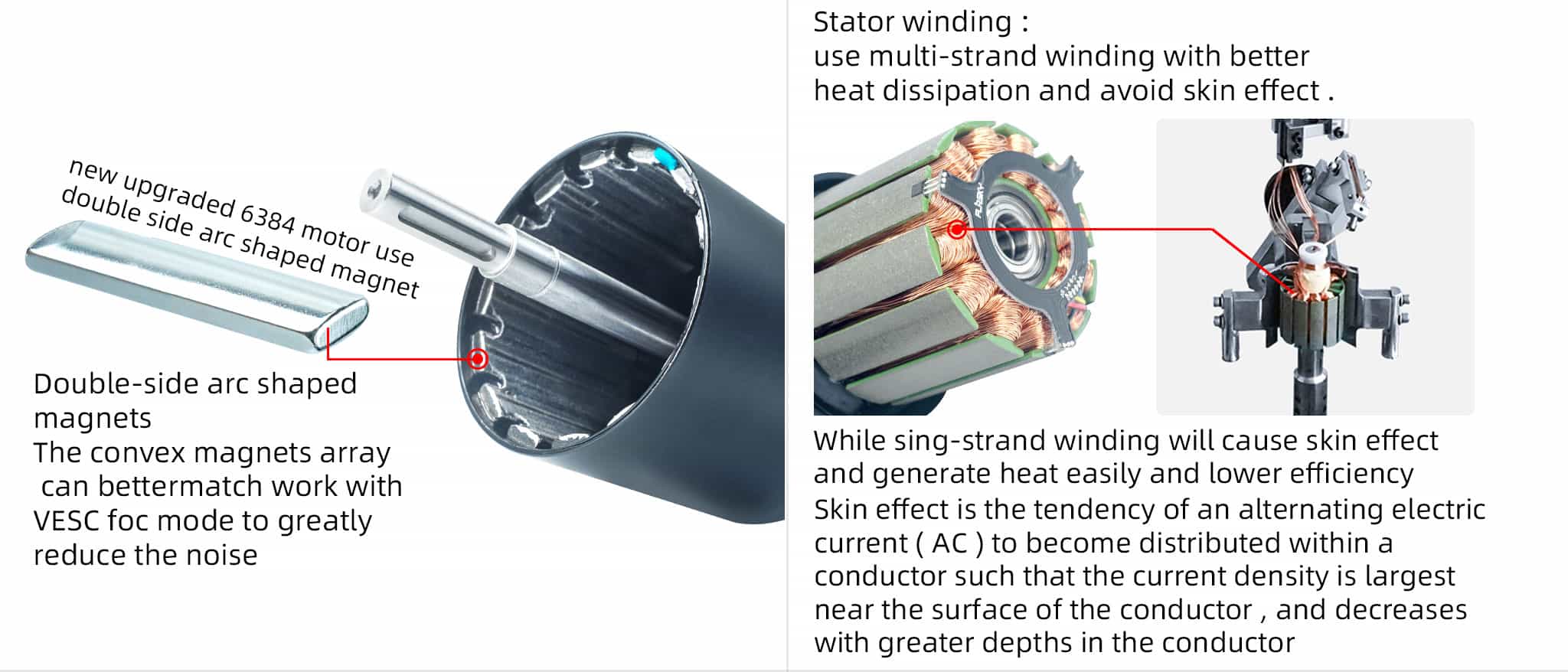

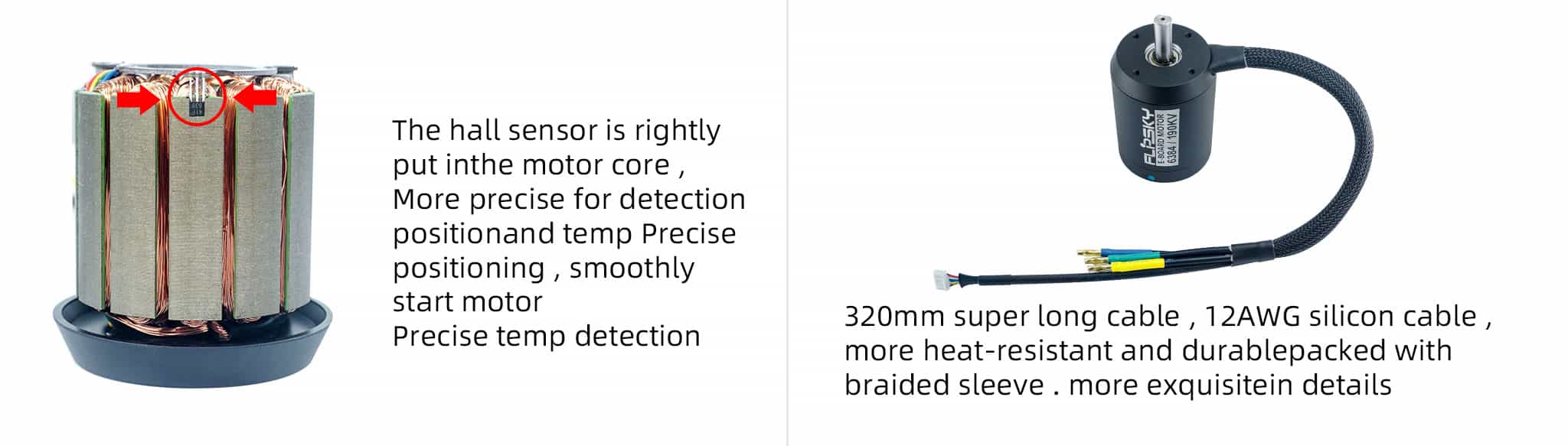

6384_016384_026384_036384_04


Typical Applications


Application Positioning

The Battle Hardened Motor 6384 4000W 190KV 170KV Skateboard Motor is designed for skateboard/longboard/rc car/ quadcopter/helicopter/scooter.




Technical Specifications

The following technical data applies to the Battle Hardened Motor 6384 4000W 190KV 170KV Skateboard Motor.


Motor Size OD 63*L84mm KV Value 170KV/Customized Motor Resistance 0.05Ohm
Max Power 4000W Max Voltage 12S (48V) Shaft 8/10mm, length 34mm
Max Current 95Amps Max Torque 9N.m Number of Pole 14

Recommend ESC: 3-12S 50A (FSESC4.12 50A or FSESC 6.6 60A)

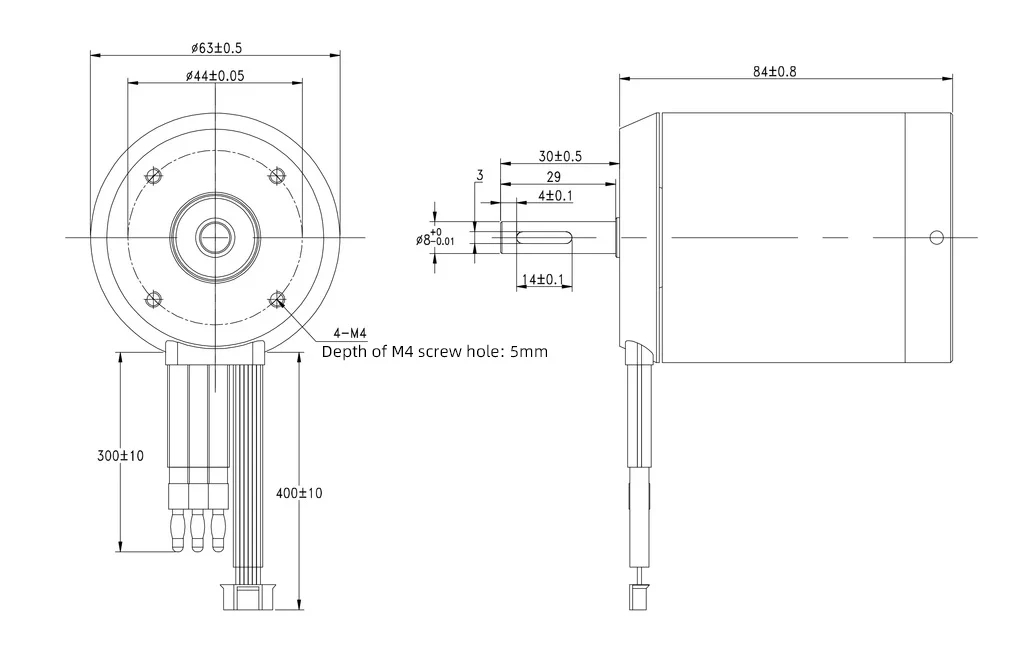

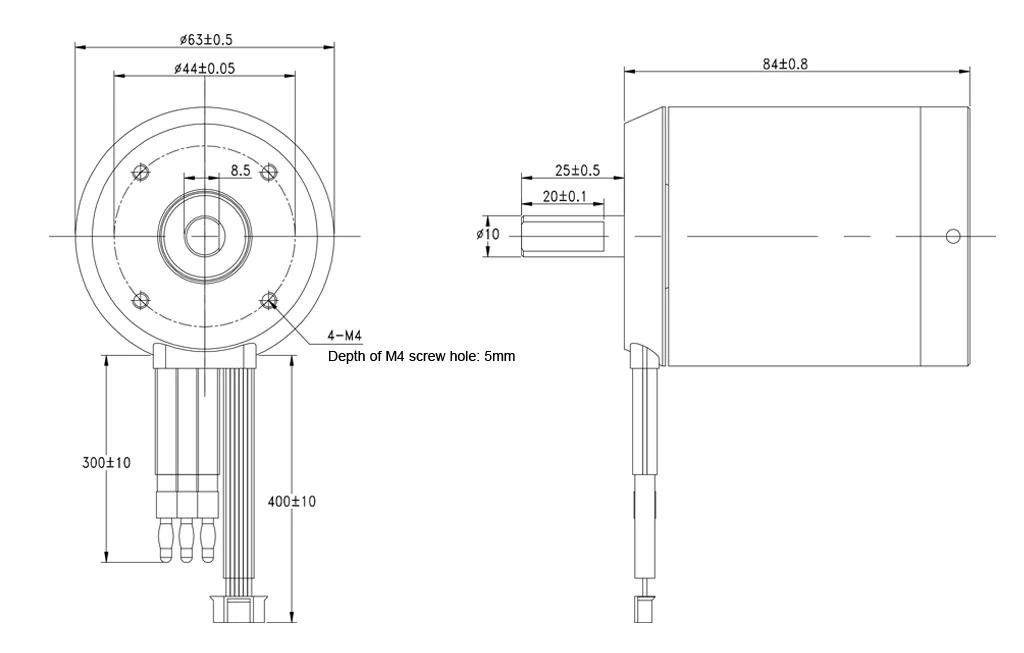

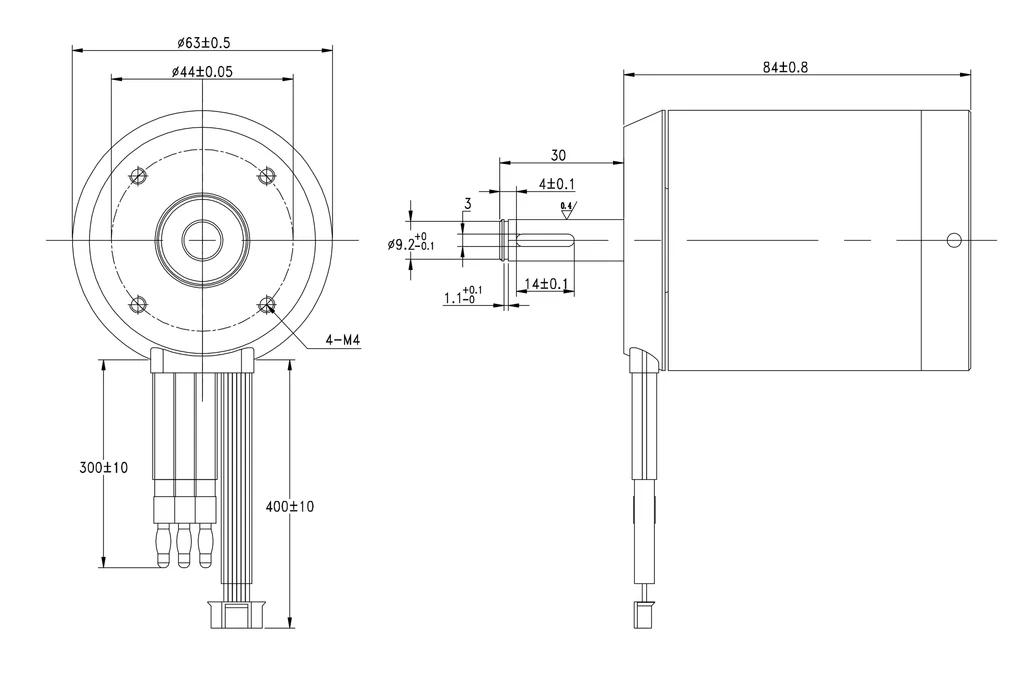

8MM Round Shaft Drawing10MM Round Shaft Drawing10MM D-shaft Drawin
