Dc Motor 6354 BLDC Belt Motor 190KV 2450W for Electric Skateboard Ebike Longboard Scooter

Typical Applications

Application Positioning

The 6354 BLDC Belt Motor 190KV 2450W is designed for Boat, Car, Electric Bicycle, Fan, Home Appliance.

Technical Specifications

The following technical data applies to the Dc Motor 6354 BLDC Belt Motor 190KV 2450W for Electric Skateboard Ebike Longboard Scooter.

Sensor Wire: Standard RC Sensor Wire JST-ZH 6pin 1.5mm pitch

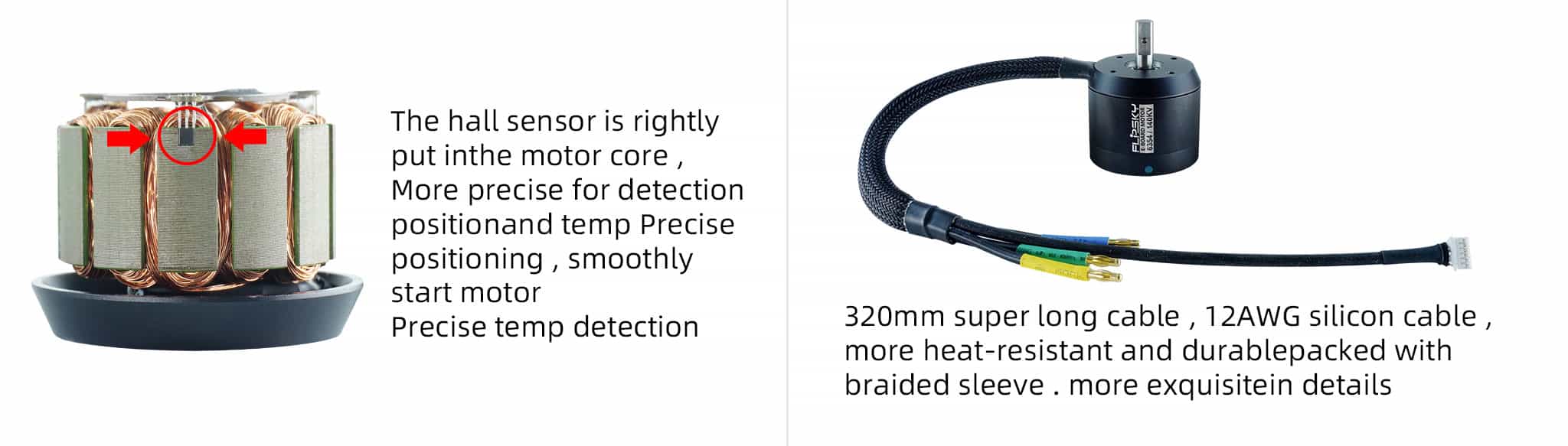

• Internal PCB with 120 Degree Hall Effect Sensors.

• Motor can be used with or without a sensor. Sensorless operation is most common.

• VESC Sensor Wires required to use with VESC.

• Wire configuration:Red = 5v

• Blue = A

• Yellow = C

• Green = B

• Black = GND

Reference Information

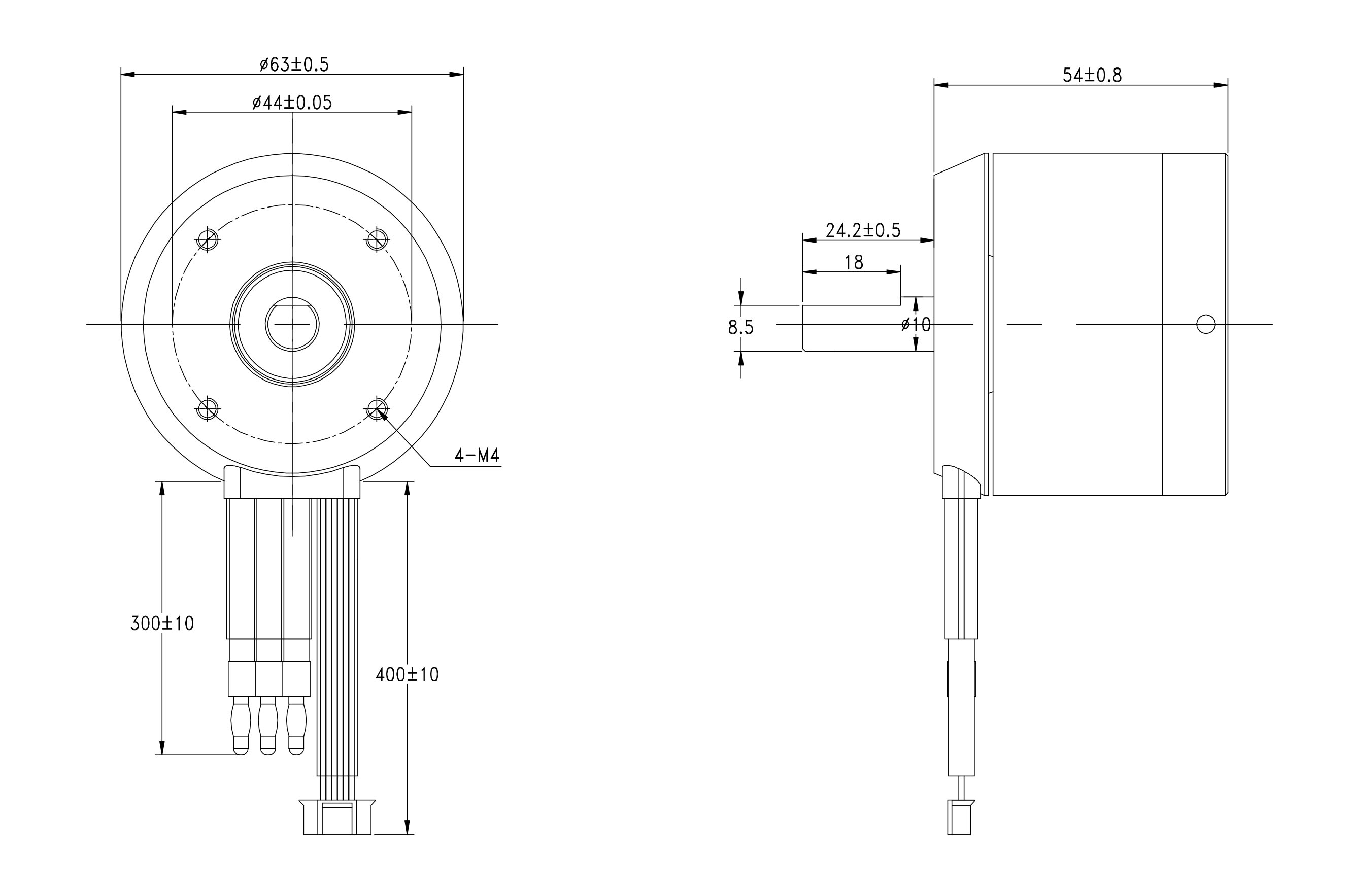

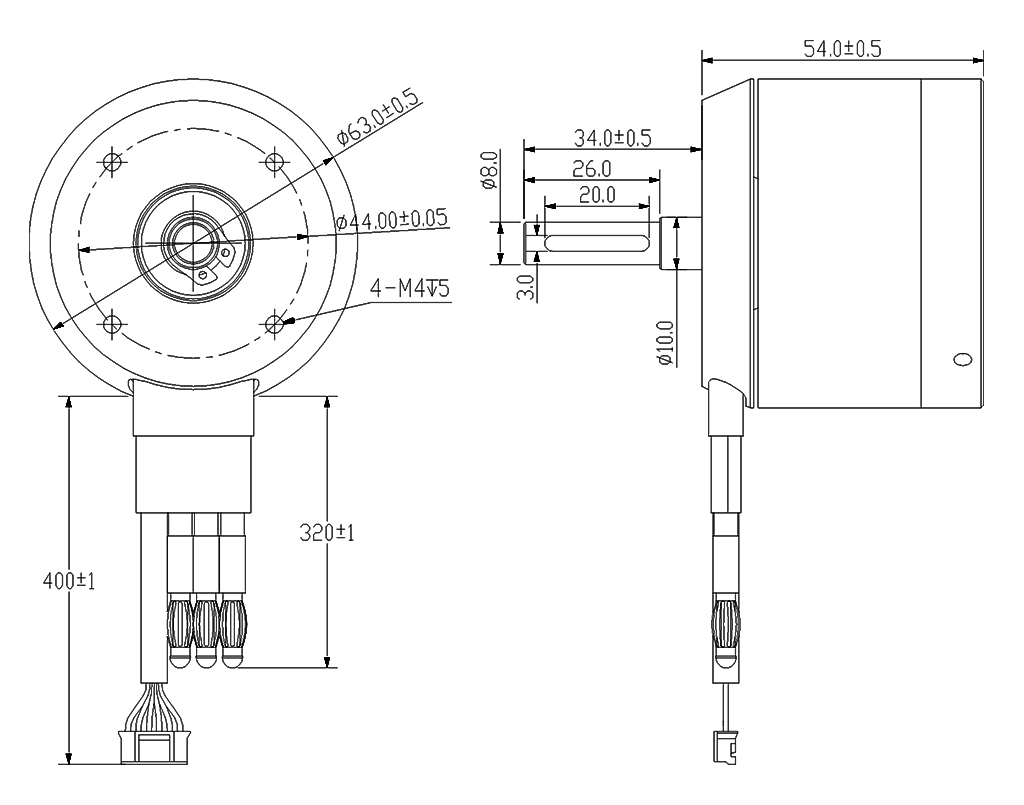

• The screws used for the motor are M4 metric bolts. Using our motor mounts, we recommend using M4 Socket Cap bolts.

• Screws to mount the motor are not included with the motor.

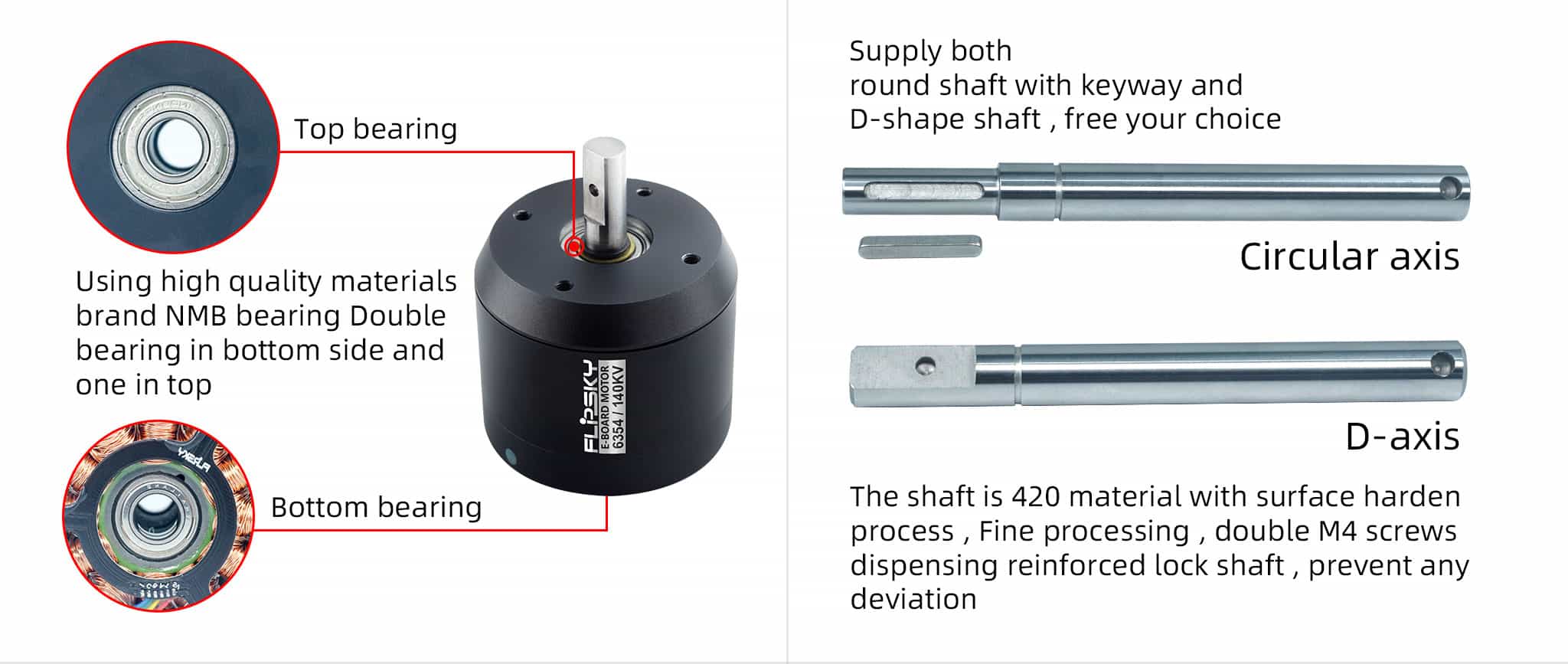

• The key for keyawy is not included with motors for shipping
