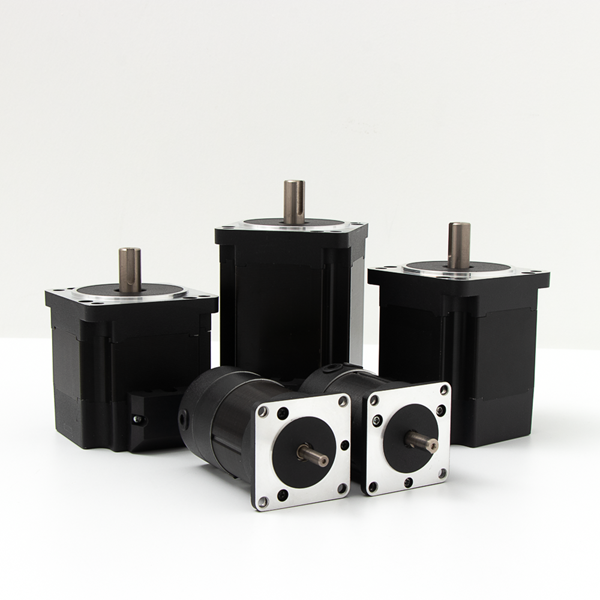

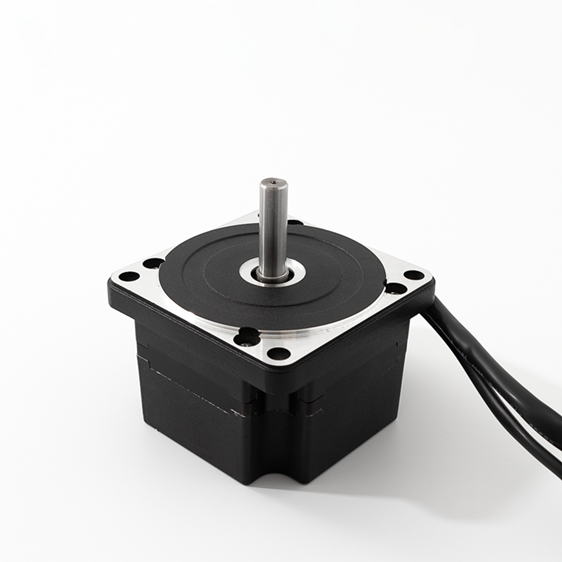

86BLF BLDC Motor | 86mm Precision Brushless DC Motor for Motion Control and CNC

Typical Applications of 86BLF 86mm BLDC motor

86BLF 86mm BLDC motor series is optimized for precision motion control applications that require stable torque output and accurate speed regulation. This frame size is commonly selected for advanced automation systems where positioning accuracy is a key performance factor.

In CNC machines, positioning systems, and automated motion platforms, 86BLF 86mm BLDC motors provide consistent torque and smooth speed control. Their design supports precise coordination between motor and controller, which is essential for applications involving repeatable motion sequences.

86BLF 86mm BLDC motor series is widely adopted in industrial automation projects and motion control systems that demand reliability and control accuracy in both European and North American markets.

Common application areas include:

• CNC machinery and positioning equipment

• Precision motion control systems

• Automated production platforms

• Industrial robotics subsystems

Technical Specifications of 86BLF 86mm BLDC Motor Series

The following technical data applies to the 86BLF 86mm BLDC Motor Series.

Electrical Parameters

• Rated voltage options: 24V/48V/310V etc.

• Rated speed: 3000rpm(customized)

• Rated Torque: 1-2.5N.m(customized)

• Output power range: 300-800W(customized)

Mechanical Parameters

• 86mm outer diameter

• Optional shaft diameter and length

• Customized Mounting size

Optional Configurations

• Controller, encoder and gearbox optional

• Shaft types optional

• Cable and terminal optional







brushless dc motor specification.pdf

Customization Options

Available options include gearbox, controller, encoder and installation dimension.

Electrical Specifications
Model	Voltage	RATED LOAD				Peak Torque	Torque constant	V/kRPM	Rotor inertia	Body Length	Mass
		speed	Torque	Current	Power
Model	V	rpm	Nm	A	W	Nm	N.M/A	V/kRPM	kg.mm2	L:mm	Kg
86BL80-430	48	3000	1	8.5	314	3	0.133	9.8	120	80	2.2
86BL90-430	48	3000	1.27	10.8	400	3.81	0.133	9.8	160	90	2.6
86BL105-430	48	3000	1.8	14.8	565	5.4	0.133	9.8	220	105	3.4
86BL115-430	48	3000	2.1	18	659	6.3	0.133	9.7	260	115	3.8
86BL130-430	48	3000	2.5	19.5	785	7.5	0.138	10.2	320	130	4.3
86BL130-630	310	3000	2.5	3.3	785	7.5	0.8	62	320	130	4.3
★We also manufacture products according to customer,s requirements.
Mechanical Dimensions
Wiring Diagram

FAQ – 86BLF 86mm BLDC motor

Q1: Is 86BLF 86mm BLDC motor suitable for CNC equipment?

A: Yes, 86BLF 86mm BLDC motor is widely used in CNC and positioning systems.

Q2: Does 86BLF 86mm BLDC motor support precise speed control?

A: Yes, 86BLF 86mm BLDC motor is optimized for stable speed regulation.

Q3: Can encoders be integrated?

A: Yes, multiple encoder options are available.

Q4: How does 86BLF 86mm BLDC motor perform under variable loads?

A: 86BLF 86mm BLDC motor maintains consistent torque output.

Q5: Is customization available?

A: Yes, both mechanical and electrical parameters can be customized.

Q6: Is 86BLF 86mm BLDC motor suitable for the European market?

A: Yes, 86BLF 86mm BLDC motor is designed for global OEM applications.
