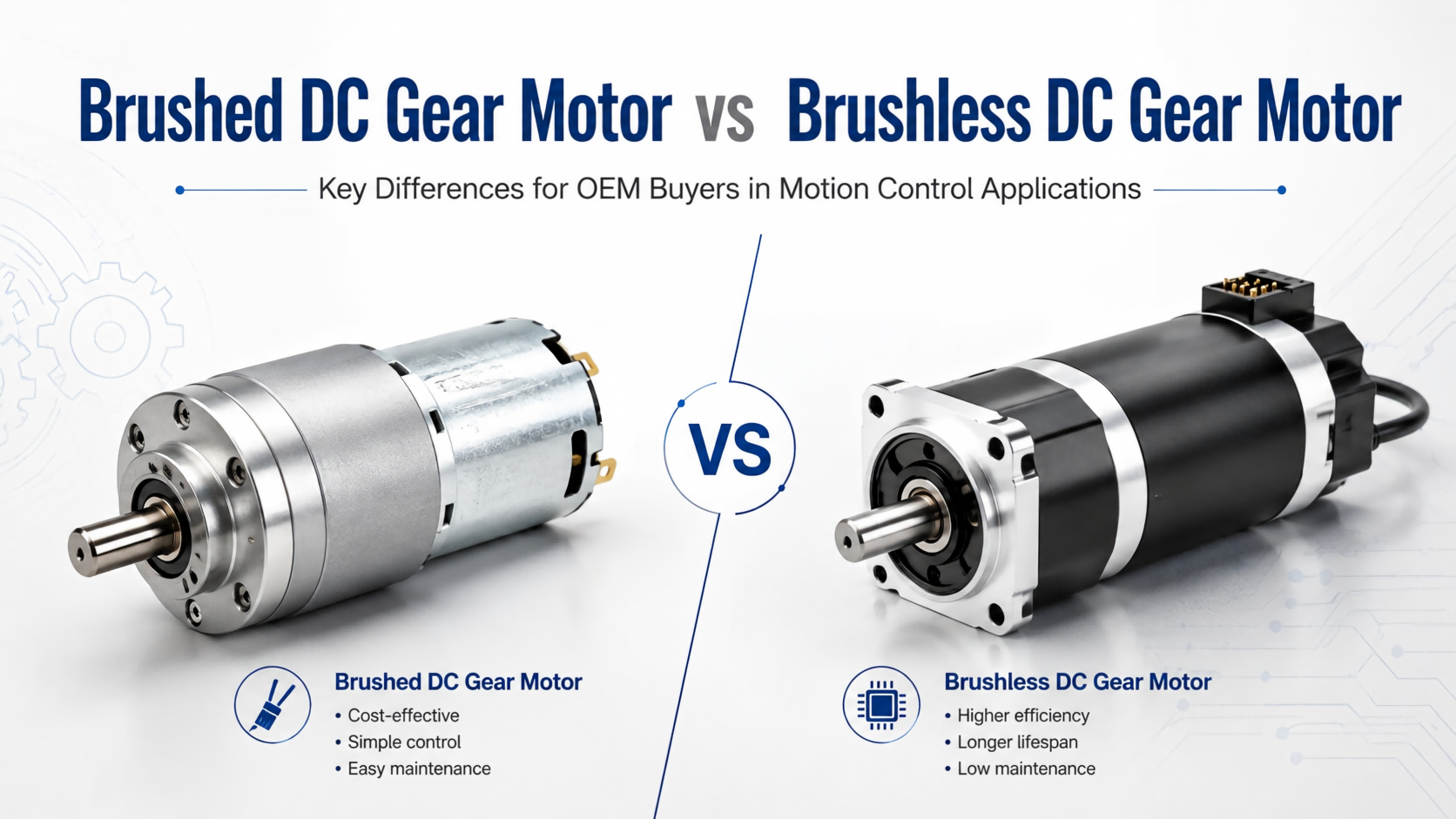

Brushed DC Gear Motor Vs Brushless DC Gear Motor: How OEM Buyers Choose The Right Motion Solution

Introduction: Why This Comparison Matters for OEM Buyers

For many OEM equipment manufacturers, a DC gear motor is not just a small component hidden inside a machine. It is often the core motion unit that determines whether the final product can move smoothly, carry the required load, operate quietly, and maintain stable performance over time. Whether the application is an actuator, vending machine, automatic door, medical device, robot joint, AGV, smart lock, packaging machine, conveyor system, or customized automation equipment, choosing the right gear motor directly affects product reliability and user experience.

Among DC gear motor options, two common choices are brushed DC gear motors and brushless DC gear motors. Both combine a DC motor with a gearbox to reduce speed and increase torque. However, their internal motor structure, control method, service life, maintenance requirement, efficiency, cost, and suitable applications are different.

For B2B buyers, the decision is not always simple. A brushed DC gear motor may be more cost-effective and easier to control, while a brushless DC gear motor may provide longer service life, higher efficiency, lower maintenance, and better control accuracy. The right choice depends on the actual equipment design, working duty, budget, performance requirement, expected lifespan, and long-term maintenance cost.

This article compares brushed DC gear motors vs brushless DC gear motors from an OEM buyer’s perspective. It explains their working principles, advantages, limitations, application differences, selection criteria, customization points, and common purchasing mistakes. If you are sourcing gear motors for industrial, commercial, medical, robotics, or automation projects, this guide will help you make a more practical decision.

What Is a Brushed DC Gear Motor?

Basic Definition of a Brushed DC Gear Motor

A brushed DC gear motor is a DC motor combined with a gearbox. The motor uses carbon brushes and a commutator to transfer current to the rotor windings. The gearbox reduces the high motor speed and increases output torque, making the motor suitable for low-speed, high-torque motion applications.

Brushed DC gear motors are widely used because they are simple, practical, and cost-effective. They can be driven by a relatively simple DC power supply or basic motor controller. For applications that do not require extremely long service life or advanced control accuracy, brushed gear motors remain a very popular choice.

How a Brushed DC Gear Motor Works

In a brushed DC motor, current flows through brushes into the commutator, which switches the current direction in the rotor windings. This creates a magnetic field that interacts with the stator magnetic field and causes the rotor to rotate.

When the motor is connected to a gearbox, the fast motor speed is reduced to a lower output speed. At the same time, the output torque is increased. This makes brushed DC gear motors useful for applications such as small actuators, vending machines, electric locks, toys, display devices, office equipment, and light-duty automation mechanisms.

Main Advantages of Brushed DC Gear Motors

The biggest advantage of brushed DC gear motors is simplicity. They are easy to power, easy to control, and usually more affordable than brushless DC gear motors. In many applications, speed can be adjusted by changing the input voltage or using a simple PWM controller.

Another advantage is availability. Brushed DC gear motors are common in many sizes, voltage options, gear ratios, shaft types, and mounting structures. For cost-sensitive projects, this can be very attractive.

Main Limitations of Brushed DC Gear Motors

The main limitation is brush wear. Since the motor uses physical brushes, the brushes gradually wear down during operation. This can reduce motor life and may require maintenance or replacement.

Brushed motors may also generate more electrical noise, mechanical noise, heat, and friction compared with brushless motors. For high-duty-cycle or long-life applications, these limitations can become important.

What Is a Brushless DC Gear Motor?

Basic Definition of a Brushless DC Gear Motor

A brushless DC gear motor, also called a BLDC gear motor, combines a brushless DC motor with a gearbox. Instead of using brushes and a commutator, it uses electronic commutation controlled by a driver or controller.

The gearbox reduces speed and increases torque, while the brushless motor provides high efficiency, long service life, and smooth operation. This makes brushless DC gear motors suitable for applications that require better reliability, lower maintenance, precise speed control, or continuous operation.

How a Brushless DC Gear Motor Works

A brushless DC motor typically has permanent magnets on the rotor and windings on the stator. The controller switches current through the stator windings to create a rotating magnetic field. Sensors or sensorless control methods help the controller know the rotor position and drive the motor correctly.

After the motor output passes through the gearbox, the final shaft speed is reduced and torque is increased. Compared with brushed DC gear motors, brushless DC gear motors usually require more electronic control, but they provide better performance for many demanding applications.

Main Advantages of Brushless DC Gear Motors

Brushless DC gear motors offer several important advantages. They have no brush wear, which means longer service life and lower maintenance. They are usually more efficient, produce less heat, and can provide smoother speed control.

They are also suitable for applications where reliability matters more than initial price. For example, AGVs, AMRs, robots, medical equipment, industrial automation machines, and commercial smart devices often benefit from brushless gear motor technology.

Main Limitations of Brushless DC Gear Motors

The main limitation is higher initial cost. A brushless DC gear motor usually costs more than a brushed DC gear motor. It also requires a suitable controller, which adds complexity to the system.

For very simple, low-cost, intermittent-use applications, a brushless solution may not always be necessary. This is why OEM buyers should evaluate the full project requirement before choosing.

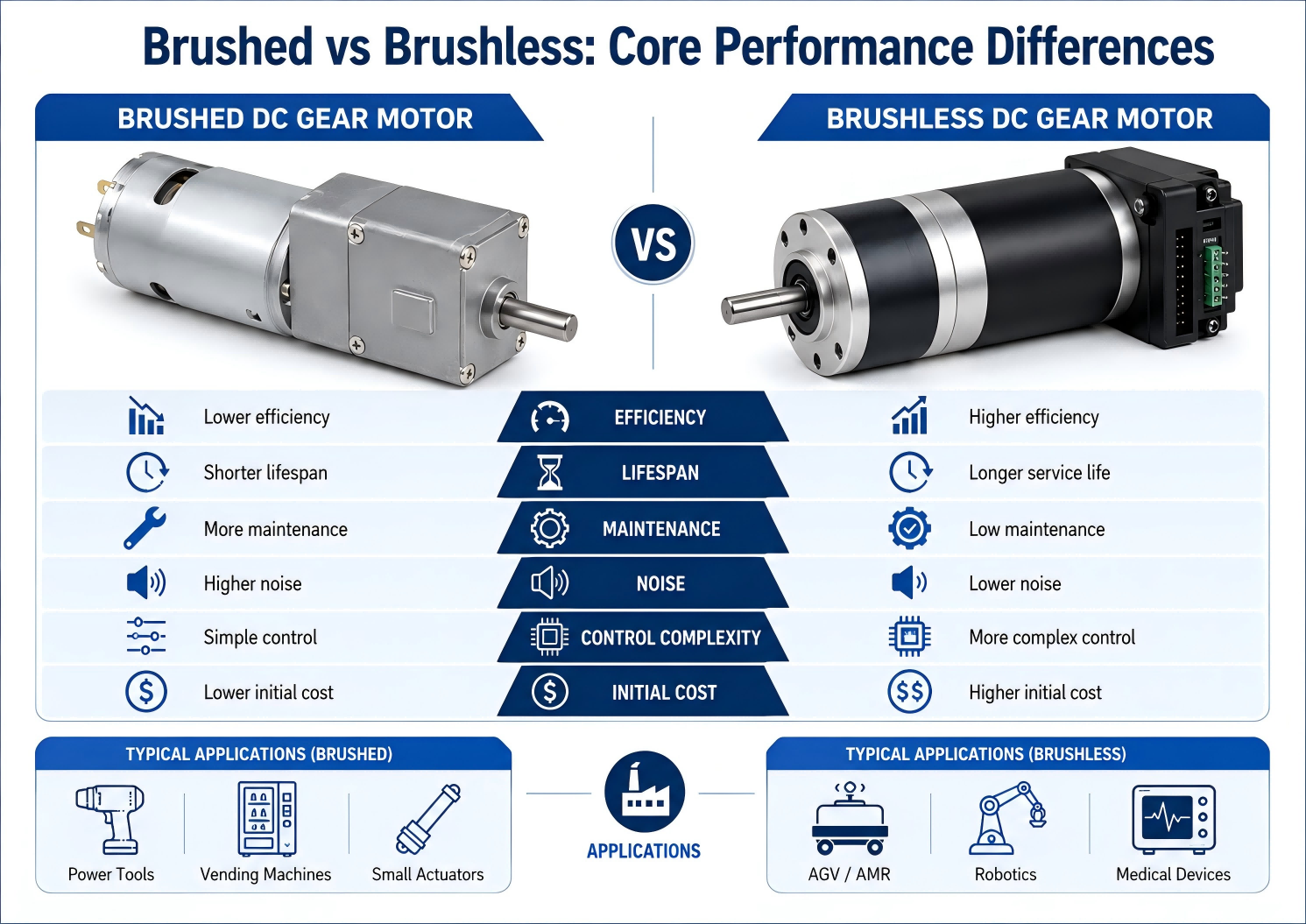

Brushed DC Gear Motor vs Brushless DC Gear Motor: Core Differences

Difference in Motor Structure

The main structural difference is the commutation method. A brushed DC gear motor uses brushes and a commutator, while a brushless DC gear motor uses electronic commutation.

Because brushed motors have physical brush contact, friction and wear are unavoidable. Brushless motors remove this mechanical contact, which helps improve lifespan and reduce maintenance.

Difference in Service Life

Brushless DC gear motors generally offer longer service life because there are no brushes to wear out. The actual lifespan still depends on bearing quality, gearbox design, gear material, load, lubrication, duty cycle, temperature, and operating environment.

Brushed DC gear motors can still work well in many applications, especially when the duty cycle is light or intermittent. However, for continuous operation or equipment that must run for thousands of hours, brushless gear motors are usually more suitable.

Difference in Efficiency

Brushless DC gear motors are generally more efficient because they have less friction loss and better electronic commutation. Higher efficiency means less energy waste, lower heat generation, and better battery performance in mobile equipment.

Brushed DC gear motors may be less efficient due to brush friction and electrical losses. For plug-in devices with low duty cycles, this may not be a serious issue. For battery-powered or energy-sensitive equipment, it becomes more important.

Difference in Maintenance

Brushed DC gear motors may require maintenance because of brush wear. Over time, the brushes can degrade, and carbon dust may accumulate inside the motor. This can affect performance or create reliability concerns.

Brushless DC gear motors require less motor-side maintenance because they do not use brushes. For OEM buyers, this can reduce after-sales service pressure and improve customer satisfaction.

Difference in Noise and Vibration

Brushless DC gear motors usually provide smoother operation and lower electrical noise. Since there is no brush contact, they can also reduce certain types of mechanical noise.

Brushed DC gear motors may produce more noise due to brush contact and commutation. However, the final noise level also depends on gearbox precision, bearing quality, speed, load, mounting method, and housing design.

Difference in Control Complexity

Brushed DC gear motors are easy to control. In many cases, applying DC voltage makes the motor rotate, and changing voltage or PWM duty can adjust speed. This simplicity is one reason they remain popular.

Brushless DC gear motors need a controller for commutation. If the application requires precise speed or position feedback, the system may also need Hall sensors, encoders, or more advanced control logic. This adds complexity but also enables better performance.

Difference in Initial Cost

Brushed DC gear motors usually have lower initial cost. They are a good option for price-sensitive projects, simple devices, and applications with limited running time.

Brushless DC gear motors usually have higher initial cost because of the motor design and controller requirement. However, they may reduce long-term cost by lowering maintenance, improving efficiency, and extending service life.

Difference in Total Cost of Ownership

For OEM buyers, the lowest purchase price does not always mean the lowest total cost. If a motor fails early, requires frequent maintenance, or causes after-sales issues, the real cost becomes much higher.

A brushed DC gear motor may be the best option for low-cost, light-duty products. A brushless DC gear motor may be better for high-value equipment, continuous-use machines, or products where reliability is a selling point.

When Should OEM Buyers Choose a Brushed DC Gear Motor?

Cost-Sensitive Projects

If the project has a tight budget and the application does not require long continuous operation, a brushed DC gear motor can be a practical choice. It provides useful torque, simple control, and lower initial cost.

Examples include small consumer devices, simple actuators, toys, basic vending mechanisms, display equipment, and light-duty commercial machines.

Simple Control Systems

If the product does not require advanced speed control, position feedback, or communication with a complex control board, a brushed DC gear motor may be easier to integrate. Basic voltage control or PWM speed control is often enough.

This can reduce development time and simplify the electrical design.

Intermittent Duty Applications

For applications that operate only occasionally, brush wear may not be a serious issue. For example, a small lock mechanism or adjustment device may only run for a few seconds each time. In these cases, a brushed DC gear motor can provide good value.

Easy Maintenance Environments

If the equipment is easy to access and maintenance is acceptable, brushed gear motors may still be suitable. Some buyers prefer lower upfront cost even if periodic maintenance is expected.

Basic Torque and Speed Requirements

When the load is not demanding and the performance requirement is simple, brushed DC gear motors can be reliable and economical.

When Should OEM Buyers Choose a Brushless DC Gear Motor?

Continuous Operation Applications

If the motor needs to run for long periods, a brushless DC gear motor is usually a better choice. Continuous operation increases the importance of efficiency, heat control, and long service life.

Examples include conveyors, AGV drive systems, AMR wheel drives, industrial automation machines, medical devices, and ventilation-related motion systems.

Long Service Life Requirements

For products that must operate for years with minimal maintenance, brushless DC gear motors are often preferred. No brush wear means fewer brush-related failures.

This is especially important for equipment installed in factories, hospitals, public facilities, warehouses, and commercial sites.

Low Maintenance Expectations

Many OEM buyers want to reduce after-sales service. A brushless DC gear motor can help because it does not require brush replacement. This is valuable when the final product is exported, installed in large quantities, or used in hard-to-access locations.

Higher Efficiency Requirements

For battery-powered equipment, energy efficiency is critical. Brushless DC gear motors can help extend battery life and reduce heat. This makes them suitable for mobile robots, AGVs, AMRs, portable medical devices, and electric mobility equipment.

Precise Speed and Position Control

Brushless DC gear motors are better suited for applications requiring precise speed regulation, torque control, or position feedback. With Hall sensors or encoders, they can support more advanced control systems.

This is useful in robotics, medical equipment, laboratory instruments, automation platforms, and intelligent commercial devices.

Application Comparison: Which Motor Fits Which Product?

Vending Machines

Vending machines may use either brushed or brushless DC gear motors. For simple dispensing mechanisms with short operation time, brushed DC gear motors are often enough. For premium vending systems that require quieter operation, higher reliability, or frequent use, brushless DC gear motors may be more suitable.

Smart Locks and Access Control

Smart locks often require compact gear motors with enough torque and reliable starting performance. Brushed DC gear motors are common in cost-sensitive smart locks. Brushless gear motors may be considered when long life, low noise, and higher reliability are required.

Medical Devices

Medical devices often require quiet operation, smooth movement, and long-term reliability. Brushless DC gear motors are usually more suitable for higher-end medical equipment. However, brushed gear motors may still be used in simple medical accessories or low-duty mechanisms.

AGV and AMR Systems

AGV and AMR drive systems usually benefit from brushless DC gear motors because these applications require continuous movement, high efficiency, controlled speed, and long service life. Encoder and brake options may also be needed.

Robotics

Robotics applications often require precise control, compact design, and reliable operation. Brushless DC gear motors are commonly preferred, especially for robot joints, mobile robot wheels, grippers, and positioning systems. Brushed gear motors may be used in low-cost educational robots or simple mechanisms.

Industrial Automation

Industrial automation equipment often runs for long hours. Brushless DC gear motors are usually better for high-duty-cycle systems. Brushed DC gear motors may still be used in simple actuators, intermittent positioning mechanisms, or cost-sensitive equipment.

Power Tools

Many traditional power tools use brushed DC motors because of their simple structure and lower cost. However, brushless motors are increasingly used in higher-end tools due to better efficiency, longer runtime, and reduced maintenance.

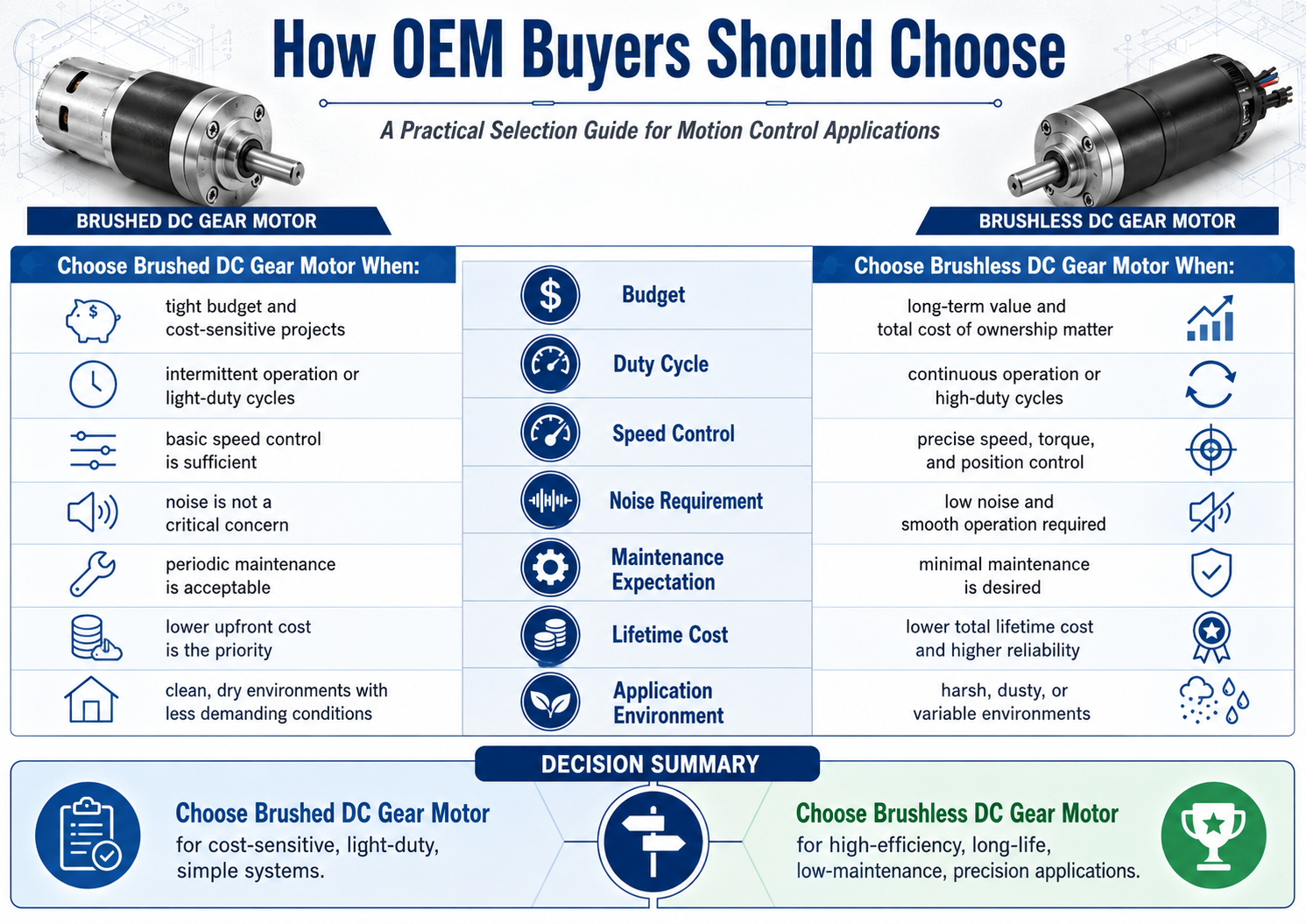

How OEM Buyers Should Choose Between Brushed and Brushless DC Gear Motors

Step 1: Define the Application

Before comparing motor types, define the real application. What does the motor drive? Is it a wheel, conveyor roller, actuator, door, lock, rotating platform, lifting mechanism, or dispensing system?

The application determines the required motor size, torque, speed, gearbox type, shaft structure, and control method.

Step 2: Confirm Duty Cycle

Duty cycle is one of the most important selection factors. If the motor only runs occasionally, a brushed DC gear motor may be enough. If the motor runs continuously or frequently, a brushless DC gear motor may provide better long-term reliability.

Buyers should define running time, stop time, load level, start-stop frequency, and expected operating hours per day.

Step 3: Compare Initial Cost and Lifetime Cost

A brushed DC gear motor may be cheaper at the beginning, but a brushless DC gear motor may reduce maintenance and replacement cost over time. OEM buyers should consider both initial cost and total cost of ownership.

For low-cost products, initial price may matter most. For industrial or medical products, reliability and lifetime cost may be more important.

Step 4: Confirm Control Requirement

If the motor only needs simple forward and reverse rotation, a brushed gear motor may be sufficient. If the system requires stable speed, accurate position feedback, or closed-loop control, a brushless gear motor may be a better choice.

Step 5: Consider Noise Requirement

For products used near people, such as medical equipment, office automation devices, hotel equipment, smart home devices, and commercial machines, noise is important. Brushless gear motors usually have an advantage in smooth and quiet operation.

However, gearbox quality and mounting design also affect noise, so real-load testing is still necessary.

Step 6: Review Installation Space

Both brushed and brushless DC gear motors can be customized in different sizes and gearbox structures. Buyers should check motor diameter, length, shaft size, mounting holes, connector position, and available installation space.

Step 7: Test Samples Before Mass Production

No matter which motor type is selected, sample testing is necessary. The motor should be tested under real load conditions to confirm speed, torque, current, temperature rise, noise, vibration, gearbox performance, and controller compatibility.

Key Specifications to Confirm Before Ordering

Voltage

Common DC gear motor voltages include 6V, 12V, 24V, 36V, and 48V. Brushless DC gear motors used in automation, AGV, and medical equipment often use 24V or 48V, while smaller brushed gear motors may use 6V, 12V, or 24V.

Output Speed

The output speed is the shaft speed after gearbox reduction. OEM buyers should confirm the required RPM based on the actual mechanical system.

Rated Torque

Torque should be confirmed based on the real load. Buyers should consider rated torque, starting torque, peak torque, friction, acceleration, and safety margin.

Gear Ratio

The gear ratio determines output speed and torque. A higher ratio provides lower speed and higher torque, but may affect efficiency, noise, backlash, and gearbox life.

Gearbox Type

Common gearbox types include planetary gearbox, spur gearbox, worm gearbox, and right-angle gearbox. Each type has different advantages in torque density, cost, noise, efficiency, and space layout.

Shaft Design

Shaft diameter, length, D-cut, flat position, keyway, thread, hole, and material should be confirmed. Incorrect shaft design can cause assembly failure.

Mounting Structure

Mounting hole position, flange size, bracket design, and installation direction should match the final equipment.

Encoder or Hall Sensor

Brushless DC gear motors may need Hall sensors or encoders depending on the control requirement. Brushed DC gear motors can also include encoders when feedback is needed.

Brake Option

If the application requires holding position, especially in lifting or vertical motion systems, a brake may be needed.

Lead Wire and Connector

Wire length, wire color, connector type, terminal model, and pin definition should be confirmed before production.

Protection Level

For outdoor, dusty, humid, or harsh environments, IP rating and sealing design should be considered.

Common Gearbox Options for DC Gear Motors

Planetary Gearbox

Planetary gearboxes are compact and suitable for high torque density. They are commonly used in robotics, automation, medical equipment, and AGV applications.

Spur Gearbox

Spur gearboxes are simple and cost-effective. They are suitable for basic mechanical systems, vending machines, smart devices, and light-duty actuators.

Worm Gearbox

Worm gearboxes are useful for high reduction ratios and certain holding applications. They are commonly used in adjustment systems, doors, lifting devices, and compact right-angle mechanisms.

Right-Angle Gearbox

Right-angle gearboxes are used when installation space requires the output shaft to be perpendicular to the motor body. This can help save space in compact equipment.

Brushed DC Gear Motor Advantages for OEM Projects

Lower Initial Cost

For many OEM buyers, cost is a key concern. Brushed DC gear motors are usually more affordable, making them suitable for high-volume cost-sensitive products.

Simple Electrical Design

Brushed motors are easy to control. This can simplify the control board design and reduce development time.

Wide Availability

Brushed DC gear motors are available in many standard sizes, gear ratios, and voltage options. This makes sample sourcing faster for many projects.

Good for Light-Duty Motion

For light-duty, intermittent, or simple motion applications, brushed DC gear motors can provide enough performance at a reasonable cost.

Brushless DC Gear Motor Advantages for OEM Projects

Longer Service Life

No brush wear means longer motor-side life. This is one of the biggest reasons OEM buyers choose brushless DC gear motors.

Higher Efficiency

Brushless motors usually provide better efficiency, helping reduce energy consumption and heat generation.

Lower Maintenance

Brushless DC gear motors reduce maintenance related to brush wear. This is valuable for equipment installed in large numbers or hard-to-access locations.

Better Control Performance

With the right controller and feedback system, brushless DC gear motors can provide stable speed, smooth acceleration, and precise positioning.

Better Long-Term Value

Although the initial cost may be higher, brushless DC gear motors can provide lower lifetime cost in demanding applications.

Common Mistakes When Choosing DC Gear Motors

Choosing Only by Price

A low-cost motor may be attractive, but if it does not meet the duty cycle, torque, or lifespan requirement, it can create higher costs later.

Ignoring Real Load Conditions

No-load motor data is not enough. The motor should be tested with the real load and final mechanical structure.

Overlooking Gearbox Backlash

For positioning applications, backlash can affect accuracy. Buyers should confirm acceptable backlash before ordering.

Forgetting Controller Compatibility

Brushless DC gear motors need compatible controllers. If the controller is not matched correctly, the motor may not run properly.

Not Confirming Shaft and Mounting Dimensions

Mechanical mismatch is a common cause of project delay. Drawings should be confirmed before sample production.

Skipping Noise and Temperature Testing

Noise and temperature rise should be tested under real working conditions, especially for medical, commercial, and indoor applications.

How Modar Motor Supports OEM DC Gear Motor Projects

Customized Brushed and Brushless Gear Motor Solutions

Modar Motor supports customized DC motor and gear motor solutions for OEM buyers. Whether the project requires a cost-effective brushed DC gear motor or a long-life brushless DC gear motor, the motor should be selected according to the actual application rather than only catalog parameters.

Customization can include voltage, speed, torque, gear ratio, gearbox type, shaft design, mounting structure, lead wire, connector, encoder, brake, controller compatibility, label, and packaging.

Practical Support for B2B Buyers

For many OEM projects, buyers need more than a standard product. They need technical communication, drawing confirmation, sample adjustment, and mass production support. Modar Motor can help buyers evaluate the application and recommend a suitable solution based on load, speed, duty cycle, installation space, and control requirements.

Suitable for Industrial, Medical, Robotics, and Commercial Applications

Modar Motor’s DC gear motor solutions can be used in automation equipment, robotics, AGV and AMR systems, medical devices, smart commercial equipment, security systems, and customized motion control projects.

Engineering-Oriented Communication

A good gear motor supplier should help buyers avoid common mistakes such as wrong gear ratio, insufficient torque, overheating, wiring mismatch, shaft incompatibility, and controller mismatch. Modar Motor focuses on practical engineering communication, helping OEM buyers move from inquiry to sample testing and stable production more efficiently.

Recommended Inquiry Information for OEM Buyers

Application

Describe what the motor will drive and how the motion works.

Voltage and Power Supply

Provide rated voltage and voltage range if the system is battery-powered.

Output Speed

Confirm the required RPM after gearbox reduction.

Torque or Load Data

Provide rated torque, starting torque, load weight, friction, wheel diameter, lifting angle, or other load details.

Gearbox Requirement

Mention planetary, spur, worm, right-angle, or other gearbox preferences if known.

Shaft and Mounting Drawing

Provide a drawing or sample to confirm mechanical dimensions.

Control Requirement

Explain whether the motor needs simple control, speed control, encoder feedback, brake, or closed-loop operation.

Duty Cycle

State running time, stop time, frequency of operation, and working hours per day.

Environment

Mention temperature, humidity, dust, outdoor exposure, noise limits, and protection level.

Quantity

Provide sample quantity, pilot order quantity, and estimated annual demand.

Product FAQ: Brushed DC Gear Motor vs Brushless DC Gear Motor

What is the main difference between brushed and brushless DC gear motors?

The main difference is the commutation method. Brushed DC gear motors use brushes and a commutator, while brushless DC gear motors use electronic commutation through a controller.

Which motor has a longer service life?

Brushless DC gear motors usually have longer service life because they do not have brushes that wear out. However, gearbox quality, bearing life, load, and duty cycle also affect total motor life.

Which motor is more cost-effective?

Brushed DC gear motors are usually more cost-effective in initial price. Brushless DC gear motors may provide better long-term value for applications requiring long life, high efficiency, and low maintenance.

Which motor is better for continuous operation?

Brushless DC gear motors are usually better for continuous or high-duty-cycle operation because they are more efficient and have no brush wear.

Are brushed DC gear motors still useful?

Yes. Brushed DC gear motors are still widely used in cost-sensitive, simple, and intermittent-duty applications.

Do brushless DC gear motors need a controller?

Yes. Brushless DC gear motors require a suitable controller for electronic commutation. The controller must match the motor voltage, current, Hall sensor or sensorless design, and control requirements.

Can both brushed and brushless DC gear motors use encoders?

Yes. Both types can be equipped with encoders if feedback is required. Brushless motors may also use Hall sensors or encoder feedback depending on the application.

Which motor is better for AGV or AMR applications?

Brushless DC gear motors are usually better for AGV and AMR applications because they offer higher efficiency, longer life, better speed control, and lower maintenance.

Which motor is better for vending machines?

For simple vending mechanisms, brushed DC gear motors may be enough. For high-frequency, low-noise, or premium vending systems, brushless DC gear motors may be a better choice.

Can DC gear motors be customized?

Yes. DC gear motors can be customized for voltage, speed, torque, gear ratio, gearbox type, shaft, mounting, wire, connector, encoder, brake, and packaging.

How do I choose the right gear ratio?

The gear ratio should be selected based on the required output speed and torque. A higher gear ratio reduces speed and increases torque, but efficiency, noise, and gearbox life should also be considered.

What information should I send when requesting a quote?

You should provide application, voltage, output speed, torque or load details, gear ratio, gearbox type, shaft size, mounting method, duty cycle, controller requirement, encoder or brake requirement, working environment, and estimated quantity.

Can Modar Motor help recommend the right solution?

Yes. Modar Motor can help OEM buyers compare brushed and brushless DC gear motor options and recommend a suitable solution based on application, load, speed, duty cycle, installation structure, and budget.

Conclusion: Choose Based on the Application, Not Only the Motor Type

Both brushed DC gear motors and brushless DC gear motors have important roles in modern motion control applications. A brushed DC gear motor is often a good choice for cost-sensitive, simple, and intermittent-duty systems. It is easy to control, widely available, and suitable for many basic mechanical applications.

A brushless DC gear motor is usually better for applications requiring longer service life, higher efficiency, lower maintenance, quieter operation, and more precise control. It is especially suitable for AGV, AMR, robotics, medical equipment, industrial automation, and high-value commercial devices.

For OEM buyers, the correct decision should be based on the whole system requirement. Budget, duty cycle, speed, torque, control method, noise, environment, maintenance expectation, and lifetime cost should all be considered.

If you are developing a new motion control product or replacing an existing gear motor supplier, Modar Motor can support customized brushed and brushless DC gear motor solutions from requirement confirmation to sample testing and mass production. By working with a supplier that understands both technical selection and OEM customization, buyers can reduce project risk and choose a motor that truly fits the final application.
