Product Overview——YSK110 AC Fan Motor
YSK110 AC fan motor is designed for compact mechanical equipment where reliable torque and stable rotational speed are required. Its smaller footprint allows easy installation in space-constrained systems while maintaining efficient mechanical performance.
YSK110 AC fan motor is widely used in compressors and pumping applications due to its balanced starting torque and thermal durability.
Key Advantages
Compact mechanical design
Good starting torque performance
Stable speed under load
Durable bearing system
Cost-efficient industrial solution
Technical Highlights
Optimized magnetic circuit
Efficient capacitor start/run structure
Thermal-resistant winding system
Long mechanical life
Typical Application of YSK110 AC Fan Motor
Small Air Compressors
YSK110 AC fan motor is frequently used in compact air compressor systems that require stable mechanical output under medium load conditions. Its optimized starting torque ensures reliable pressure build-up during startup, while maintaining thermal stability during repeated operating cycles.
Water Pump Systems
In residential and light industrial pump applications, YSK110 AC fan motor provides dependable rotational power for water circulation. The motor supports continuous operation in fluid transfer systems, including irrigation systems, water boosting systems, and pressure control equipment.
Agricultural Machinery
YSK110 AC fan motor is suitable for small agricultural drive systems such as feed machinery, grain handling equipment, and ventilation systems in livestock facilities. Its compact design allows flexible integration into portable or semi-mobile agricultural equipment.
Food Processing Equipment
YSK110 AC fan motor can be applied in mixer drives, conveyor systems, and packaging machinery in food production lines where stable speed and consistent torque output are required for uniform mechanical operation.
Technical Specification of YSK110 AC Fan Motor
| Parameter | Range |
| Motor Type | Single-Phase Capacitor-Run |
| Frame Size | 110 mm |
| Frequency | 50Hz / 60Hz |
| Voltage | 220V / 110V / Custom |
| Power Range | 20W –100W |
| Speed | 900 – 2800 RPM |
| Insulation Class | B/F |
| Duty Cycle | S1 Continuous |
| Protection | IP20–IP55 Optional |
| Electrical Specifications of YSK110 AC fan motor |
| Model | Electrical Rating | RATED LOAD |
| speed | Current | Power | Capacitor |
| Model | V/Hz | rpm | A | W | μF |
| YSK110-50W-4 | 220V/50-60Hz | 1050/840/670 | 0.22 | 50 | 3 |
| YSK110-70W-4 | 220V/50-60Hz | 1050/840/670 | 0.32 | 70 | 3 |
| YSK110-90W-4 | 220V/50-60Hz | 1050/840/670 | 0.41 | 90 | 4 |
| YSK110-100W-4 | 220V/50-60Hz | 1050/840/670 | 0.45 | 100 | 4 |
| Notes: The above mentioned specification is representative specification. The specification can also be designed and manufactured according to customers requirements. The products of 100-120V，200-240V，50/60Hz can also be supplied as requested. |

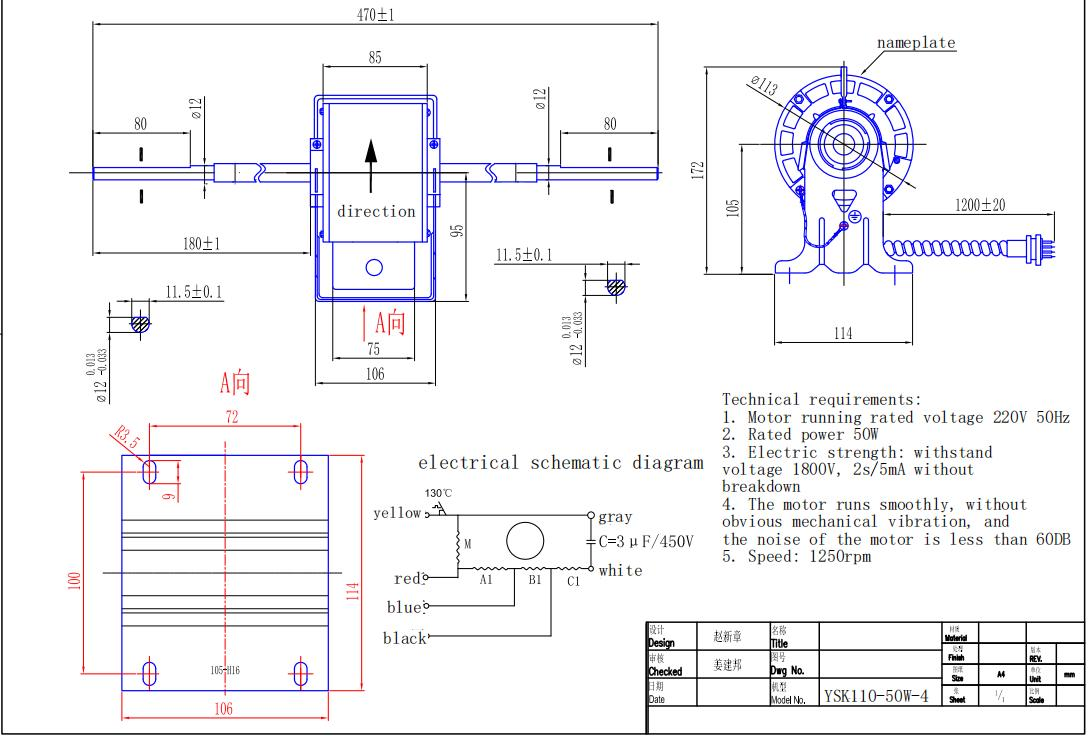

| Drawing of YSK110 AC Fan Motor |
![YSK110 ac Fan motor]( "YSK110") |
FAQ of YSK110 AC Fan Motor
Is YSK110 AC fan motor suitable for compressors?
Yes, YSK110 AC fan motor is commonly used in compressor systems.
Does YSK110 AC fan motor support dual voltage design?
Yes, customization is available.
Can YSK110 AC fan motor handle frequent starts?
Design can be optimized per requirements.
Is bearing brand customizable?
Yes.
What cooling method does YSK110 AC fan motor use?
Air-cooled structure.
Can I request IP55 protection?
Yes, available upon request.
Is OEM branding supported?
Yes.
What information is required for selection?
Power, voltage, rpm and center height, shaft diameter.
