What Is a Multi-Stage Planetary Gear Motor? A Practical Guide for OEM Buyers

Introduction: Why Multi-Stage Planetary Gear Motors Matter in Modern Motion Systems

In many automation and motion control applications, a standard motor cannot directly meet the required output speed and torque. Motors usually rotate at relatively high speed, while mechanical equipment often needs slower, stronger, and more controlled movement. This is where gear reduction becomes essential.

A multi-stage planetary gear motor is a compact drive solution that combines a motor with a planetary gearbox using two or more gear reduction stages. Compared with a single-stage gearbox, a multi-stage planetary gearbox can provide a higher reduction ratio, greater output torque, and better adaptability for demanding applications.

For OEM buyers, this type of motor is widely used in industrial automation, robotics, AGV and AMR systems, medical equipment, electric actuators, smart logistics equipment, packaging machinery, and customized motion control devices. When a machine needs compact size, high torque, stable transmission, and flexible customization, a multi-stage planetary gear motor is often a practical solution.

However, selecting the right planetary gear motor is not only about choosing a gear ratio. OEM buyers also need to consider voltage, motor type, rated speed, output torque, gearbox stages, backlash, efficiency, noise, shaft design, mounting method, duty cycle, encoder options, brake options, and controller compatibility.

This article explains what a multi-stage planetary gear motor is, how it works, where it is used, and how OEM buyers can choose the right solution for their equipment.

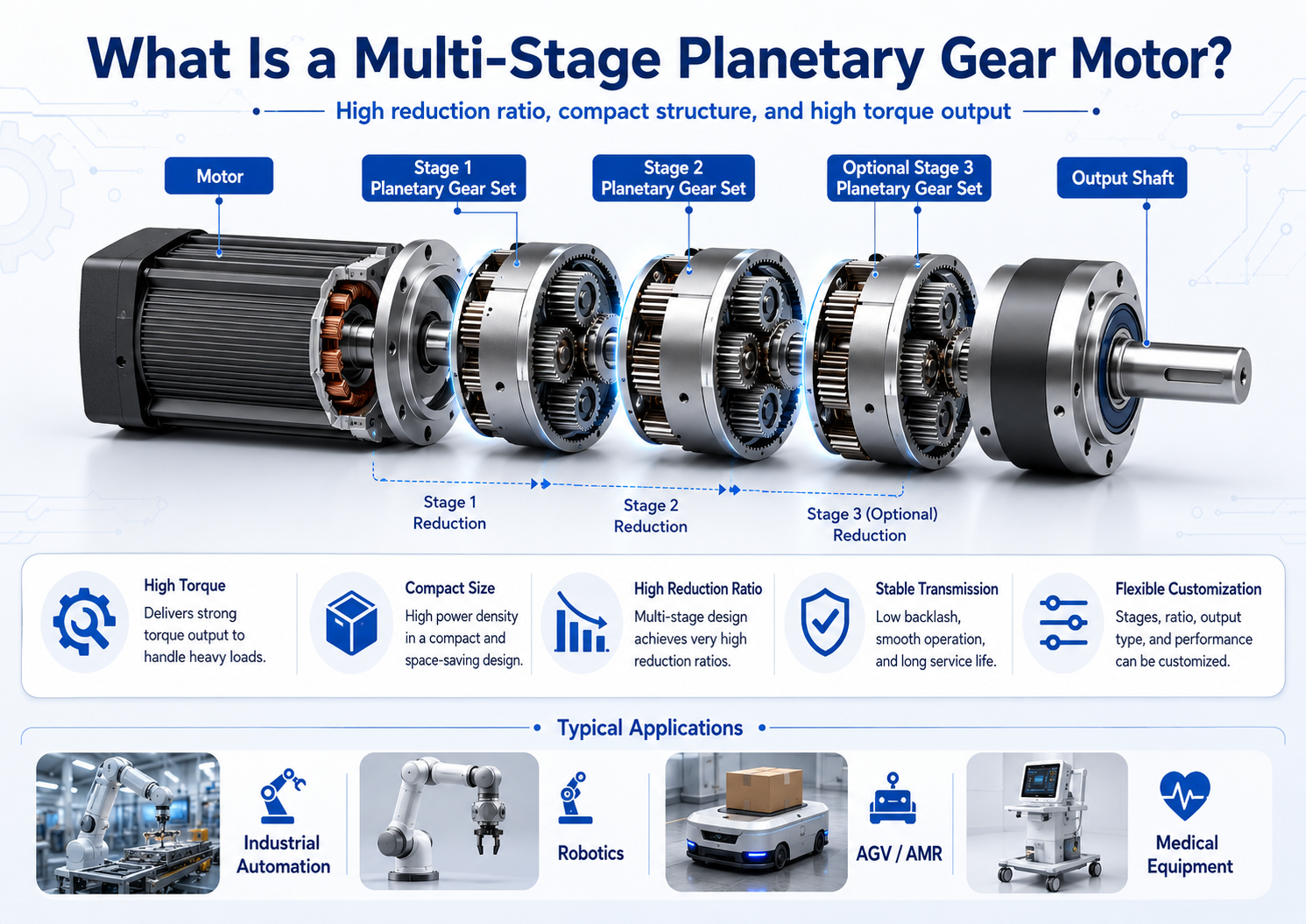

What Is a Multi-Stage Planetary Gear Motor?

Basic Definition

A multi-stage planetary gear motor is a gear motor that uses a motor combined with a planetary gearbox containing multiple reduction stages. Each stage includes planetary gears, a sun gear, a ring gear, and a carrier. When several stages are connected in sequence, the gearbox can achieve a much higher total reduction ratio.

In simple terms, the motor provides the rotational power, while the multi-stage planetary gearbox reduces the speed and increases the output torque. The final output shaft rotates slower than the motor shaft, but with much stronger torque.

What Does “Multi-Stage” Mean?

“Multi-stage” means that the gearbox uses more than one set of planetary gear reduction structures. A single-stage planetary gearbox may provide a moderate gear ratio. A two-stage or three-stage planetary gearbox can multiply the reduction ratio and deliver much higher torque.

For example:

A single-stage gearbox may provide a ratio such as 3:1, 4:1, 5:1, or 10:1.

A two-stage gearbox may combine two stages to achieve ratios such as 15:1, 20:1, 25:1, 50:1, or 100:1.

A three-stage gearbox may achieve even higher ratios, such as 150:1, 200:1, 300:1, or more, depending on the gearbox design.

The final ratio depends on the ratio of each stage multiplied together.

Simple Example

If the first stage has a ratio of 5:1 and the second stage has a ratio of 10:1, the total gear ratio becomes:

5 × 10 = 50:1

This means the output shaft speed is reduced to 1/50 of the motor speed, while the output torque is increased based on the reduction ratio and gearbox efficiency.

How Does a Multi-Stage Planetary Gear Motor Work?

The Role of the Motor

The motor is the power source. It can be a brushed DC motor, brushless DC motor, stepper motor, servo motor, or other motor type depending on the application. The motor typically runs at a relatively high speed.

For example, a DC motor may run at 3000 rpm, 5000 rpm, or even higher. But many applications, such as actuators, wheels, robotic joints, or lifting systems, require much lower output speed and higher torque.

The Role of the Planetary Gearbox

The planetary gearbox converts the motor’s high-speed rotation into lower-speed, higher-torque output. In a planetary gearbox, several planet gears rotate around a central sun gear while engaging with an outer ring gear.

This structure allows the load to be distributed across multiple gears, giving planetary gearboxes strong torque capacity in a compact size.

The Role of Multiple Stages

Each planetary stage reduces speed and increases torque. By adding more stages, the gearbox achieves a higher reduction ratio.

However, more stages also bring some trade-offs. Each stage introduces efficiency loss, additional mechanical complexity, possible noise increase, and longer gearbox length. Therefore, OEM buyers should not simply choose the highest ratio. The right design should balance torque, speed, efficiency, size, noise, cost, and service life.

Key Advantages of Multi-Stage Planetary Gear Motors

High Torque in a Compact Size

One of the biggest advantages of a multi-stage planetary gear motor is high torque density. Because planetary gears share the load across multiple gear teeth, the gearbox can transmit strong torque without becoming too large.

This is very useful for compact equipment where installation space is limited, such as robot joints, medical actuators, AGV wheel drives, smart logistics modules, and automation devices.

High Reduction Ratio

A multi-stage planetary gearbox can achieve higher ratios than a single-stage design. This allows the motor to provide slow, powerful, and controlled output motion.

Applications such as lifting mechanisms, rotating platforms, precision actuators, and electric adjustment systems often require high reduction ratios to achieve stable movement.

Stable Transmission

Planetary gearboxes are known for stable transmission and good load distribution. Compared with some simple gear structures, they can provide smoother torque transmission and better mechanical reliability.

For OEM buyers, this means more consistent equipment performance and improved product quality.

Better Torque Distribution

Because multiple planet gears engage simultaneously, the load is shared more evenly. This helps improve gearbox strength and durability.

This advantage is important in applications where the motor frequently starts, stops, reverses, or carries changing loads.

Flexible Gear Ratio Options

Multi-stage planetary gear motors can be designed with many different gear ratios. This gives OEM engineers flexibility when matching speed and torque requirements.

For customized projects, the supplier can recommend a suitable ratio based on the load, target speed, duty cycle, and mechanical structure.

Suitable for Precision Motion

When designed with controlled backlash and good manufacturing precision, planetary gear motors can support more accurate motion control. This makes them useful for robotics, positioning devices, medical equipment, and automation systems.

Common Applications of Multi-Stage Planetary Gear Motors

Industrial Automation

In industrial automation equipment, multi-stage planetary gear motors are used in conveyors, sorting systems, indexing mechanisms, packaging machinery, feeding units, rotating platforms, and compact actuators.

These applications often require stable torque, long service life, and reliable operation under repeated duty cycles.

Robotics

Robots need compact drive units that can deliver controlled torque and smooth motion. Multi-stage planetary gear motors are often used in robot joints, grippers, rotating bases, and mobile robot systems.

For robotics applications, key selection factors include backlash, torque density, motor control, encoder compatibility, weight, and installation space.

AGV and AMR Systems

AGV and AMR equipment requires reliable drive motors for wheel movement, lifting modules, steering mechanisms, and loading platforms. Multi-stage planetary gear motors can provide the necessary torque for frequent start-stop movement and load carrying.

For mobile robots, efficiency and service life are also important because they affect battery life and maintenance cost.

Medical Equipment

Medical equipment often requires smooth, quiet, and reliable motion. Multi-stage planetary gear motors can be used in medical beds, rehabilitation equipment, surgical auxiliary devices, laboratory automation, sample handling systems, and diagnostic equipment.

In these applications, low noise, stable speed, compact design, and reliable operation are important.

Electric Actuators

Electric actuators often require low-speed and high-torque output. Multi-stage planetary gear motors can help convert motor speed into strong linear or rotary motion.

They are used in adjustable furniture, industrial actuators, valve control systems, smart home devices, and lifting mechanisms.

Smart Logistics Equipment

Smart logistics systems, including automated storage systems, conveyor modules, sorting equipment, and warehouse robots, often need compact motors with reliable torque output. Multi-stage planetary gear motors can help improve movement stability and equipment durability.

Security and Access Control

Security systems such as automatic gates, smart locks, surveillance positioning devices, and access control equipment may use planetary gear motors when controlled motion and compact size are required.

For these products, reliability and low noise are often important selling points.

Multi-Stage Planetary Gear Motor vs Single-Stage Planetary Gear Motor

Gear Ratio Difference

A single-stage planetary gear motor usually provides a limited gear ratio. A multi-stage planetary gear motor can achieve a much higher reduction ratio by connecting several planetary gear stages.

If the application only needs moderate speed reduction, a single-stage gearbox may be enough. If the application needs very low speed and high torque, a multi-stage design may be more suitable.

Torque Output Difference

Because a multi-stage gearbox provides higher reduction, it can generate higher output torque. However, the gearbox must be designed to handle that torque safely.

OEM buyers should check rated torque, peak torque, gearbox material, bearing support, and safety factor before final selection.

Efficiency Difference

A single-stage gearbox usually has higher efficiency because it has fewer gear meshes. A multi-stage gearbox has more internal transmission points, so total efficiency may be lower.

For battery-powered equipment, this efficiency difference should be considered carefully.

Size Difference

A multi-stage gearbox is usually longer than a single-stage gearbox. If installation space is limited, the buyer should confirm total motor length, gearbox diameter, shaft position, and mounting structure.

Cost Difference

Multi-stage gearboxes are generally more expensive than single-stage gearboxes because they have more components and higher assembly complexity. However, if the application needs high torque and high ratio, the additional cost may be necessary.

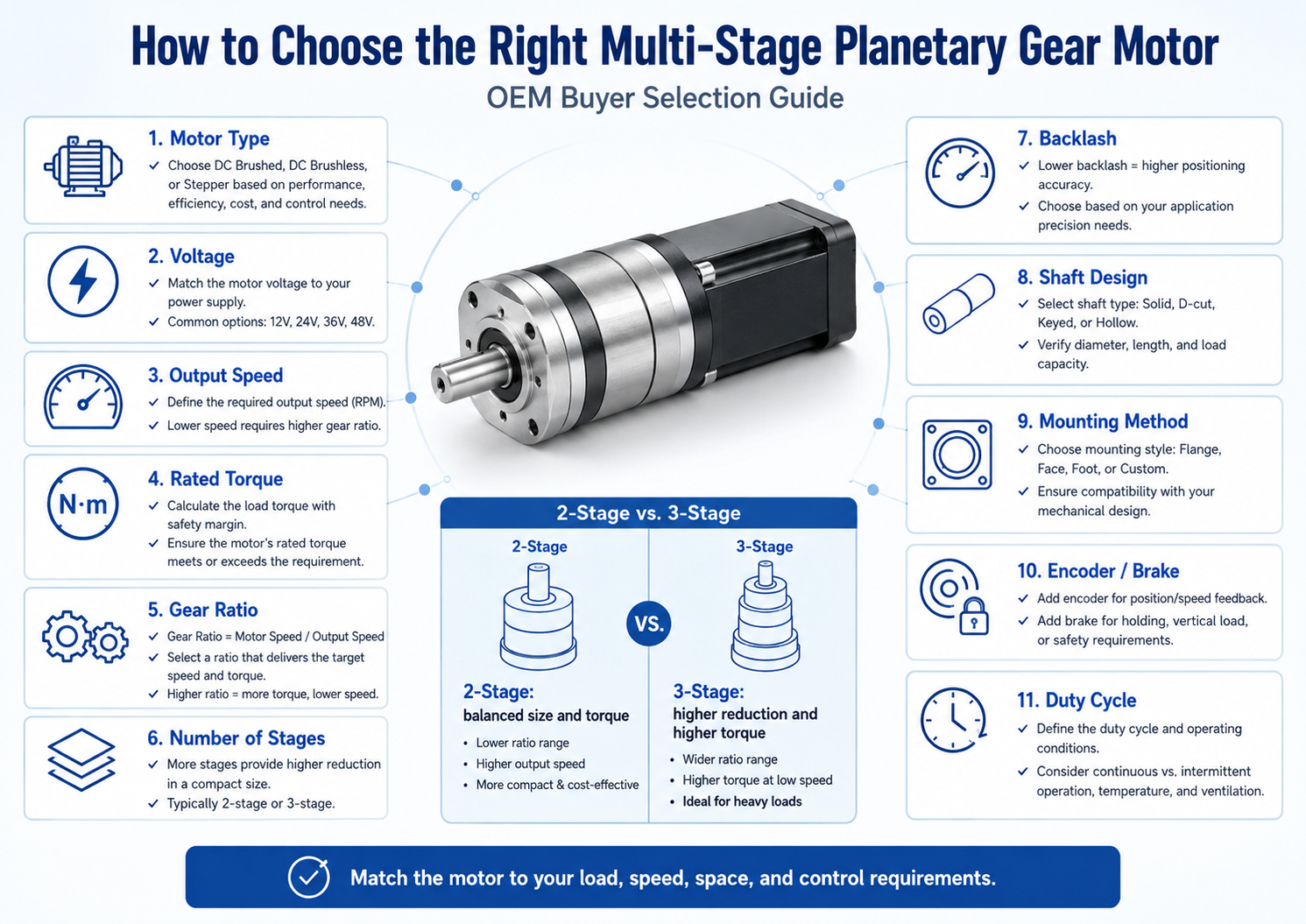

Important Parameters OEM Buyers Should Confirm

Motor Type

A multi-stage planetary gearbox can be matched with different motor types. Common options include brushed DC motors, brushless DC motors, stepper motors, and servo motors.

For cost-sensitive simple applications, a brushed DC planetary gear motor may be suitable. For long life, high efficiency, and low maintenance, a brushless planetary gear motor is often better. For positioning applications, stepper or servo options may be considered.

Voltage

Common voltage options include 6V, 12V, 24V, 36V, 48V, and customized designs. The voltage should match the equipment’s power supply and control system.

For industrial and automation applications, 24V and 48V are common choices. For smaller devices, 12V or 24V may be used.

Output Speed

Output speed refers to the final shaft speed after gear reduction. It is usually much lower than motor speed.

OEM buyers should confirm the required output RPM based on actual application needs.

Rated Torque

Rated torque is one of the most important specifications. The gearbox and motor must provide enough torque for normal operation.

Buyers should consider load weight, friction, acceleration, start-stop frequency, shock load, and safety margin.

Peak Torque

Some applications require short bursts of higher torque during startup, acceleration, or sudden load changes. In these cases, peak torque must be considered.

The motor should not be selected only based on no-load speed or rated power.

Gear Ratio

Gear ratio determines the relationship between motor speed and output speed. A higher gear ratio provides lower output speed and higher torque, but may reduce efficiency and increase gearbox length.

The correct ratio should be selected based on both speed and torque requirements.

Gearbox Stages

The number of stages affects ratio, torque, efficiency, length, backlash, and cost. A two-stage gearbox may be enough for many applications. A three-stage gearbox may be used when higher reduction is required.

Backlash

Backlash is the small clearance between gears. For simple motion applications, standard backlash may be acceptable. For precision positioning, low backlash may be required.

Robotics, automation positioning systems, and medical devices often need special attention to backlash.

Efficiency

Each gear stage has some efficiency loss. A multi-stage planetary gearbox may have lower overall efficiency than a single-stage gearbox.

For battery-powered or continuous operation systems, gearbox efficiency affects heat generation, battery life, and operating cost.

Noise Level

Gearbox noise can be affected by gear precision, material, lubrication, speed, load, and assembly quality. For medical devices, commercial equipment, and indoor applications, noise level should be tested under real operating conditions.

Shaft Design

The output shaft should match the final mechanical connection. OEM buyers should confirm shaft diameter, length, D-cut, keyway, thread, hole, material, and tolerance.

Mounting Method

Common mounting options include flange mounting, face mounting, threaded holes, brackets, or customized structures. The mounting design should match the equipment housing.

Encoder and Brake Options

Some applications require encoder feedback for speed or position control. Others require a brake for holding position or safety.

These options should be confirmed early because they affect motor length, wiring, controller selection, and cost.

How to Choose the Right Gear Ratio

Start with Required Output Speed

The basic formula is:

Gear Ratio = Motor Speed / Required Output Speed

For example, if the motor speed is 3000 rpm and the required output speed is 100 rpm, the gear ratio is:

3000 / 100 = 30:1

This means a gearbox ratio close to 30:1 may be suitable.

Check Required Torque

After confirming speed, buyers should check whether the output torque is enough.

A simplified formula is:

Output Torque = Motor Torque × Gear Ratio × Gearbox Efficiency

Because each stage has efficiency loss, the actual output torque will be lower than the theoretical value.

Consider Safety Margin

Real applications often include friction, load variation, vibration, shock, and acceleration torque. Therefore, a safety margin should be included.

For critical equipment, it is better to share application details with the motor supplier and request technical support.

Do Not Choose Ratio Only by Torque

A higher ratio may increase torque, but it also reduces speed and may lower efficiency. It can also increase gearbox length, noise, and cost.

The best ratio is the one that meets both speed and torque requirements while maintaining acceptable efficiency, size, noise, and service life.

Common Mistakes When Selecting Multi-Stage Planetary Gear Motors

Choosing Only by Diameter

Many motors with similar diameters can have very different torque capacity, gear material, ratio, backlash, and service life. Diameter is only one part of the selection.

Ignoring Efficiency Loss

Some buyers calculate output torque by simply multiplying motor torque by gear ratio. This is not accurate because gearbox efficiency reduces actual torque output.

Selecting Too High a Ratio

A very high gear ratio may look attractive because it increases torque, but it may also reduce efficiency, increase noise, reduce output speed too much, and increase gearbox complexity.

Not Considering Backlash

For precision applications, backlash can strongly affect positioning accuracy. It should be confirmed before sample production.

Underestimating Starting Torque

Some machines require high starting torque. If this is ignored, the motor may fail to start under load even if rated torque seems acceptable.

Skipping Real-Load Testing

No-load motor data is not enough. OEM buyers should test the motor with the actual equipment, load, controller, and working environment.

How Modar Motor Supports Custom Multi-Stage Planetary Gear Motor Projects

Practical OEM Customization

Modar Motor supports customized motor solutions for OEM buyers who need practical and application-specific designs. For multi-stage planetary gear motor projects, customization may include motor type, voltage, speed, gear ratio, gearbox stages, shaft size, mounting structure, encoder, brake, wire length, connector, and packaging.

This is especially useful for buyers who need a motor that fits their own equipment instead of a standard catalog model.

Engineering Support from Requirement to Sample

A successful planetary gear motor project usually starts with requirement confirmation. Modar Motor can help buyers review speed, torque, load, gear ratio, duty cycle, installation space, and control requirements before sample development.

This helps reduce the risk of wrong selection and shortens the project development process.

Suitable for Multiple B2B Applications

Multi-stage planetary gear motors from Modar Motor can be developed for automation equipment, robotics, AGV and AMR systems, medical devices, smart logistics equipment, electric actuators, security systems, and custom motion devices.

Long-Term Supply for OEM Buyers

For OEM customers, stable quality and repeatable production are important. Modar Motor can support sample testing, drawing confirmation, production follow-up, and customized inspection requirements for long-term cooperation.

What Information Should Buyers Provide for a Quote?

Application

Explain what the motor will drive and how it works.

Required Voltage

Provide rated voltage and voltage range.

Output Speed

Confirm required output RPM after reduction.

Torque Requirement

Provide rated torque, peak torque, load weight, friction, or mechanical structure.

Gear Ratio

If the ratio is known, provide it. If not, provide motor speed and required output speed.

Gearbox Stage Requirement

Mention whether a two-stage or three-stage gearbox is preferred, or let the supplier recommend.

Shaft and Mounting Drawing

Provide drawings, samples, or detailed dimensions.

Encoder or Brake Requirement

Confirm whether feedback or holding function is needed.

Duty Cycle

Provide running time, stop time, frequency, and working hours per day.

Environment

Mention temperature, humidity, dust, noise limit, and protection requirement.

Quantity

Provide sample quantity, trial order quantity, and estimated annual demand.

Product FAQ: Multi-Stage Planetary Gear Motor

What is a multi-stage planetary gear motor?

A multi-stage planetary gear motor is a motor combined with a planetary gearbox that uses two or more gear reduction stages. It provides higher reduction ratios and higher output torque than a single-stage gearbox.

Why use a multi-stage planetary gearbox?

A multi-stage planetary gearbox is used when the application requires lower speed and higher torque than a single-stage gearbox can provide.

How many stages can a planetary gearbox have?

Common options include two-stage and three-stage planetary gearboxes. More stages may be possible, but the design must balance ratio, efficiency, size, noise, backlash, and cost.

Is a multi-stage planetary gear motor better than a single-stage gear motor?

It depends on the application. Multi-stage gear motors are better for high ratio and high torque requirements. Single-stage gear motors are better when moderate reduction, higher efficiency, shorter length, and lower cost are preferred.

Does a higher gear ratio always mean better performance?

No. A higher gear ratio increases torque and reduces speed, but it may also reduce efficiency, increase gearbox length, increase noise, and raise cost.

What motor types can be used with a multi-stage planetary gearbox?

Common motor types include brushed DC motors, brushless DC motors, stepper motors, and servo motors.

What applications use multi-stage planetary gear motors?

They are used in industrial automation, robotics, AGV and AMR systems, medical equipment, electric actuators, smart logistics equipment, security systems, and customized motion devices.

What is backlash in a planetary gear motor?

Backlash is the mechanical clearance between gear teeth. Lower backlash is important for precision positioning applications.

Can multi-stage planetary gear motors be customized?

Yes. They can be customized for voltage, speed, torque, ratio, gearbox stages, shaft, mounting, encoder, brake, wiring, connector, and packaging.

How do I choose the right multi-stage planetary gear motor?

Start by confirming application, voltage, output speed, torque, duty cycle, installation space, backlash requirement, noise requirement, and control method. Then work with a motor supplier to select the proper motor and gearbox combination.

Can Modar Motor help select the right solution?

Yes. Modar Motor can help OEM buyers review project requirements and provide customized multi-stage planetary gear motor solutions for automation, robotics, medical, logistics, actuator, and motion control applications.

Conclusion: Multi-Stage Planetary Gear Motors Are Built for Compact High-Torque Motion

A multi-stage planetary gear motor is a compact and powerful motion solution for applications that require high torque, low speed, stable transmission, and flexible customization. By using two or more planetary gear reduction stages, it can achieve higher gear ratios than single-stage designs while maintaining a compact structure.

For OEM buyers, the key is to select the motor based on real application requirements. Gear ratio, output torque, speed, gearbox stages, backlash, efficiency, noise, shaft design, mounting method, duty cycle, encoder, brake, and working environment should all be considered.

A well-selected multi-stage planetary gear motor can improve product reliability, reduce system size, increase torque output, and support smoother motion. A poorly selected one may cause overheating, low efficiency, excessive noise, poor positioning accuracy, or early gearbox failure.

For customized planetary gear motor projects, Modar Motor can support OEM buyers from requirement confirmation to sample testing and mass production. By working with an engineering-oriented motor supplier, buyers can select a solution that fits the actual equipment, not just the catalog specification.
