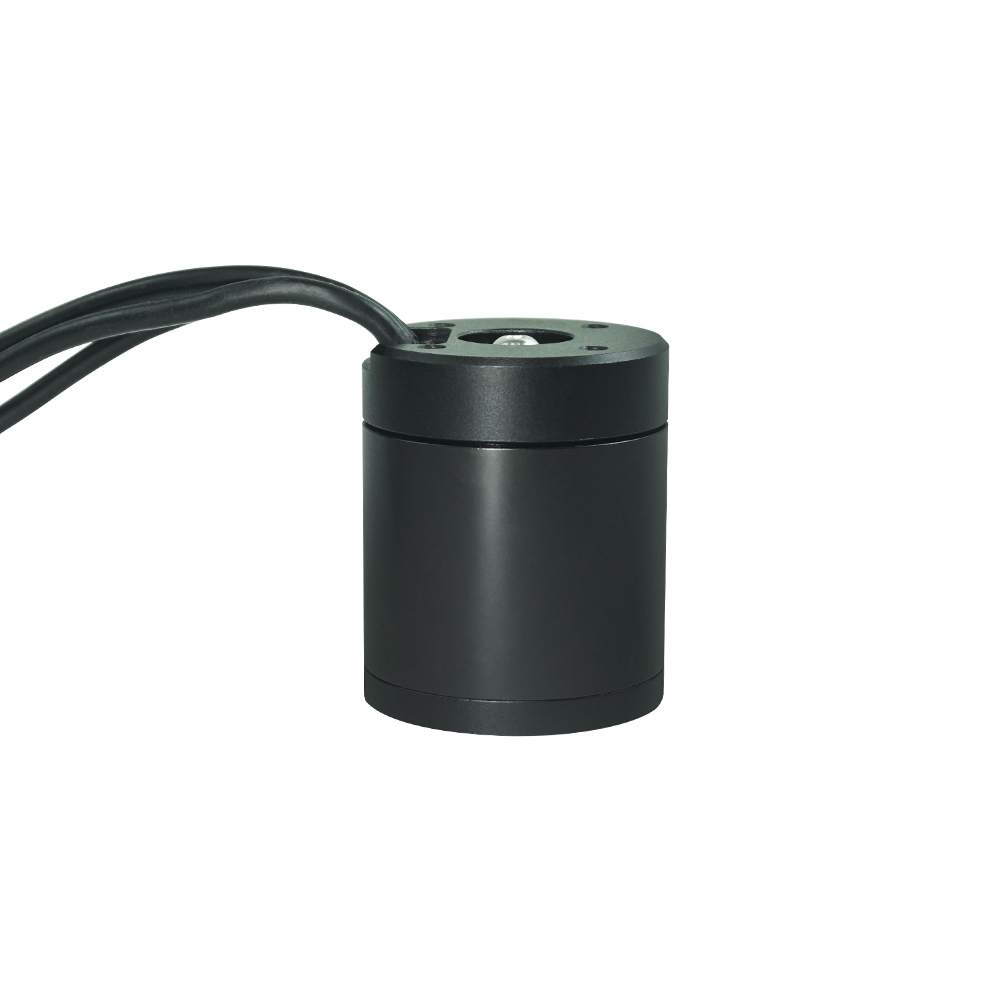

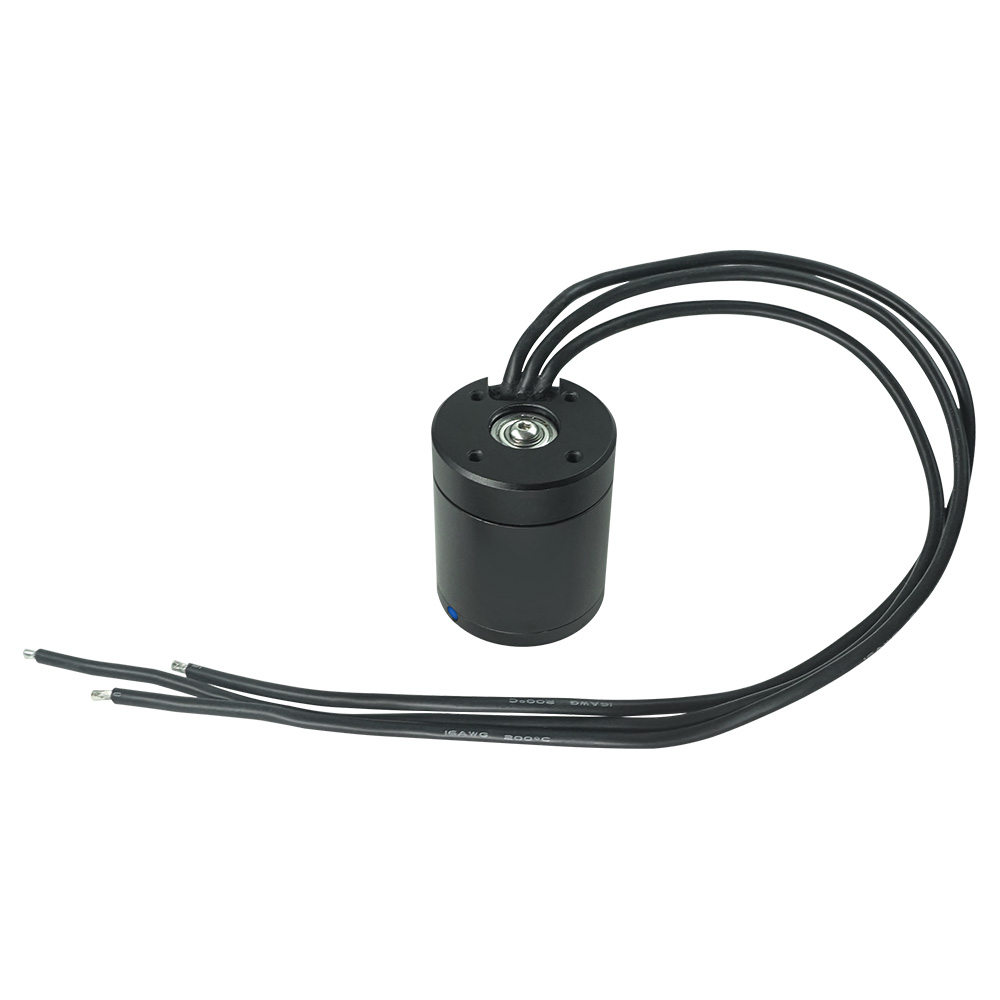

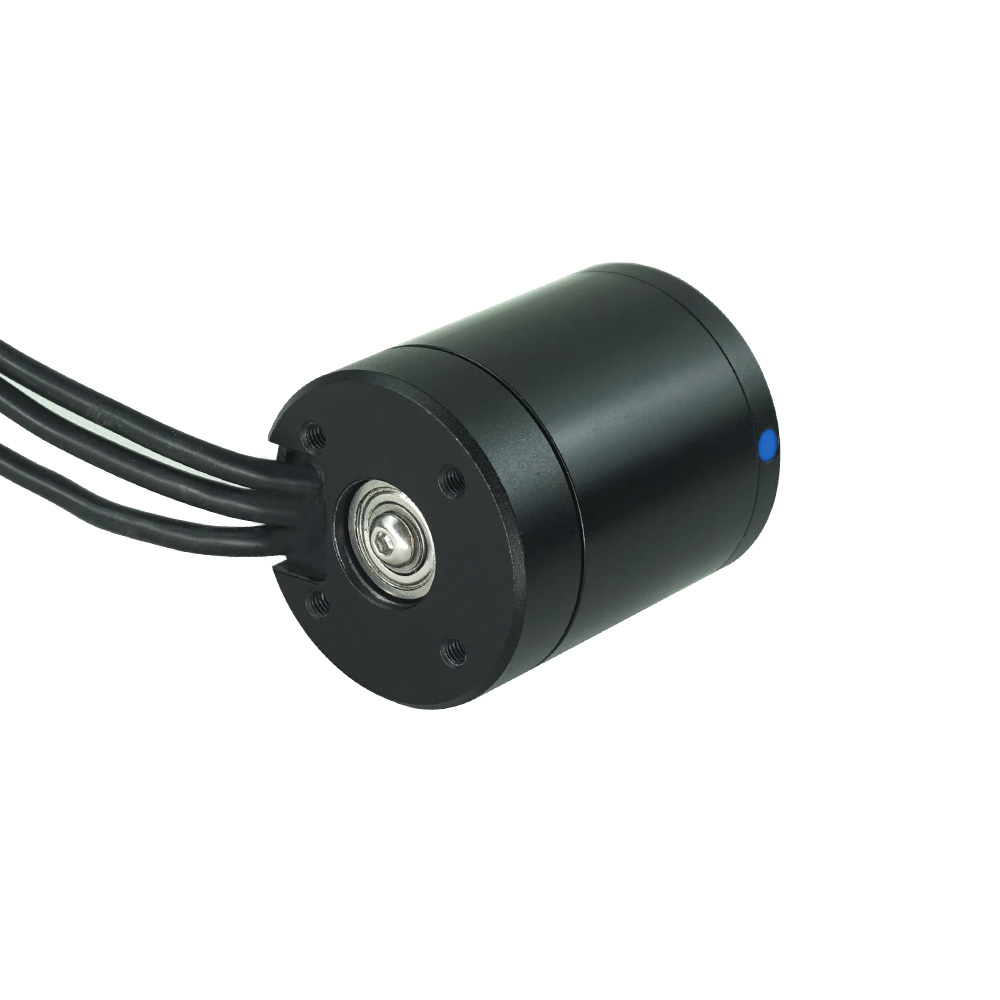

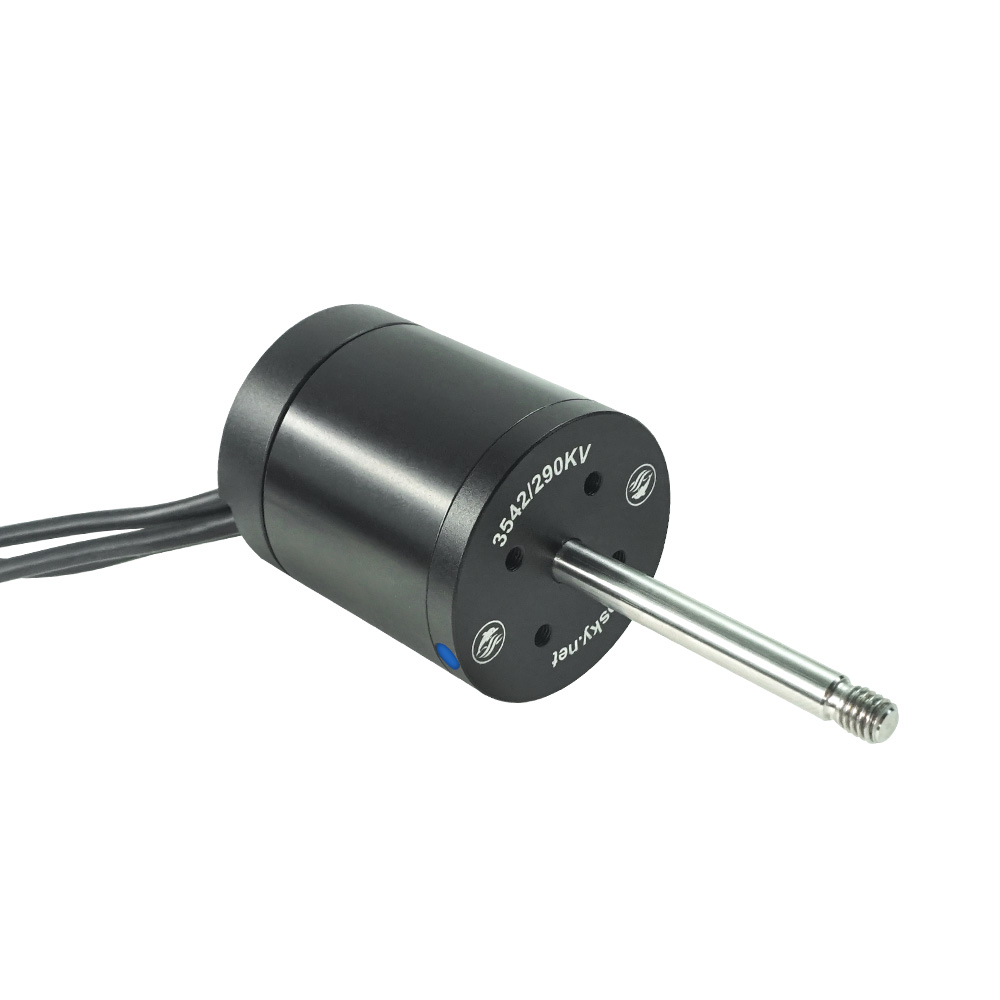

Waterproof Brushless Screw Shaft DC 3542 290KV with Propeller for Underwater Robot

Spec:
Specifications: Φ35.0×L42.0
Voltage range U: 3-12S
Insulation current: AC500v/50Hz/1mA/3S
Resistance R/Ω: 0.29
Three-phase lead: 3*16AWG (3.0mm)
Shaft specification: Φ5
Rated current I/A: 9.7
Maximum current Imax: 15
Inductance L/uH: 0.11
Rated power P/W: 232
Maximum power Pmax/W: 360
Internal structure: 12N/14P
IP Rating:IP68

  • 3542

  • Modar Motor

  • 35mm

  • 232W

  • 0.2N.m

  • 3-12S

  • 100% pure copper

  • 2

  • about 5-7 days

Availability:
Inquire Add to Basket



6110112



Typical Applications


Application Positioning

The Waterproof Brushless Screw Shaft DC 3542 290KV with Propeller is designed for Underwater robot / ROV / electric trawler.




Technical Specifications (85mm Frameless Motor Series)

The following technical data applies to the Waterproof Brushless Screw Shaft DC 3542 290KV with Propeller for Underwater Robot.


Applicable Age Group：Adult
Type：surfboards
Material：Metal
Size：35*42
Model Number：Waterproof 3542 Motor
Use：Underwater robot / ROV / electric trawler / unmanned ship / submarine
Type：Brushless Motor
Rated Power：232W
Voltage range：3-12S
Three-phase lead：3*16AWG (3.0mm)
Shaft specification：5
Rated current I/A：9.7
Maximum current Imax：15
IP Rating: IP68

ScreenShot_2026-01-20_171142_504

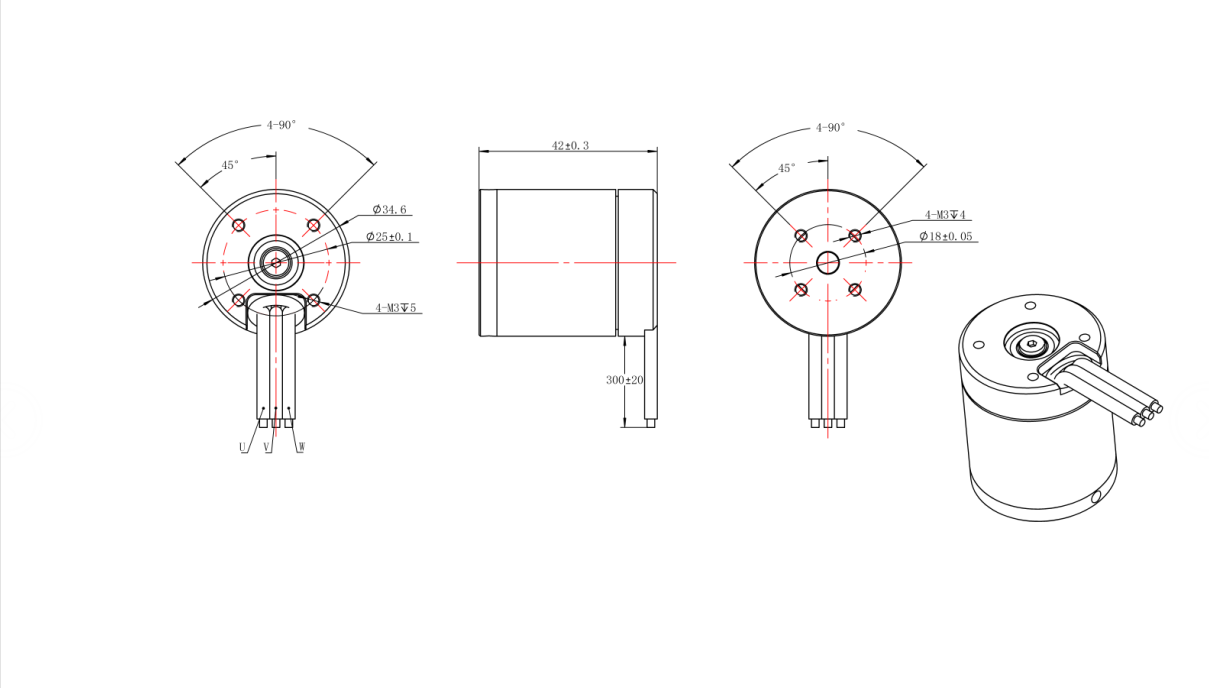

ScreenShot_2026-01-20_171150_369

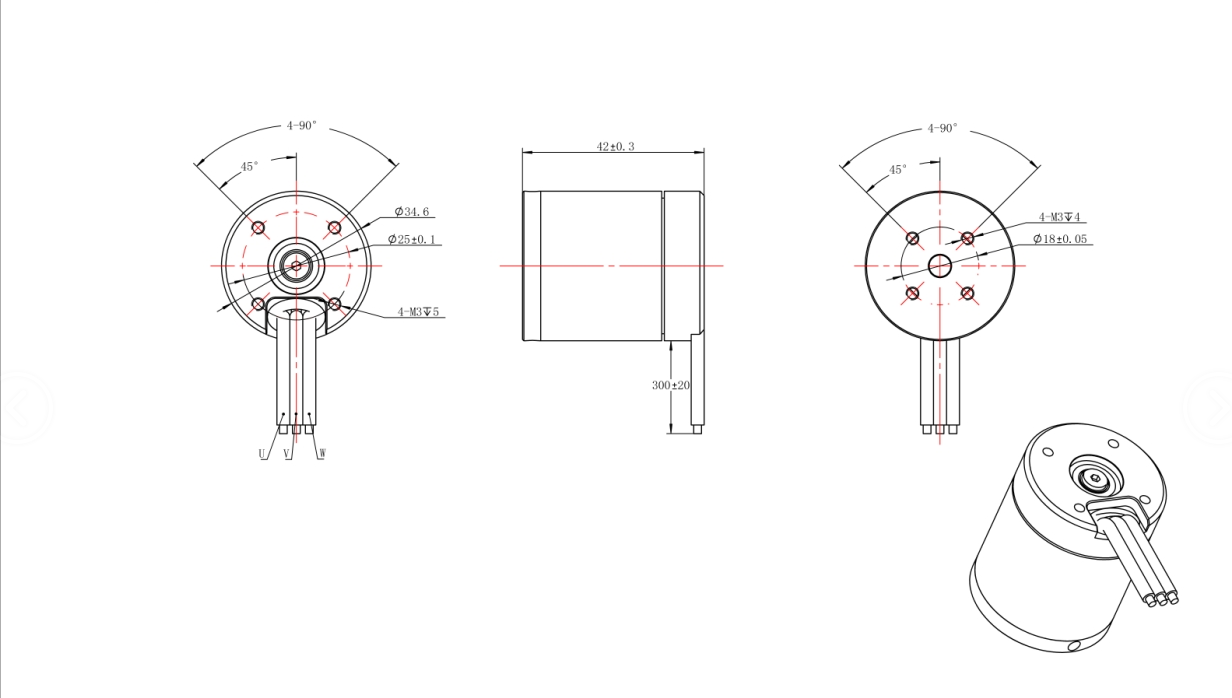

ScreenShot_2026-01-20_171159_716
