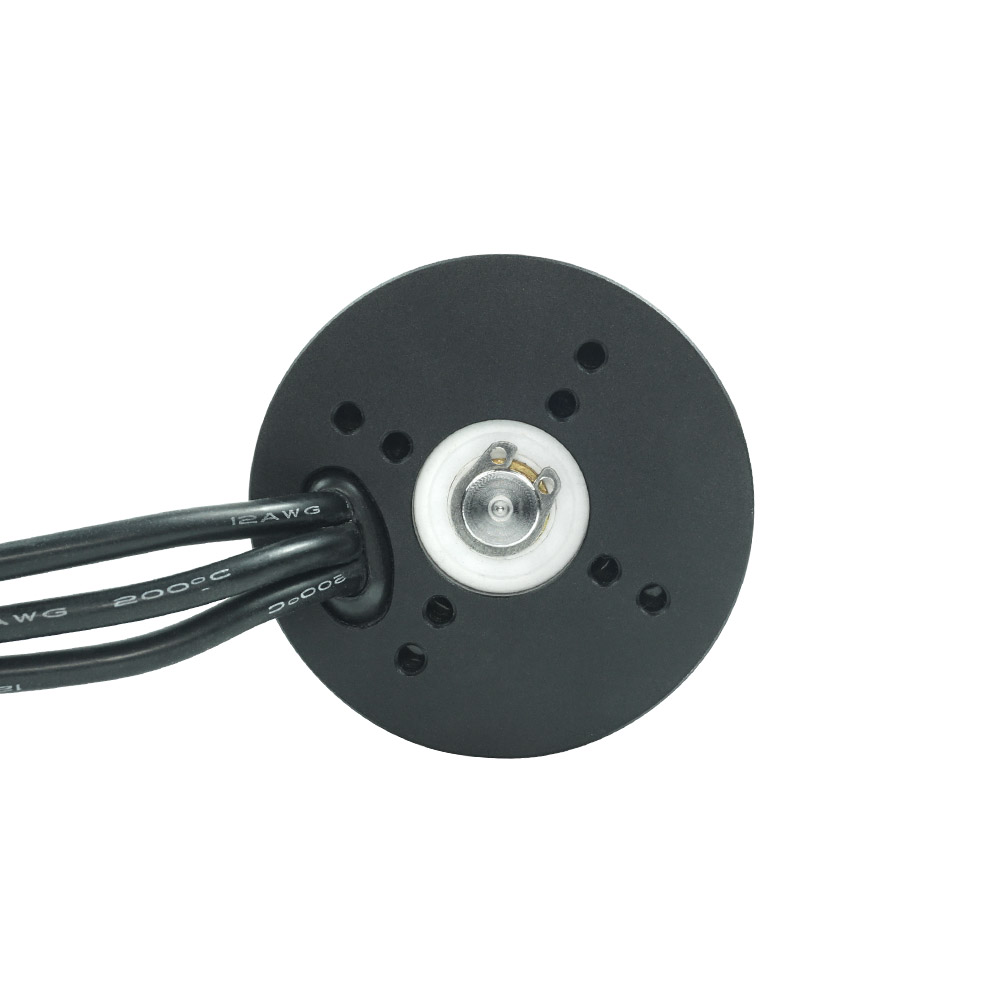

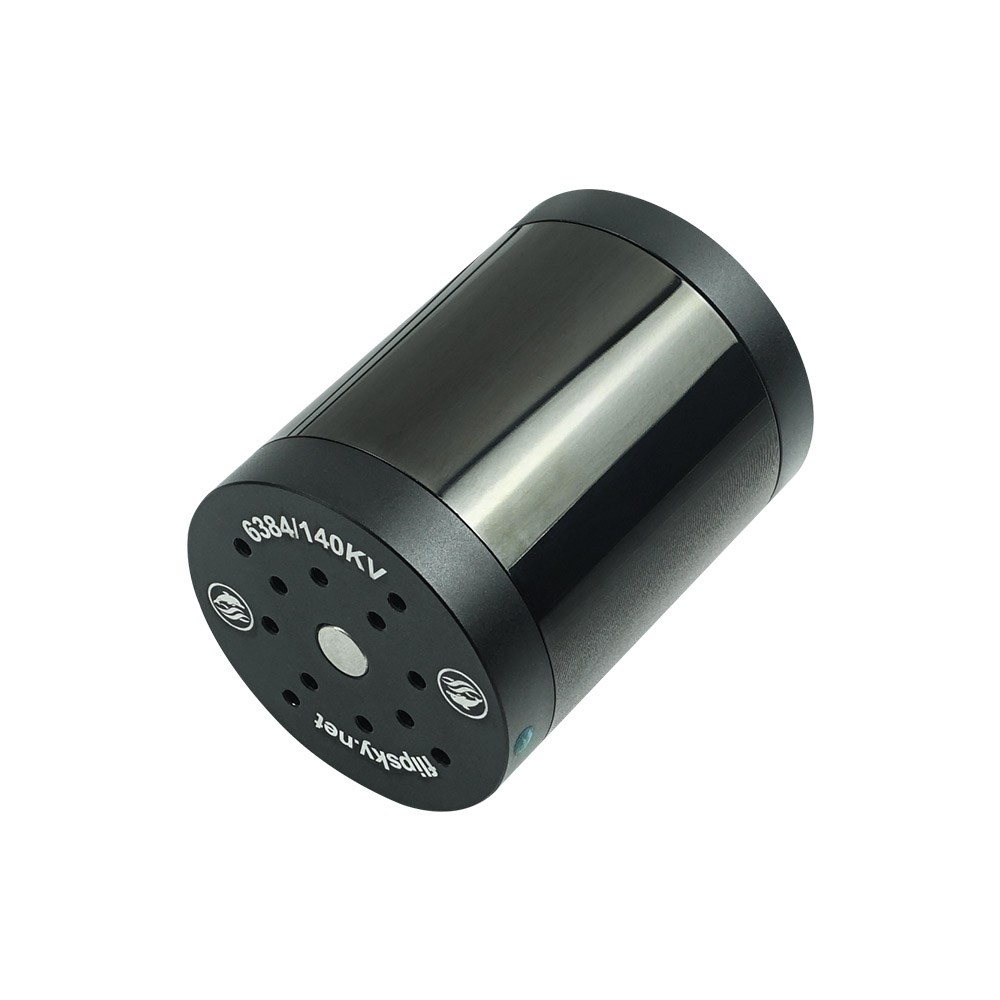

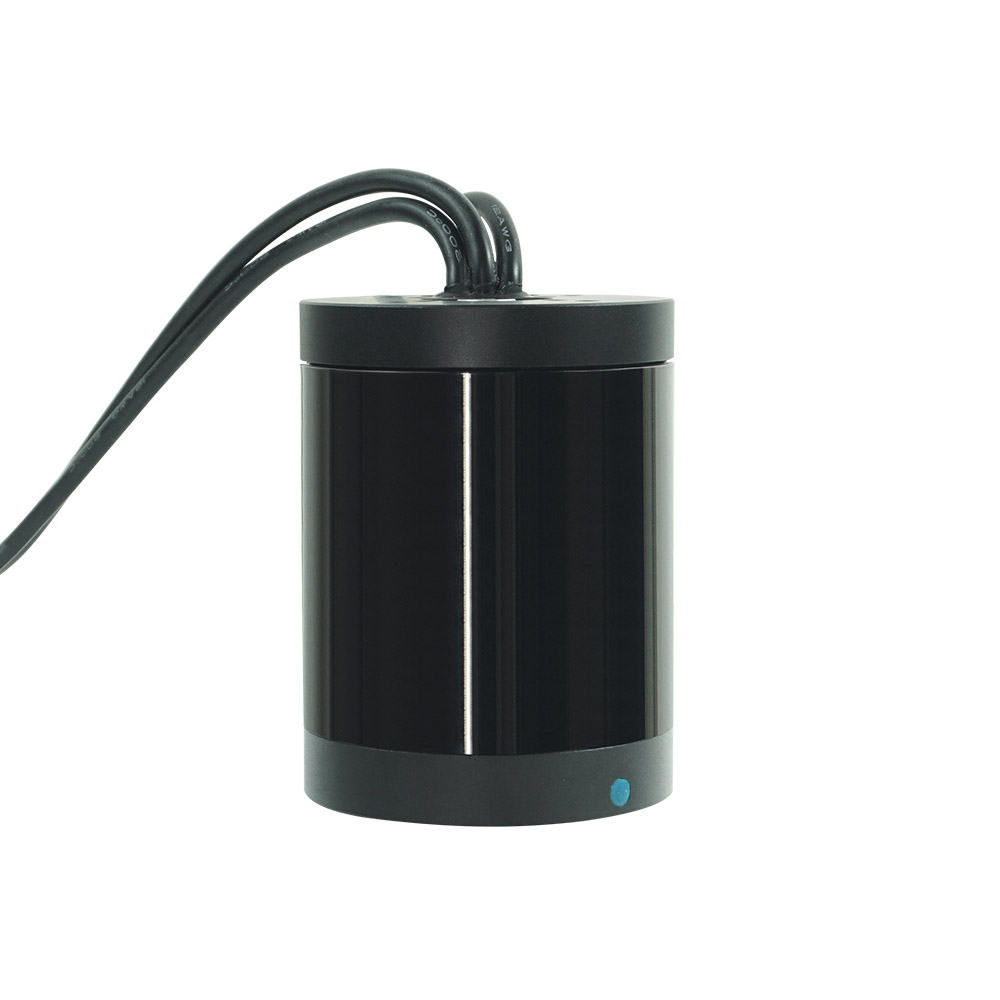

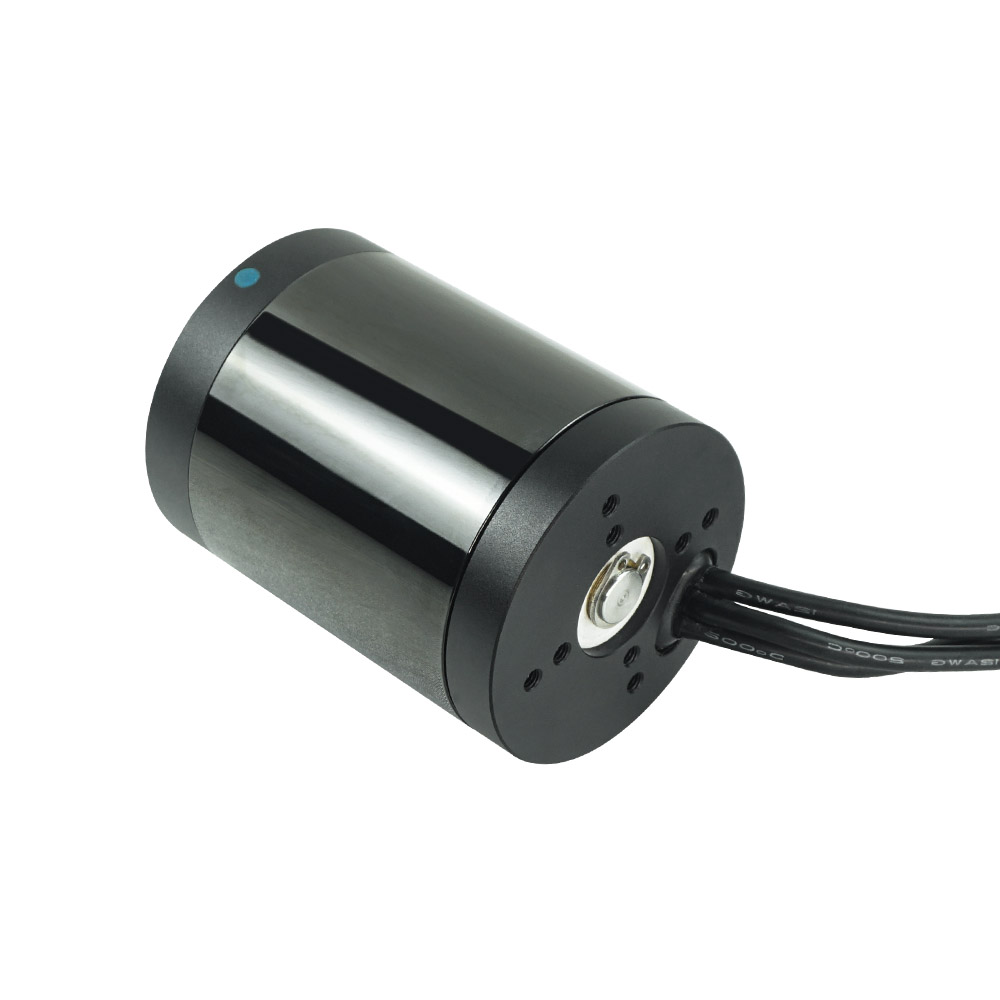

16s 140KV 4400w Waterproof Brushless DC 6384 Motor Skateboard Motor Kit for Surfing Boat Underwater Thruster Hydro Efoil

Spec:
Model: Φ63.0×L84.0 KV: 140KV
Voltage Range (UR): 6-16S Shaft : Φ10
Rated Power (P): 2800 W Max Power (Pmax): 4200 W
Rated Current (I): 59 A Max Current (Imax): 88 A
Insulation Current: AC 500V, 50Hz, 1mA, 3 seconds Resistance (R): 35 mΩ
Three-phase Leads: 3*12AWG (4.5mm) Plug: 4mm Banana Plug (male)
Inductance (L): 0.08 mH Internal Structure: 12N/14P
Weight (W): 1.27 kg
  • 6384 waterproof

  • Modar Motor

  • 63mm

  • 4400W

  • 3.8 Nm

  • 6-16S

  • 100% pure copper

  • 2

  • about 5-7 days

Availability:

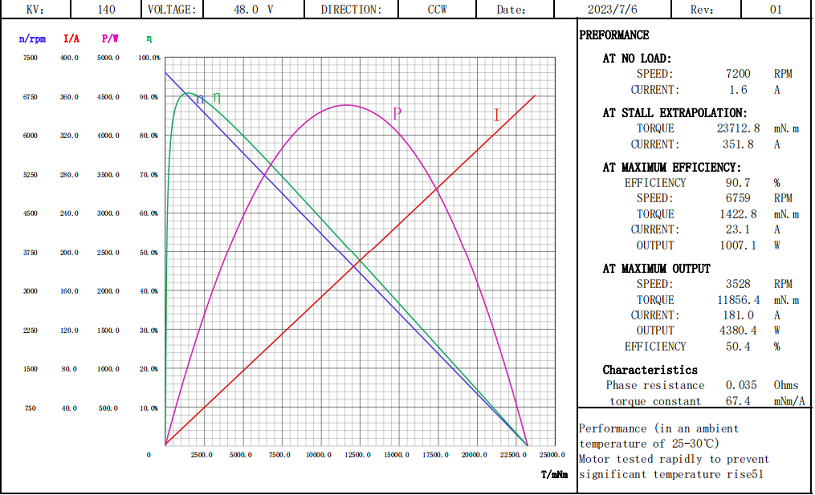

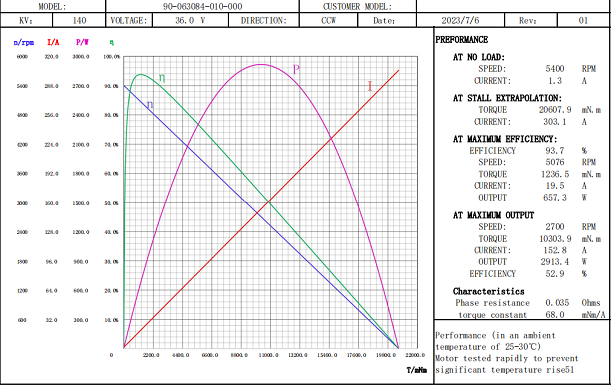

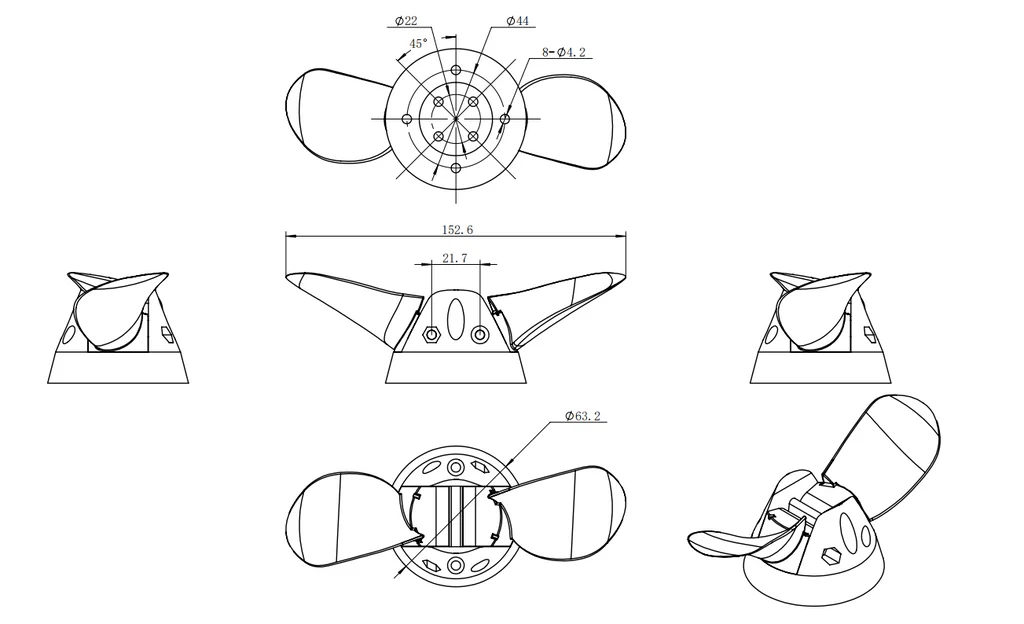

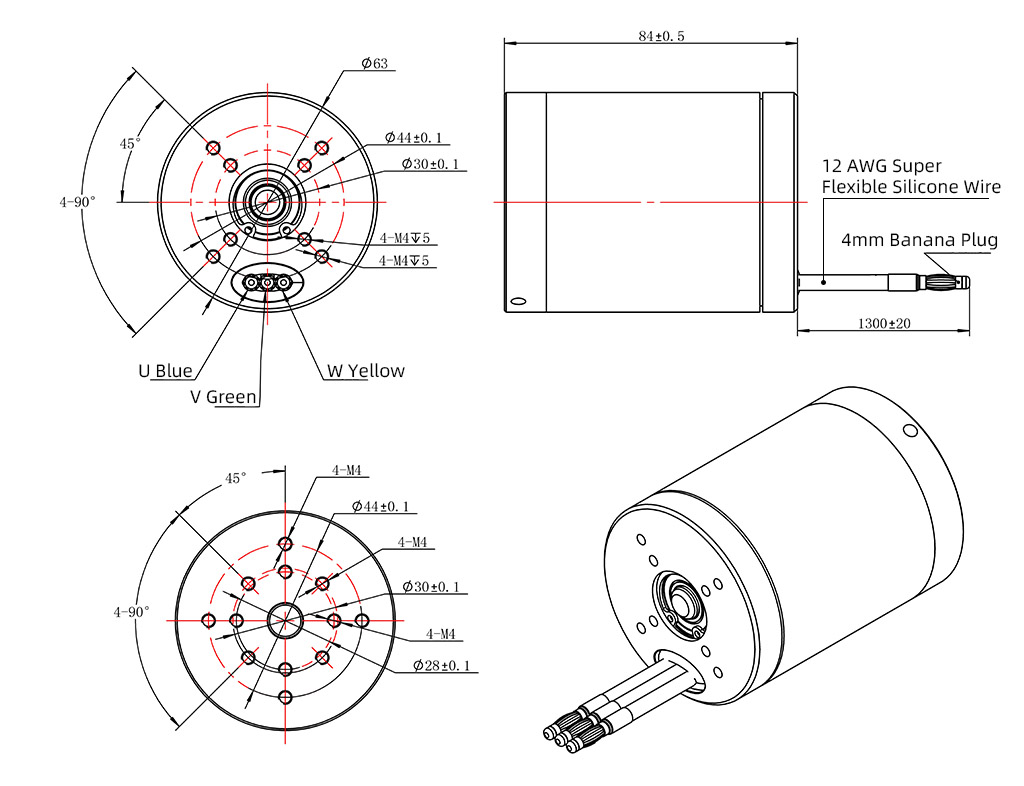

7casc'6384防水电机图纸986384-140KV-36V 曲线图6384-140KV-48V 曲线图


Typical Applications


Application Positioning

The IP58 Waterproof Brushless DC 6384 Motor is designed for skateboard/longboard/rc car/ quadcopter/helicopter/scooter.



Technical Specifications

The following technical data applies to the IP58 Waterproof Brushless DC 6384 Motor.


Model: Φ63.0×L84.0 KV: 140KV
Voltage Range (UR): 6-16S Shaft : Φ10
Rated Power (P): 2800 W Max Power (Pmax): 4200 W
Rated Current (I): 59 A Max Current (Imax): 88 A
Insulation Current: AC 500V, 50Hz, 1mA, 3 seconds Resistance (R): 35 mΩ
Three-phase Leads: 3*12AWG (4.5mm) Plug: 4mm Banana Plug (male)
Inductance (L): 0.08 mH Internal Structure: 12N/14P
Weight (W): 1.27 kg
