6374 Motor 140KV 3600W Waterproof Brushless DC Motor for Surfing Boat Underwater Thruster |Hydro | Efoil

Spec:
Motor Type Surfboard Motor Construction 12N/14P
Turn -- Plug 4mm banana head (male)
Voltage Range 8-16S Lead Wires Extension 3*12AWG (4.5mm)
Resistance R/mΩ 44.9 Shaft 10mm
KV(RPM/V) 140KV/customized Insulation Voltage&Leak Current AC500v/50Hz/1mA/3S
Max Power 3600W Max Working Temperature 120
Peak Current 75A Dimension 63.0×L74
Inductance L/uH 28.6 Weight 1.6KG
  • 6374 waterproof

  • Modar Motor

  • 63mm

  • 3600W

  • 8N.m

  • 8-16S

  • 100% pure copper

  • 2

  • about 5-7 days

Availability:

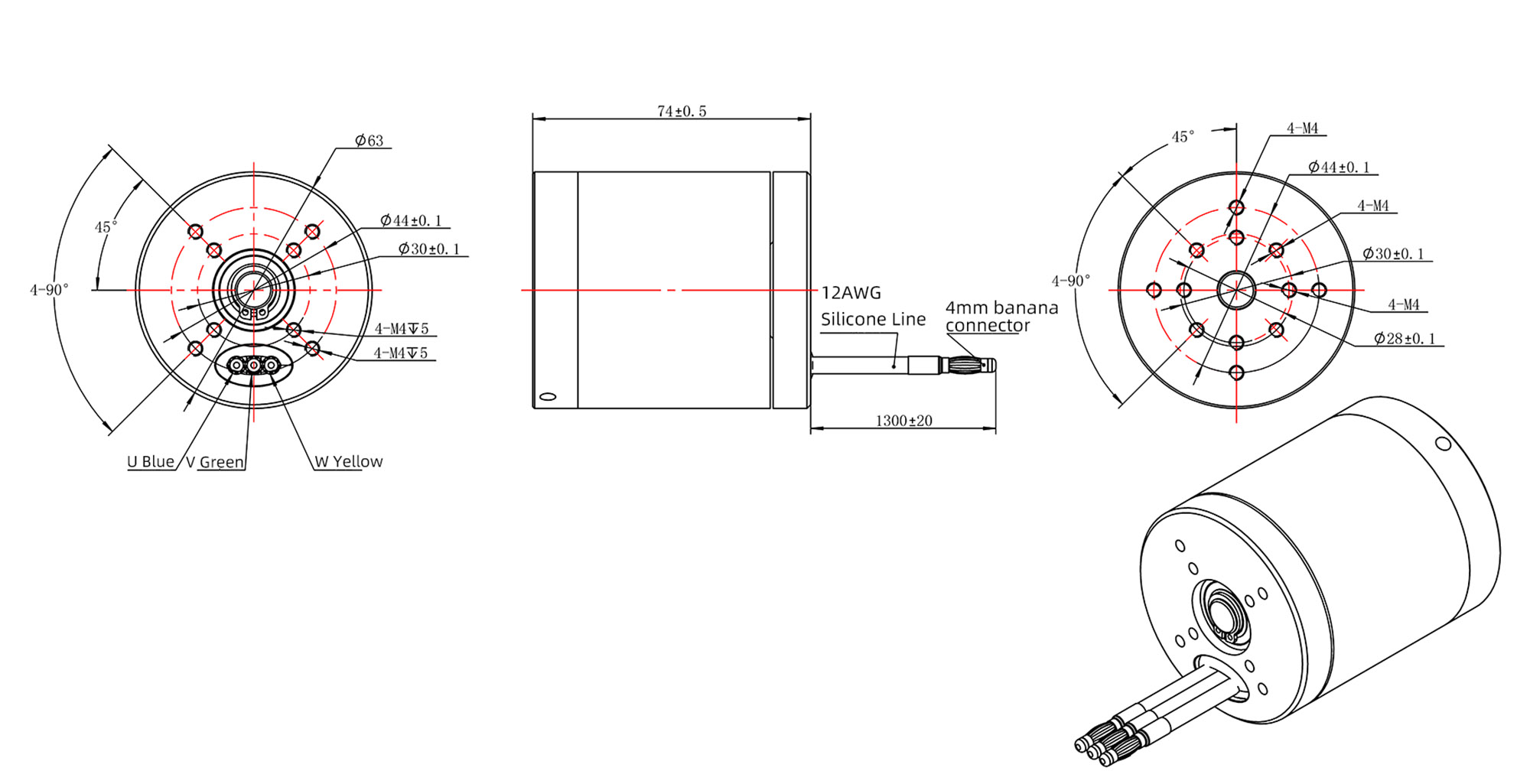

6374防水电机图纸DSGR6374-140KV-36V6374-140KV-48V3152


Typical Applications


Application Positioning

The Waterproof Brushless DC 6374 Motor is designed for Surfing Boat Underwater Thruster |Hydro | Efoil.




Technical Specifications

The following technical data applies to the Waterproof Brushless DC 6374 Motor.


Motor Type Surfboard Motor Motor KV 140KV
Voltage Range 8-16S Lead Wires Extension 12AWG
Rate Power 2400W Shaft 10mm
Max Power 3600W Resistance 44.9mΩ
Peak Current 75A Dimension D63*L74mm
