Technical Specifications
The following technical data applies to the 5065 270KV 1550W 8mm Round Shaft BLDC Belt Motor for Scooter Ebike Electric Skateboard Longboard.
| Max Power | 1550 Watts |
| Max Current | 80 Amps |
| No-load Current | 1.12A 10V |
| Max Volts | 41.5V |
| Lipo | DC, BLDC, FOC (sinusoidal) |
| 3S-8S (11.1V-29.6V) | ABI, HALL, AS5047 |
| Max Torque | 4Nm |
| Motor Resistance | 64mΩ |
| Weight | 0.99 lb / 0.45 kg |

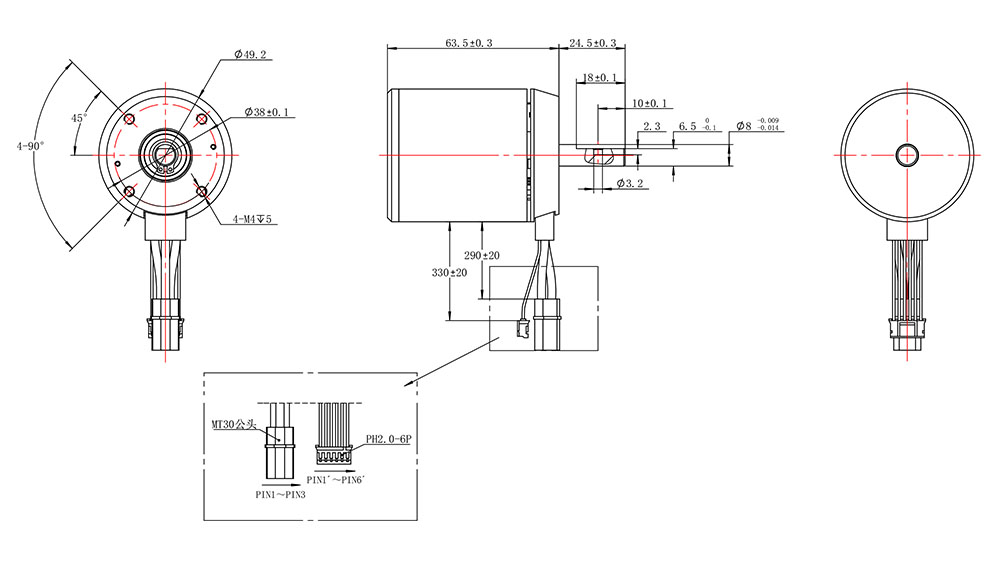

| SHAFT | Diameter 8mm, 20mm length, 3x1.5 keyway slot. |
| Motor Wire | 160mm silicone 16AWG wire with 4.0mm Gold Bullet Connector Male. |
| Wire configuration | Blue(Heat shrinkable film) = A
Black(Heat shrinkable film)= B
Yellow(Heat shrinkable film)= C |
| Stator | 0.2mm thickness lamination japan steel |
| Magnet | N42SH high temp curve magnet |
| Brushless Motor Fits | 50mm Motor Mount |
| The number of pole | 14 |

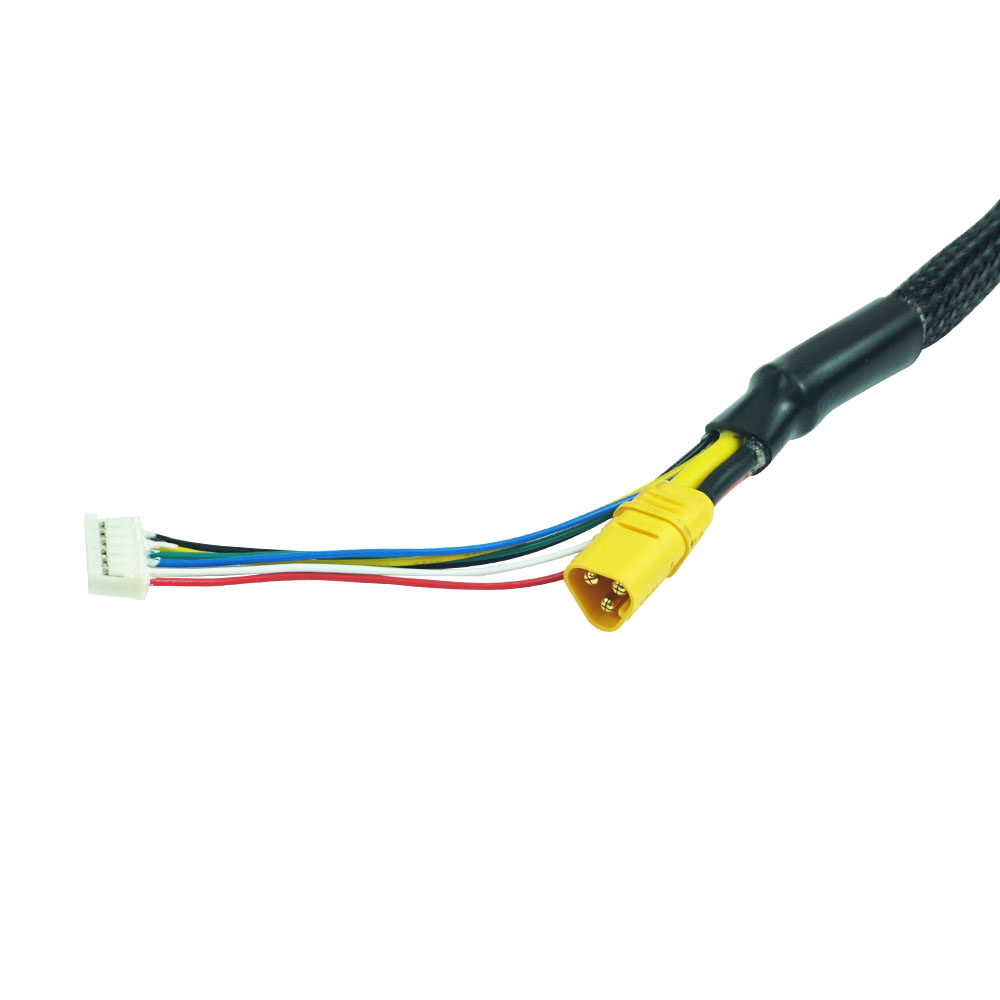

Sensor Wire: Standard RC Sensor Wire JST-ZH 6pin 1.5mm pitch
Internal PCB with 120 Degree Hall Effect Sensors.
Motor can be used with or without a sensor. Sensorless operation is most common.
VESC Sensor Wires required to use with VESC.
Wire configuration:
Red = 5v
White = Temp
Blue = A
Yellow = C
Green = B
Black = GND
