40mm 40ZYN Brushed DC Motor – Product Overview

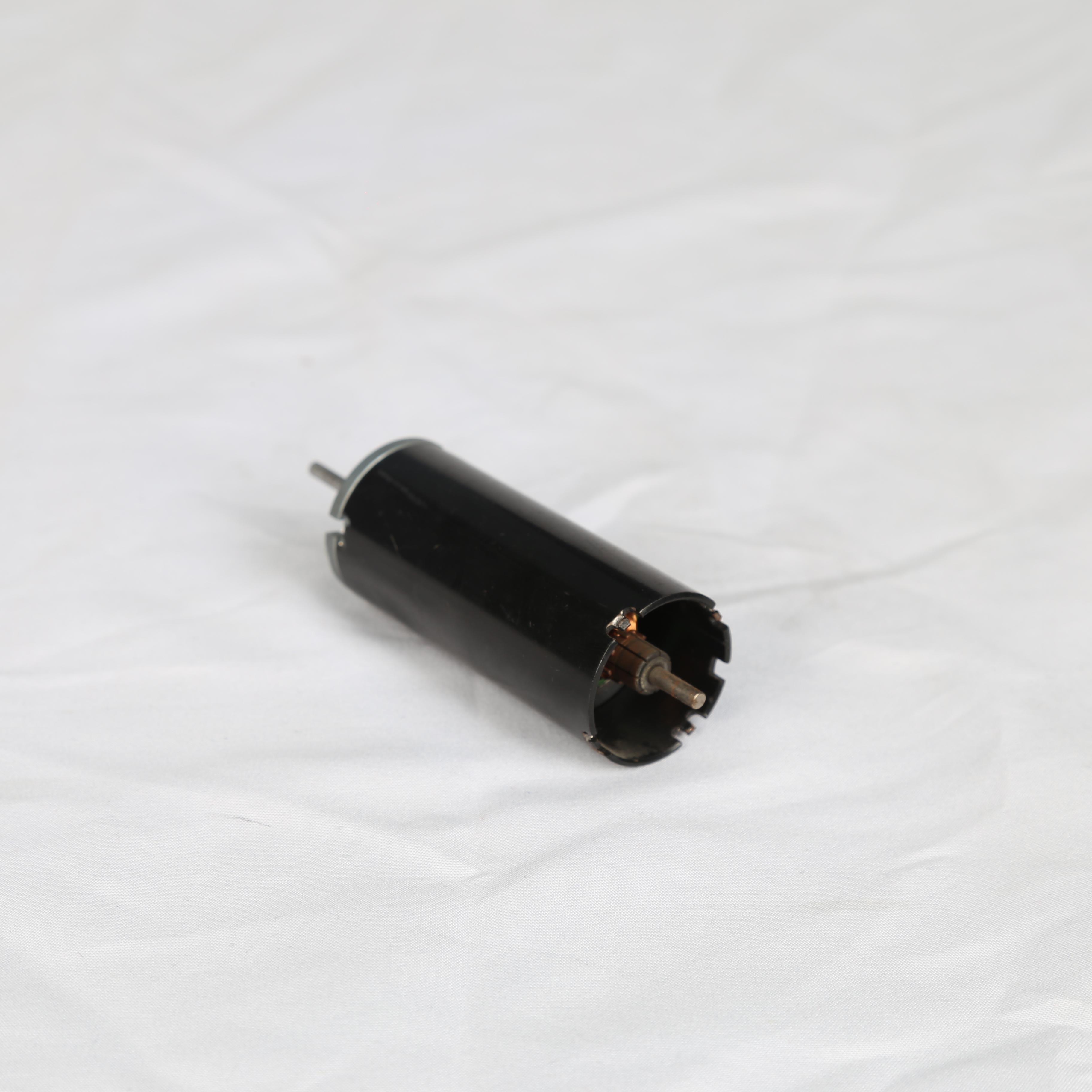

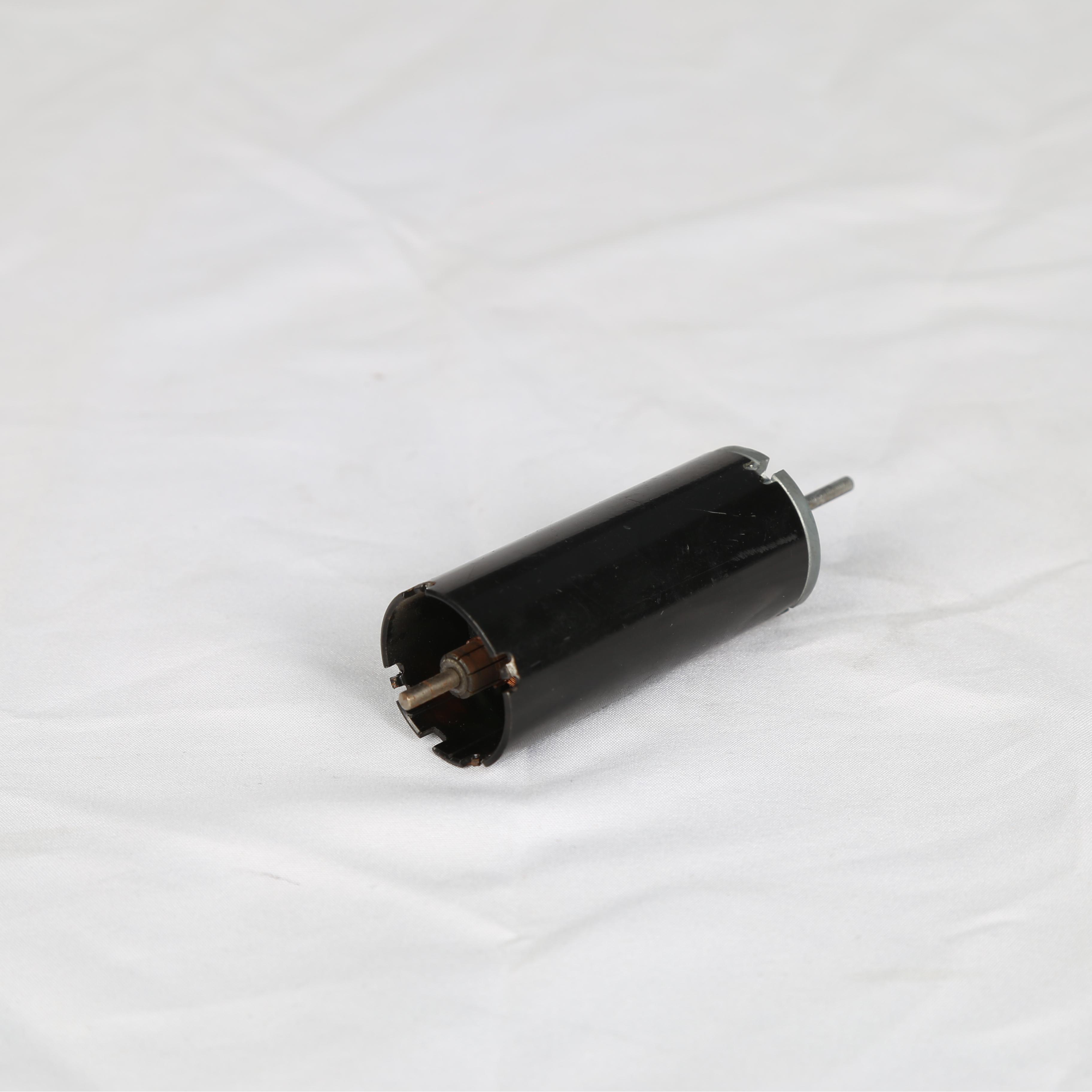

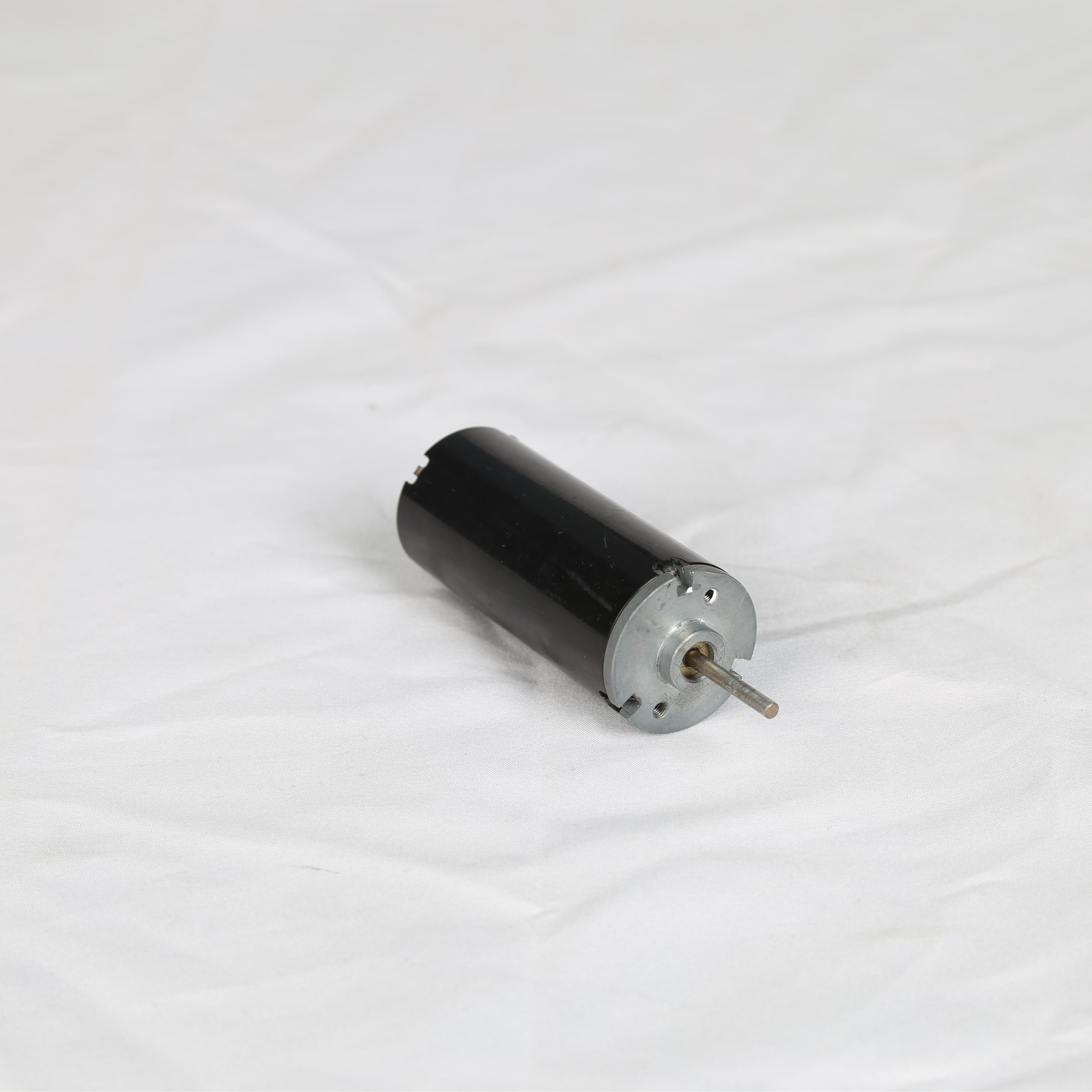

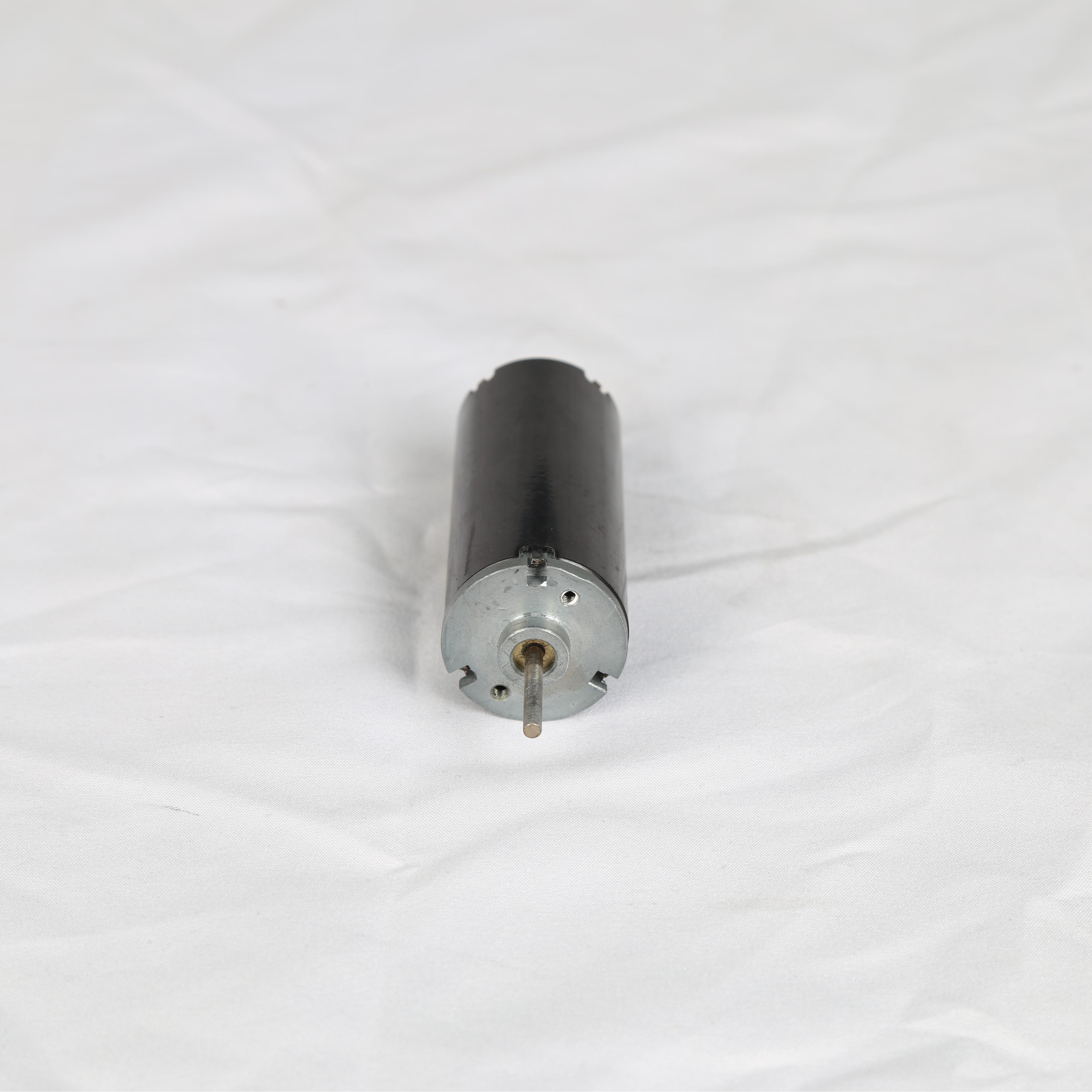

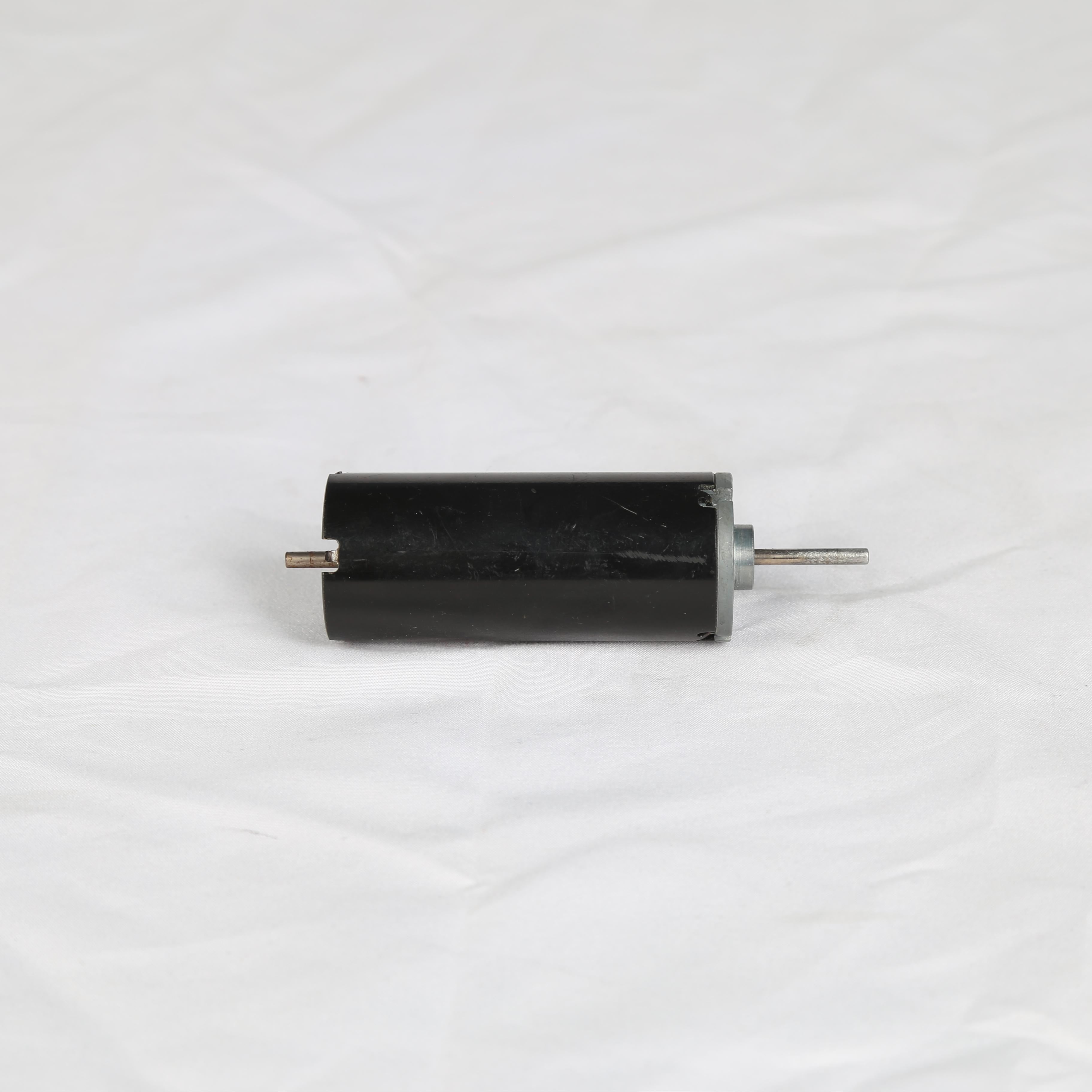

![40ZYN brushed dc motor]( "40ZYN brushed dc motor")
Compact 40mm Brushed DC Motor for OEM Design
The 40ZYN brushed DC motor is developed for equipment where installation space is limited but stable mechanical output is still required. Its compact cylindrical motor body and integrated gearbox structure make it suitable for small machines, actuators and motion control modules. Compared with larger DC motors, this series provides a more space-saving solution while still maintaining practical torque and speed performance for daily industrial and commercial applications.
40ZYN brushed DC Motor is especially suitable for OEM projects that need a motor with consistent performance, repeatable dimensions and flexible customization. Whether the motor is used inside a small actuator, a rotating mechanism, a valve drive system or a compact transmission module, the 40ZYN brushed DC Motor can be adapted to different mechanical structures.
Main Technical Features
The 40ZYN brushed DC Motor is designed around a 24V DC input platform, which is commonly used in automation, control systems and small electric equipment. 40ZYN brushed DC Motor includes several model options with different performance parameters. Typical models shown in the technical table include:
40ZYN001
40ZYN002
40ZYN003
40ZYN004
40ZYN005
The available rated power range is approximately 10W to 34W, making this series suitable for light-duty and medium light-duty applications. 40ZYN brushed DC Motor'sDifferent models provide different no-load speed, rated speed, rated current, torque and motor length options, allowing engineers to choose the most suitable version according to the actual working load.
Stable Speed and Practical Torque Output
One of the key advantages of the 40ZYN brushed DC Motor series is its balanced speed and torque performance. 40ZYN brushed DC motor can provide stable rotation under rated conditions, helping equipment achieve reliable motion control. For applications such as small electric mechanisms, rotary drives, medical equipment or intelligent home devices, stable speed is important for reducing vibration, improving user experience and ensuring consistent product operation.
The rated torque options range approximately from 0.03N·m to 0.08N·m, depending on the model. For projects that require different torque or speed levels, Modar Motor can help evaluate whether the standard configuration is suitable or whether a customized gear ratio, winding design or motor structure is required.
Customizable Structure for Different Equipment
OEM customers often have special requirements for installation dimensions, output shaft shape, mounting holes, wiring direction and connector type. The 40ZYN series can be customized according to different project needs.
Common customization options include:
Voltage Customization
Although the standard product shown is based on 24V DC, other voltage options may be evaluated according to project requirements.
Shaft Customization
The output shaft can be customized in terms of shaft length, diameter, D-cut, flat shaft, round shaft, thread, keyway or other mechanical structures.
Mounting Design Customization
Mounting holes, end cover structure and installation interface can be adjusted to match the customer’s equipment assembly design.
Cable and Connector Customization
Lead wire length, wire direction, terminal type and connector model can be customized for easier assembly in mass production.
Performance Customization
Speed, torque, current, power and duty cycle can be optimized according to the load condition and working environment.
Key Product Advantages
Small Size with Reliable Output
The 40ZYN brushed DC motor series is suitable for applications that require a compact motor body. Its structure helps equipment manufacturers reduce installation space while maintaining usable output power and torque. This is useful for products such as small actuators, automatic mechanisms and compact machines.
Multiple Models for Flexible Selection
40ZYN brushed DC motor series includes different model options with different motor lengths and performance ranges. Engineers can select a suitable model based on working speed, torque demand, available space and expected load. This reduces the difficulty of motor selection during the early design stage.
Suitable for OEM and ODM Projects
Modar Motor supports both standard product selection and customized motor development. For OEM buyers, this means the motor can be adjusted according to the final product design instead of forcing the machine structure to fit a fixed motor.
Engineering Support for Motor Matching
Choosing a DC gear motor is not only about voltage and speed. Load torque, starting current, duty cycle, working temperature, installation direction and lifetime requirements should also be considered. Modar Motor can help customers evaluate the application requirements and recommend a suitable configuration for sample testing and mass production.
Typical Applications of 40mm 40ZYN Brushed DC Motor
Automation Equipment
The 40ZYN brushed DC motor can be used in small automation devices that require stable rotation and compact installation. Examples include positioning mechanisms, small transmission modules, automatic feeding systems, control devices and light-duty drive units.
In automation equipment, the motor needs to provide reliable operation over repeated working cycles. The 40ZYN brushed DC motor series can support customized speed and torque requirements, making it suitable for equipment manufacturers who need a stable motor solution for batch production.
Electric Actuators and Valve Control
40ZYN brushed DC motor series is suitable for small electric actuators, valve drive systems and control mechanisms. Because the motor has a compact body and practical torque output, it can be integrated into devices where space is limited but stable movement is required.
For valve control applications, customers may need specific output speed, stall torque, shaft structure or wiring method. These requirements can be discussed during the motor selection stage to ensure the final motor matches the actual working condition.
Medical and Healthcare Devices
The 40ZYN brushed DC motor series can be applied in certain medical or healthcare-related devices, especially equipment that requires compact size, stable speed and controlled motion. Possible applications include small drive mechanisms, adjustment systems, rotating modules and auxiliary equipment.
For medical device projects, motor performance consistency, noise level, temperature rise and long-term reliability are important. Modar Motor can support customized solutions according to the customer’s product design and testing requirements.
Smart Home and Intelligent Equipment
Smart home products often require small motors for movement, adjustment, rotation or opening and closing functions. The 40ZYN brushed DC motor can be used in intelligent locks, automatic curtains, smart valves, small household mechanisms and other compact devices.
For this type of application, the motor may need low noise, compact dimensions and customized wiring. The 40ZYN brushed DC motor series provides a flexible platform for such product designs.
Office Equipment and Commercial Machines
40ZYN brushed DC motor can also be used in office machines, commercial equipment, small vending mechanisms, display devices and other light industrial products. Its compact structure and multiple speed options help manufacturers develop reliable drive systems for different working conditions.
Technical Specifications of 40mm 40ZYN Brushed DC Motor
The following technical data applies to the 40mm 40ZYN Brushed DC Motor.
Electrical Parameters
Rated voltage options: 24V etc.
Rated speed: 3000-4000rpm(customized)
Rated Torque: 0.03~0.08N.m(customized)
Output power range: 10~35W(customized)
Mechanical Parameters
Optional Configurations
![]()
Brushed DC Motor.pdf

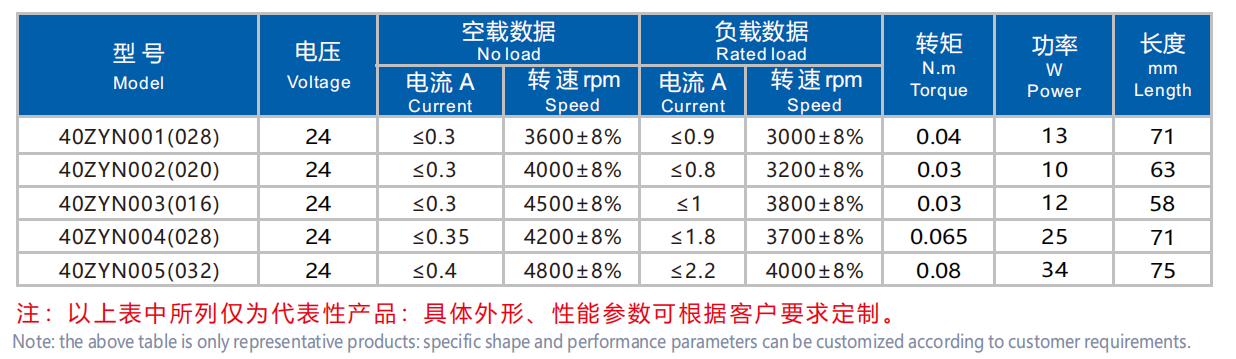

| Motor Characteristics |
![40ZYN brushed dc motor specification]( "40ZYN brushed dc motor specification") |

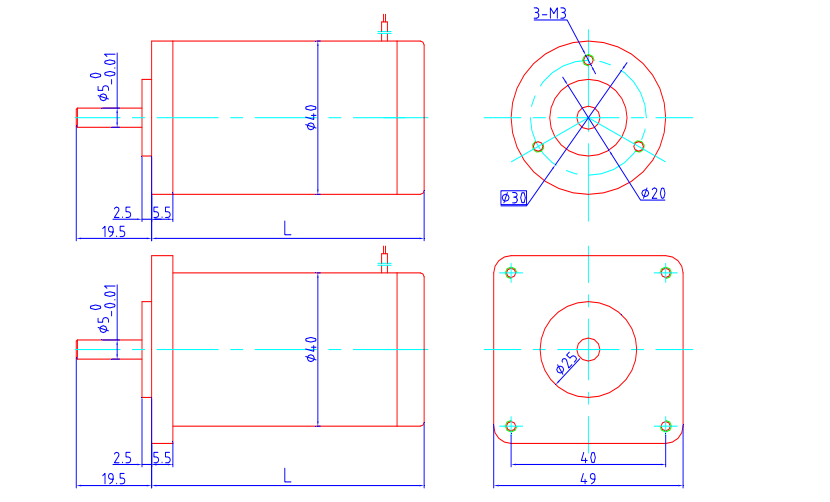

| 40ZYN brushed DC Motor Drawing |
![40ZYN brushed dc motor drawing]( "40ZYN brushed dc motor drawing") |

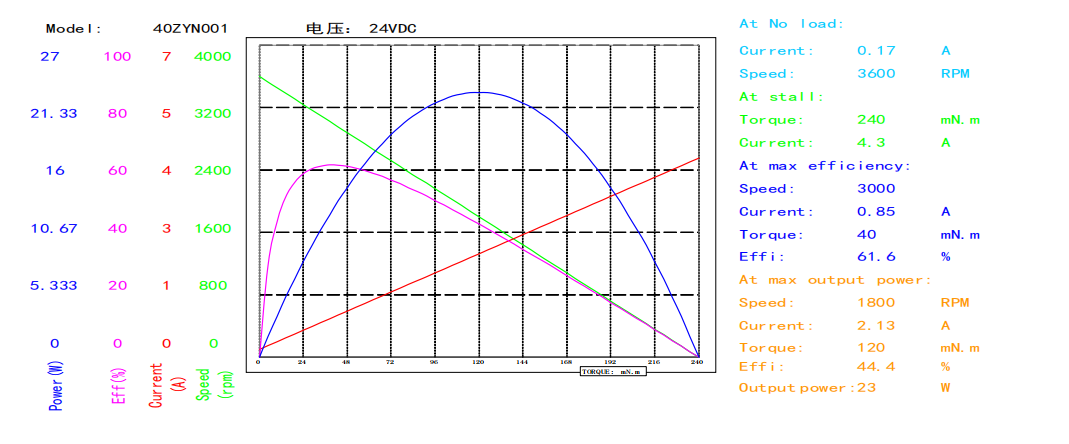

| 40ZYN Brushed DC Motor Performance Curve |
![40ZYN brushed dc motor performance curve]( "40ZYN brushed dc motor performance curve") |
FAQ – 40mm 40ZYN Brushed DC Motor
What is the 40ZYN brushed DC motor used for?
The 40ZYN brushed DC motor is mainly used for compact equipment that needs stable rotational output. Typical applications include automation equipment, electric actuators, valve control systems, medical devices, smart home products, office machines and small commercial equipment.
What voltage does the 40ZYN brushed DC motor series use?
The standard models shown in the technical table are designed for 24V DC operation. Other voltage options may be customized depending on the customer's project requirements, order quantity and technical feasibility.
What is the rated power range of 40ZYN brushed DC motor series?
According to the listed product data, the 40ZYN brushed DC motor series provides rated power options from approximately 10W to 34W. The final power selection depends on the required speed, torque, working load and duty cycle.
Can the output shaft be customized?
Yes. The output shaft can be customized according to the customer's mechanical design. Common shaft customization includes shaft length, shaft diameter, D-cut shaft, flat shaft, threaded shaft, keyway and special output structures.
Can Modar Motor customize the speed and torque?
Yes. Speed and torque can be adjusted by changing the motor design, winding parameters or gearbox configuration. Customers are encouraged to provide the required voltage, speed, torque, load condition, duty cycle and installation space so that Modar Motor can recommend a suitable solution.
Is 40ZYN brushed DC motor suitable for continuous operation?
The suitability for continuous operation depends on the actual load, duty cycle, current, temperature rise and working environment. For continuous-duty applications, customers should provide detailed working conditions so that the motor can be properly evaluated or customized.
What information should I provide when requesting a quotation?
To receive an accurate quotation, please provide the required voltage, rated speed, rated torque, motor dimensions, shaft drawing, installation requirements, working duty cycle, expected order quantity and application details. If you already have a drawing or sample, it will help speed up the evaluation process.
Can 40ZYN brushed DC motor be used in medical equipment?
Yes, the 40ZYN brushed DC motor series can be used in certain medical and healthcare devices, depending on the application requirements. For medical equipment projects, noise level, lifetime, temperature rise, reliability and quality consistency should be carefully evaluated during sample testing.
Does Modar Motor support OEM production?
Yes. Modar Motor supports OEM and ODM motor production, including customized voltage, shaft, mounting structure, lead wire, connector, speed, torque and performance parameters. The 40ZYN brushed DC motor series can be adapted for different customer projects and mass production requirements.
How do I choose the right 40ZYN brushed DC motor model?
The correct model should be selected based on voltage, rated speed, torque, available installation space, motor length, load type and working time. If you are not sure which model is suitable, you can send your application information to Modar Motor, and the engineering team can help recommend a suitable option.
