45mm 45ZYN Brushed DC Motor – Product Overview

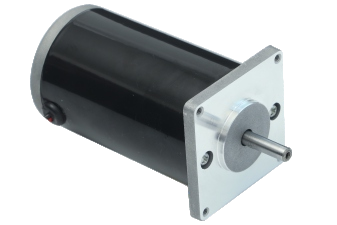

![45ZYN]( "45ZYN")
45mm DC Gear Motor Designed for Stable Motion Output
The 45ZYN brushed DC motor is developed for equipment that requires a compact but stronger drive source than smaller 40mm motor platforms. With an approximately 45mm motor diameter and integrated transmission structure, 45ZYN brushed DC motor series provides a practical balance between size, torque, speed and installation flexibility.
This makes the 45ZYN brushed DC motor series a suitable choice for OEM manufacturers who need a reliable motor for repeated motion, rotating mechanisms, electric control systems and compact mechanical assemblies. Its structure is easy to integrate into different product designs, especially where stable DC motor performance and customized mounting dimensions are required.
Available 24V and 28V Motor Options
A key feature of the 45ZYN brushed DC motor series is that it includes both 24V DC and 28V DC versions. This gives customers more flexibility when matching the motor with different power supply systems.
The 24V models are commonly used in automation equipment, smart devices, actuator systems and industrial control products. The 28V versions are suitable for projects where the system voltage is slightly higher or where the customer's existing electrical platform requires 28V DC motor compatibility.
Representative Technical Parameters
The technical table includes several representative models, such as:
45ZYN001 Series
The 45ZYN001 series offers a rated torque of approximately 0.05N·m, with rated power around 19W. It is suitable for applications requiring higher speed and moderate torque output.
45ZYN002 Series
The 45ZYN002 series provides around 0.06N·m rated torque and approximately 20W rated power. It can be considered for compact equipment that needs a slightly higher torque level while maintaining stable speed.
45ZYN003 and 45ZYN004 Series
These models provide approximately 0.1N·m rated torque, making them suitable for applications with higher load requirements. The motor length is approximately 79mm, offering stronger output capacity within a compact motor structure.
45ZYN005 and 45ZYN007 Series
The 45ZYN005 and 45ZYN007 models are based on a 28V DC platform, with rated power options around 23W to 26W. These models are suitable for projects requiring 28V operation and stable medium-power output.
Balanced Speed, Torque and Power Performance
The 45ZYN brushed DC motor series is designed to offer stable running performance under different working conditions. According to the representative table, the no-load speed ranges from approximately 2200rpm to 4300rpm, while the rated speed ranges from approximately 1700rpm to 3700rpm, depending on the selected model.
This speed range allows the motor to be used in applications where controlled rotation, smooth movement and reliable output are required. For applications with special speed or torque requirements, Modar Motor can help evaluate customized winding, gearbox or structural solutions.
Customizable Motor Design for OEM Projects
For OEM projects, a standard motor is often not enough. Different products may require special shaft dimensions, mounting holes, output direction, wiring methods or performance settings. The 45ZYN brushed DC motor can be customized to match the customer's actual design.
Shaft Customization
The output shaft can be customized with different diameter, length, flat surface, D-cut shape, thread, keyway or special machining structure.
Voltage Customization
Standard options include 24V and 28V DC. Other voltage requirements may be evaluated according to the project and order quantity.
Speed and Torque Customization
Motor speed, rated torque, current and power can be adjusted based on the customer’s load condition, duty cycle and working environment.
Mounting and End Cover Customization
The mounting hole position, front cover design and installation interface can be adjusted to fit the customer’s equipment housing.
Cable and Connector Customization
Lead wire length, cable direction, terminal type and connector model can be customized to simplify assembly during mass production.
Key Product Advantages
Larger Output Capacity Than Smaller DC Motor Series
Compared with smaller diameter DC motors, the 45ZYN brushed DC motor series provides stronger torque capacity and more stable output for equipment with higher mechanical load. It is a practical choice when the application requires more power but still needs a compact motor structure.
Multiple Model Options for Flexible Selection
45ZYN brushed DC motor series includes different voltage, speed, torque, power and length options. This allows engineers to select a suitable model according to the equipment structure and working requirements instead of relying on only one standard specification.
Compact Design for Easy Integration
The 45ZYN brushed DC motor is suitable for machines with limited internal space. Its compact body and clear mounting interface make it easier for product designers to integrate the motor into electric actuators, automatic mechanisms and compact transmission systems.
Suitable for OEM and ODM Customization
Modar Motor supports customized motor development for B2B customers. From prototype selection to mass production, the motor can be adjusted based on voltage, speed, torque, shaft, mounting structure, cable and connector requirements.
Engineering Support for Motor Matching
Motor selection should consider more than voltage and power. Load torque, starting current, duty cycle, working temperature, noise, installation direction and lifetime requirements all affect the final motor choice. Modar Motor can support customers with motor matching and sample evaluation to reduce development risk.
Typical Applications of 45mm 45ZYN Brushed DC Motor
Electric Actuators
The 45ZYN brushed DC motor is suitable for electric actuators that require compact size, stable torque and reliable movement. It can be used in linear or rotary actuator systems, depending on the mechanical transmission structure.
For actuator manufacturers, important motor requirements often include starting torque, stable speed, low current, suitable shaft structure and long-term reliability. The 45ZYN series can be customized to match these requirements.
Automation Equipment
45ZYN brushed DC motor series can be used in small and medium automation equipment, including transmission modules, positioning devices, feeding mechanisms, rotating platforms and compact control systems.
In automation applications, the motor needs to work repeatedly and maintain consistent output. The 45ZYN brushed DC motor series offers multiple model choices to support different speed and torque requirements.
Valve Control Systems
The 45ZYN brushed DC motor can be used in intelligent valve control systems, electric valves and fluid control devices. Its compact design makes it suitable for installation inside valve actuators or control modules.
For valve applications, customers may need a specific output torque, rotation angle, shaft design or limit control structure. Modar Motor can help evaluate the motor configuration according to the valve load and working cycle.
Smart Home Devices
Smart home equipment often requires compact motors for opening, closing, lifting, rotating or adjustment functions. The 45ZYN brushed DC motor series can be used in smart locks, electric curtains, smart furniture, automatic control modules and other intelligent devices.
For this market, stable operation, low noise and customized installation are important. The 45ZYN brushed DC motor platform offers useful flexibility for smart product development.
Medical and Healthcare Equipment
The 45ZYN brushed DC motor series can be applied in certain medical and healthcare devices where stable motion and compact structure are needed. Possible uses include adjustment mechanisms, rotating modules, sample handling devices and auxiliary drive systems.
For medical-related applications, motor reliability, temperature rise, noise level and quality consistency should be carefully tested before mass production.
Commercial and Light Industrial Machinery
45ZYN brushed DC motor can also be used in vending machines, office equipment, commercial devices, small packaging machines and other light industrial systems. Its practical output range makes it suitable for many compact mechanical drive applications.
Technical Specifications of 45mm 45ZYN Brushed DC Motor
The following technical data applies to the 45mm 45ZYN Brushed DC Motor.
Electrical Parameters
Rated voltage options: 24/28V etc.
Rated speed: 1700-3700rpm(customized)
Rated Torque: 0.05~0.1N.m(customized)
Output power range: 19~31W(customized)
Mechanical Parameters
Optional Configurations
![]()
Brushed DC Motor.pdf

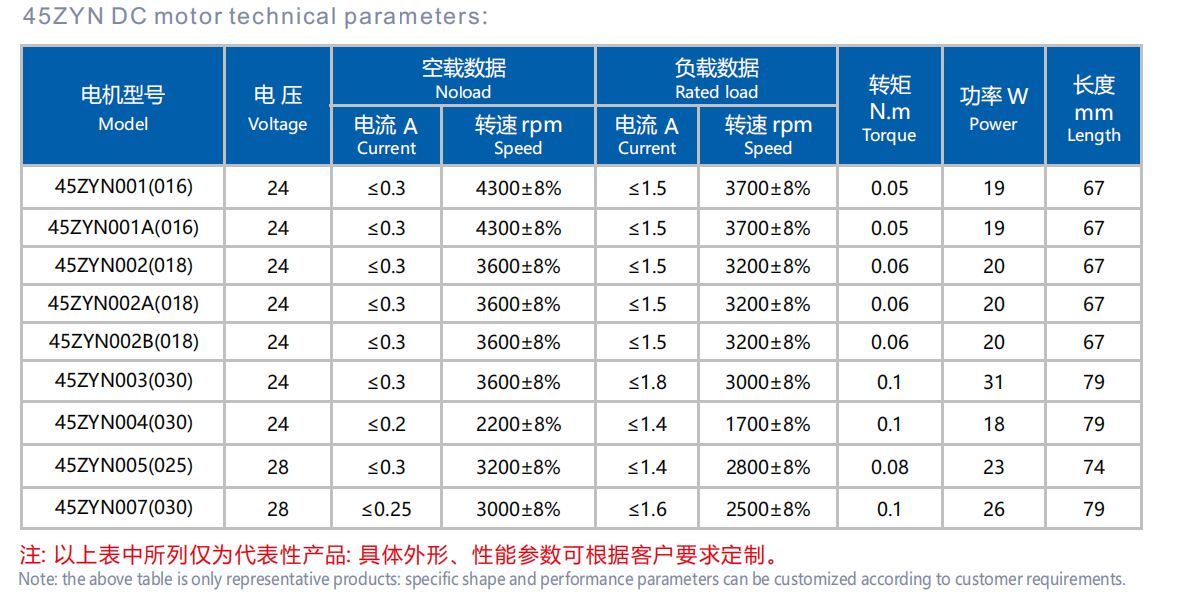

| Motor Characteristics |
![45ZYN brushed dc motor specification]( "45ZYN brushed dc motor specification") |

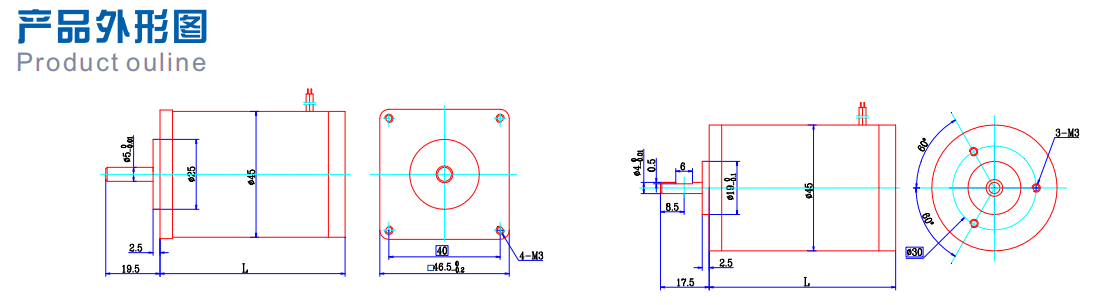

| 45ZYN brushed DC Motor Drawing |
![45ZYN brushed dc motor drawing]( "45ZYN brushed dc motor drawing") |

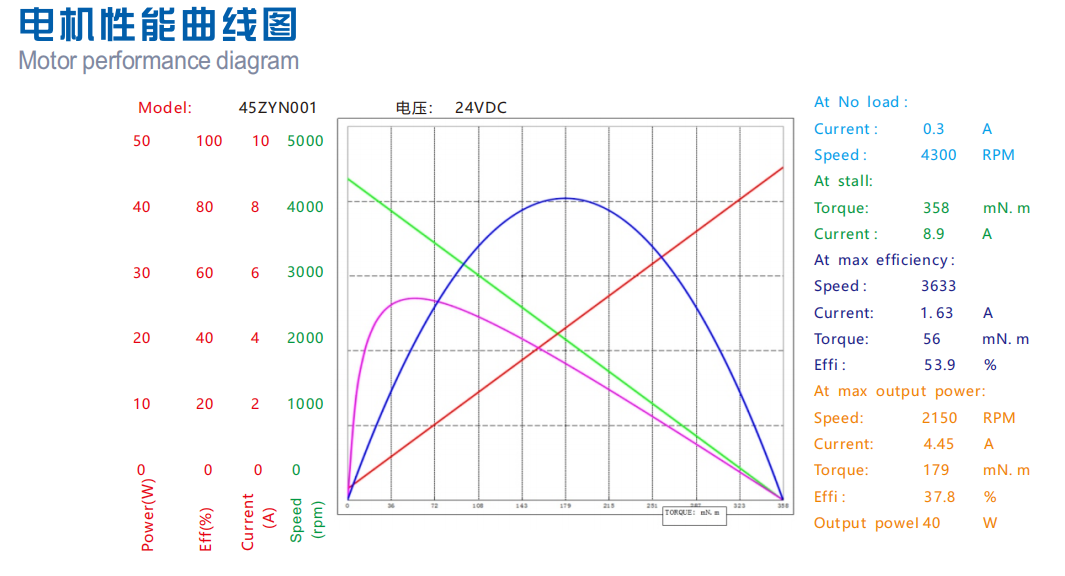

| 45ZYN Brushed DC Motor Performance Curve |
![45ZYN brushed dc motor performance curve]( "45ZYN brushed dc motor performance curve") |
FAQ – 45mm 45ZYN Brushed DC Motor
What is the 45ZYN brushed DC motor?
The 45ZYN brushed DC motor is a compact brushed DC motor series with integrated transmission structure. It is designed for applications that require stable speed, practical torque output and flexible installation, such as automation equipment, electric actuators, valve control systems and smart devices.
What voltage options are available for the 45ZYN brushed DC motor series?
The representative product table includes 24V DC and 28V DC options. Other voltage requirements can be evaluated according to the customer's application, technical requirements and order quantity.
What is the rated torque range of the 45ZYN brushed DC motor motor?
According to the listed representative models, the rated torque range is approximately 0.05N·m to 0.1N·m. The final torque depends on the selected model, speed, motor design and actual working condition.
What is the rated power range?
The rated power shown in the product table ranges from approximately 18W to 31W. Different models provide different power levels to meet different equipment requirements.
Can the 45ZYN brushed DC motor shaft be customized?
Yes. The shaft can be customized based on the customer's mechanical design. Common customization options include shaft length, diameter, D-cut, flat shaft, threaded shaft, keyway and other special structures.
Can Modar Motor customize the speed and torque?
Yes. Speed and torque can be customized by adjusting the motor design, winding parameters or gear transmission configuration. Customers should provide voltage, target speed, required torque, load condition and duty cycle for accurate evaluation.
Is the 45ZYN brushed DC motor suitable for actuator applications?
Yes. The 45ZYN brushed DC motor series is suitable for many actuator applications because it provides compact size, stable output and customizable mechanical structure. It can be used in electric actuators, valve actuators, smart control modules and other motion control systems.
What information should I provide before requesting a quotation?
For accurate motor selection and quotation, please provide voltage, speed, torque, motor size limit, shaft drawing, mounting requirements, duty cycle, working environment, expected lifetime, annual quantity and application details.
Can 45ZYN brushed DC motor be used for continuous operation?
Continuous operation depends on load, current, temperature rise, duty cycle and working environment. If your application requires long-time operation, Modar Motor can evaluate the working conditions and recommend a suitable design or test plan.
Does Modar Motor support OEM and ODM projects?
Yes. Modar Motor supports OEM and ODM projects for DC motors, including customization of voltage, shaft, mounting structure, cable, connector, rotation direction, speed, torque and performance parameters.
