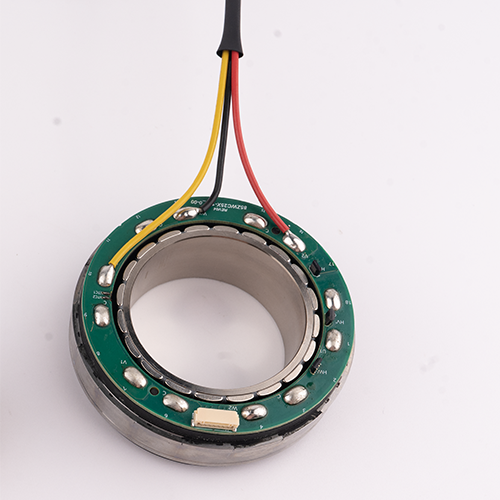

50mm Frameless Torque Motor for Industrial Direct Drive Systems

Typical Applications

Application Positioning

The 50mm frameless motor is commonly selected for medium-load direct-drive systems requiring stable torque output and precise motion control.

Typical Industries & Use Cases

50mm frameless motor is widely used in robot joint modules, automated assembly equipment, rotary positioning platforms, and industrial inspection machines.

• Industrial automation equipment

• Robotic arms and actuators

• Medical imaging systems

Integration Value

By eliminating gearboxes, 50mm frameless motor enhances system reliability and simplifies mechanical design while maintaining high motion accuracy.

Technical Specifications (50mm Frameless Motor Series)

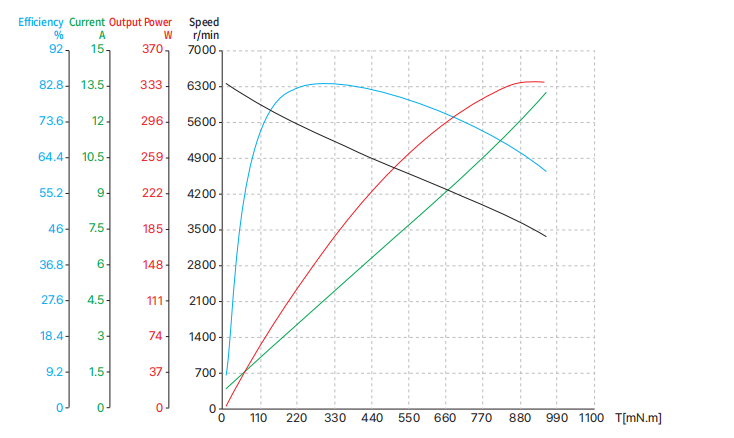

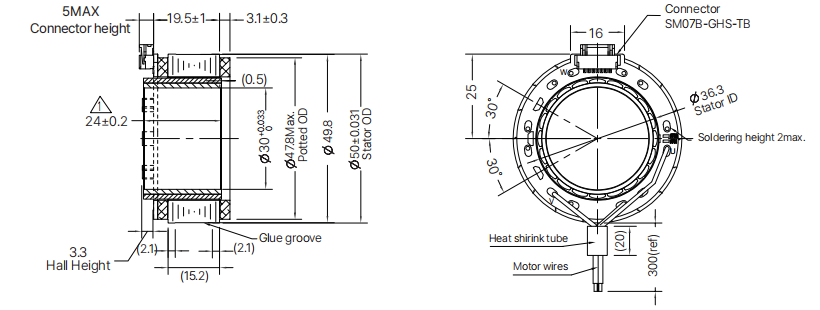

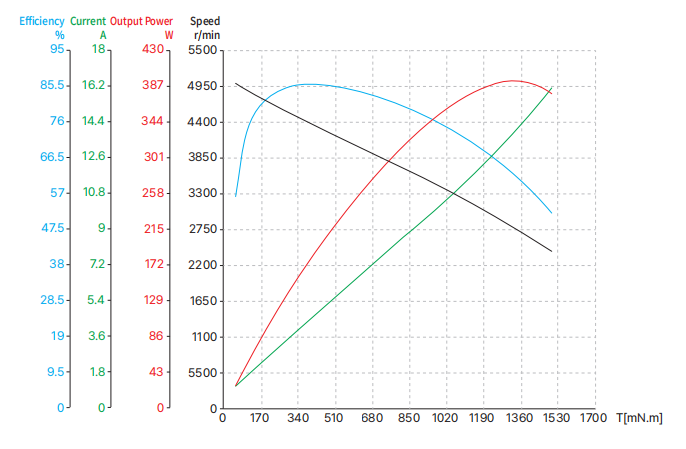

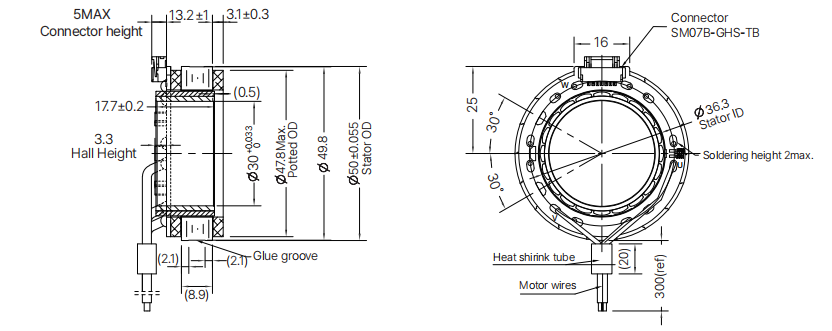

The following technical data applies to the 50mm frameless motor 50ZWC15X-1 and 50ZWC25X-1.

frameless motor.pdf

FAQ – 50mm Frameless Motor

Q1: Is the 50mm frameless motor suitable for medium-torque applications?

Yes, 50mm frameless motor is designed for direct-drive systems requiring stable medium torque.

Q2: Can 50mm frameless motor be integrated into robotic joint modules?

Yes, 50mm frameless motor is commonly integrated into compact robotic joint assemblies.

Q3: Does 50mm frameless motor support long operating hours?

Yes, with proper thermal management, 50mm frameless motor supports extended operation.

Q4: Can50mm frameless motor operate without a gearbox?

Yes, 50mm frameless motor is intended for direct-drive designs without gear reduction.

Q5: Are different sensor options supported?

Yes, 50mm frameless motor is compatible with various external feedback options.

Q6: Is 50mm frameless motor suitable for customized OEM designs?

Yes, 50mm frameless motor supports application-specific customization for OEM projects.
