73mm 73ZYT Brushed DC Motor – Product Overview

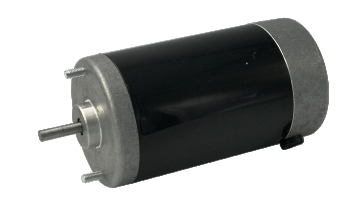

![73ZYT]( "73ZYT")
73mm Brushed DC Motor for Low-Speed Torque Applications
The 73ZYT DC brushed motor is designed for equipment where stable torque output is more important than very high speed. Its 73mm motor frame provides a stronger platform than smaller brushed DC motors, while its moderate rated speed range makes it suitable for mechanical systems that require controlled movement.
73ZYT DC brushed motor can be used in equipment where the output is connected to a gear structure, cam mechanism, pump head, pulley, coupling or customized transmission component. For OEM manufacturers, the 73ZYT DC brushed motor series provides a practical brushed motor solution when the application requires smooth movement, stronger starting ability and reliable load handling.
12V, 13.5V and 24V DC Options
The representative table includes 12V DC, 13.5V DC and 24V DC models. This gives customers more flexibility when matching the motor with different electrical systems.
12V DC Version for Stronger Low-Voltage Output
The 12V version is suitable for low-voltage equipment, battery-powered systems or compact devices requiring higher torque. The listed 12V model provides the strongest rated torque in the table, making 73ZYT DC brushed motor suitable for heavier load conditions.
13.5V DC Version for Special Power Platforms
The 13.5V option is useful for equipment using a non-standard low-voltage platform. It can be considered for special DC systems where the motor needs to match an existing power supply or controller.
24V DC Version for Industrial and Automation Use
The 24V model is suitable for automation equipment, industrial control devices, actuator systems and commercial machines. Since 24V DC is commonly used in OEM equipment, this version is easier to integrate into many existing systems.
Representative Technical Parameters
The 73ZYT DC brushed motor series includes several representative models, including 73ZYT001, 73ZYT032 and 73ZYT070. These models are designed for different voltage platforms, torque levels and installation lengths.
73ZYT001 for 13.5V Moderate Torque Applications
The 73ZYT001 model operates on 13.5V DC. According to the representative data, it provides approximately 0.2N·m rated torque, around 1600rpm rated speed and approximately 34W rated power. It is suitable for equipment requiring moderate torque and a special low-voltage power system.
73ZYT032 for 24V Low-Speed Drive Systems
The 73ZYT032 model uses a 24V DC platform. It provides approximately 0.25N·m rated torque, around 1250rpm rated speed and approximately 33W rated power. This model is suitable for lower-speed mechanisms where stable output and 24V system compatibility are required.
73ZYT070 for 12V High Torque Applications
The 73ZYT070 model operates on 12V DC and provides approximately 0.6N·m rated torque, around 1650rpm rated speed and approximately 104W rated power. This model is suitable for applications requiring stronger torque output from a low-voltage brushed DC motor.
Designed for Stable Mechanical Movement
The 73ZYT DC brushed motor series is suitable for systems that require steady movement instead of extremely high rotational speed. In many OEM products, controlled motion is more important than maximum speed. Examples include automatic opening and closing mechanisms, locking systems, lifting modules, valve drive systems and equipment adjustment devices.
The motor performance curve helps engineers evaluate the relationship between speed, torque, current, efficiency and output power. For accurate motor selection, the motor should be matched according to the actual working load rather than no-load speed only.
Customization Options
Shaft Customization for Mechanical Connection
The output shaft can be customized according to the customer's transmission design. Common options include round shaft, D-cut shaft, flat shaft, threaded shaft, keyway shaft, extended shaft or special machined shaft.
A suitable shaft design is important for connecting the motor with couplings, cams, pulleys, gears, pump heads or customer-designed mechanical parts.
Voltage and Speed Customization
Although the representative models include 12V, 13.5V and 24V DC options, Modar Motor can evaluate customized voltage and speed requirements according to the customer’s application. If the equipment requires lower current, stronger torque, a specific rated speed or a special working point, the motor design can be discussed during the sample stage.
Mounting Structure Customization
The front cover, rear cover, mounting holes and locating dimensions can be customized according to the customer's equipment housing. This is useful for both new product development and replacement motor projects.
Lead Wire and Connector Customization
Lead wire length, wire color, outlet direction, terminal type, connector model and wiring definition can be customized for easier assembly in mass production.
Performance Matching for Load Conditions
For OEM projects, the motor should be matched with the actual load condition. Modar Motor can help evaluate rated torque, startup current, duty cycle, temperature rise and expected working time based on the customer’s test data.
Key Product Advantages
Low-Speed High-Torque Output
The 73ZYT DC brushed motor series is especially suitable for equipment that needs stronger torque at a moderate or low speed. This makes it useful for mechanisms that must move steadily under load.
Multiple Low-Voltage Options
With 12V, 13.5V and 24V DC models, the 73ZYT DC brushed motor series can match different electrical platforms. This flexibility is helpful for OEM customers developing products with different power supply requirements.
Suitable for Mechanical Drive and Adjustment Systems
73ZYT DC brushed motor can be integrated into lifting systems, electric adjustment devices, locking mechanisms, valve drives and other mechanical modules where controlled movement is required.
Compact Round Housing for Easy Integration
The round motor housing makes the 73ZYT DC brushed motor series suitable for compact equipment structures. It can be installed inside housings, brackets and customized assemblies.
OEM Customization Support
Modar Motor supports customized brushed DC motor solutions, including shaft, voltage, speed, torque, wiring, connector and mounting structure. This helps customers improve compatibility between the motor and final equipment.
Typical Application of 73mm 73ZYT Brushed DC Motor
Electric Adjustment Systems
The 73ZYT DC brushed motor can be used in electric adjustment mechanisms where stable movement and reliable torque are required. Typical examples include height adjustment devices, angle adjustment systems, smart furniture and equipment positioning modules.
Locking and Opening Mechanisms
Because 73ZYT DC brushed motor series can provide stronger torque at moderate speed, it is suitable for locking devices, automatic opening systems, cabinet locks, access control mechanisms and other controlled movement structures.
Valve Drive Systems
The 73ZYT DC brushed motor can be applied in electric valve control systems where low-speed torque and reliable rotation are required. For valve projects, customers should provide required torque, rotation angle, duty cycle and installation dimensions for accurate motor selection.
Pump and Fluid Equipment
The 73ZYT DC brushed motor series can be used in certain pump-related applications, especially where the motor needs to drive a pump head or transmission component at controlled speed. Pump load, pressure condition, medium type and duty cycle should be reviewed during selection.
Automation and Commercial Equipment
73ZYT DC brushed motor can be used in automation modules, commercial machines, vending equipment, rotating mechanisms, small conveyors and mechanical drive units. It is suitable for equipment requiring reliable motion and flexible motor customization.
Customized OEM Transmission Modules
Many customers use the 73ZYT DC brushed motor motor as part of a customized drive module. It can be connected with gears, pulleys, couplings, cams or special mechanical parts. Modar Motor can support sample testing and parameter adjustment according to customer feedback.
Technical Specifications of 73mm 73ZYT Brushed DC Motor
The following technical data applies to the 73mm 73ZYT Brushed DC Motor.
Electrical Parameters
Rated voltage options: 12/13.5/24V etc.
Rated speed: 1250~1650rpm(customized)
Rated Torque: 0.2~0.6N.m(customized)
Output power range: 34~104W(customized)
Mechanical Parameters
Optional Configurations
![]()
Brushed DC Motor.pdf

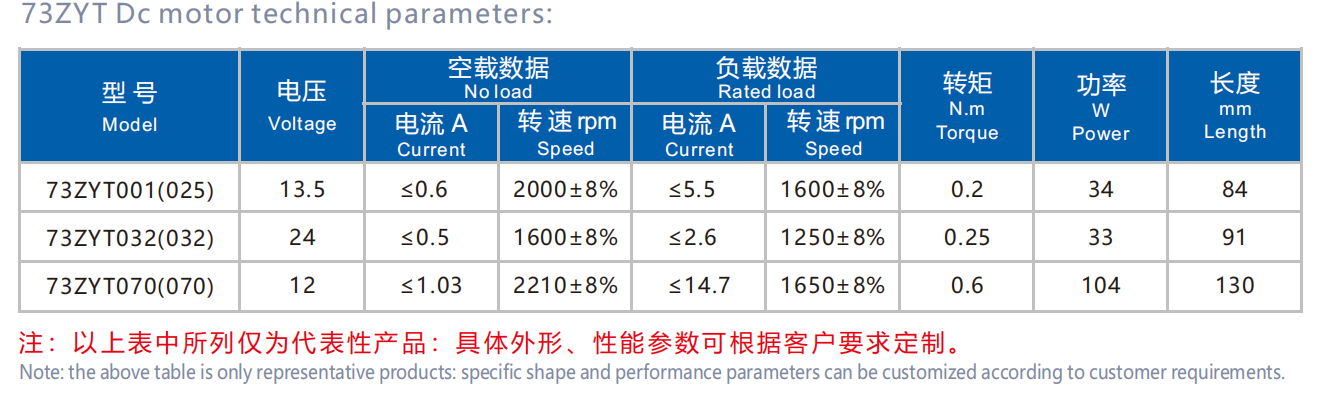

| Motor Characteristics |
![73ZYT brushed dc motor specification]( "73ZYT brushed dc motor specification") |

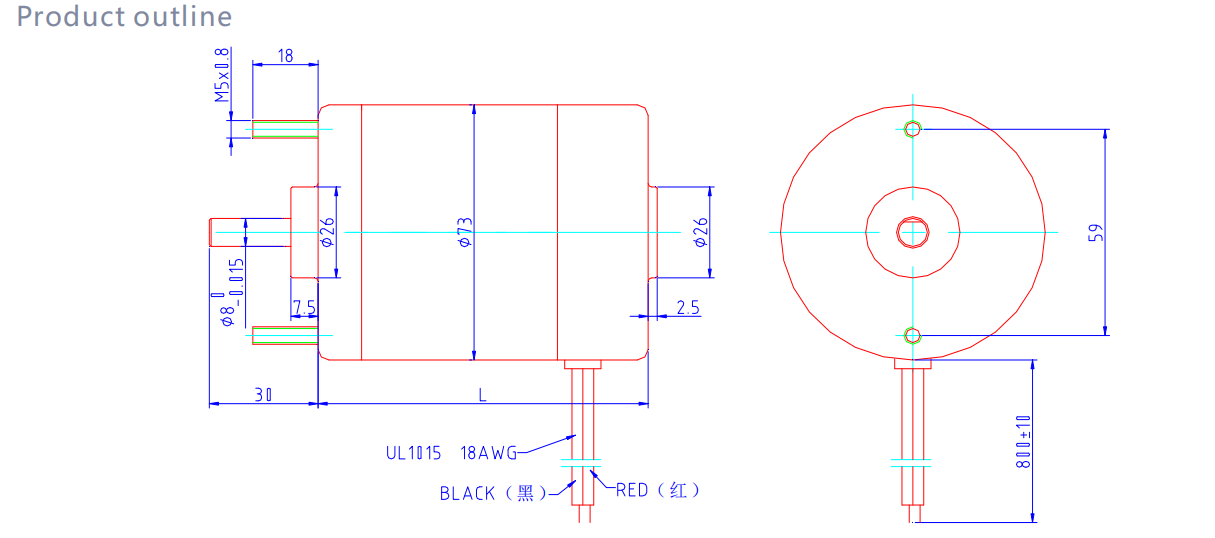

| 73ZYT brushed DC Motor Drawing |
![73ZYT brushed dc motor drawing]( "73ZYT brushed dc motor drawing") |

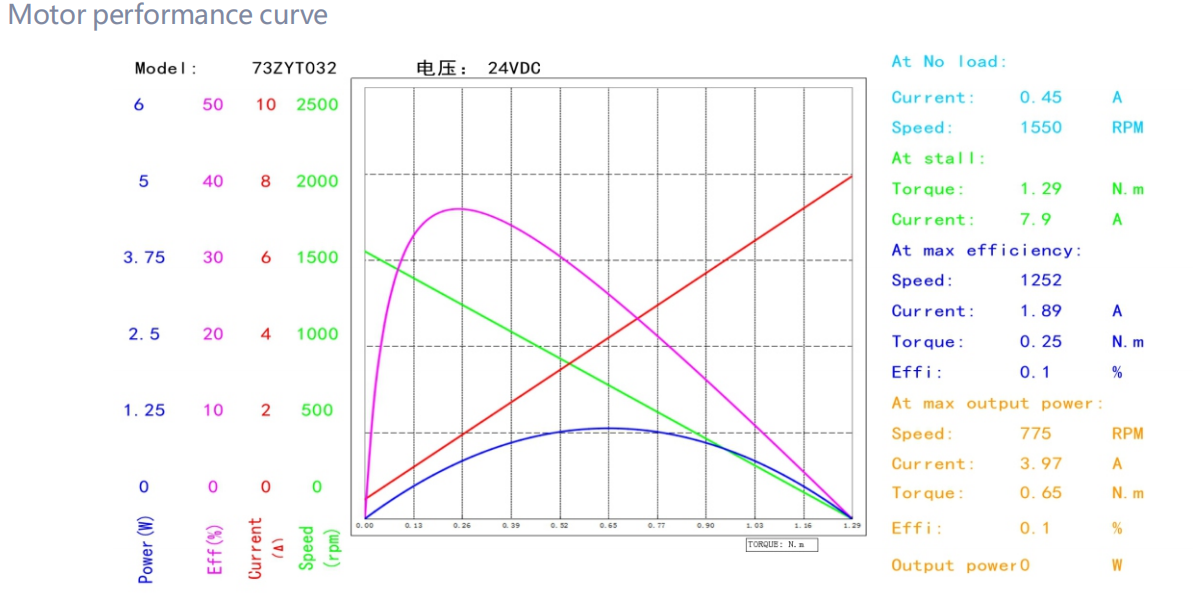

| 73ZYT Brushed DC Motor Performance Curve |
![73ZYT brushed dc motor performance curve]( "73ZYT brushed dc motor performance curve") |
FAQ – 73mm 73ZYT Brushed DC Motor
H3: What is the 73ZYT brushed DC motor?
The 73ZYT DC brushed motor is a brushed DC motor designed for low-speed, high-torque OEM applications. It is suitable for electric adjustment systems, locking mechanisms, valve drives, pump equipment, automation modules and customized drive systems.
H3: What voltage options are available for the 73ZYT brushed DC motor series?
The representative models include 12V DC, 13.5V DC and 24V DC options. Other voltage requirements may be evaluated according to the customer's application and order quantity.
H3: What is the rated torque range?
According to the listed data, the rated torque range is approximately 0.2N·m to 0.6N·m. The 12V model provides the highest listed torque and is suitable for stronger load requirements.
H3: What is the rated power range?
The representative rated power range is approximately 33W to 104W. The final power depends on the selected model, voltage, speed and load condition.
H3: Is 73ZYT brushed DC motor suitable for low-speed applications?
Yes. The listed rated speeds are around 1250rpm to 1650rpm, making the 73ZYT DC brushed motor series suitable for applications requiring controlled movement and stronger torque rather than high-speed rotation.
H3: Can the shaft be customized?
Yes. Modar Motor can customize shaft length, diameter, D-cut, flat shaft, threaded shaft, keyway, extended shaft or special shaft structures according to customer drawings or samples.
H3: Can 73ZYT brushed DC motor be used for valve control?
Yes. The 73ZYT DC brushed motor can be used in valve drive systems, especially where stable torque and controlled rotation are required. Customers should provide torque, rotation angle, duty cycle and mounting requirements.
H3: Can 73ZYT brushed DC motor work continuously?
Continuous operation depends on load, current, temperature rise, cooling condition and duty cycle. For long-time operation, Modar Motor can help evaluate whether a standard or customized design is more suitable.
H3: What information should I provide for a quotation?
Please provide voltage, target speed, required torque, shaft drawing, mounting dimensions, load type, working cycle, current limit, controller information, operating environment and estimated quantity.
H3: Does Modar Motor support OEM customization?
Yes. Modar Motor supports OEM and ODM customization for 73ZYT DC brushed motor, including voltage, speed, torque, shaft, mounting structure, cable, connector, rotation direction and performance parameters.
