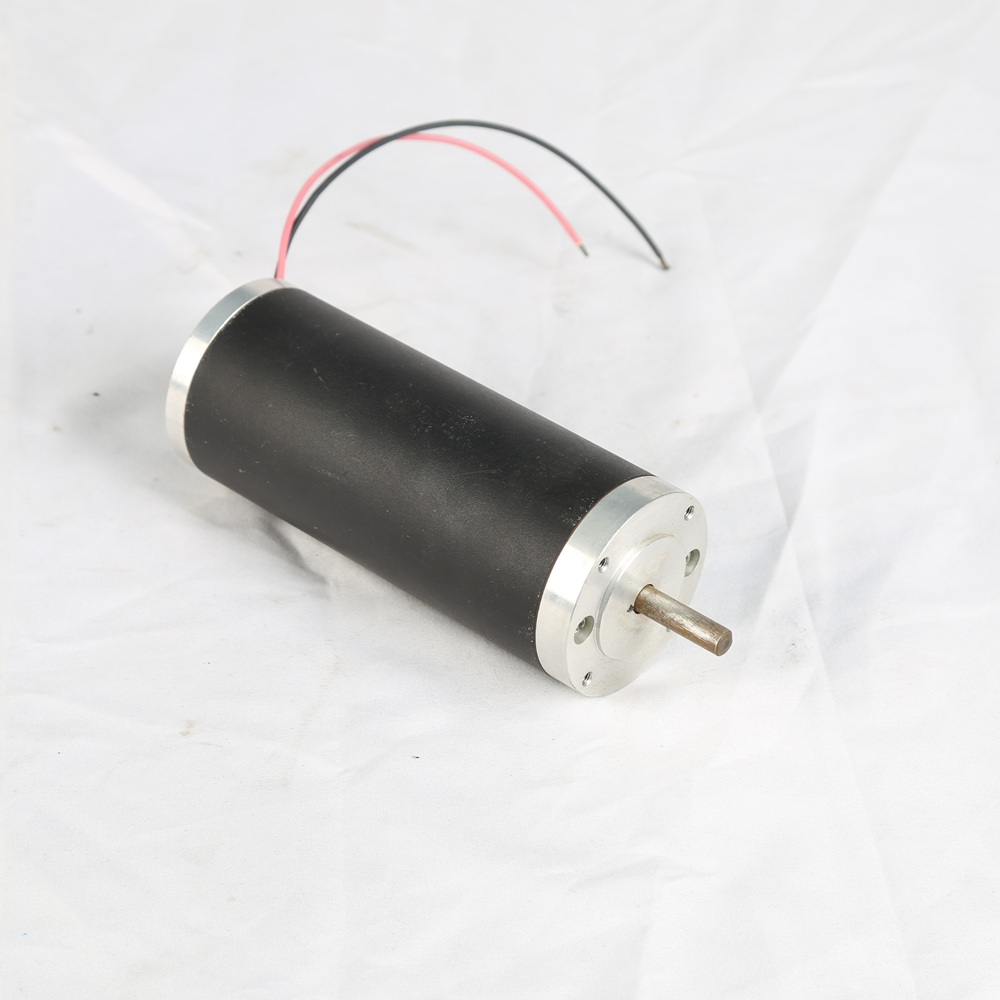

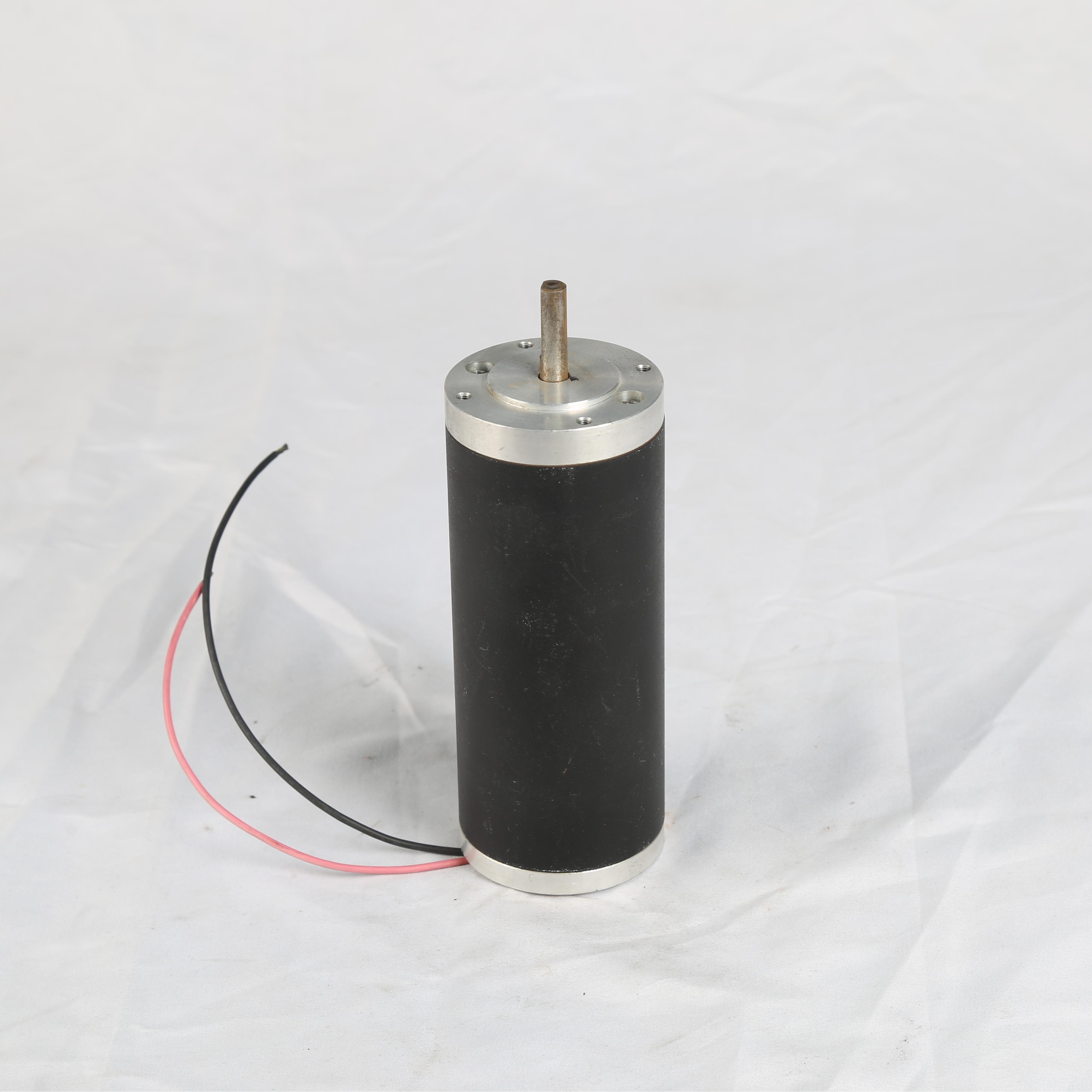

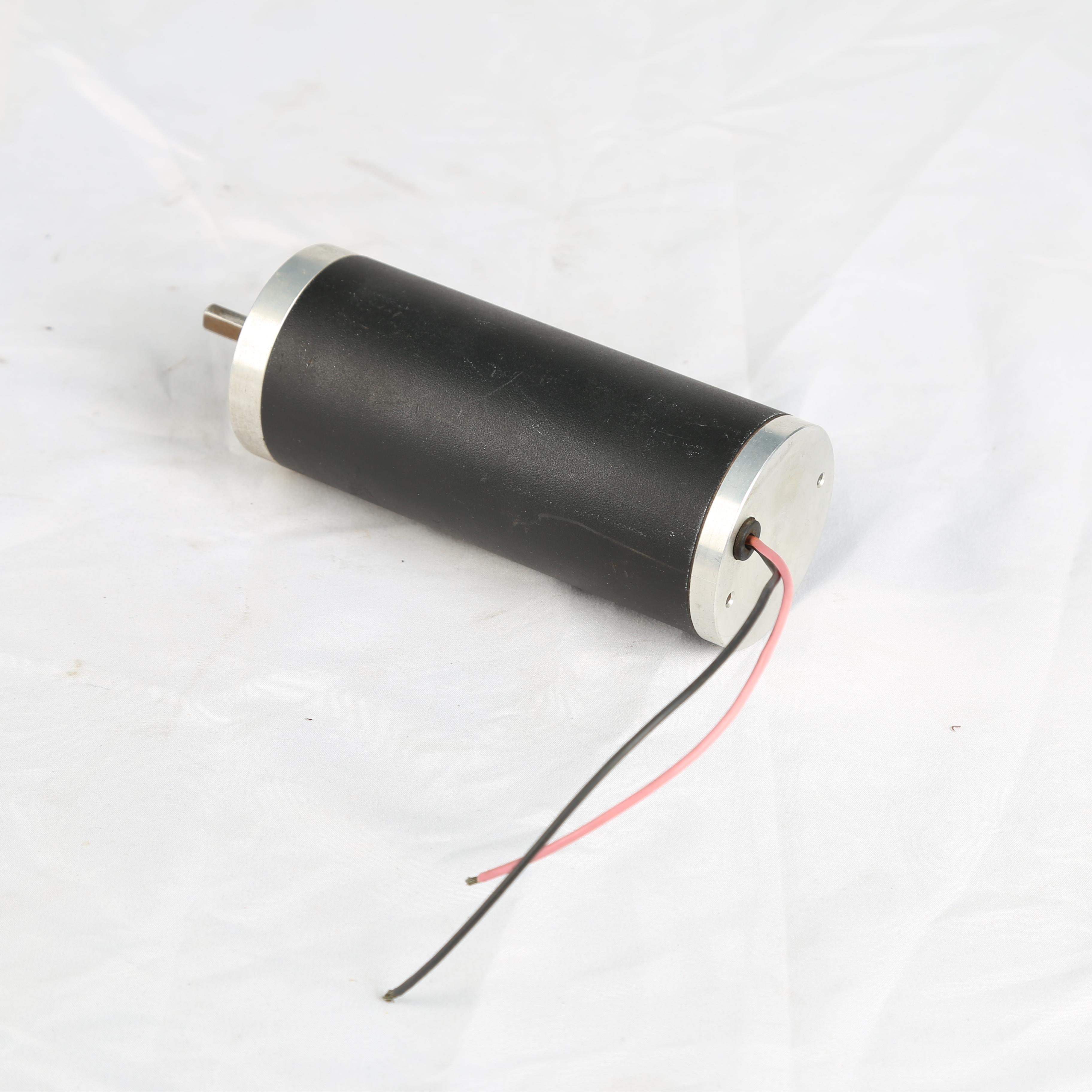

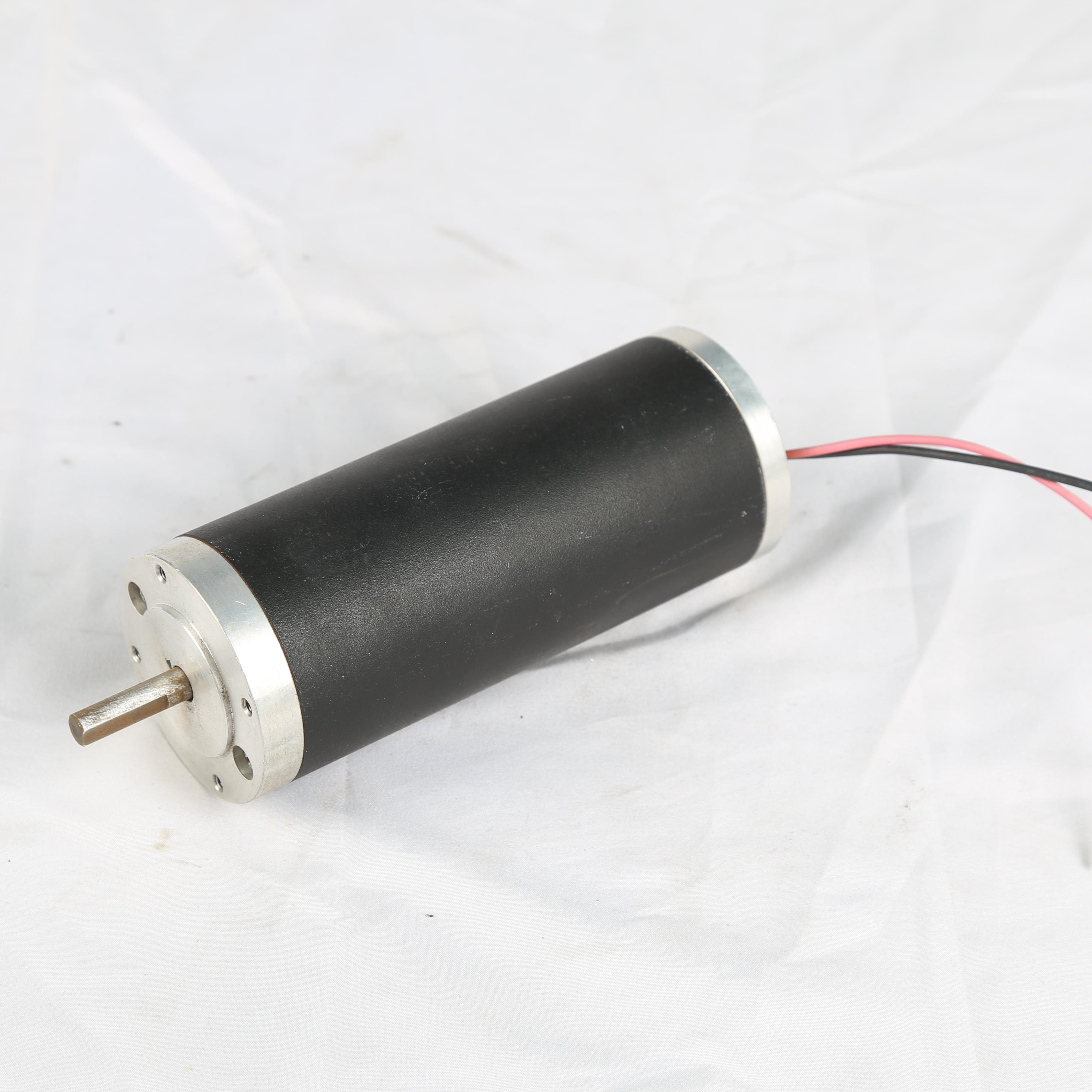

63mm 63ZYT Brushed DC Motor – Product Overview

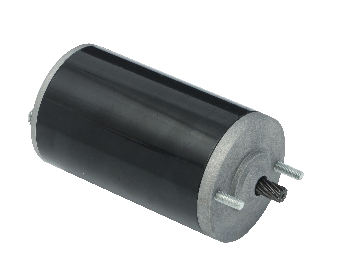

![63ZYT]( "63ZYT")
High Power 24V Brushed DC Motor for Heavier Load Applications
The 63ZYT brushed DC motor is developed for applications that require more output power than standard small DC motors. With a larger motor frame and higher power range, this series is suitable for equipment where starting torque, load stability and power reserve are important.
63ZYT brushed DC motor is especially useful for OEM products that need a compact but stronger drive source. It can be connected with pump heads, couplings, belts, pulleys, gearboxes or customer-designed transmission systems. For equipment manufacturers, the A63ZYT series offers a practical motor platform when the application requires reliable performance under higher load conditions.
24V DC Platform for Industrial and Commercial Equipment
The representative models in the 63ZYT brushed DC motorT series are based on a 24V DC input platform. 24V DC is widely used in industrial control equipment, pump systems, automation devices, actuator modules and commercial machinery because it is relatively easy to integrate with DC power supplies and control systems.
For customers who already use a 24V control platform, the A63ZYT series can simplify electrical matching. If the application requires a different voltage, Modar Motor can evaluate customized winding solutions according to the required speed, torque, current limit and order quantity.
Representative Technical Parameters
The product table includes several representative models, including A63ZYT001, A63ZYT025, A63ZYT030, A63ZYT045 and A63ZYT050. These models provide different output levels for different load requirements.
A63ZYT025 for Medium Power Applications
The A63ZYT025 model provides approximately 63W rated power and 0.2N·m rated torque. It is suitable for applications that need stronger output than smaller brushed DC motors but do not require the maximum power level of the A63ZYT platform.
A63ZYT030 for Balanced Torque and Power
The A63ZYT030 model offers approximately 94W rated power and 0.3N·m rated torque. It is a balanced option for OEM equipment that needs reliable drive performance, moderate torque and stable rated speed.
A63ZYT001 for 125W Drive Systems
A63ZYT001 model provides approximately 125W rated power and 0.4N·m rated torque. It is suitable for applications requiring stronger mechanical output, such as pump systems, drive modules and compact industrial mechanisms.
A63ZYT045 for High Load Operation
The A63ZYT045 model offers approximately 141W rated power and 0.45N·m rated torque. This model is suitable for heavier load applications where stronger output and stable speed are required.
A63ZYT050 for Maximum Output in the Series
The A63ZYT050 model provides approximately 157W rated power and 0.5N·m rated torque. It is the higher-output option in the listed table and can be considered for equipment requiring stronger starting performance and higher continuous power capability.
Strong Torque Output for Practical Mechanical Loads
The 63ZYT brushed DC motor series is designed for applications where the motor must drive real mechanical loads, not only operate under no-load conditions. The rated torque range of approximately 0.2N·m to 0.5N·m allows the motor to support heavier mechanisms, fluid resistance, friction load or transmission systems.
For OEM projects, the actual working point should be evaluated carefully. Engineers should consider rated torque, peak torque, starting current, load fluctuation, heat rise and duty cycle. Selecting the correct model can help improve system stability and reduce the risk of overheating or insufficient output.
Motor Performance Curve for Engineering Selection
The performance curve provides important information about the relationship between speed, torque, current, efficiency and output power. This is useful for engineers when selecting the correct motor model.
For example, if the motor operates too close to stall torque for a long time, current and temperature rise may increase significantly. If the motor is selected only by no-load speed, the final equipment may fail to achieve the required output under actual load. Modar Motor can help customers evaluate the suitable working area based on the customer's load data and test requirements.
Customization Options
Shaft Customization for Different Transmission Methods
The 63ZYT brushed DC motor can be customized with different shaft structures to match the customer's equipment design. Common options include round shaft, D-cut shaft, flat shaft, threaded shaft, keyway shaft, extended shaft, double shaft or special machined shaft.
This is especially important for pump heads, couplings, pulleys, gears and customized transmission modules. A correct shaft design can improve assembly accuracy and reduce mechanical vibration.
Mounting Interface Customization
The motor front cover, locating diameter, mounting holes and installation interface can be customized according to the customer's drawing. This helps the motor fit into existing equipment housings or new product designs.
For OEM replacement projects, mounting compatibility is often one of the most important factors. Modar Motor can evaluate drawings or samples and help adjust the motor structure accordingly.
Electrical Performance Customization
Although the representative models are based on 24V DC, the electrical performance can be adjusted according to customer needs. Possible customization includes voltage, rated speed, rated torque, current, power and efficiency optimization.
For applications with strict current limits or temperature rise requirements, Modar Motor can help evaluate whether a customized winding design is needed.
Cable and Connector Customization
Lead wire length, cable outlet direction, terminal type, connector model and wiring definition can be customized for batch production. This helps reduce assembly time and improves wiring consistency in OEM equipment.
Motor Length and Output Level Selection
The 63ZYT brushed DC motor series includes different motor lengths and output levels. Customers can choose a shorter model for compact equipment or a longer model for higher torque and power requirements. This flexibility helps engineers balance performance, installation space and cost.
Key Product Advantages
Higher Power Output for Demanding OEM Equipment
The 63ZYT brushed DC motor series provides higher power than smaller brushed DC motor platforms. With rated power up to approximately 157W, it is suitable for equipment that requires stronger drive capability in a compact DC motor structure.
Strong Torque Capacity for Pumps and Drive Modules
With rated torque options up to approximately 0.5N·m, this series is suitable for pump systems, actuator mechanisms and industrial drive modules that need stable output under load.
24V DC System Compatibility
The 24V DC platform is widely used in automation, pump equipment and industrial control systems. This makes the 63ZYT brushed DC motor series easier to integrate into many existing electrical architectures.
Flexible Model Selection
63ZYT brushed DC motor series offers multiple output levels from medium power to high power. Customers can select the correct model based on load requirement, installation length, current limit and expected operating condition.
OEM Customization Support from Modar Motor
Modar Motor supports OEM and ODM customization for brushed DC motors, including shaft, mounting interface, voltage, speed, torque, cable, connector and performance parameters. This helps customers develop motor solutions that better match their final product design.
Typical Application of 63mm 63ZYT Brushed DC Motor
Pump Systems
The 63ZYT brushed DC motor is suitable for pump applications that require higher torque and stable speed. It can be used in liquid transfer pumps, circulation pumps, spraying equipment, cleaning systems, small pressure units and other fluid-related drive systems.
For pump applications, load torque may change depending on medium viscosity, pressure, flow rate and operating condition. Therefore, customers should provide pump type, working speed, current limit and duty cycle for accurate motor selection.
Industrial Drive Modules
The 63ZYT brushed DC motor series can be used as the core drive motor in compact industrial modules. It can drive belts, pulleys, couplings, gears or customized mechanical structures. Its higher power output makes it suitable for applications where smaller motors may not provide enough performance.
Typical examples include rotating drive units, adjustment devices, mechanical transmission modules and auxiliary industrial equipment.
Electric Actuators
For electric actuator applications, the A63ZYT motor can provide strong torque and stable movement. It can be used in rotary actuators, lifting mechanisms, valve drive assemblies and automatic control devices.
When used in actuator systems, it is important to evaluate starting torque, rated load, duty cycle, limit position, current protection and heat rise.
Automation Equipment
63ZYT brushed DC motor can be applied in automation equipment that requires higher output power and stable operation. It may be used in feeding mechanisms, compact conveyors, rotating platforms, mechanical adjustment systems and customized motion modules.
For automation equipment, reliable repeated operation and stable batch consistency are important. Modar Motor can provide customized motor matching according to actual load conditions.
Commercial Machinery
Commercial machines often require motors that are compact, reliable and strong enough for repeated use. The A63ZYT series can be used in vending machines, cleaning equipment, packaging machines, display systems and office automation devices.
In these applications, motor noise, temperature rise, lifetime and assembly structure should be considered during selection.
Customized OEM Transmission Systems
63ZYT brushed DC motor can be integrated into customer-designed transmission systems. It can be paired with gearboxes, pump heads, pulleys, couplings or mechanical brackets. Modar Motor can support sample testing and parameter adjustment based on customer feedback.
Technical Specifications of 63mm 63ZYT Brushed DC Motor
The following technical data applies to the 63mm 63ZYT Brushed DC Motor.
Electrical Parameters
Rated voltage options: 24V etc.
Rated speed: 3000rpm(customized)
Rated Torque: 0.2~0.5N.m(customized)
Output power range: 63~157W(customized)
Mechanical Parameters
Optional Configurations
![]()
Brushed DC Motor.pdf

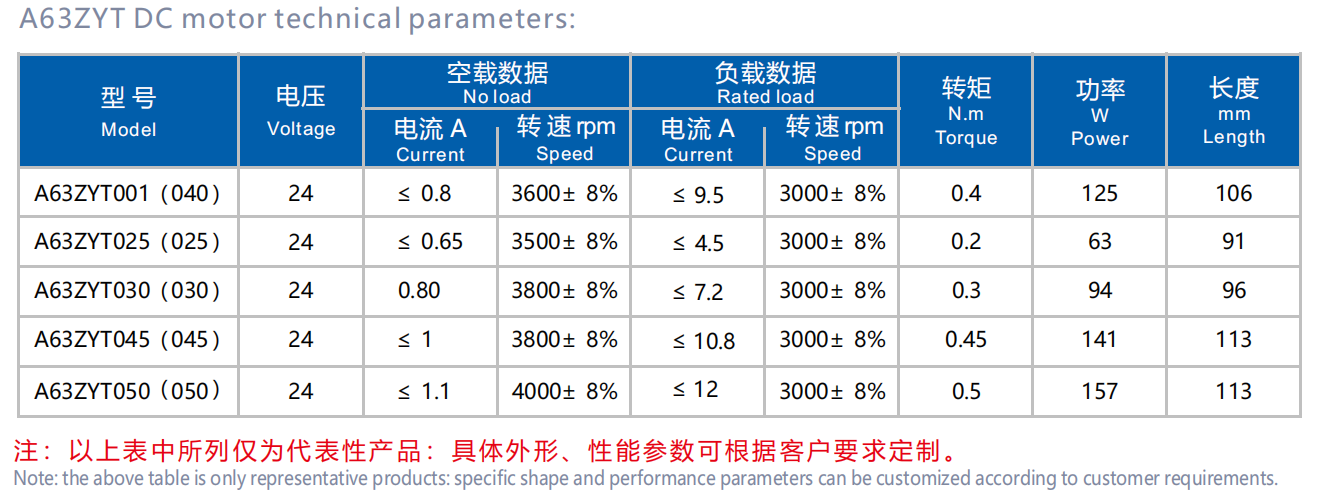

| Motor Characteristics |
![63ZYT brushed dc motor specification]( "63ZYT brushed dc motor specification") |

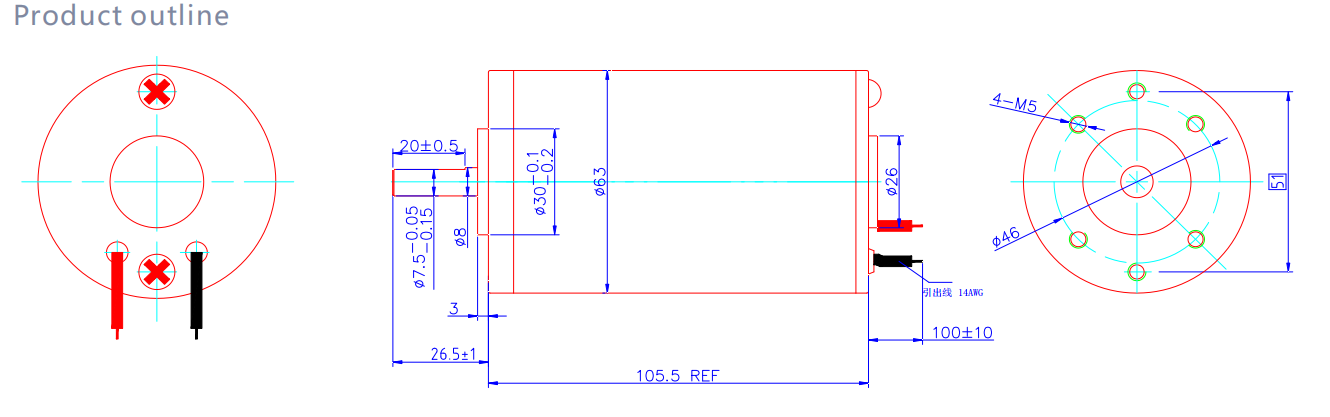

| 63ZYT brushed DC Motor Drawing |
![63ZYT brushed dc motor drawing]( "63ZYT brushed dc motor drawing") |

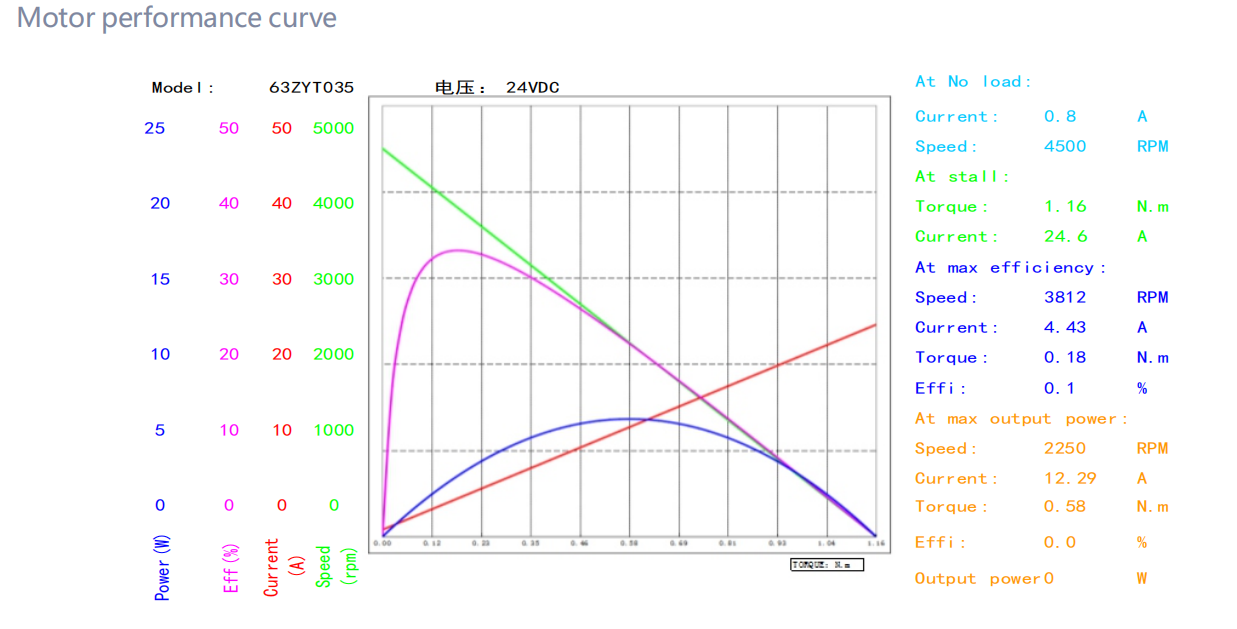

| 63ZYT Brushed DC Motor Performance Curve |
![63ZYT brushed dc motor performance curve]( "63ZYT brushed dc motor performance curve") |
FAQ – 63mm 63ZYT Brushed DC Motor
What is the 63ZYT brushed DC motor?
The 63ZYT brushed DC motor is a high-power brushed DC motor designed for OEM equipment that requires stronger torque, stable speed and reliable output. It is suitable for pumps, industrial drive systems, electric actuators, automation equipment and commercial machinery.
What voltage does the 63ZYT brushed DC motor series use?
The representative technical table shows 24V DC models. Other voltage requirements may be evaluated according to the customer's application, required speed, torque and order quantity.
What is the rated power range of the 63ZYT brushed DC motor?
According to the listed representative data, the rated power range is approximately 63W to 157W. Different models provide different power levels for medium-load and higher-load applications.
What is the rated torque range?
The representative rated torque range is approximately 0.2N·m to 0.5N·m. The final torque depends on the selected model, winding design, speed and actual working condition.
Is the 63ZYT brushed DC motor suitable for pump applications?
Yes. 63ZYT brushed DC motor series is suitable for many pump drive applications because it offers stronger torque and higher power output. For accurate selection, customers should provide pump load, working speed, flow requirement, pressure condition and duty cycle.
Can the output shaft be customized?
Yes. Modar Motor can customize shaft length, diameter, D-cut, flat shaft, threaded shaft, keyway, double shaft or special shaft structures according to customer drawings or samples.
Can the mounting structure be customized?
Yes. The front cover, locating diameter, mounting hole position and installation interface can be customized to match the customer's equipment design or existing assembly.
Can 63ZYT brushed DC motor work continuously?
Continuous operation depends on the load, current, temperature rise, cooling condition and duty cycle. For long-time operation, Modar Motor can help evaluate the working point and recommend the right motor configuration.
What information should I provide for motor selection?
Please provide voltage, target speed, required torque, load type, working cycle, shaft drawing, mounting dimensions, current limit, controller information, working environment and estimated order quantity.
Does Modar Motor support OEM customization?
Yes. Modar Motor supports OEM and ODM customization for A63ZYT DC motors, including voltage, speed, torque, shaft, mounting structure, cable, connector, rotation direction and performance parameters.
