66mm 66ZYT Brushed DC Motor – Product Overview

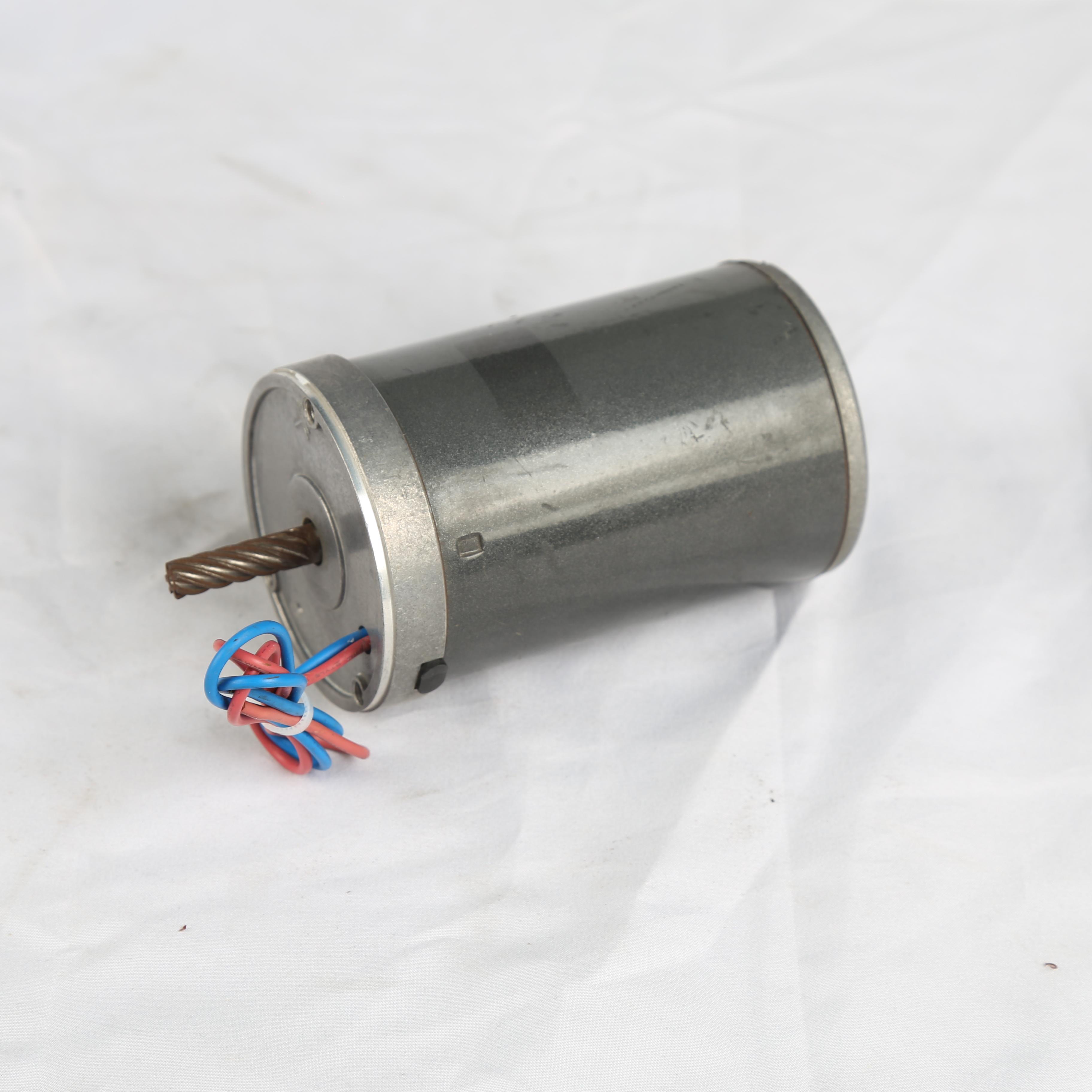

![66ZYT]( "66ZYT")

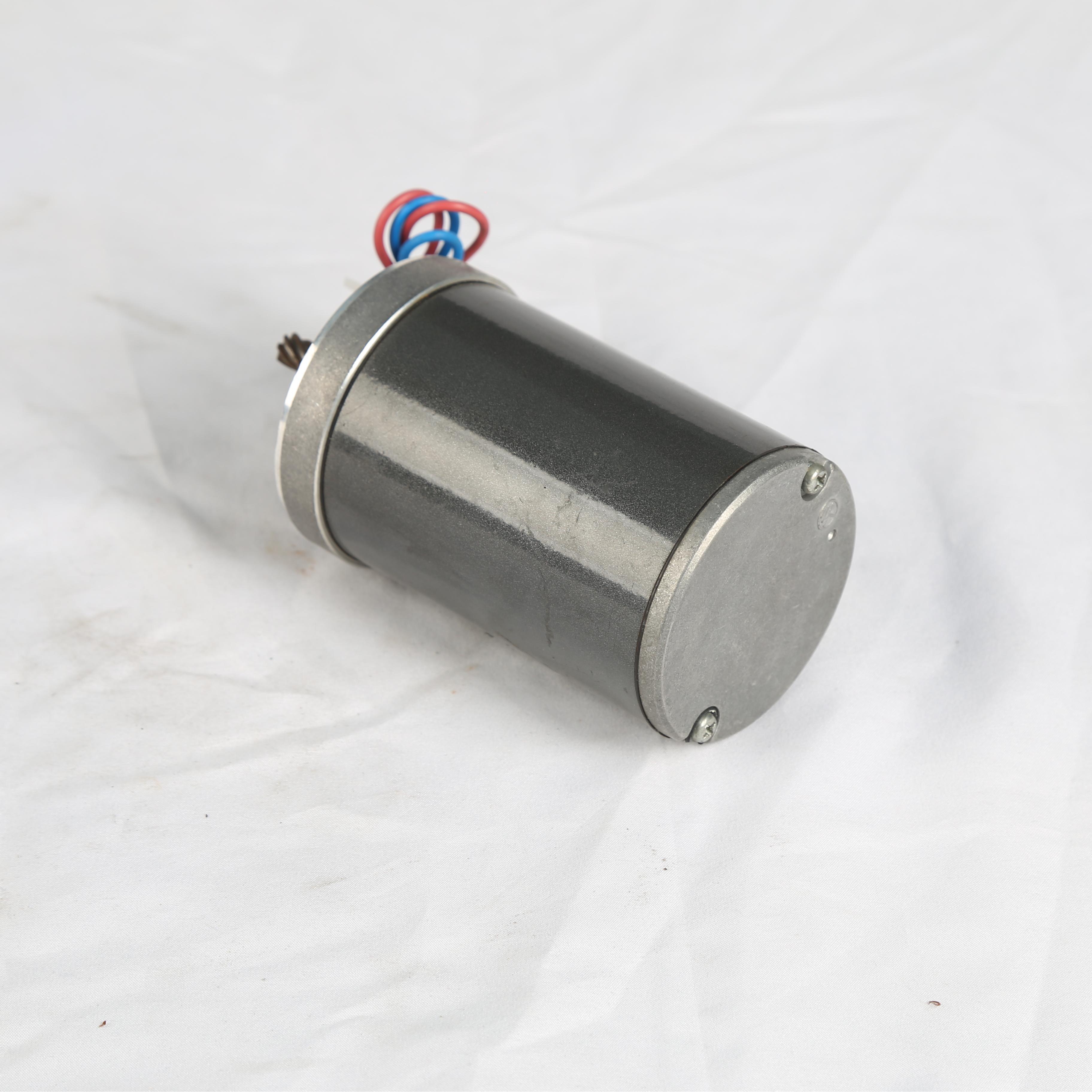

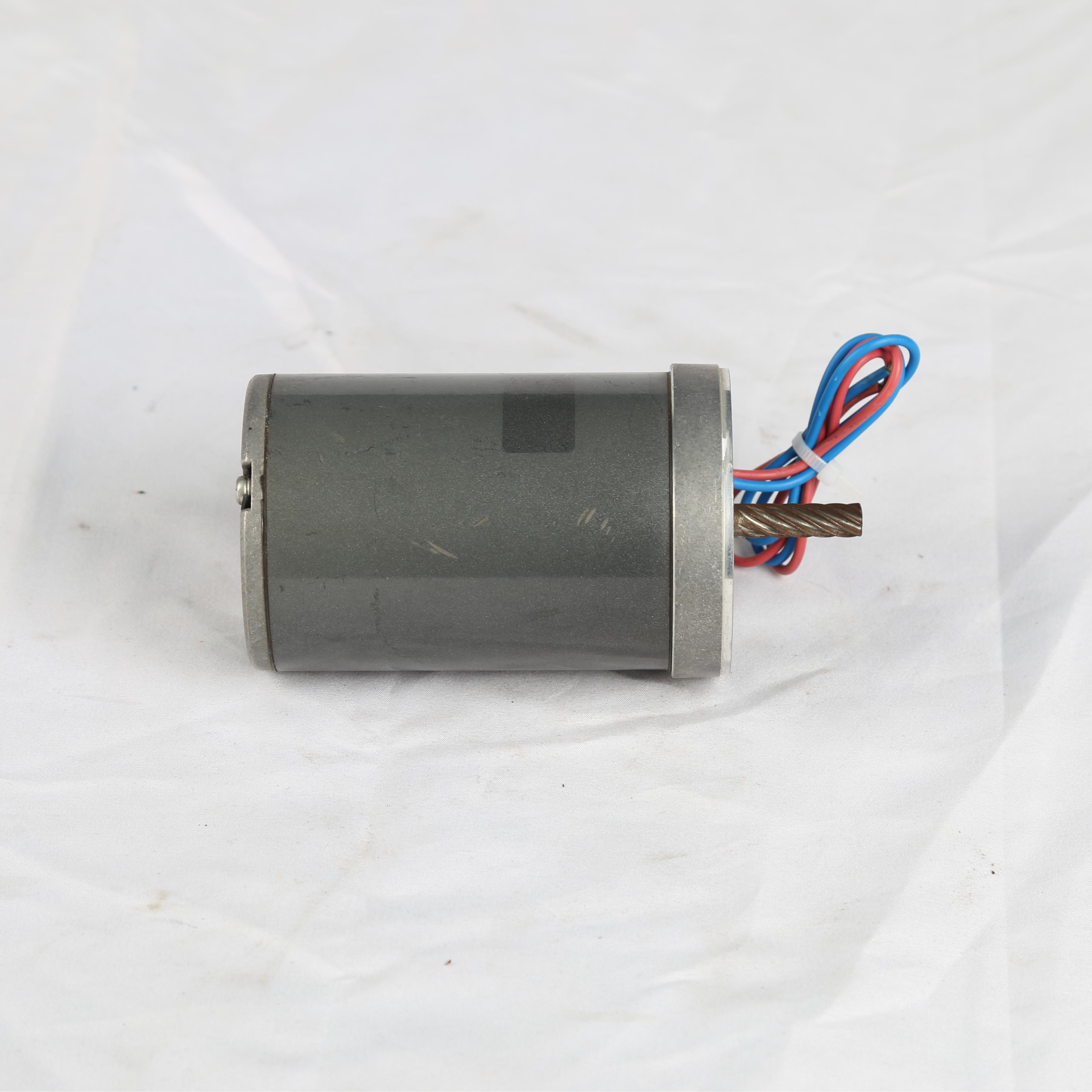

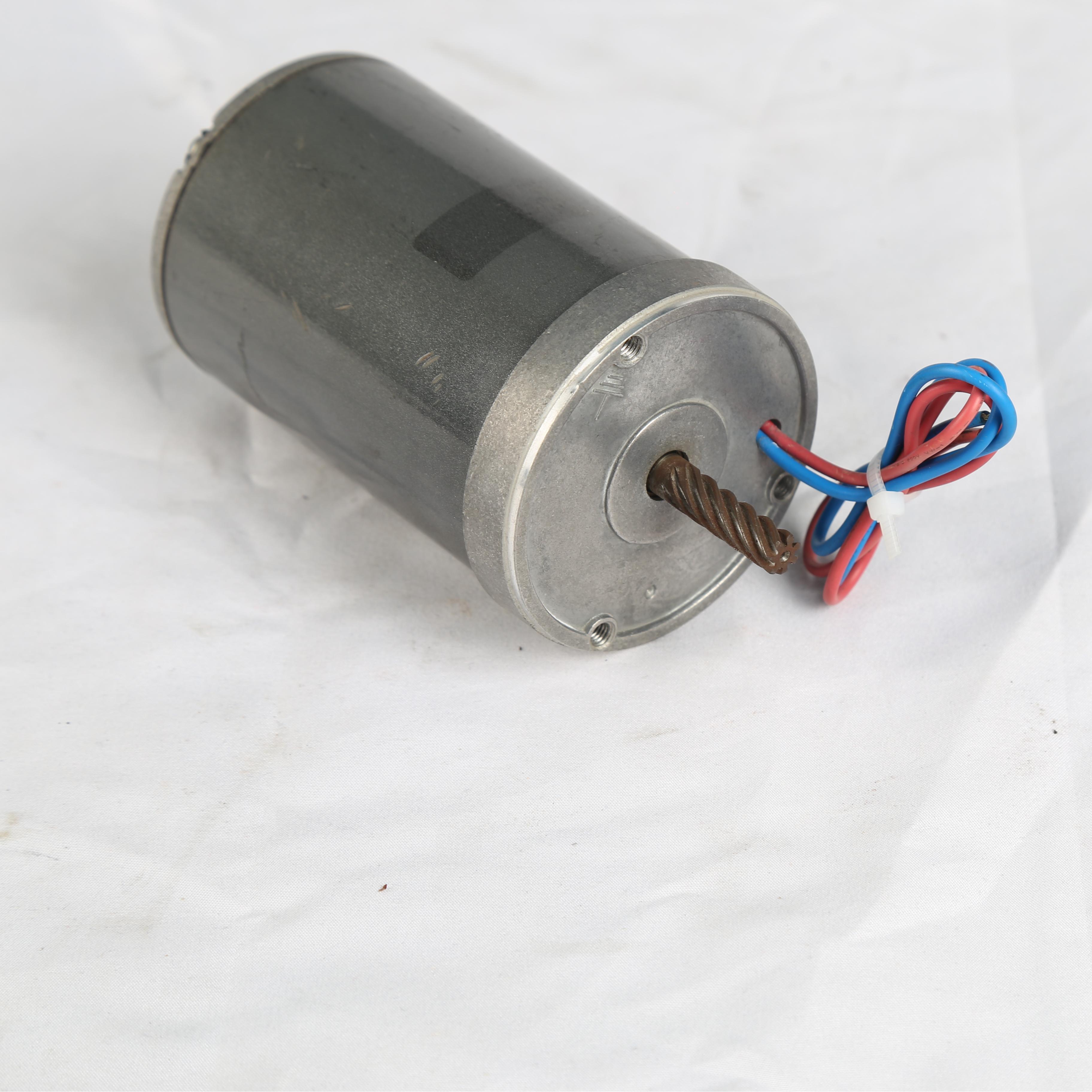

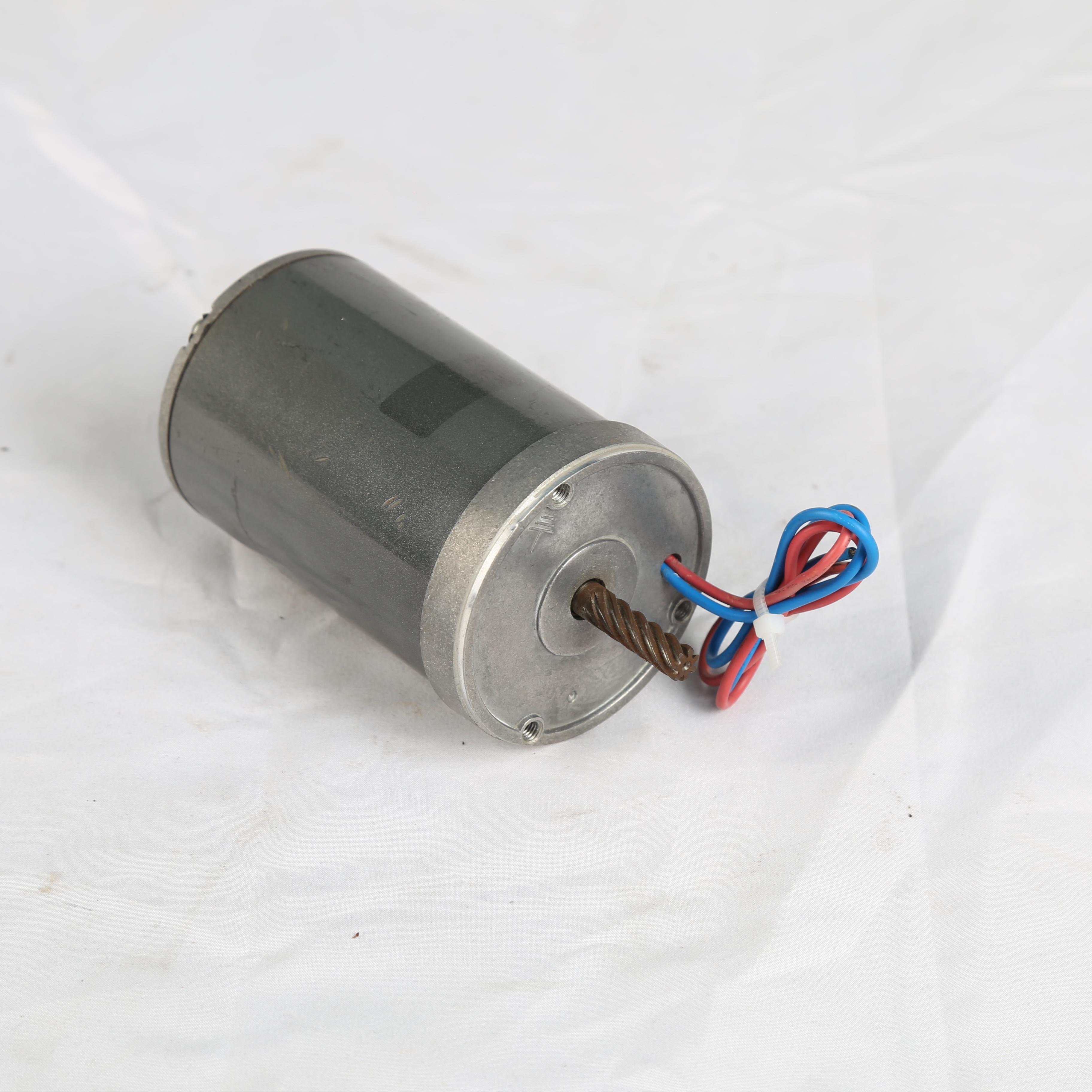

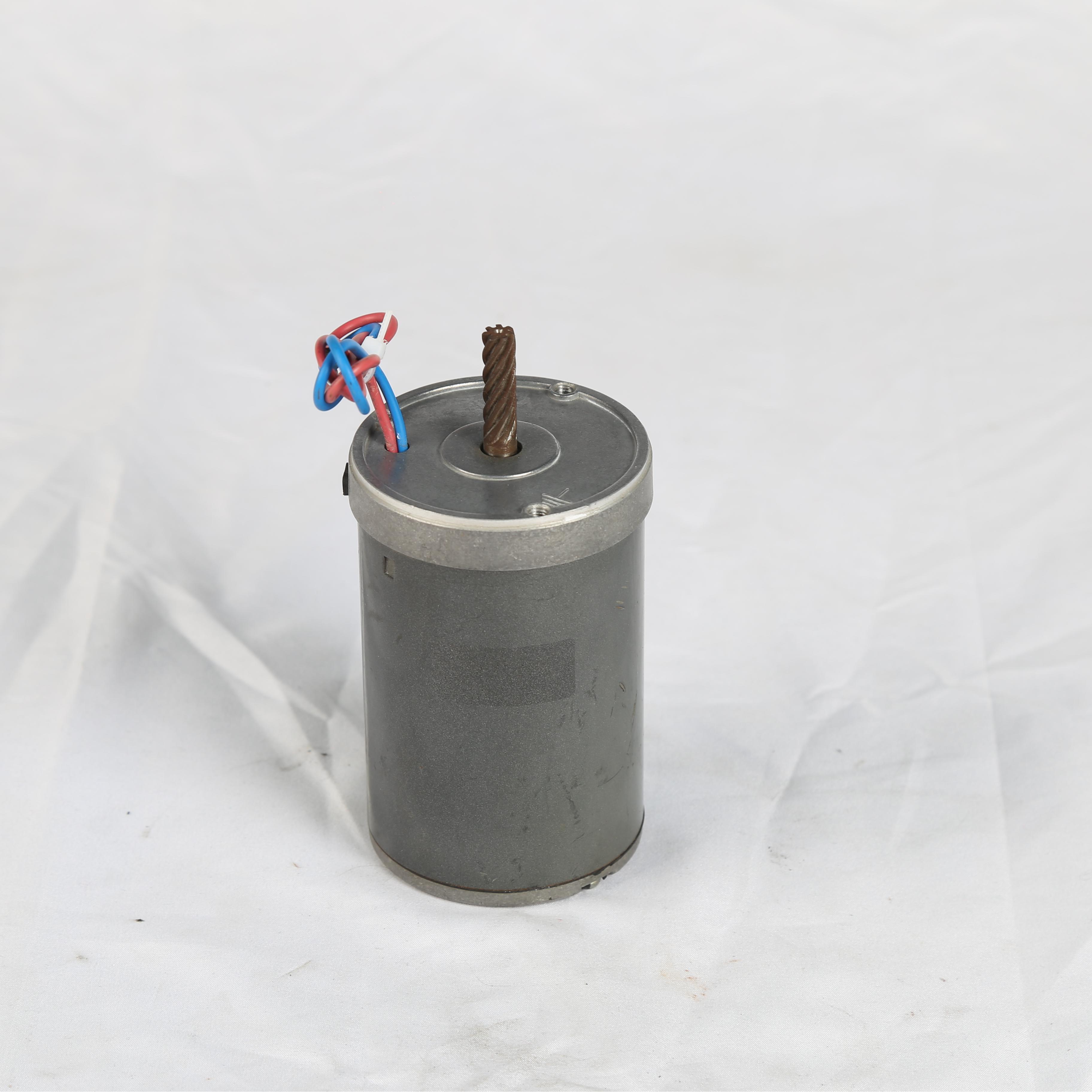

66mm Brushed DC Motor for High-Load Drive Requirements
The 66ZYT brushed DC motor is developed for applications where higher load capacity and stronger output are required. Compared with smaller 57mm or 63mm brushed DC motors, the 66ZYT brushed DC motor series provides a larger motor body, stronger torque capacity and higher rated power options.
66ZYT brushed DC motor is suitable for equipment that needs reliable operation under load, such as pumps, actuators, drive modules and industrial mechanisms. Its structure can be connected with gearboxes, couplings, belts, pulleys, pump heads or customer-designed transmission systems. For OEM equipment manufacturers, 66ZYT brushed DC motor series provides a practical platform for medium-to-high power DC drive applications.
Multiple Voltage Platforms: 12V, 24V and 110V DC
One important feature of 66ZYT brushed DC motor series is its multi-voltage coverage. The representative product table includes 12V DC, 24V DC and 110V DC models, which allows customers to select a motor according to their existing power system.
The 24V DC models are suitable for common automation systems, pump equipment, industrial control units and actuator products. The 12V DC model can be used in low-voltage systems, mobile equipment or battery-powered applications where stronger torque is required. The 110V DC model is suitable for special equipment platforms that require a higher voltage motor solution.
This voltage flexibility makes 66ZYT brushed DC motor series easier to adapt to different OEM projects, especially when customers need to match an existing controller or power supply.
Representative Technical Parameters
66ZYT brushed DC motor series includes several representative models, including 66ZYT040, 66ZYT001, 66ZYT001A and 66ZYT001B. Each model is designed for a different working condition, speed range and voltage platform.
66ZYT040 for 24V Medium-Power Applications
The 66ZYT040 model operates on 24V DC. According to the representative data, it provides approximately 0.3N·m rated torque, around 3000rpm rated speed and approximately 94W rated power. This model is suitable for equipment that requires a balanced combination of speed, torque and power.
66ZYT001 for Higher-Power 24V Drive Systems
The 66ZYT001 model is also a 24V DC version, offering approximately 0.4N·m rated torque, around 3100rpm rated speed and approximately 130W rated power. It is suitable for higher-load pump systems, actuator mechanisms and industrial drive modules.
66ZYT001A for 110V High-Speed Applications
The 66ZYT001A model uses a 110V DC platform. It provides approximately 0.4N·m rated torque, around 4000rpm rated speed and approximately 168W rated power. This model is suitable for applications requiring higher voltage operation, higher speed and stronger output power.
66ZYT001B for 12V Low-Speed High-Torque Applications
The 66ZYT001B model operates on 12V DC. It provides approximately 0.5N·m rated torque, around 1100rpm rated speed and approximately 58W rated power. This model is suitable for low-voltage systems that need stronger torque at a lower rated speed.
Strong Output Capacity for Real Mechanical Loads
66ZYT brushed DC motor series is designed for applications where the motor needs to drive actual mechanical resistance, not only operate under no-load conditions. With rated torque up to approximately 0.5N·m and rated power up to approximately 168W, this series can support heavier working loads than smaller brushed DC motors.
For pump systems, the motor may need to overcome fluid resistance and pressure changes. For actuator systems, the motor may need to handle starting torque, mechanical friction and repeated movement. For industrial transmission modules, the motor may need to maintain stable output under changing load conditions. The 66ZYT platform is suitable for these more demanding working environments.
Performance Curve for Accurate Motor Matching
The motor performance curve helps engineers evaluate the relationship between speed, torque, current, efficiency and output power. For OEM motor selection, this is important because a motor that looks suitable at no-load speed may not perform well under real working load.
When selecting a 66ZYT brushed DC motor, customers should evaluate rated torque, peak torque, current limit, controller capacity, temperature rise, duty cycle and working environment. Modar Motor can support technical communication and model selection based on the customer’s actual test data and application requirements.
Customization Options
Customized Shaft for Transmission Connection
The output shaft can be customized according to different mechanical connection methods. Common options include round shaft, flat shaft, D-cut shaft, threaded shaft, keyway shaft, extended shaft, double shaft or special machining. This helps the motor connect with couplings, pump heads, gears, pulleys, belts and customized drive components.
Customized Mounting Interface
The front cover, locating diameter, mounting holes and installation interface can be adjusted according to the customer's equipment structure. For replacement projects, Modar Motor can review the original drawing or sample and help evaluate whether the 66ZYT brushed DC motor platform can be adapted.
Customized Voltage and Speed
Although the representative models include 12V, 24V and 110V DC options, customized voltage and speed may be evaluated according to the project. Customers can provide the required working speed, torque, current limit and power supply conditions for motor matching.
Customized Cable and Connector
Lead wire length, wire outlet direction, terminal type, connector model and wiring definition can be customized. This is useful for OEM customers who need easier assembly, stable production and consistent wiring layout.
Customized Performance for Duty Cycle Requirements
Different applications have different working cycles. Some motors run continuously, while others operate intermittently with frequent start-stop cycles. Modar Motor can help evaluate winding design, current, heat rise and output performance according to the actual duty cycle.
Key Product Advantages
Higher Power Output Than Smaller Brushed DC Motors
66ZYT brushed DC motor series provides higher output capacity than smaller brushed DC motor platforms. With rated power options up to approximately 168W, it is suitable for applications that require stronger mechanical drive capability.
Multi-Voltage Selection for OEM Flexibility
The series includes 12V, 24V and 110V DC options. This allows OEM customers to match the motor with different electrical systems without completely redesigning the equipment platform.
Strong Torque for Pump and Actuator Systems
With rated torque up to approximately 0.5N·m, the 66ZYT series is suitable for pump systems, electric actuators, lifting mechanisms, rotating modules and other applications requiring stable output under load.
Practical Motor Platform for Industrial Drive Modules
66ZYT brushed DC motor can be connected with gearboxes, belts, couplings, pump heads and customer-designed transmission parts. This makes it suitable for customized industrial drive modules and compact power units.
OEM Customization and Engineering Support
Modar Motor supports customized brushed DC motor development for OEM customers, including voltage, speed, torque, shaft, mounting structure, cable, connector and performance parameters. This helps customers reduce development time and improve product matching.
Typical Application of 66mm 66ZYT Brushed DC Motor
Pump and Fluid Drive Systems
66ZYT brushed DC motor is suitable for pump applications that require stable speed and stronger torque output. It can be used in circulation pumps, transfer pumps, spraying equipment, cleaning systems, pressure units and other fluid-related equipment.
For pump projects, motor selection should consider flow requirement, pressure condition, medium viscosity, working speed, current limit and duty cycle. A properly selected motor can improve pump stability and reduce overheating risk.
Electric Actuators and Motion Mechanisms
66ZYT brushed DC motor series can be used in electric actuators, rotary drive mechanisms, lifting systems, locking devices and adjustment modules. Its higher torque capacity makes it suitable for applications that need stronger movement or repeated operation under load.
For actuator systems, customers should evaluate rated load, starting torque, limit position, current protection and working cycle before final selection.
Industrial Automation Equipment
Industrial automation equipment often requires motors that can provide reliable output during repeated operation. 66ZYT brushed DC motor can be used in feeding modules, rotating platforms, compact conveyors, drive rollers, adjustment systems and auxiliary motion modules.
The multi-voltage options allow this motor to be matched with different electrical platforms used in automation systems.
AGV and Mobile Equipment Auxiliary Drives
The 12V and 24V versions of the 66ZYT motor may be considered for certain mobile equipment or AGV auxiliary mechanisms, such as lifting modules, locking units, accessory drives or compact transmission systems.
For mobile applications, current consumption, battery capacity, duty cycle and operating temperature should be reviewed carefully.
Commercial and Heavy-Duty Smart Equipment
66ZYT brushed DC motor can be applied in commercial machines, cleaning equipment, vending machines, smart cabinets, automatic doors, electric furniture and other equipment that requires stronger DC motor output.
In these products, motor noise, lifetime, installation convenience and stable batch supply are usually important selection factors.
Customized OEM Power Units
Many customers use the 66ZYT brushed DC motor as a core power component in customized power units. It can be integrated with mechanical brackets, belts, pulleys, pump heads, gearboxes or controllers. Modar Motor can support sample testing and parameter optimization based on customer feedback.
Technical Specifications of 66mm 66ZYT Brushed DC Motor
The following technical data applies to the 66mm 66ZYT Brushed DC Motor.
Electrical Parameters
Rated voltage options: 12/24/110V etc.
Rated speed: 1100~4000rpm(customized)
Rated Torque: 0.3~0.5N.m(customized)
Output power range: 58~168W(customized)
Mechanical Parameters
Optional Configurations
![]()
Brushed DC Motor.pdf

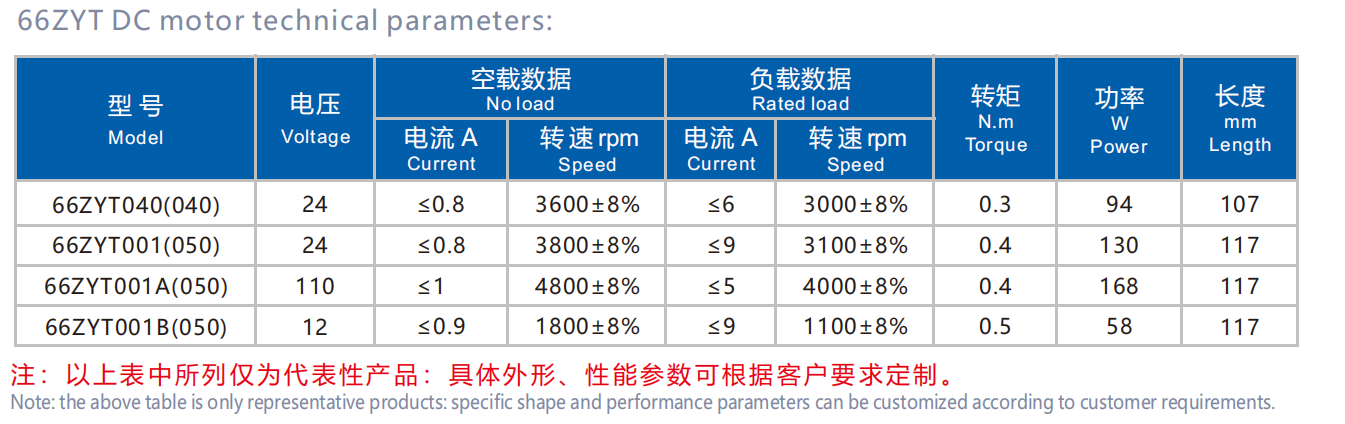

| Motor Characteristics |
![66ZYT brushed dc motor specification]( "66ZYT brushed dc motor specification") |

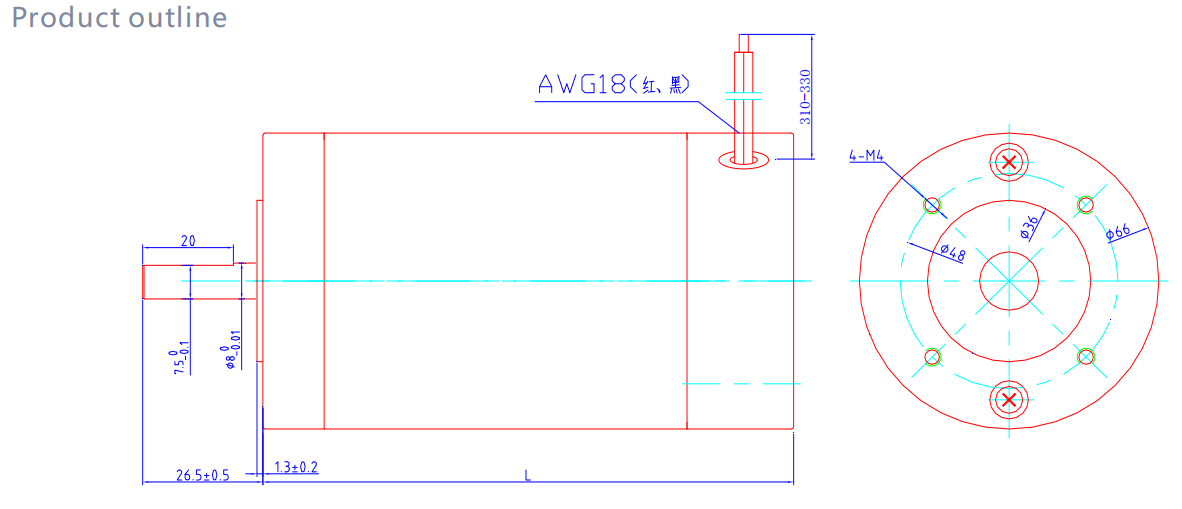

| 66ZYT brushed DC Motor Drawing |
![66ZYT brushed dc motor drawing]( "66ZYT brushed dc motor drawing") |

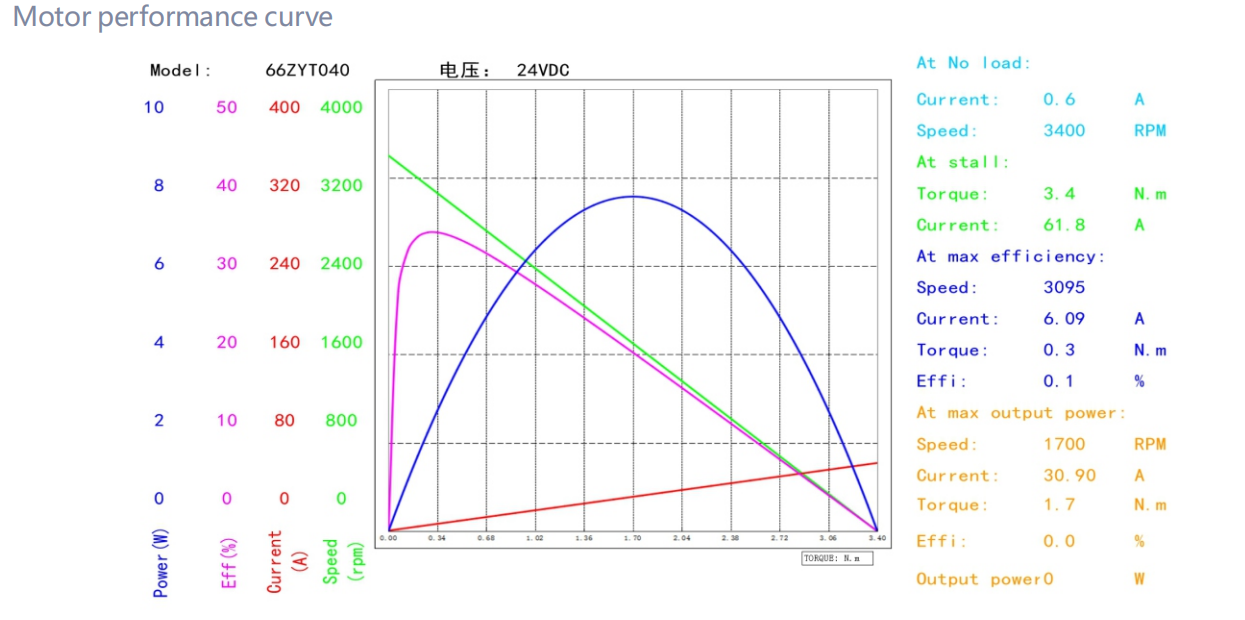

| 66ZYT Brushed DC Motor Performance Curve |
![66ZYT brushed dc motor performance curve]( "66ZYT brushed dc motor performance curve") |
FAQ – 66mm 66ZYT Brushed DC Motor
What is the 66ZYT brushed DC motor?
The 66ZYT brushed DC motor is a high-torque brushed DC motor designed for OEM equipment requiring stronger output power, stable rotation and reliable mechanical performance. It is suitable for pumps, actuators, automation equipment, industrial drive modules and commercial machinery.
What voltage options are available for the 66ZYT brushed DC motor series?
The representative models include 12V DC, 24V DC and 110V DC options. These voltage platforms allow the motor to be used in different equipment systems, from low-voltage battery-powered devices to higher-voltage industrial applications.
What is the rated power range of the 66ZYT brushed DC motor?
According to the listed representative data, the rated power range is approximately 58W to 168W. Different models are available for lower-speed high-torque applications, balanced 24V drive systems and high-speed 110V applications.
What is the rated torque range?
The rated torque range shown in the table is approximately 0.3N·m to 0.5N·m. The final torque depends on voltage, winding design, speed, motor length and actual working condition.
What is the difference between 66ZYT brushed DC motor and 63ZYT motors?
The 66ZYT brushed DC motor series generally provides a larger motor frame and multi-voltage options, including 12V, 24V and 110V versions. The 63ZYT series is mainly shown as a 24V high-power brushed DC motor platform. The better choice depends on voltage, installation space, speed, torque and application load.
Is the 66ZYT brushed DC motor suitable for pump applications?
Yes. The 66ZYT brushed DC motor series is suitable for many pump systems because it provides strong torque and stable speed. For accurate selection, customers should provide pump type, working speed, pressure condition, flow requirement, load curve and duty cycle.
Can the output shaft be customized?
Yes. Modar Motor can customize shaft length, diameter, D-cut, flat shaft, threaded shaft, keyway, extended shaft, double shaft or special shaft structures according to customer drawings or samples.
Can the motor mounting interface be customized?
Yes. The front cover, locating diameter, mounting hole position and installation interface can be customized to match customer equipment or replacement motor requirements.
Can the 66ZYT brushed DC motor run continuously?
Continuous operation depends on load, current, heat rise, cooling condition and duty cycle. If your application requires long-time operation, Modar Motor can help evaluate whether the standard model is suitable or whether customized winding or structure is needed.
What information should I provide for a quotation?
Please provide voltage, target speed, required torque, load type, shaft drawing, mounting dimensions, working cycle, current limit, controller information, working environment and expected quantity. Drawings or samples are helpful for faster evaluation.
Does Modar Motor support OEM and ODM customization?
Yes. Modar Motor supports OEM and ODM customization for brushed DC motors, including voltage, speed, torque, shaft, mounting interface, cable, connector, rotation direction and performance curve adjustment.
