Product Overview of YLS175 AC Motor
YLS175 AC Motor is a heavy-duty AC motor designed for industrial power transmission. With reinforced rotor structure and enhanced thermal management, this motor performs reliably under high-load conditions.
It is suitable for manufacturing equipment and other continuous mechanical drive systems requiring long operational life.
Key Advantages
High torque output
Heavy-load capacity
Enhanced cooling structure
Durable mechanical construction
Stable industrial-grade performance
Technical Highlights
Reinforced stator core
Optimized rotor magnetic balance
High-strength shaft structure
Thermal-resistance winding system
Typical Applications
Industrial pumps
Manufacturing conveyors
Heavy machinery
Agricultural equipment
Mechanical drive systems
Typical Application
Heavy-Duty Industrial Pumps
YLS175 AC Motor is engineered for industrial pumping systems that require strong torque and long continuous-duty performance. YLS175 AC Motor is suitable for water treatment facilities, chemical processing systems, and industrial circulation systems where mechanical stability is critical.
Manufacturing Conveyor Systems
YLS175 AC Motor is often installed in conveyor drive assemblies within manufacturing plants. Its reinforced rotor structure supports steady mechanical load transmission, ensuring reliable product movement in automated production environments.
Industrial Machinery Drives
YLS175 AC Motor is ideal for powering medium-to-heavy industrial machinery such as mechanical transmission systems and processing equipment. The motor's enhanced thermal design supports sustained load conditions in high-demand production lines.
Agricultural Equipment
For heavy agricultural mechanical systems such as grain transport or irrigation pump stations, YLS175 offers dependable torque output and continuous-duty capability in demanding outdoor working conditions.
Technical Specification of YLS175 AC Motor
| Parameter | Range |
| Frame Size | 175 mm |
| Frequency | 50Hz / 60Hz |
| Voltage | 220V / 110V / Custom |
| Power Range | 750W –3000W |
| Speed | 900 – 2800 RPM |
| Insulation Class | B / F |
| Duty Cycle | S1 Continuous |
| Protection | IP44–IP55 Optional |
| Electrical Specifications of YLS175 AC Motor |
| Model | Electrical Rating | Current | Power | speed |
| Model | V/Hz | A | W | rpm |
| YLS-750W-6P | 380V/50Hz | 2.3 | ≤1000 | 940 |
| YLS-900W-8P | 380V/50Hz | 3 | ≤1200 | 720 |
| YLS-1100W-6P | 380V/50Hz | 3.2 | ≤1400 | 940 |
| YLS-1300W-8P | 380V/50Hz | 3.8 | ≤1650 | 720 |
| YLS-1500W-6P | 380V/50Hz | 4.2 | ≤1950 | 940 |
| YLS-1800W-6P | 380V/50Hz | 4.5 | ≤2300 | 940 |
| YLS-1800W-8P | 380V/50Hz | 4.8 | ≤2350 | 720 |
| YLS-2200W-6P | 380V/50Hz | 5.6 | ≤2700 | 940 |
| YLS-2500W-6P | 380V/50Hz | 6.5 | ≤3100 | 940 |
| YLS-2800W-6P | 380V/50Hz | 6.5 | ≤3400 | 940 |
| YLS-3000W-6P | 380V/50Hz | 7.6 | ≤3700 | 940 |
usage: This series of motors is suitable for air source heat pumps, compression condensing units, industrial cooling
equipment and closed cooling towers, axial fans and similar usages. |
Features
1. The power supply is 380V/50Hz, and the output power is 750W-3000W, which can be provided according to customer requirements;
2. 2. The shape is an aluminum shell design, which makes the heat dissipation better, and the special processing technology makes the motor less noise and runs more smoothly;
3. The internationally renowned low-noise brand bearings are selected, and the stator and rotor iron cores are made of cold-rolled silicon steel sheets. The motor has high efficiency, low temperature rise, low noise, and long service life, which can meet the different choices of customers;
4. With special protection treatment, the protection level can reach IP55. |
| Notes: The above mentioned specification is representative specification. The specification can also be designed and manufactured according to customers requirements. The products of 220V，400-440V， 50/60Hz can also be supplied as requested. |

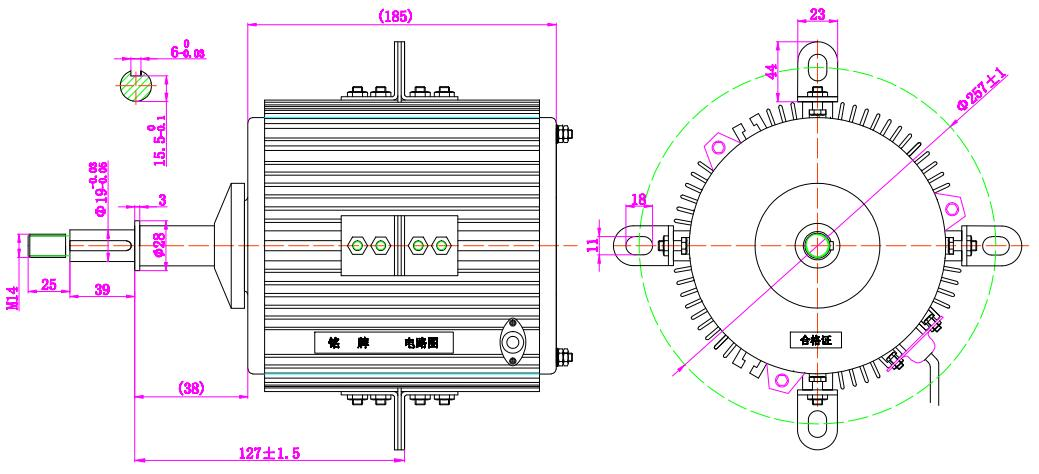

| Drawing of YLS175 AC Motor |
![YLS175]( "YLS175") |
FAQ – YLS175 AC Motor
Is YLS175 AC Motor suitable for heavy machinery?
Yes, YLS175 AC Motor is designed for high-load applications.
Can insulation class be upgraded to Class H?
Yes.
Does YLS175 AC Motor support 380V industrial systems?
Yes.
Can you customize mounting structures?
Yes.
Is continuous-duty operation supported?
Yes, S1 rated.
Does YLS175 AC Motor support overseas export standards?
Yes, customizable per region.
What industries use YLS175 AC Motor?
Manufacturing, agriculture, and industrial drive systems.
Is performance testing provided before shipment?
Yes, full inspection reports are available.
