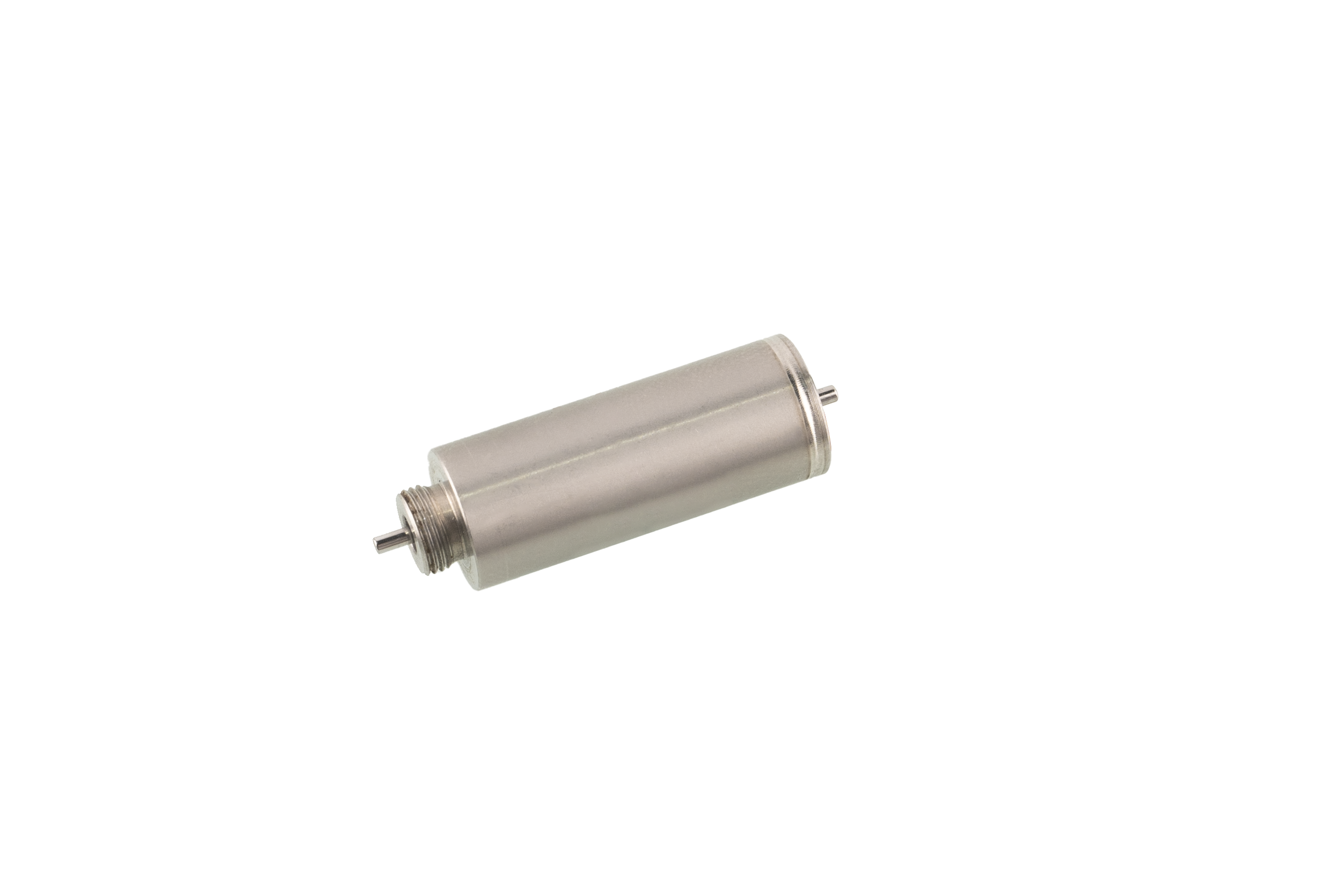

10mm Slotless Brushless Motor – Compact Precision BLDC Motor

Typical Applications of 10mm Slotless Brushless DC Motor

10mm slotless brushless motor is widely applied in precision automation and compact robotic systems.

In robotic subsystems, 10mm slotless brushless motor is often used for auxiliary axes, end-effector drives, or precision positioning modules.

In medical equipment, 10mm slotless brushless motor supports controlled motion where stability and repeatability are required.

Typical applications include:

• Precision robotic components

• Medical equipment drive units

• Automated inspection equipment

• Compact positioning systems

• Precision pumps and actuators

Technical Specifications of 10mm Slotless Brushless DC Motor

The following technical data applies to the 10mm slotless brushless DC motor.

Electrical Parameters

• Rated voltage options: 12V etc.

• Rated speed: 35000rpm(customized)

• Rated Torque: 1.5mN.m(customized)


• Output power: 5W(customized)

Optional Configurations

• Hall sensors or encoder feedback

• Customized shaft or connector types

• Cable or terminal variations




Slotless motor.pdf

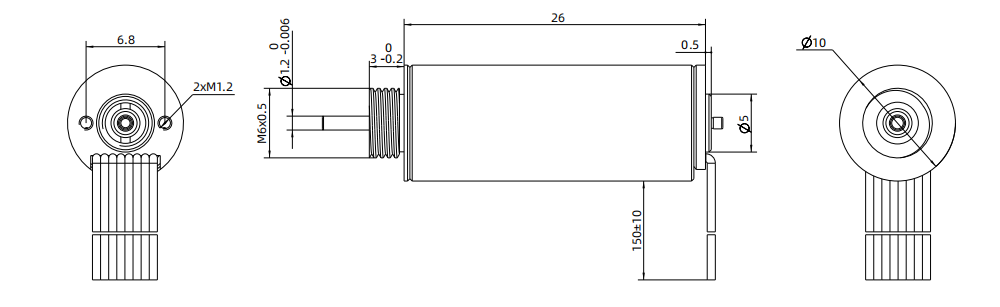

Dimension Drawing of 10mm slotless brushless motor 10ZWWC26

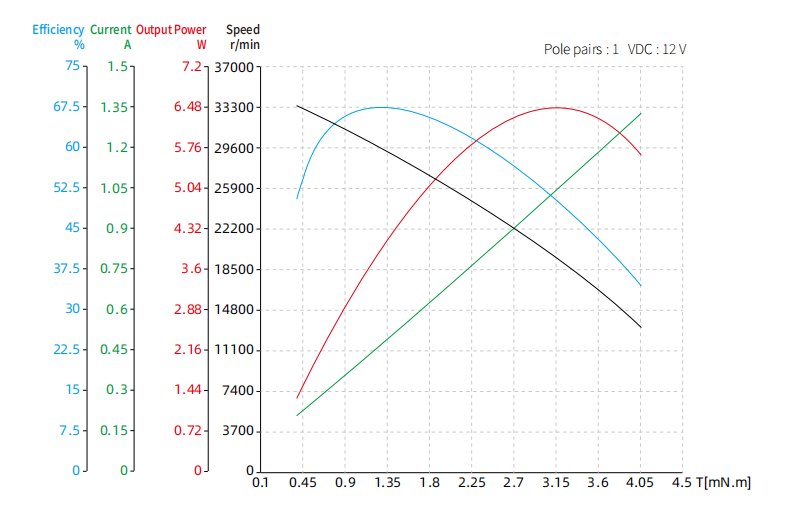

Performance Curve of 10mm slotless brushless motor 10ZWWC26

FAQ –10mm Slotless Brushless DC Motor

Q1: Is 10mm slotless brushless motor suitable for robotics?

Yes, especially for precision and auxiliary robotic drives.

Q2: How smooth is the torque output?

Very smooth due to slotless winding design.

Q3: Can 10mm slotless brushless motor support closed-loop control?

Yes, with encoder integration.

Q4: Is continuous operation possible?

Yes, under designed thermal conditions.

Q5: Can parameters be customized?

Yes, voltage and winding can be adjusted.

Q6: Do you support engineering samples?

Yes, samples are available for evaluation.
