12mm Slotless Brushless Motor – High Stability Micro BLDC Motor

Typical Applications of 12mm Slotless Brushless DC Motor

12mm slotless brushless motor is suitable for compact systems requiring reliable continuous motion.

12mm slotless brushless motor is frequently used in precision automation modules and robotic subsystems where consistent torque and smooth control are necessary.

In medical and analytical devices, 12mm slotless brushless motor supports stable long-term operation without introducing vibration or noise.

Typical applications include:

• Compact automation systems

• Precision robotic subsystems

• Medical analysis and diagnostic devices

• Continuous-duty precision pumps

• OEM integrated motion platforms

Technical Specifications of 12mm Slotless Brushless DC Motor

The following technical data applies to the 12mm slotless brushless DC motor.

Electrical Parameters

• Rated voltage options: 6V etc.

• Rated speed: 12000rpm(customized)

• Rated Torque: 4mN.m(customized)


• Output power: 5W(customized)

Optional Configurations

• Hall sensors or encoder feedback

• Customized shaft or connector types

• Cable or terminal variations




Slotless motor.pdf

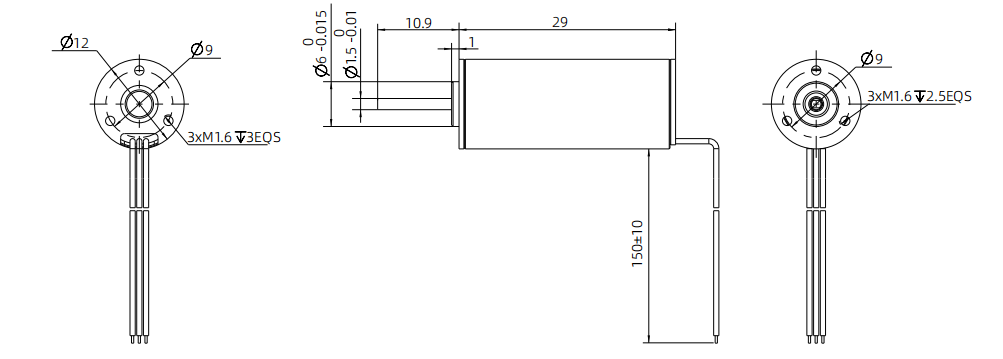

Dimension Drawing of 12mm slotless brushless motor 12ZWWC29

Performance Curve of 12mm slotless brushless motor 12ZWWC29

FAQ –12mm Slotless Brushless DC Motor

Q1: What distinguishes the 12mm slotless brushless motor from smaller sizes?

Higher torque capacity and better thermal performance.

Q2: Is 12mm slotless brushless motor suitable for continuous operation?

Yes, 12mm slotless brushless motor is designed for extended duty cycles.

Q3: Can 12mm slotless brushless motor be used in medical applications?

Yes, especially where smooth and quiet performance is required.

Q4: Does 12mm slotless brushless motor support encoder feedback?

Yes, external encoder integration is supported.

Q5: Is customization available?

Yes, full OEM customization is available.

Q6: Do you support long-term supply projects?

Yes, stable long-term OEM supply is supported.
