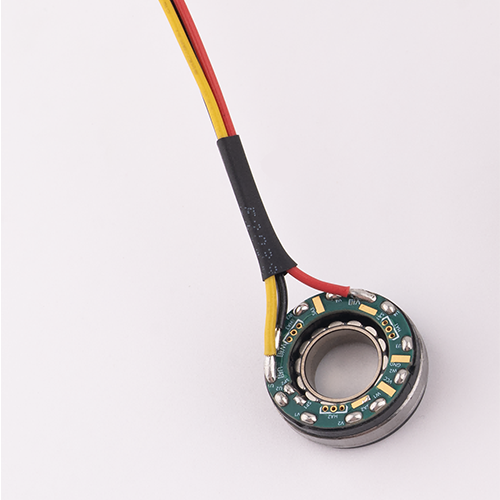

25mm Frameless Torque Motor for Precision Direct Drive Applications

Typical Applications of 25mm Frameless Motor

Application Positioning

The 25mm frameless motor is designed for ultra-compact direct-drive systems where installation space and inertia must be minimized.

Typical Industries & Use Cases

25mm frameless motor is commonly used in miniature robotic joints, handheld medical devices, precision optical instruments, and laboratory automation equipment requiring lightweight and responsive motion.

• Medical instruments and diagnostic equipment

• Optical positioning systems

• Laboratory automation modules

• Small robotic joints and actuators




Integration Value

The small diameter allows engineers to integrate the motor directly into compact mechanisms, improving positioning accuracy while reducing mechanical complexity.

Technical Specifications (25mm Frameless Motor Series)

The following technical data applies to the 25mm frameless motor 25ZWC10X-1.

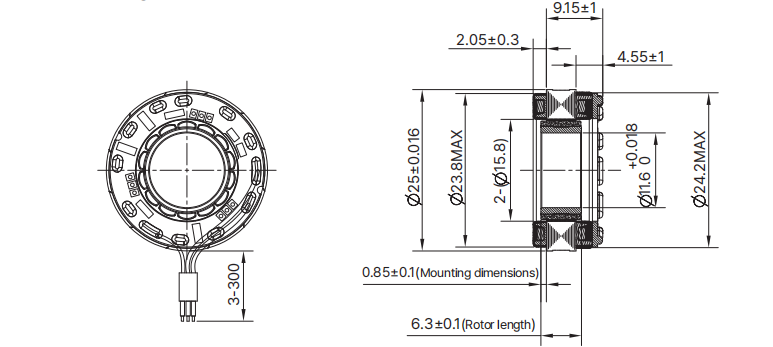

Dimension Drawing

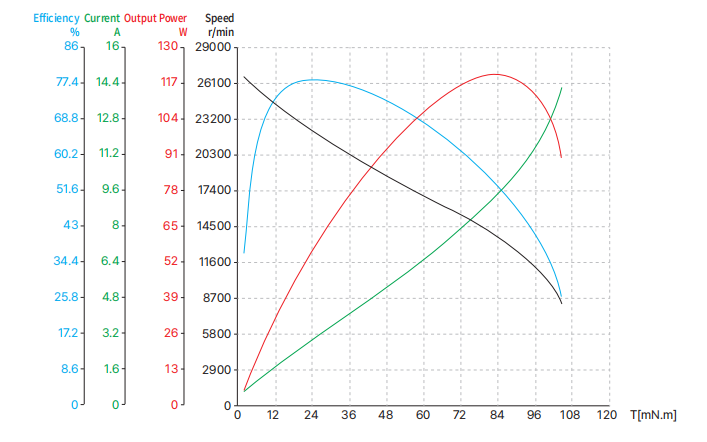

Torque Performance Curves

frameless motor.pdf

FAQ – 25mm Frameless Motor

Q1: Is the 25mm frameless motor suitable for continuous operation?
Yes, with proper thermal design, 25mm frameless motor supports continuous duty cycles.

Q2: Can 25mm frameless motor be used in medical devices?
Yes, 25mm frameless motor is widely used in compact medical and laboratory equipment.

Q3: Does 25mm frameless motor include a housing or shaft?
No. 25mm frameless motor is supplied as rotor and stator only for direct integration.

Q4: Can voltage and winding be customized?
Yes, winding and voltage can be tailored for your system.

Q5: Is encoder feedback supported?
Yes, the motor supports external encoder integration.

Q6: Is 25mm frameless motor suitable for OEM projects?
Yes, 25mm frameless motor is specifically designed for OEM integration.
