36mm Slotless Brushless DC Motor

36mm Slotless Brushless DC Motor – Product Overview

The 36mm slotless brushless DC motor is designed for industrial-grade performance while retaining the smoothness advantages of slotless technology.
36mm slotless brushless DC motor provides higher continuous torque and improved thermal capacity, making it suitable for demanding automation and robotic applications.

slotless brushless dc motor

Key Features

High continuous torque output
Slotless design for vibration-free motion
Industrial-duty construction
Excellent speed and torque control
Flexible electrical configurations
Long service life

Typical Applications of 36mm Slotless Brushless DC Motor

36mm slotless brushless DC motor is widely used in industrial automation and robotics.

Typical applications include:

Compact industrial robots
Automated assembly equipment
Precision motion platforms
Smart manufacturing machinery

Application Highlights

Stable operation under continuous load
Reduced maintenance due to smooth operation
Improved system lifespan
Suitable for closed-loop motion control

Technical Specifications of 36mm Slotless Brushless DC Motor

The following technical data applies to the 36mm slotless brushless DC motor.

Electrical Parameters

Rated voltage options: 18-48V.
Rated speed: 7340-11700rpm(customized)
Rated Torque: 70-100mN.m(customized)
Output power: 68-85W(customized)

Optional Configurations

Hall sensors or encoder feedback
Customized shaft or connector types
Cable or terminal variations

Slotless motor.pdf

Motor Characteristics
Motor part number	36ZWWC60
Pole pairs	-	1	1	1	1	2
Terminal resistance, Phase-Phase	Ω	0.6	0.68	1.45	2.1	0.41
Terminal inductance, Phase-Phase	mH	0.08	0.1	0.19	0.27	0.042
Winding connection method	-	Star connection	Star connection	Star connection	Star connection	Star connection
Insulation class	-	B	B	B	B	B
Duty type	-	S2	S2	S2	S2	S1
Feedback method	-	Hall sensors	Hall sensors	Hall sensors	Hall sensors	Hall sensors
Commutation angle	-	120°	120°	120°	120°	120°
Insulation strength (Withstand voltage)	-	500VAC/1KHz/1mA/1s
Insulation resistance	-	100MΩ/500VDC
Weight	g	270	270	270	270	270
Rated voltage	V	18	24	36	48	24
Rated power	W	68	69	74	85	85
Rated torque	mN·m	70	70	70	70	100
Rated speed	RPM	7340	9345	10000	11700	8100
Rated current	A	4.97	3.78	2.59	2.21	4.80
No load speed	RPM	10000	11000	11500	13000	10300
No load current	A	0.37	0.37	0.22	0.2	0.36
Motor efficiency	%	76	76	79.5	80	84.4
Noise (Ambient noise 20dB, test distance 1m)	dB	<50	<50	<50	<50	<50
Thermal Resistance (No-load)	K/W	0.42	0.43	0.44	0.36	0.58
Thermal Time Constant (No-load)	S	1350	1350	2700	1080	1330
Ambient temperature	℃	21.1	23.1	20.1	20.4	19.5
Max winding temperature (No-load)	℃	49.4	52.9	52.8	50.8	69.3
Torque constant	mN·m/A	14.08	18.50	27.07	31.62	20.83
Back-EMF constant - peak value	V/Krpm	2.09	2.74	4.01	4.68	3.08
Back-EMF constant - effective value	V/Krpm	1.47	1.94	2.83	3.31	2.18
Peak torque	mN·m	422.47	653.09	672.16	722.82	1219.51
Peak current	A	30	35	25	23	59
Rotor inertia	g·cm²	39	39	39	39	39
Mechanical time constant	ms	11.80	7.75	7.72	8.19	3.68
End bell	-	Stainless steel
Bearing	-	Deep groove ball bearing
Magnet	-	Sinter NdFeB
Rotation shaft	-	Carbon steel

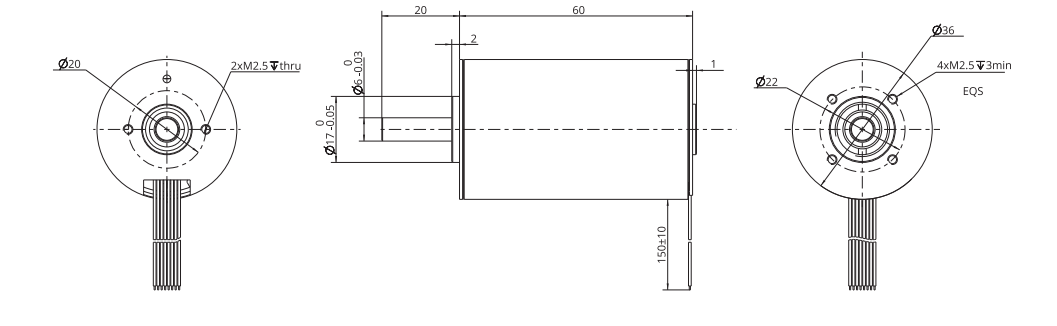

Dimension Drawing of 36mm slotless brushless motor 36ZWWC60

36mm slotless brushless dc motor drawing

Performance Curve of 36mm slotless brushless motor 36ZWWC60

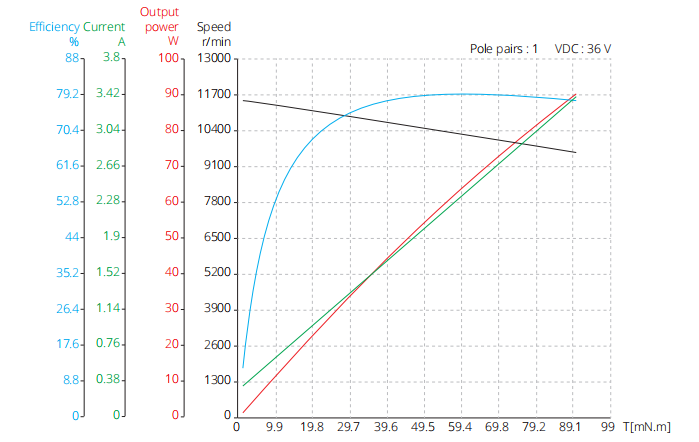

36mm slotless brushless dc motor 36V performance curve

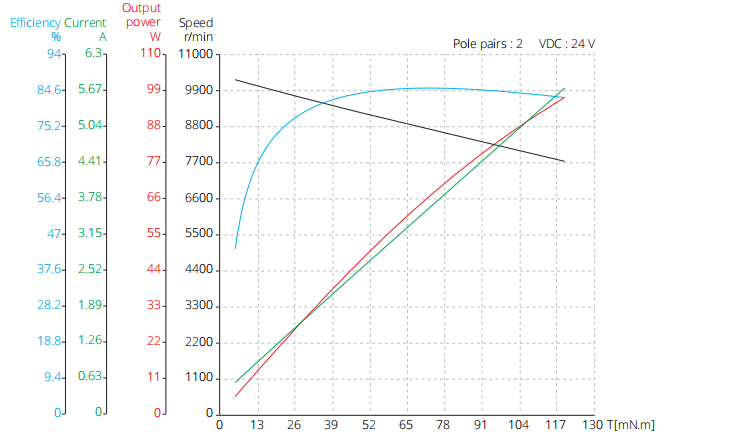

36mm slotless brushless dc motor 24V performance curve

FAQ –36mm Slotless Brushless DC Motor

Q1: Is 36mm slotless brushless DC motor suitable for industrial robots?

Yes, especially for compact robotic modules.

Q2: Can 36mm slotless brushless DC motor run continuously?

Yes, 36mm slotless brushless DC motor is designed for continuous-duty operation.

Q3: Is active cooling required?

Usually not, but optional cooling is available.

Q4: Can electrical characteristics be customized?

Yes, winding and voltage can be tailored.

Q5: Does 36mm slotless brushless DC motor support closed-loop control?

Yes, with encoder integration.

Q6: Is long-term OEM cooperation supported?

Yes, including engineering support.
