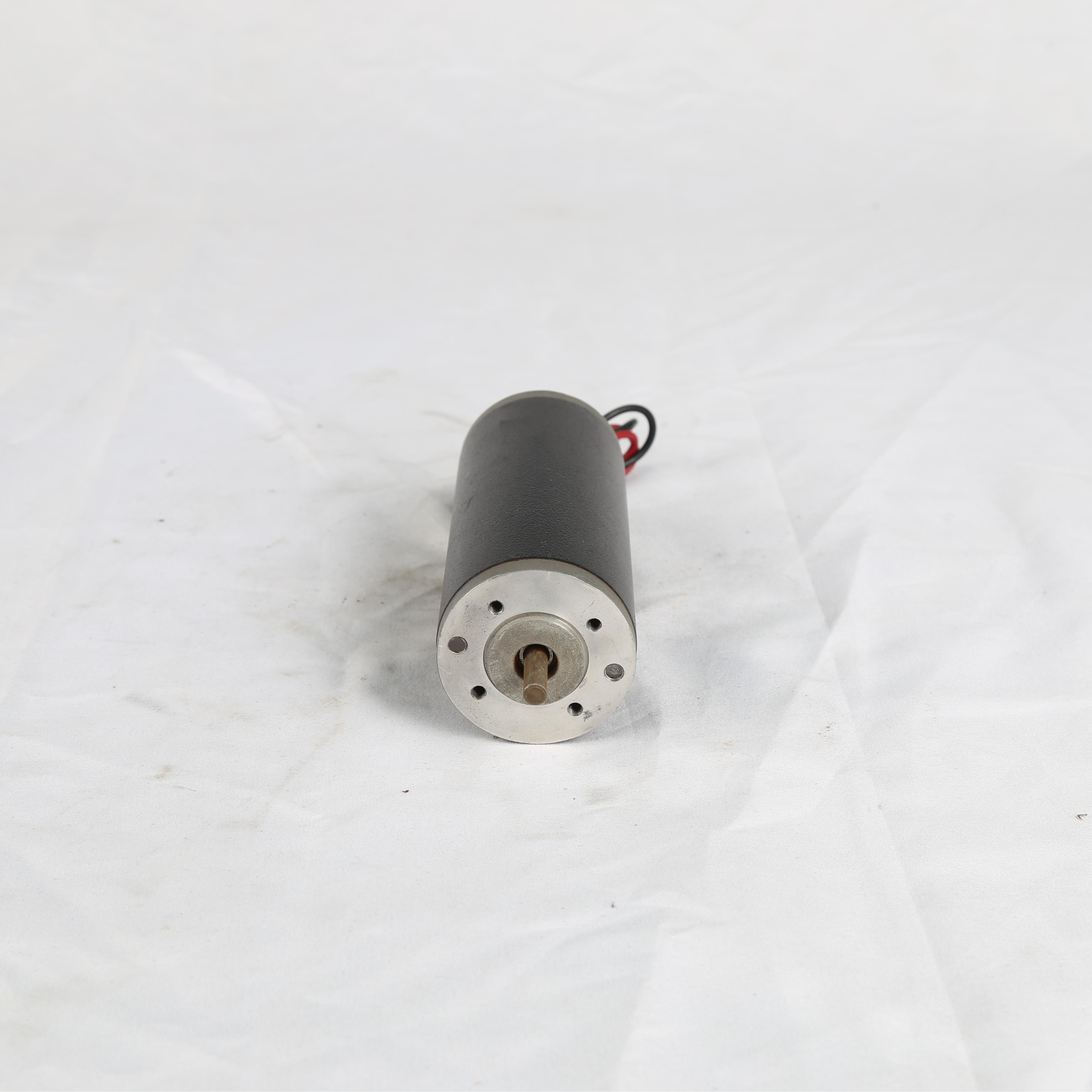

55mm 55ZYN Brushed DC Motor – Product Overview
![55ZYN]( "55ZYN")
55mm Brushed DC Motor for Higher Torque Applications
The 55ZYN brushed DC motor is designed for applications that require more torque than smaller DC motor series while still maintaining a compact and easy-to-install structure. With an approximately 55mm motor diameter, 55ZYN brushed DC motor series provides a stronger motor platform for OEM equipment manufacturers who need stable mechanical output in automation, actuator and industrial applications.
Its cylindrical motor body, clear mounting interface and practical output shaft design make it suitable for integration into different equipment structures. The 55ZYN brushed DC motor series is especially useful when the customer needs a compact DC motor with better load capacity, stronger starting performance and stable operation under rated working conditions.
Available 24V and 30V DC Motor Options
The representative product table includes both 24V DC and 30V DC versions. This gives equipment manufacturers more flexibility when matching the motor with different power supply systems.
The 24V model is suitable for many standard automation and actuator applications, especially where 24V DC is already used as the equipment power platform. The 30V models can be considered for applications requiring a higher voltage platform, stable output and controlled current performance.
For projects using other voltage systems, Modar Motor can evaluate customized motor winding and design options according to the customer's technical requirements and expected order quantity.
Representative Technical Parameters
The 55ZYN brushed DC motor series includes several representative models, such as 55ZYN001, 55ZYN001A and 55ZYN002. These models are designed for different voltage, speed and power requirements.
55ZYN001 Series
The 55ZYN001 model is based on a 30V DC platform. According to the listed parameters, it provides a rated torque of approximately 0.12N·m, rated power of around 18W, and rated speed of approximately 1400rpm. This model is suitable for equipment requiring lower speed and stable torque output.
55ZYN001A Series
The 55ZYN001A model also uses a 30V DC platform and offers similar torque and rated power performance. It can be used for applications where stable output, compact dimensions and consistent motor performance are required.
55ZYN002 Series
The 55ZYN002 model is based on a 24V DC platform and provides higher rated speed and power. According to the table, it offers approximately 0.12N·m rated torque, around 38W rated power and rated speed of approximately 3000rpm. This model is suitable for applications requiring higher speed and stronger power output.
Stable Torque and Speed Performance
The 55ZYN brushed DC motor series provides stable torque output for equipment that needs reliable motion under load. According to the representative data, the motor can maintain rated operation with controlled current and stable speed. For applications such as actuators, rotating mechanisms, compact drive units and industrial control devices, this helps improve equipment stability and operating consistency.
The performance curve also shows the relationship between speed, torque, current, efficiency and output power. This information helps engineers evaluate whether the motor is suitable for the expected working point. For OEM projects, Modar Motor can help customers analyze motor performance according to load torque, duty cycle, starting requirements and installation environment.
Customizable Structure for OEM Integration
Most OEM motor projects require more than a standard product. The motor needs to fit the customer’s mechanical design, electrical platform and assembly process. The 55ZYN DC gear motor can be customized in several key areas.
Voltage Customization
Standard options include 24V and 30V DC. Other voltage requirements may be evaluated based on the project's electrical system, working condition and order volume.
Shaft Customization
The output shaft can be customized by diameter, length, flat surface, D-cut design, thread, keyway or special machining structure. This helps the motor match gears, couplings, pulleys or other transmission parts.
Mounting Interface Customization
Mounting holes, front cover design, end cover structure and installation dimensions can be adjusted to fit the customer's equipment housing or drive module.
Cable and Connector Customization
Lead wire length, cable direction, terminal type and connector type can be customized to simplify installation and improve production efficiency during mass assembly.
Speed and Torque Customization
Motor speed, rated torque, starting torque, current and power can be adjusted according to the application's load condition, duty cycle and performance requirements.
Key Product Advantages
Higher Torque Output in a Compact Size
The 55ZYN brushed DC motor series provides stronger torque capacity than smaller DC motor platforms, making it suitable for equipment that requires more mechanical output but still has limited installation space. This balance between compact size and stronger torque is one of the main advantages of the 55ZYN motor platform.
Suitable for Medium-Duty OEM Applications
With rated torque around 0.12N·m and power options up to approximately 38W, the 55ZYN series can support many medium-duty applications. It is suitable for equipment where small motors may not provide enough torque, but larger motors would take up too much space.
Multiple Voltage and Speed Options
55ZYN brushed DC motor series includes both 24V and 30V motor options, with different speed ranges. This allows engineers to select a motor according to the actual power supply, working speed and load requirement.
Reliable Choice for Actuator and Automation Systems
The 55ZYN brushed DC motor is suitable for repeated motion control, rotating mechanisms and compact transmission systems. Its stable performance makes it a practical option for actuator manufacturers and automation equipment suppliers.
OEM and ODM Customization Support
Modar Motor supports customized motor solutions for B2B customers. From sample development to mass production, the motor can be adjusted according to shaft design, voltage, mounting dimensions, cable requirements and performance targets.
Typical Applications of 55mm 55ZYN Brushed DC Motor
Electric Actuators
The 55ZYN brushed DC motor is suitable for electric actuators that require higher torque and reliable motion output. It can be used in rotary actuators, compact drive modules, valve actuators and control mechanisms.
For actuator applications, starting torque, rated torque, operating current, speed stability and shaft design are important factors. The 55ZYN series provides a stronger platform for actuator manufacturers who need stable performance in a compact motor size.
Automation Equipment
Automation equipment often requires motors that can work repeatedly under controlled speed and load conditions. The 55ZYN brushed DC motor series can be used in feeding mechanisms, positioning systems, rotating devices, small conveyors, control modules and transmission assemblies.
For this type of application, customers may require customized speed, torque, mounting interface and cable direction. Modar Motor can help evaluate the working condition and recommend a suitable model for testing.
Industrial Control Devices
The 55ZYN brushed DC motor can be applied in compact industrial control devices where stable rotation and reliable torque are required. 55ZYN brushed DC motor is suitable for light industrial machinery, adjustment mechanisms, locking systems, small drive units and mechanical control modules.
Because industrial equipment may operate under repeated cycles, motor durability, temperature rise and current control should be considered during motor selection.
Smart Machinery and Intelligent Equipment
Smart equipment often needs compact motors for automatic movement, adjustment, opening, closing or rotation functions. The 55ZYN brushed DC motor can be used in smart devices, intelligent valves, smart furniture, automatic doors, smart cabinets and other compact mechanisms.
For smart machinery applications, smooth operation, low noise and customized installation design are usually important. The 55ZYN platform can be adjusted according to the customer's product structure.
Medical and Healthcare Equipment
The 55ZYN brushed DC motor series can be used in certain medical and healthcare devices that require stable motion and controlled torque output. Possible applications include adjustment mechanisms, sample handling modules, medical auxiliary equipment and compact drive systems.
For medical-related projects, customers should pay attention to noise level, heat generation, lifetime, quality consistency and reliability testing before mass production.
Commercial Equipment
55ZYN brushed DC motor can also be used in vending machines, office equipment, commercial machines, display systems and other equipment requiring compact drive solutions. Its higher torque output makes it suitable for mechanisms that need stronger movement than smaller DC motors can provide.
Technical Specifications of 55mm 55ZYN Brushed DC Motor
The following technical data applies to the 55mm 55ZYN Brushed DC Motor.
Electrical Parameters
Rated voltage options: 24/30V etc.
Rated speed: 1400-3000rpm(customized)
Rated Torque: 0.12N.m(customized)
Output power range: 18~38W(customized)
Mechanical Parameters
Optional Configurations
![]()
Brushed DC Motor.pdf

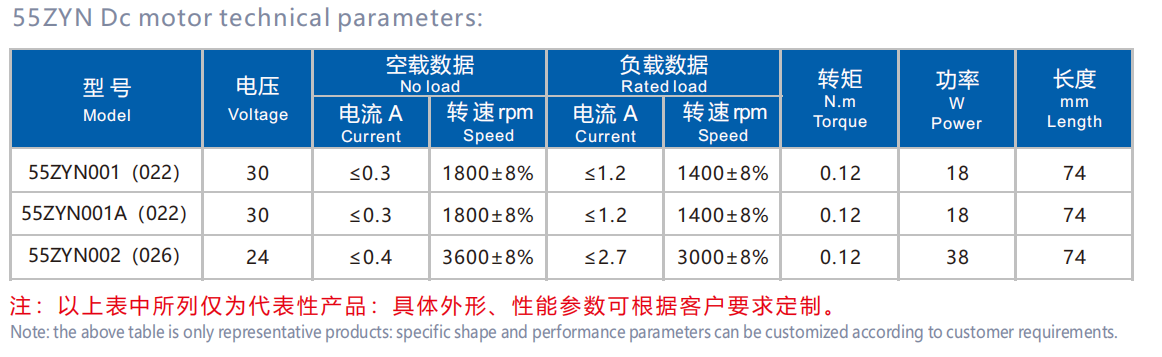

| Motor Characteristics |
![55ZYN brushed dc motor specification]( "55ZYN brushed dc motor specification") |

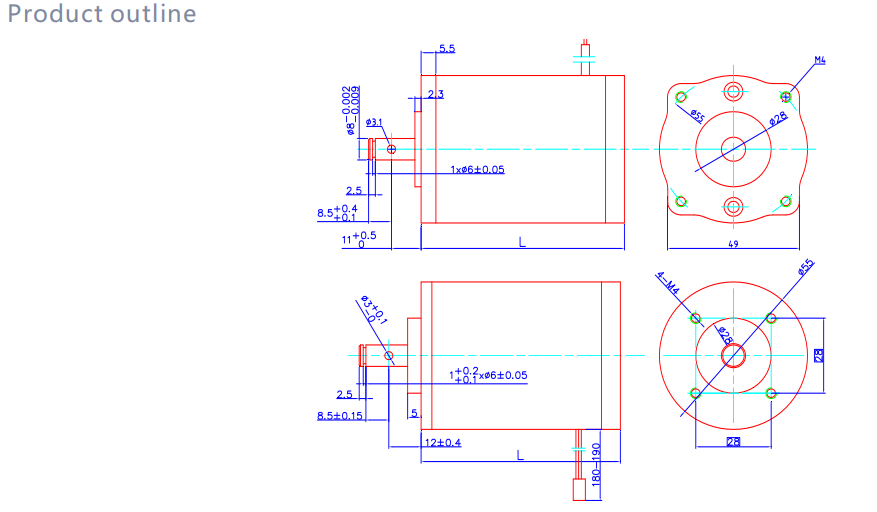

| 55ZYN brushed DC Motor Drawing |
![55ZYN brushed dc motor drawing]( "55ZYN brushed dc motor drawing") |

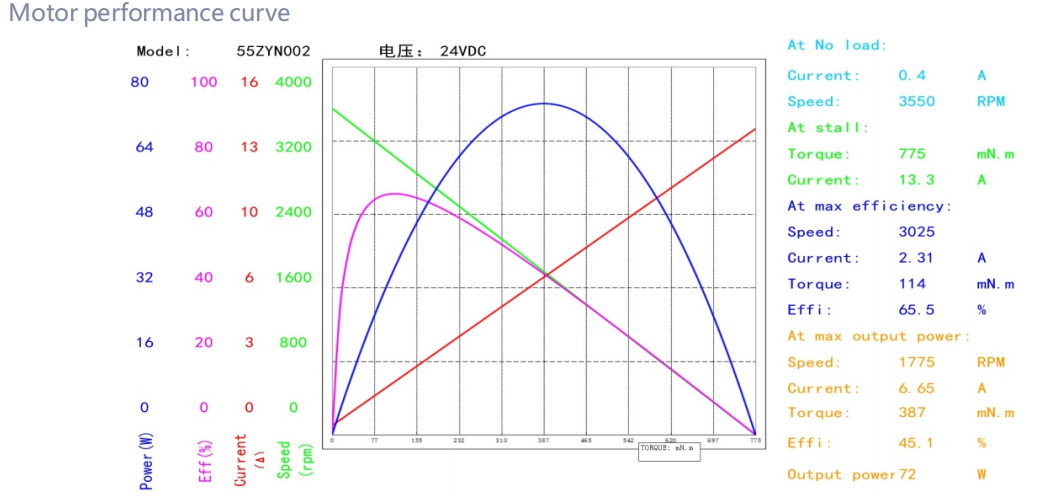

| 55ZYN Brushed DC Motor Performance Curve |
![55ZYN brushed dc motor performance curve]( "55ZYN brushed dc motor performance curve") |
FAQ – 55mm 55ZYN Brushed DC Motor
What is the 55ZYN brushed DC motor?
The 55ZYN brushed DC motor is a compact brushed DC motor series designed for applications requiring stable speed, higher torque and reliable output. It is suitable for automation equipment, electric actuators, industrial control devices, smart machinery and compact transmission systems.
What voltage options are available for the 55ZYN brushed DC motor series?
According to the representative product table, the 55ZYN brushed DC motor series includes 24V DC and 30V DC options. Other voltage requirements may be evaluated according to the customer's application and order quantity.
What is the rated torque of the 55ZYN brushed DC motor?
The listed representative models provide rated torque of approximately 0.12N·m. The actual torque can vary depending on the motor model, voltage, speed and customized configuration.
What is the rated power range of 55ZYN brushed DC motor series?
The representative product data shows rated power options from approximately 18W to 38W. The 24V model can provide higher power output, while the 30V models are suitable for lower-speed stable torque applications.
Is the 55ZYN brushed DC motor suitable for electric actuators?
Yes. The 55ZYN brushed DC motor series is suitable for many electric actuator applications because it provides compact size, stable torque and customizable shaft and mounting options. It can be used in rotary actuators, valve actuators and compact motion control systems.
Can the motor shaft be customized?
Yes. Modar Motor can customize the shaft according to the customer's drawing or application requirements. Options may include different shaft lengths, diameters, D-cut shafts, flat shafts, threaded shafts, keyways and other special structures.
Can Modar Motor customize the speed and torque?
Yes. Speed and torque can be customized by adjusting motor winding, gearbox configuration and overall motor design. Customers should provide voltage, target speed, required torque, load condition, duty cycle and installation space for evaluation.
What information is needed for motor selection?
To choose the right motor, customers should provide voltage, rated speed, required torque, available space, shaft drawing, mounting requirements, duty cycle, load type, working environment and expected annual quantity.
Can 55ZYN brushed DC motor be used for continuous operation?
Continuous operation depends on the actual load, current, temperature rise, duty cycle and cooling condition. If your application requires long working time, Modar Motor can help evaluate whether the standard model is suitable or whether a customized design is needed.
Does Modar Motor support OEM and ODM production?
Yes. Modar Motor supports OEM and ODM motor projects, including customized voltage, speed, torque, shaft, mounting interface, cable, connector and performance parameters. The 55ZYN brushed DC motor series can be adapted to different customer product designs.
