88mm 88ZYN Brushed DC Motor – Product Overview

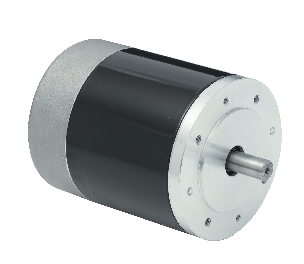

![88ZYN]( "88ZYN")
88mm DC Motor for Strong Low-Voltage Output
The 88ZYN brushed DC motor is developed for equipment that needs higher output power while still using a low-voltage DC platform. Compared with smaller brushed DC motors, the 88ZYN series provides stronger torque capacity and better load-handling ability, making it suitable for heavier mechanical drive requirements.
Its 88mm frame gives the motor more space for stronger electromagnetic design, while the motor length remains compact at approximately 108mm in the listed models. This combination helps OEM engineers achieve a good balance between motor size, power output and installation flexibility.
20V and 24V DC Options for OEM Systems
The representative table includes two main voltage options: 20V DC and 24V DC. These low-voltage platforms are commonly used in mobile equipment, battery-powered systems, industrial control modules and custom DC power units.
20V DC Version for Special Battery Platforms
The 20V model provides approximately 0.75N·m rated torque, 3300rpm rated speed and around 259W rated power. It is suitable for equipment using a 20V battery or special low-voltage power system.
24V DC Version for Higher Torque Output
The 24V model provides approximately 1.0N·m rated torque, 3000rpm rated speed and around 314W rated power. This version is suitable for applications requiring stronger torque and higher output power within a standard 24V DC platform.
Representative Technical Parameters
The listed 88ZYN040 models provide two performance options:
88ZYN040 20V Model
The 20V version has a no-load speed of approximately 3800rpm, rated speed of around 3300rpm, rated torque of 0.75N·m, rated power of 259W, and motor length of 108mm. It is suitable for applications that require relatively high speed with moderate-high torque.
88ZYN040 24V Model
The 24V version has a no-load speed of approximately 3600rpm, rated speed of around 3000rpm, rated torque of 1.0N·m, rated power of 314W, and motor length of 108mm. It is suitable for heavier-load applications where stronger torque is required.
High Current Capacity for Real Load Conditions
The 88ZYN series is designed for real mechanical loads rather than only light-duty rotation. The representative data shows rated current up to approximately 18A to 20A, which means the motor should be matched with a suitable controller, power supply, cable and protection system.
For OEM projects, it is important to evaluate startup current, load torque, heat rise and duty cycle. A properly selected motor can improve system reliability and reduce the risk of overheating or insufficient torque during operation.
Engineering Selection Notes
Select the Motor Based on Working Torque
For the 88ZYN brushed DC motor series, torque selection is more important than only checking no-load speed. If the application requires strong starting force, heavy load movement or stable operation under resistance, the 24V 1.0N·m version may be more suitable.
If the equipment needs higher speed and the load is slightly lighter, the 20V 0.75N·m version can be considered.
Check Controller and Power Supply Capacity
Because 88ZYN brushed DC motor operates with relatively high current, the controller and power supply must be able to support the required current during startup and loaded operation. Wire size, connector rating, battery discharge capability and overcurrent protection should also be checked carefully.
Evaluate Heat Rise and Duty Cycle
For pump systems, actuators and industrial drive modules, the motor may work under changing load conditions. Customers should provide working time, stop time, load torque, ambient temperature and cooling condition so that Modar Motor can help evaluate whether the selected model is suitable.
Customization Options
Shaft Customization
The output shaft can be customized according to the customer’s mechanical connection design. Common options include round shaft, D-cut shaft, flat shaft, threaded shaft, keyway shaft, extended shaft or special machined shaft.
Mounting Structure Customization
The front cover, locating diameter, mounting hole position and installation interface can be adjusted according to customer drawings or samples. This is useful for both new product development and replacement motor projects.
Voltage and Performance Customization
Besides the listed 20V and 24V versions, Modar Motor can evaluate customized voltage, speed, torque and current requirements according to the customer's application and order quantity.
Cable and Connector Customization
Lead wire length, cable outlet direction, wire gauge, connector type and terminal structure can be customized. For high-current motors like the 88ZYN series, suitable wire and connector selection is especially important.
Application-Based Motor Matching
Modar Motor can help match the motor to the customer's real working load, including rated torque, peak torque, duty cycle, temperature rise and performance curve requirements.
Key Product Advantages
High Torque in a Low-Voltage Platform
The 88ZYN brushed DC motor series provides rated torque up to approximately 1.0N·m while operating on a low-voltage DC system. This makes it suitable for battery-powered and 24V industrial equipment.
Rated Power up to Approximately 314W
With rated power up to around 314W, the 88ZYN motor can support applications that need stronger output than smaller DC motor platforms.
Compact 108mm Motor Length
Although the motor has an 88mm frame, the listed models maintain a compact length of approximately 108mm, helping OEM customers save installation space.
Suitable for Heavy-Duty OEM Drive Units
88ZYN brushed DC motor is suitable for pump drives, actuators, transmission modules, mobile equipment and other applications requiring stable torque under load.
OEM Customization Support from Modar Motor
Modar Motor supports customized DC motor solutions, including voltage, speed, torque, shaft, mounting interface, wiring, connector and performance curve adjustment.
Typical Application of 88mm 88ZYN Brushed DC Motor
Pump Drive Systems
The 88ZYN brushed DC motor can be used in pump systems that require stable speed and stronger torque. It is suitable for circulation pumps, transfer pumps, cleaning pumps, spraying equipment and compact hydraulic or fluid drive systems.
Mobile Equipment and Battery-Powered Machinery
Because 88ZYN brushed DC motor series includes 20V and 24V low-voltage options, it can be used in battery-powered machinery, mobile service equipment, auxiliary drive units and compact electric power modules.
Industrial Transmission Modules
88ZYN brushed DC motor can be connected with belts, pulleys, couplings, gearboxes or customer-designed transmission parts. Its stronger torque output makes it suitable for drive modules that must operate under load.
Electric Actuators
88ZYN brushed DC motor can be used in electric actuators that require strong torque, stable movement and reliable starting performance. It is suitable for rotary actuators, lifting mechanisms, locking systems and adjustment modules.
Cleaning and Commercial Equipment
88ZYN brushed DC motor can be applied in cleaning machines, service equipment, commercial devices and mechanical power units where a compact but strong DC motor is required.
Customized OEM Power Units
Many customers use 88ZYN brushed DC motor motor as the core drive component inside a customized power unit. Modar Motor can support sample testing, shaft customization and performance adjustment according to customer feedback.
Technical Specifications of 88mm 88ZYN Brushed DC Motor
The following technical data applies to the 88mm 88ZYN Brushed DC Motor.
Electrical Parameters
Rated voltage options: 20/24 etc.
Rated speed: 3000-3300rpm(customized)
Rated Torque: 0.75~1N.m(customized)
Output power range: 259~314W(customized)
Mechanical Parameters
Optional Configurations
![]()
Brushed DC Motor.pdf

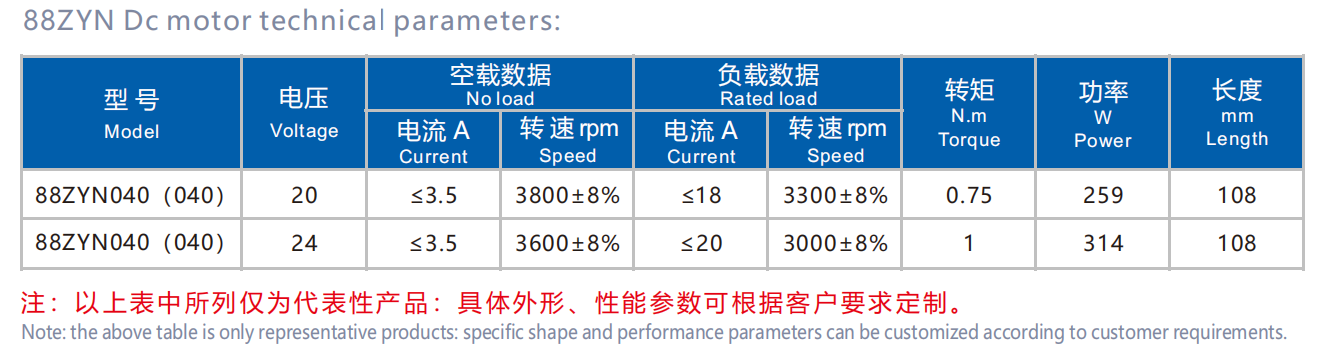

| Motor Characteristics |
![88ZYN brushed dc motor specification]( "88ZYN brushed dc motor specification") |

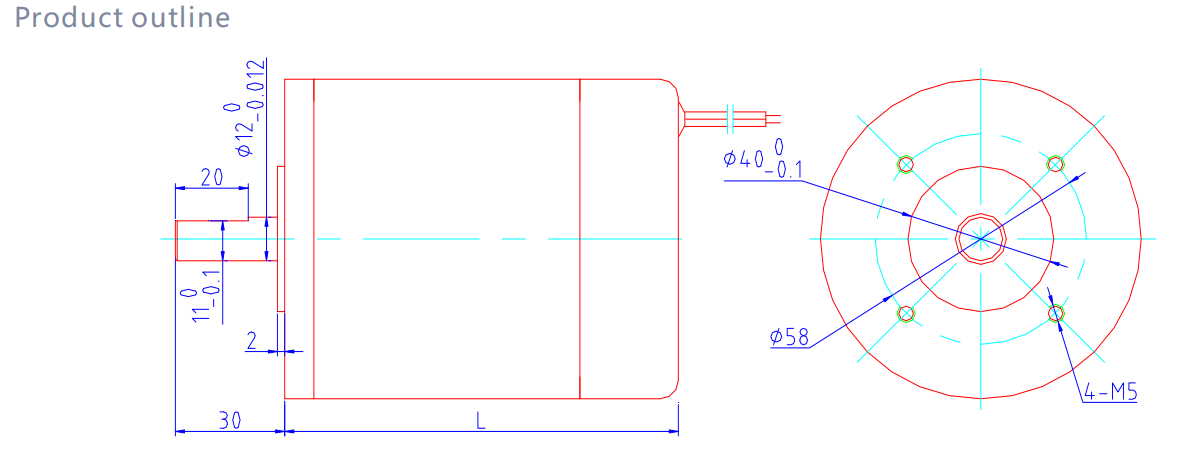

| 88ZYN brushed DC Motor Drawing |
![88ZYN brushed dc motor drawing]( "88ZYN brushed dc motor drawing") |

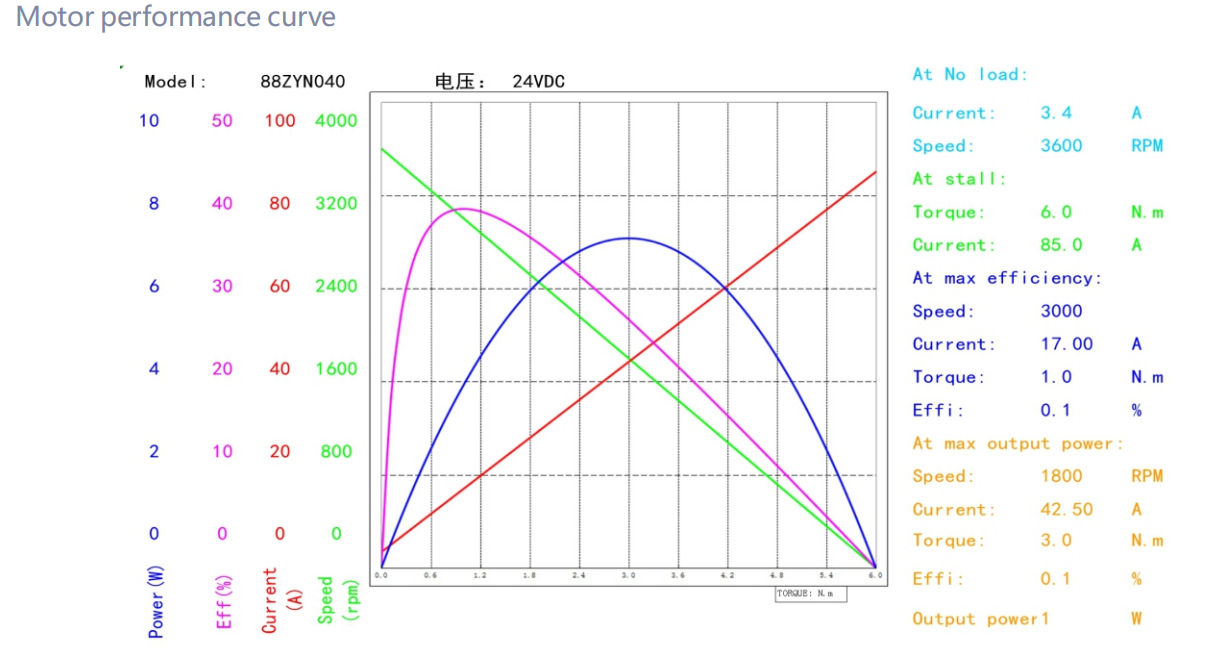

| 88ZYN Brushed DC Motor Performance Curve |
![88ZYN brushed dc motor performance curve]( "88ZYN brushed dc motor performance curve") |
FAQ – 88mm 88ZYN Brushed DC Motor
What is the 88ZYN brushed DC motor?
The 88ZYN brushed DC motor is a low-voltage high-torque DC motor designed for OEM applications requiring strong mechanical output, stable speed and compact installation.
What voltage options are available?
The representative models include 20V DC and 24V DC options. Other voltage requirements may be evaluated according to the application and order quantity.
What is the rated torque range?
According to the listed data, the rated torque range is approximately 0.75N·m to 1.0N·m.
What is the rated power range?
The representative rated power range is approximately 259W to 314W, depending on voltage and selected model.
Is 88ZYN brushed DC motor suitable for battery-powered equipment?
Yes. The 20V and 24V versions can be suitable for battery-powered or low-voltage DC systems, but the battery, controller, wiring and connectors must support the required current.
Can 88ZYN brushed DC motor be used for pump systems?
Yes. 88ZYN brushed DC motor series can be used in pump drive systems where stable speed and stronger torque are required. Customers should provide pressure, flow rate, working speed and duty cycle for accurate selection.
Can the output shaft be customized?
Yes. Modar Motor can customize shaft length, diameter, D-cut, flat shaft, threaded shaft, keyway or special shaft structures according to customer drawings.
Can 88ZYN brushed DC motor run continuously?
Continuous operation depends on load, current, temperature rise and cooling condition. For long-time operation, Modar Motor can help evaluate whether a standard or customized design is more suitable.
What information should I provide for a quotation?
Please provide voltage, target speed, required torque, peak load, shaft drawing, mounting dimensions, duty cycle, controller information, working environment and expected quantity.
Does Modar Motor support OEM customization?
Yes. Modar Motor supports OEM and ODM customization for 88ZYN brushed DC motor, including voltage, speed, torque, shaft, mounting structure, cable, connector and rotation direction.
