50mm 50ZYT Brushed DC Motor – Product Overview

The 50ZYT brushed DC motor features a 50mm frame size and offers higher torque capability compared to smaller DC motor platforms.

50ZYT brushed DC motor is designed for applications that require a balance between compact dimensions and increased mechanical output.

50ZYT brushed DC motor series retains the simplicity and reliability of brushed DC technology while allowing greater flexibility in load handling. It is well suited for industrial and commercial equipment where stable operation and ease of control are essential.

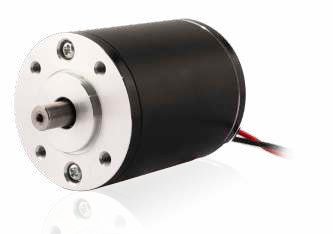

50ZYT Brushed dc motor

Key Features

50mm outer diameter brushed DC motor
Increased torque compared to 42mm motors
Reliable performance under variable loads
Easy integration into industrial systems
OEM-oriented design for customization and volume supply

Typical Applications of 50mm 50ZYT Brushed DC Motor

50ZYT brushed DC motor is commonly selected for applications requiring moderate torque, stable operation, and robust mechanical design.

In pump systems, 50ZYT brushed DC motor is frequently used in water pumps and small oil pumps where consistent flow and durability are required. The motor can be adapted to different displacement ranges depending on system design.

In automation equipment, 50ZYT brushed DC motor is suitable for drive units that operate for extended periods and require dependable performance without complex control electronics.

Typical application scenarios include:

Water pumps and small oil pump systems
Automation and material handling equipment
Electric actuators and drive assemblies
Packaging and processing machinery
Customized OEM industrial equipment

Technical Specifications of 50mm 50ZYT Brushed DC Motor

The following technical data applies to the 50mm 50ZYT Brushed DC Motor.

Electrical Parameters

Rated voltage options: 24V etc.
Rated speed: 1700rpm(customized)
Rated Torque: 22.5mN.m(customized)
Output power range: 4W(customized)

Mechanical Parameters

50mm outer diameter
Customized cover mounting size
Customized cable length and terminal

Optional Configurations

can be customized with gearbox and also designed as various linear actuators

Brushed DC Motor.pdf

Motor Characteristics

Motor part number

50ZYTC60-1

Rated voltage

V

24

Rated torque

mN·m

22.5

Rated speed

RPM

1700

Rated current

A

0.5

No-load speed

RPM

2300

No-load current

A

0.2

Rated power

W

4

Stall torque

mN·m

80

Stall current

A

1.1

Torque constant

mNm/A

86.4

Back emf constant

V/Krpm

9.05

Terminal resistance

Ω

20.2

Terminal inductance

mH

11

Rotor inertia

g.cm²

130

Starting torque

mN·m

32

Noise (ambient noise 20dB, test distance 1m)

dB

<48

Life span

H

>2500

Insulation resistance

-

100M Ω/250V

Duty cycle

-

S1

Motor weight

Kg

0.38

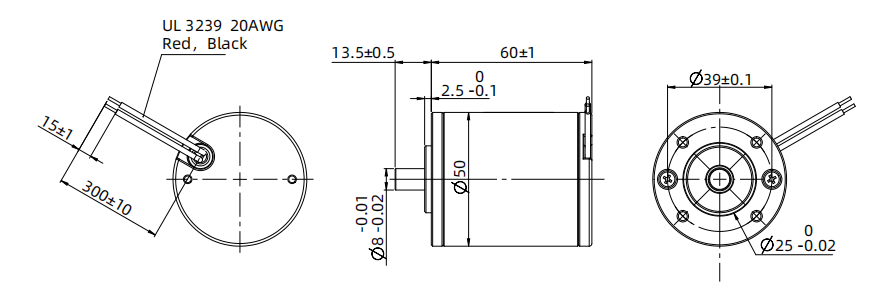

50ZYTC60-1 50mm Motor Drawing

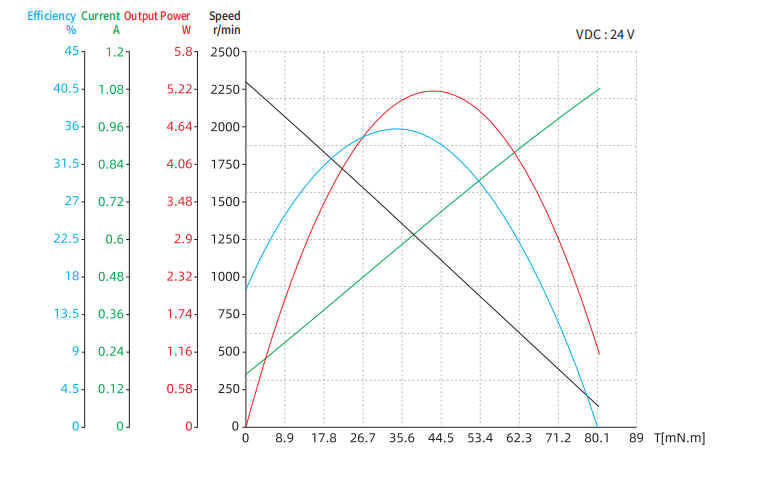

50ZYTC60-1 50mm Motor Performance Curve

50ZYT brushed dc motor performance curve

FAQ – 50mm 50ZYT Brushed DC Motor

Q1: What type of applications is 50ZYT brushed DC motor best suited for?

50ZYT brushed DC motor is ideal for pumps, automation equipment, and medium-load drive systems.

Q2: Can 50ZYT brushed DC motor handle continuous duty?

Yes, with proper load matching and cooling design.

Q3: Is customization available?

Yes, electrical and mechanical parameters can be customized.

Q4: Can 50ZYT brushed DC motor be combined with a gearbox?

Yes, gearbox options are available based on requirements.

Q5: Is 50ZYT brushed DC motor suitable for industrial environments?

Yes, 50ZYT brushed DC motor is designed for industrial and commercial use.

Q6: Do you support mass production projects?

Yes, from prototyping to volume production.

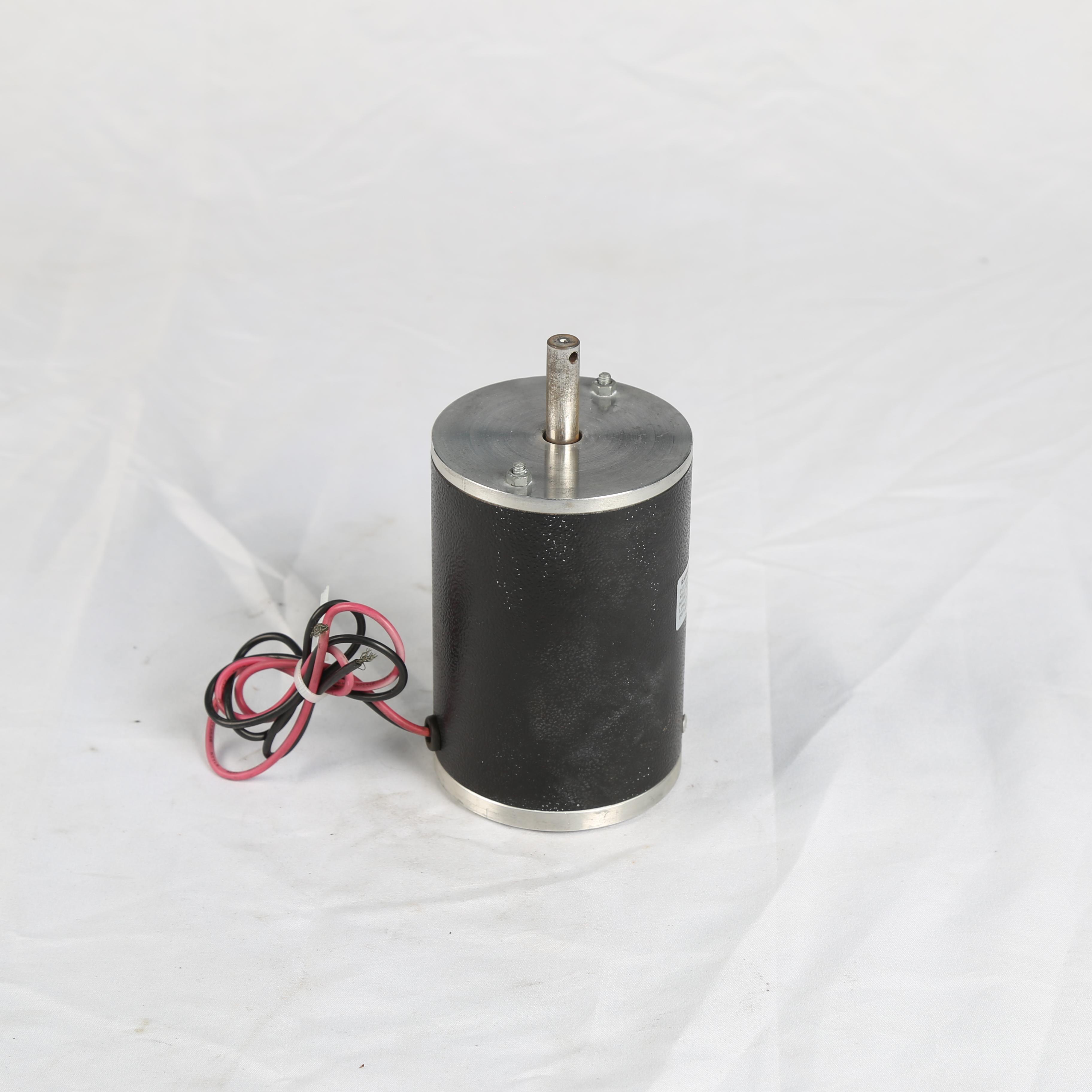

50ZYT Brushed DC Motor – 50mm DC Motor for Industrial Drives

50ZYTC60-1 Brush DC Motor has 24V Rated voltage of DC Motor and it can run at Max. 1,700RPM.
It can generate 22.5mN.m of rated torque and customized with gearbox and also designed as various linear actuators.
