57mm 57ZYT Brushed DC Motor – Product Overview

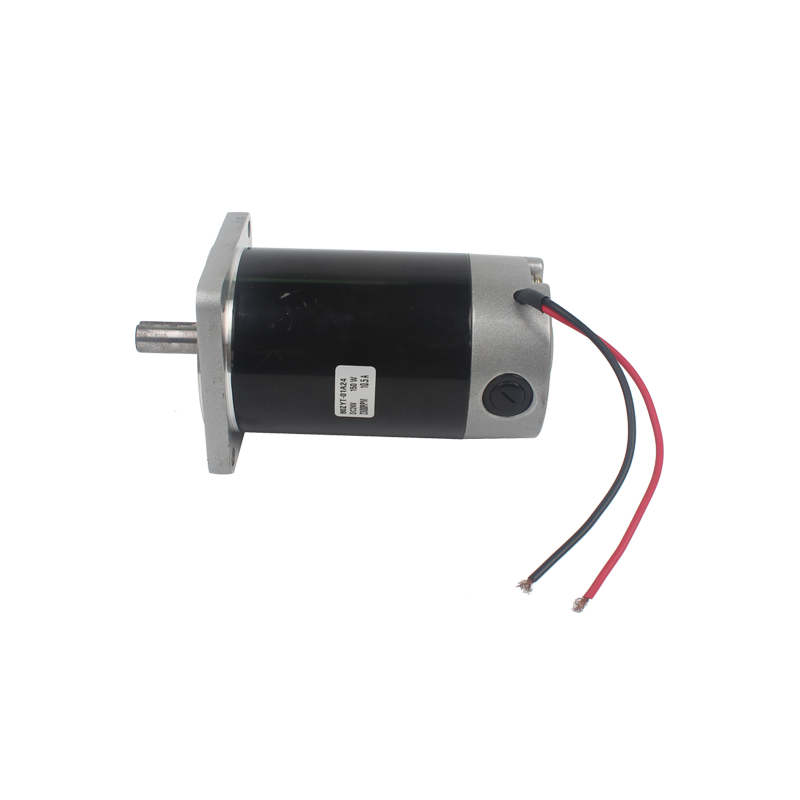

![57ZYN]( "57ZYN")
57mm Brushed DC Motor for Practical OEM Drive Design
The 57ZYT brushed DC motor is built for equipment manufacturers who need a reliable brushed DC motor with a compact 57mm body and stable running performance. Its structure is suitable for applications where the motor is connected to a customer's own transmission mechanism, such as pulleys, belts, couplings, small gearboxes, pump heads or custom drive assemblies.
57ZYT brushed DC motor series offers a good balance between speed, torque and installation convenience. 57ZYT brushed DC motor is especially useful for OEM products that need a motor with simple control, mature technology and cost-effective performance. Since brushed DC motors can be controlled easily by adjusting voltage or using a basic DC controller, the 57ZYT brushed DC motor series is suitable for many practical industrial and commercial applications.
12V and 24V Voltage Options for Different Equipment Platforms
The representative technical table includes both 12V DC and 24V DC versions. This makes the 57ZYT series easier to match with different power supply systems.
The 12V model can be used in equipment where low-voltage DC power is preferred, such as portable devices, small electric mechanisms and certain battery-powered systems. The 24V models are suitable for automation equipment, pump systems, industrial control devices and commercial machines that already use a 24V DC platform.
For special projects, Modar Motor can evaluate whether other voltage options are possible based on the customer's required speed, torque, current limit and production quantity.
Representative Technical Parameters
The 57ZYT brushed DC motor series includes several representative models, such as 57ZYT001, 57ZYT002, 57ZYT003 and 57ZYT004. Each model is designed for a different combination of voltage, rated speed, torque, power and motor length.
57ZYT001 for Stronger 24V Output
The 57ZYT001 model is a 24V DC motor with rated torque of approximately 0.2N·m, rated speed around 2200rpm, rated power of approximately 46W, and motor length around 101mm. It is suitable for applications requiring stronger output from a 57mm brushed DC motor platform.
57ZYT002 for 12V Drive Systems
The 57ZYT002 model uses a 12V DC platform. It provides rated torque of approximately 0.13N·m, rated speed around 1800rpm, rated power around 25W, and motor length around 91mm. This model is suitable for equipment that requires lower voltage operation and moderate output torque.
57ZYT003 for Balanced 24V Performance
The 57ZYT003 model is a 24V DC option with rated torque of approximately 0.1N·m, rated speed around 2500rpm, and rated power around 26W. It can be used in applications where both speed and compact size are important.
57ZYT004 for Higher-Speed 24V Applications
The 57ZYT004 model provides rated speed around 3000rpm, rated torque approximately 0.08N·m, and rated power around 25W. This model is suitable for equipment requiring higher speed with lighter load conditions.
Stable Speed Output for Direct Drive and Transmission Systems
The 57ZYT brushed DC motor series is suitable for applications where stable speed output is required before connecting to a mechanical transmission system. Customers can use the motor directly or combine it with their own gearbox, belt drive, pump head, fan structure or rotating mechanism.
For OEM design, the working point should be selected carefully. The motor should not be chosen only by rated voltage. Engineers should also consider load torque, starting current, rated current, speed drop under load, heat rise, duty cycle and expected lifetime. Modar Motor can help evaluate the correct motor model according to actual test conditions.
Flange Mounting Structure for Easier Installation
The 57ZYT brushed DC motor uses a front mounting structure that allows easier installation into brackets, housings and drive modules. The flange design helps improve assembly consistency and reduces alignment problems during production.
This is useful for OEM customers who need repeatable installation dimensions and stable batch assembly. If the standard mounting structure does not match the customer's product, Modar Motor can evaluate customized front cover, mounting holes and shaft dimensions according to the drawing.
Customization Options
Customized Output Shaft

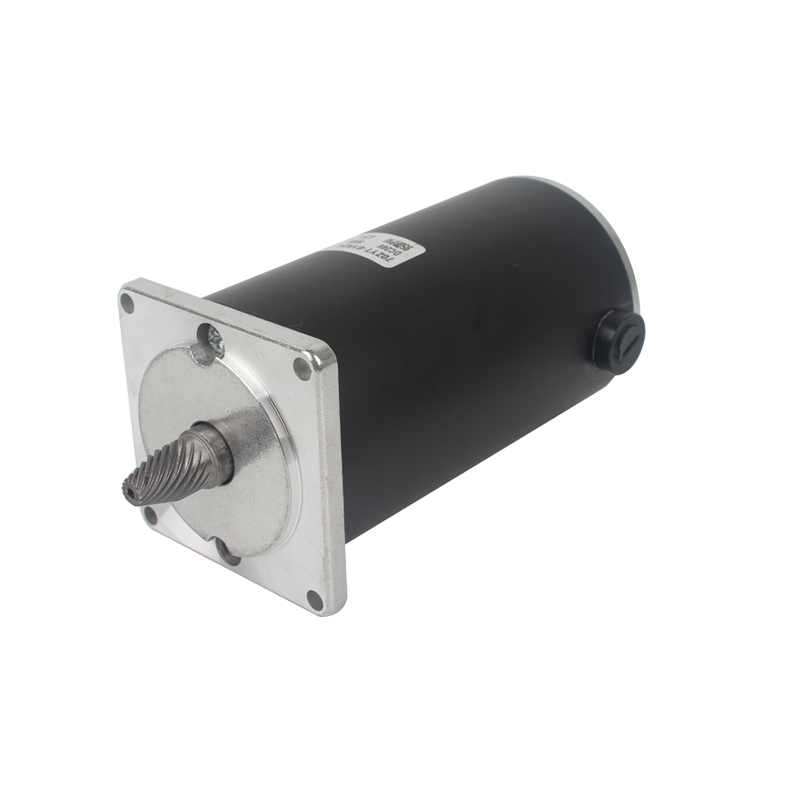

The shaft can be adjusted according to the customer’s mechanical connection method. Common options include different shaft length, shaft diameter, flat shaft, D-cut shaft, threaded shaft, keyway, double shaft or special machined end.
This is important when the motor needs to connect with gears, couplings, pump impellers, pulleys, cams or other transmission parts.
Customized Voltage and Speed
The standard table includes 12V and 24V DC options. For OEM projects, voltage and speed can be adjusted according to the customer's power supply and target working point. If the application requires lower current, higher speed, lower speed or stronger torque, the winding design can be evaluated accordingly.
Customized Mounting Interface
The motor's front cover, mounting holes, locating diameter and flange structure can be customized to match the customer's housing design. This is especially useful for replacement projects or applications where the motor must fit into an existing assembly space.
Customized Cable and Connector
Lead wire length, cable outlet direction, terminal type, connector model and wiring definition can be customized. This helps customers reduce assembly time and improve production consistency.
Customized Performance Curve
For some OEM applications, standard rated parameters may not be enough. Modar Motor can evaluate the motor according to the customer's actual load curve, working time, startup condition and current limit. This helps improve motor matching and reduces the risk of overheating or insufficient torque.
Key Product Advantages
Mature Brushed DC Motor Technology
The 57ZYT brushed DC motor series uses a brushed DC motor structure, which is widely used in many industrial and commercial applications. It offers simple control, stable performance and cost-effective operation, making it suitable for OEM projects that require reliable motion without complex control systems.
Suitable for Direct Drive and Customer-Designed Transmission
Unlike a dedicated gear motor, the 57ZYT brushed DC motor is suitable for customers who want to build their own transmission system. 57ZYT brushed DC motor can be connected with gears, belts, pump heads, fan blades, pulleys or other drive structures according to the final product design.
12V and 24V Options for Flexible System Matching
57ZYT brushed DC motor series includes both 12V and 24V versions, giving customers flexibility when selecting a motor for different electrical platforms. This helps reduce redesign work when the customer already has a fixed power supply system.
Compact 57mm Body with Practical Output Power
With rated power options from approximately 25W to 46W, the 57ZYT series provides useful output performance in a compact motor size. It is suitable for products that need more power than smaller DC motors but still require a space-saving design.
OEM Customization Support from Modar Motor
Modar Motor supports customized motor development for B2B customers, including shaft, voltage, speed, mounting structure, wiring and performance parameters. This makes the 57ZYT series suitable for both new product development and existing product replacement projects.
Typical Application of 57mm 57ZYT Brushed DC Motor
Pump Drive Systems
The 57ZYT brushed DC motor can be used in small pump systems where stable rotation and reliable torque are required. It may be connected to pump heads, impellers or customized transmission structures depending on the pump design.
Typical pump-related applications may include liquid transfer equipment, small circulation systems, cleaning devices, spraying equipment and compact fluid control modules. For pump applications, customers should provide load torque, working speed, duty cycle, medium type and working environment for better motor matching.
Automation Equipment
The 57ZYT brushed DC motor series is suitable for automation equipment that requires compact DC motor output. It can be used in rotating modules, feeding mechanisms, adjustment systems, light transmission units and small mechanical drive assemblies.
For automation projects, motor speed stability, starting current and installation dimensions are important. The 57ZYT brushed DC motor can be customized to fit the customer's design and production requirements.
Commercial Machines
Commercial machines often need compact motors for movement, rotation, dispensing, lifting or mechanical adjustment. The 57ZYT brushed DC motor can be applied in vending machines, office devices, display equipment, small packaging machines and other commercial products.
In this type of application, customers usually care about cost, reliability, noise level, assembly convenience and stable batch supply. Modar Motor can provide suitable motor options according to the product structure.
Light Industrial Equipment
The 57ZYT brushed DC motor series can be used in light industrial equipment where a compact brushed DC motor is needed. Typical uses include small drive units, mechanical control modules, rotating tools, adjustment devices and auxiliary transmission systems.
For industrial use, it is important to check temperature rise, current, load fluctuation and working cycle. A suitable motor model should be selected based on real operating conditions instead of only no-load speed.
Smart Devices and Electric Mechanisms
Smart devices often require motors for opening, closing, rotating, locking or adjustment functions. The 57ZYT brushed DC motor can be integrated into smart cabinets, automatic doors, electric furniture, control modules and intelligent mechanical products.
For these applications, customized shaft and mounting design are often required to match the final product housing and transmission system.
Customized OEM Drive Modules
Many OEM customers use the 57ZYT brushed DC motor as the core drive component in a customized module. The motor can be paired with customer-designed gears, brackets, pulleys, couplings or controllers. Modar Motor can support sample evaluation and parameter adjustment based on test feedback.
Technical Specifications of 57mm 57ZYT Brushed DC Motor
The following technical data applies to the 57mm 57ZYN Brushed DC Motor.
Electrical Parameters
Rated voltage options: 12/24V etc.
Rated speed: 1800-3000rpm(customized)
Rated Torque: 0.08~0.2N.m(customized)
Output power range: 25~46W(customized)
Mechanical Parameters
Optional Configurations
![]()
Brushed DC Motor.pdf

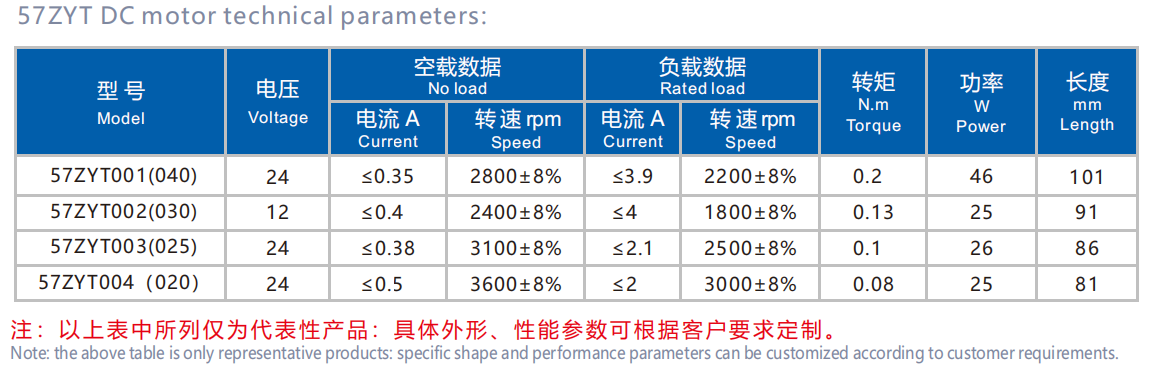

| Motor Characteristics |
![57ZYT brushed dc motor specification]( "57ZYT brushed dc motor specification") |

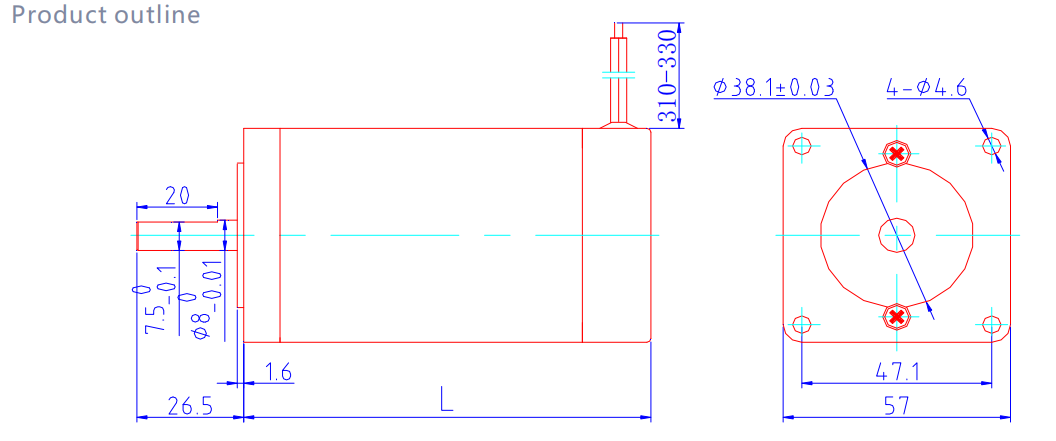

| 57ZYT brushed DC Motor Drawing |
![57ZYT brushed dc motor drawing]( "57ZYT brushed dc motor drawing") |

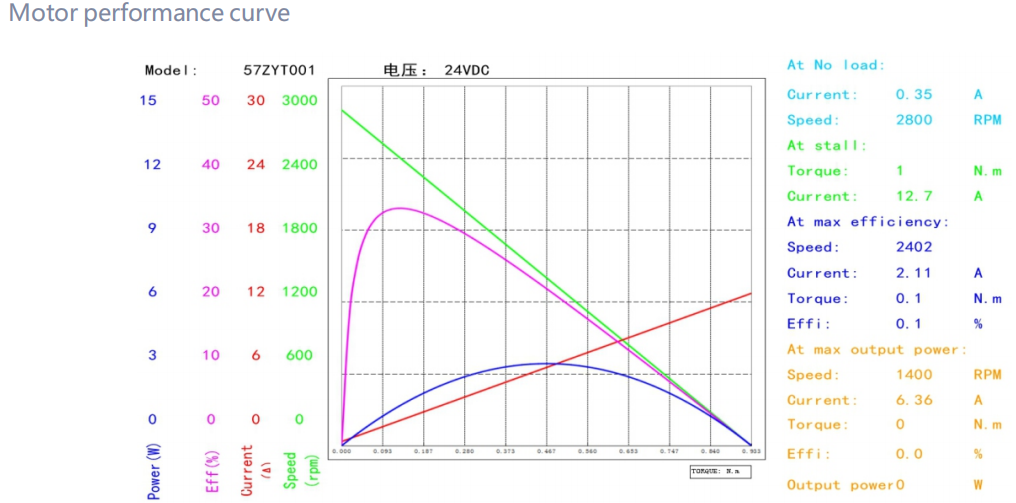

| 57ZYT Brushed DC Motor Performance Curve |
![57ZYT brushed dc motor performance curve]( "57ZYT brushed dc motor performance curve") |
FAQ – 57mm 57ZYT Brushed DC Motor
What is the 57ZYT brushed DC motor?
The 57ZYT brushed DC motor is a 57mm brushed DC motor designed for OEM applications that require stable speed, practical torque and flexible installation. 57ZYT brushed DC motor can be used in pumps, automation equipment, commercial machines, light industrial devices and customized drive modules.
Is the 57ZYT brushed DC motor a gear motor?
The 57ZYT brushed DC motor series is mainly a brushed DC motor platform. It can be used directly or connected with the customer's own transmission structure. If a gearbox is required, Modar Motor can evaluate suitable motor and transmission matching according to the application.
What voltage options are available?
The representative table includes 12V DC and 24V DC options. Other voltage requirements may be evaluated based on the customer's technical requirements, application conditions and order quantity.
What is the rated power range of the 57ZYT brushed DC motor series?
According to the listed data, the rated power ranges from approximately 25W to 46W. The final power depends on the selected model, voltage, speed and load condition.
What is the rated torque range?
The representative rated torque range is approximately 0.08N·m to 0.2N·m. Customers should choose the correct model based on actual working torque rather than only motor size.
Can the shaft be customized?
Yes. Modar Motor can customize shaft length, shaft diameter, D-cut, flat shaft, threaded shaft, keyway, double shaft or other special shaft structures according to drawings or samples.
Can the mounting structure be customized?
Yes. The front cover, flange, mounting holes and locating dimensions can be customized for OEM projects. This is useful when the motor needs to fit an existing product housing or mechanical bracket.
Is the 57ZYT brushed DC motor suitable for pump applications?
Yes. The 57ZYT brushed DC motor can be used in certain pump drive systems. For accurate motor selection, customers should provide pump load, required speed, working time, current limit and environmental conditions.
Can this motor run continuously?
Continuous operation depends on load, current, temperature rise, cooling condition and duty cycle. For long-time operation, Modar Motor can help evaluate the working point and recommend a suitable design.
What information should I provide for a quotation?
Please provide voltage, target speed, required torque, shaft drawing, mounting dimensions, working cycle, load type, operating environment, controller information and estimated order quantity. If you have a sample or drawing, it will help speed up evaluation.
Does Modar Motor support OEM production?
Yes. Modar Motor supports OEM and ODM production for brushed DC motors, including customized voltage, speed, torque, shaft, flange, cable, connector and performance parameters.
