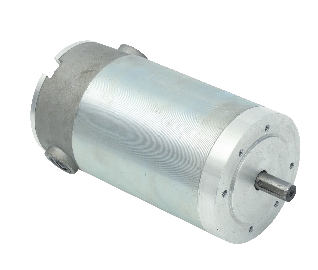

![106ZYT]( "106ZYT")
106mm 220V Brushed DC Motor for Industrial Power Output
The 106ZYT brushed DC motor is developed for equipment that needs a more powerful brushed DC motor platform than compact low-voltage models. Its 106mm frame provides a larger electromagnetic structure, allowing the motor to deliver strong output performance while maintaining stable operation under rated load.
Unlike low-voltage high-current DC motors, the 106ZYT brushed DC motor series uses a 220V DC platform, which is more suitable for fixed industrial equipment and commercial machines with high-voltage DC control systems. This allows the motor to provide high power output with relatively controlled current levels compared with low-voltage motors of similar power.
220V DC Platform for Fixed Equipment and Industrial Systems
The representative product table shows 220V DC models. This voltage platform is suitable for applications where the equipment already uses a higher DC voltage supply or a compatible motor controller.
The 220V design is often preferred in fixed equipment because it can reduce current demand compared with low-voltage systems. For OEM engineers, this can help simplify cable selection, controller matching and electrical layout in certain industrial drive systems. However, the motor must be matched with a suitable 220V DC controller, insulation design and safety protection.
Representative Technical Parameters
The 106ZYT brushed DC motor series includes representative models such as 106ZYT001 and 106ZYT001A. Both models use a 220V DC platform and provide the same rated torque level, but they are designed for different speed and power requirements.
106ZYT001 for 5000rpm High-Speed Output
The 106ZYT001 model provides approximately 1.5N·m rated torque, rated speed around 5000rpm, and rated power of approximately 785W. It is suitable for equipment requiring higher rotational speed and stronger output power.
This model can be considered for high-speed transmission systems, commercial machines, rotating mechanisms and industrial drive modules where stable high-speed operation is required.
106ZYT001A for 4000rpm Stable Drive Applications
The 106ZYT001A model provides approximately 1.5N·m rated torque, rated speed around 4000rpm, and rated power of approximately 628W. It is suitable for applications where torque stability is important, but the required rated speed is slightly lower than the 106ZYT001 model.
This option can be used in equipment requiring strong continuous drive performance with a more moderate high-speed output.
Large Motor Body with Ventilated Rear Cover
The product outline drawing shows a large cylindrical motor body with a ventilated rear end cover. This structure is useful for applications where the motor may run at higher speed or higher output power.
For industrial equipment, heat management is a key factor. Even if the motor's rated parameters meet the application requirement, the final working performance still depends on load condition, installation space, airflow, duty cycle and ambient temperature. The ventilated structure can help improve airflow around the motor when the equipment design allows proper ventilation.
Performance Curve for Engineering Evaluation
The motor performance curve provides useful information about speed, torque, current, efficiency and output power. For 106ZYT brushed DC motor series, this is especially important because the motor is intended for higher-power equipment.
When selecting a 106ZYT brushed DC motor, customers should evaluate rated working torque, peak load, controller capacity, heat rise, duty cycle and mechanical transmission design. Modar Motor can help review the customer's application requirements and recommend the suitable configuration for sample testing and mass production.
Engineering Selection Notes
Confirm 220V DC Controller Compatibility
Since the 106ZYT brushed DC motor series is designed for 220V DC operation, controller matching is very important. Customers should confirm that the controller supports the required voltage, rated current, starting current and protection functions.
For replacement projects, it is also important to compare the original motor's voltage, rated speed, shaft size, mounting dimensions and wiring method before selecting a new model.
Match Motor Speed with Transmission Design
The listed rated speed range of the 106ZYT brushed DC motor series is approximately 4000rpm to 5000rpm. This is suitable for many high-speed transmission systems, but the final equipment may still require speed reduction or mechanical adjustment.
If the application needs lower output speed, the motor can be matched with a gearbox, belt drive, pulley ratio or other reduction mechanism. The final output torque and speed should be calculated according to transmission efficiency and load condition.
Evaluate Heat Rise for Long-Duty Operation
For industrial equipment and commercial machines, motors may need to run for longer periods. Customers should review the duty cycle, load current, working temperature and ventilation condition.
If the motor needs to operate continuously or under frequent start-stop conditions, Modar Motor can help evaluate whether the standard design is suitable or whether customized winding, cooling or structural changes are needed.
Check Mechanical Strength of Shaft and Mounting
The 106ZYT brushed DC motor motor provides strong output torque and high speed, so shaft design and mounting strength should not be ignored. The shaft must be suitable for the connected load, and the motor must be fixed securely to avoid vibration, misalignment or bearing stress.
Customization Options
Shaft Customization
The output shaft can be customized according to the customer's transmission structure. Available options may include round shaft, D-cut shaft, flat shaft, threaded shaft, keyway shaft, extended shaft, double shaft or special machined shaft.
For high-speed applications, shaft concentricity, machining accuracy and connection reliability are especially important.
Mounting Interface Customization
The front cover, locating diameter, mounting holes and installation interface can be customized based on customer drawings or samples. This helps the motor fit into existing equipment or new OEM mechanical designs.
Voltage, Speed and Torque Customization
Although the representative models are based on 220V DC, Modar Motor can evaluate customized speed, torque and performance requirements according to the customer's application and order quantity.
Cable and Connector Customization
Lead wire length, cable outlet direction, terminal type, connector model and wiring definition can be customized. For 220V DC systems, insulation, safety and wiring reliability should be considered carefully.
Performance Curve Matching
For OEM projects, Modar Motor can help match motor performance with the customer's real load condition, including rated torque, startup load, current limit, temperature rise and working cycle.
Key Product Advantages
220V DC Platform for Industrial Equipment
The 106ZYT brushed DC motor series is suitable for fixed equipment using a 220V DC power system. This makes it a strong option for industrial and commercial applications requiring higher voltage motor solutions.
High Rated Power up to Approximately 785W
With rated power up to approximately 785W, the 106ZYT motor can support demanding drive systems that need stronger output than smaller brushed DC motors.
Stable 1.5N·m Torque Output
The listed models provide approximately 1.5N·m rated torque, making the series suitable for equipment requiring strong and stable mechanical drive performance.
High-Speed Operation from 4000rpm to 5000rpm
The 106ZYT brushed DC motor series is suitable for applications requiring relatively high motor speed, such as transmission modules, rotating machinery and commercial equipment.
Ventilated Structure for Better Heat Dissipation
The ventilated rear cover design helps improve airflow around the motor, which is useful for high-speed and higher-power operation when the equipment structure supports ventilation.
OEM Customization Support from Modar Motor
Modar Motor supports customized brushed DC motor solutions, including shaft, mounting structure, voltage, speed, torque, wiring, connector and performance parameters.
Typical Application of 88mm 88ZYT Brushed DC Motor
Industrial Transmission Systems
The 106ZYT brushed DC motor can be used in industrial transmission systems that require high speed and strong torque. It can be connected with belts, pulleys, couplings, rollers, gearboxes or other mechanical transmission components.
For this application, engineers should evaluate rated speed, transmission ratio, shaft load, vibration and duty cycle before final selection.
Commercial Machinery
106ZYT brushed DC motor is suitable for commercial machines that require stable high-power drive performance. Typical examples include cleaning equipment, service machines, packaging devices, display equipment and other commercial mechanical systems.
Pump and Fluid Equipment
The 106ZYT brushed DC motor series can be applied in pump-related equipment where strong output and stable speed are required. For pump projects, customers should provide pressure, flow rate, medium type, speed requirement and working cycle for accurate motor matching.
High-Speed Rotating Mechanisms
Because the motor can provide rated speeds around 4000rpm to 5000rpm, it can be used in rotating mechanisms, rollers, belt-driven systems and other drive modules where higher speed is required.
Fixed Equipment with 220V DC Supply
The 106ZYT brushed DC motor is suitable for fixed equipment platforms using 220V DC power. These may include industrial machines, commercial equipment, testing devices and customized power systems.
Customized OEM Power Units
OEM customers can use the 106ZYT brushed DC motor as the main power component in a customized drive unit. Modar Motor can support shaft customization, mounting adjustment, wiring design and sample testing according to the customer's requirements.
Technical Specifications of 106mm 106ZYT Brushed DC Motor
The following technical data applies to the 106mm 106ZYT Brushed DC Motor.
Electrical Parameters
Rated voltage options: 220V etc.
Rated speed: 4000~5000rpm(customized)
Rated Torque: 1.5N.m(customized)
Output power range: 628~785W(customized)
Mechanical Parameters
Optional Configurations
![]()
Brushed DC Motor.pdf

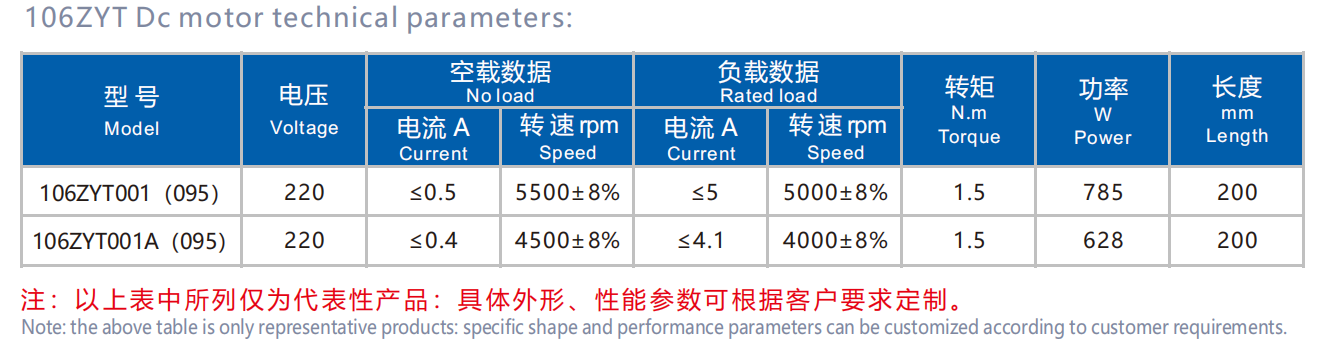

| Motor Characteristics |
![106ZYT brushed dc motor specification]( "106ZYT brushed dc motor specification") |

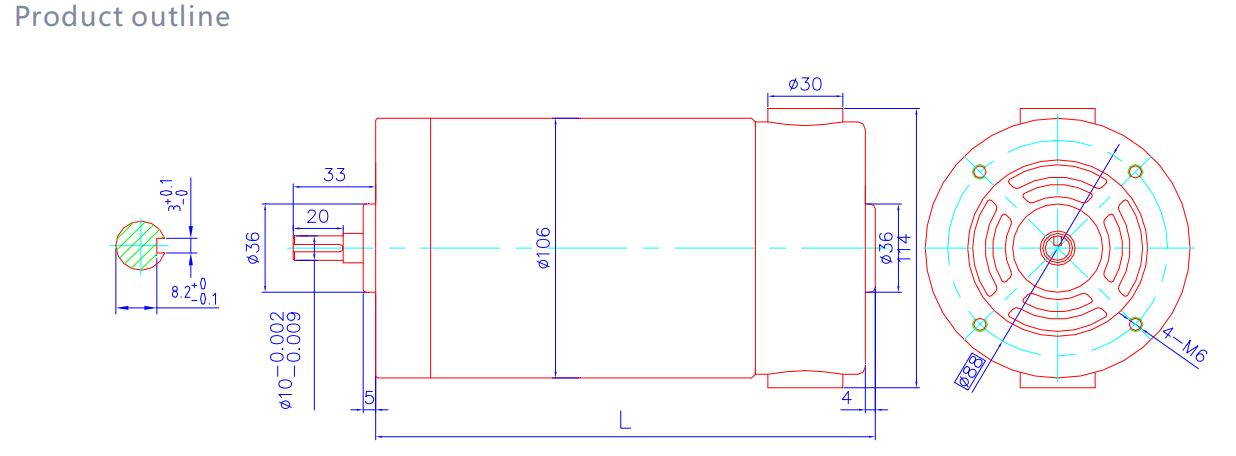

| 106ZYT brushed DC Motor Drawing |
![106ZYT brushed dc motor drawing]( "106ZYT brushed dc motor drawing") |

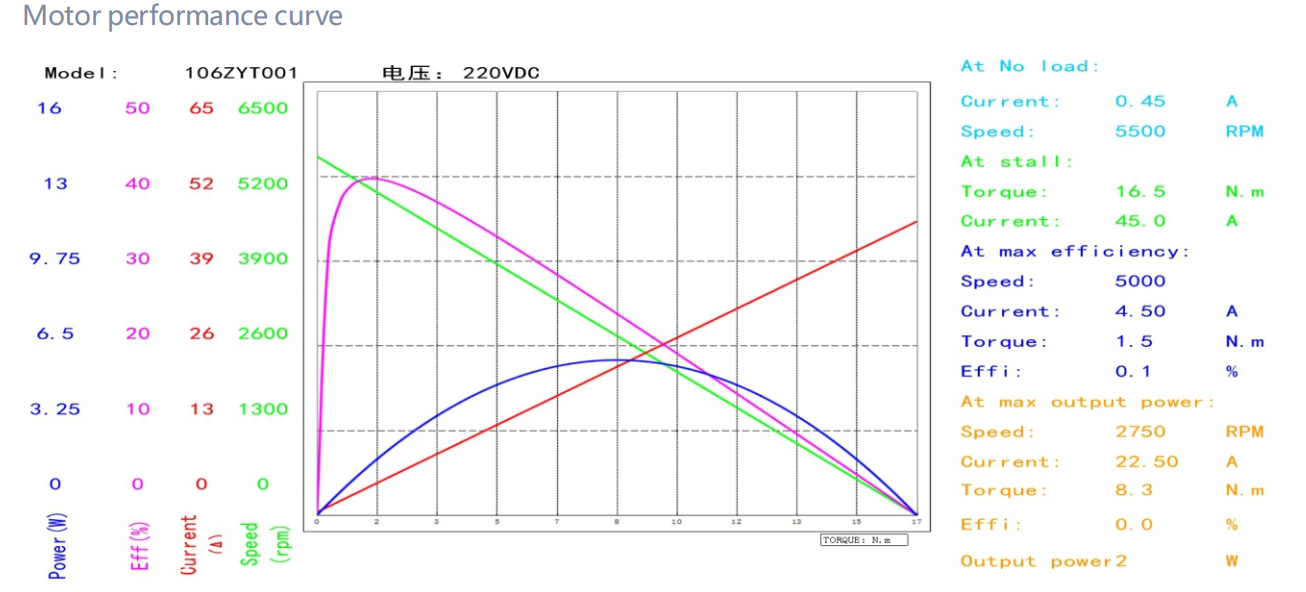

| 106ZYT Brushed DC Motor Performance Curve |
![106ZYT brushed dc motor performance curve]( "106ZYT brushed dc motor performance curve") |
FAQ – 106mm 106ZYT Brushed DC Motor
What is the 106ZYT brushed DC motor?
The 106ZYT brushed DC motor is a large-frame 220V brushed DC motor designed for industrial and commercial OEM equipment requiring high power, stable torque and high-speed output.
What voltage does the 106ZYT brushed DC motor series use?
The representative models shown are 220V DC motors. Other voltage requirements may be evaluated according to the customer's application and order quantity.
What is the rated torque of the 106ZYT brushed DC motor?
The listed models provide approximately 1.5N·m rated torque.
What is the rated power range?
According to the representative technical table, the rated power range is approximately 628W to 785W, depending on the selected model and rated speed.
What rated speed options are available?
The listed models provide rated speeds of approximately 4000rpm and 5000rpm. The 5000rpm model is suitable for higher-speed applications, while the 4000rpm model is suitable for more moderate high-speed drive systems.
Is 106ZYT brushed DC motor suitable for continuous operation?
Continuous operation depends on load, current, heat rise, ventilation and duty cycle. For long-duty applications, Modar Motor can help evaluate the working point and recommend suitable customization if needed.
Can the output shaft be customized?
Yes. Modar Motor can customize shaft length, diameter, D-cut, flat shaft, threaded shaft, keyway, extended shaft or special shaft structures according to customer drawings or samples.
Can the mounting interface be customized?
Yes. The front cover, mounting holes, locating diameter and installation interface can be customized for OEM projects or replacement motor applications.
What should be considered when using a 220V DC motor?
Customers should confirm controller compatibility, insulation requirements, wiring safety, current protection and equipment safety standards before using a 220V DC motor.
What information should I provide for a quotation?
Please provide voltage, target speed, required torque, shaft drawing, mounting dimensions, load type, duty cycle, controller information, operating environment and expected quantity.
Does Modar Motor support OEM customization?
Yes. Modar Motor supports OEM and ODM customization for 106ZYT brushed DC motor, including voltage, speed, torque, shaft, mounting structure, cable, connector, rotation direction and performance curve adjustment.
