88mm 88ZYT Brushed DC Motor – Product Overview
![88ZYT]( "88ZYT")

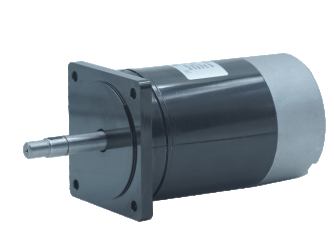

88mm Brushed DC Motor with Square Flange Mounting
The 88ZYT brushed DC motor is developed for equipment manufacturers who need a reliable brushed DC motor with a strong mechanical mounting interface. Its square flange structure allows the motor to be fixed securely into equipment housings, brackets or drive modules, helping improve assembly consistency and shaft alignment.
This design is useful for OEM equipment where the motor position must remain stable during operation. Compared with a simple round-body motor, the square flange mounting structure provides a clearer installation reference and stronger fixing support, especially for pump assemblies, actuator systems and industrial transmission modules.
Multiple Voltage Options for Different OEM Platforms
The representative table includes 12V DC, 23V DC and 24V DC versions. This gives equipment manufacturers flexibility when matching the motor with different power systems.
12V DC Models for Low-Voltage Equipment
The 12V models are suitable for low-voltage systems, battery-powered devices, compact pump units, mobile equipment and commercial machines. The listed 12V options provide rated torque around 0.5N·m, making them suitable for applications requiring moderate torque at lower voltage.
23V DC Model for Special Power Systems
The 23V version can be considered for special equipment platforms or replacement projects where the power system is not a standard 24V configuration. It provides approximately 0.25N·m rated torque and around 58W rated power.
24V DC Model for Higher Torque Output
The 24V version provides approximately 1.0N·m rated torque and around 314W rated power. This model is suitable for applications that require stronger output, such as pump drives, actuator mechanisms and industrial power modules.
Representative Technical Parameters
88ZYT brushed DC motor series includes representative models such as 88ZYT001A, 88ZYT050, 88ZYT050A and 88ZYT070. These models cover different voltage, torque, speed, power and motor length combinations.
88ZYT001A for 23V Moderate-Load Applications
The 88ZYT001A model operates on 23V DC. According to the representative data, it provides around 0.25N·m rated torque, approximately 2200rpm rated speed and around 58W rated power. It is suitable for moderate-load equipment or special voltage replacement applications.
88ZYT050 for 12V Low-Speed Torque Output
The 88ZYT050 model uses a 12V DC platform and provides approximately 0.5N·m rated torque, around 1700rpm rated speed and approximately 89W rated power. It is suitable for low-speed mechanisms that require stable torque under a 12V power system.
88ZYT050A for 12V Balanced Performance
The 88ZYT050A model is also a 12V DC version. It provides approximately 0.5N·m rated torque, around 1800rpm rated speed and approximately 94W rated power. This model can be used in applications requiring slightly higher speed while keeping the same torque level.
88ZYT070 for 24V High-Power Drive Systems
The 88ZYT070 model operates on 24V DC and provides approximately 1.0N·m rated torque, around 3000rpm rated speed and approximately 314W rated power. It is the strongest listed option in this series and is suitable for higher-load drive systems.
Stable Mechanical Output for Pump and Actuator Systems
88ZYT brushed DC motor series is suitable for applications where the motor must provide stable output under real mechanical load. For pump systems, the motor may need to overcome fluid resistance, pressure changes and startup load. For actuator systems, it may need to handle friction, repeated movement and position changes.
88ZYT brushed DC motor performance curve helps engineers evaluate the relationship between speed, torque, current, efficiency and output power. For accurate selection, customers should review the rated working point rather than relying only on no-load speed.
Engineering Selection Notes
Match the Motor with the Mounting Structure
88ZYT brushed DC motor series is especially useful when the customer's equipment requires a fixed square mounting interface. Before selection, engineers should confirm the flange size, mounting hole position, locating diameter, shaft height and available installation space.
For replacement projects, customers can provide the original motor drawing or sample so Modar Motor can evaluate whether the standard 88ZYT brushed DC motor structure is compatible or whether customization is required.
Check Current Capacity for 12V and 24V Models
88ZYT brushed DC motor series includes models with different current requirements. The higher-power 24V model requires stronger current support, while the 12V models also need suitable wiring and controller capacity during startup.
Customers should confirm controller current limit, power supply capacity, cable size, connector rating and protection settings before final approval.
Consider Speed Reduction or Transmission Matching
Some applications may require lower output speed than the motor's rated speed. In this case, 88ZYT brushed DC motor can be matched with a gearbox, pulley ratio, belt drive, lead screw or other transmission structure. The final design should consider output torque, transmission efficiency and load variation.
Customization Options
Square Flange Customization
The square flange, mounting holes, locating boss and front cover design can be customized according to customer drawings. This helps the motor fit new product housings or replace an existing motor in current equipment.
Shaft Customization
The output shaft can be customized by diameter, length, flat surface, D-cut, threaded end, keyway, extended shaft or special machined structure. A proper shaft design helps improve connection with couplings, pump heads, gears, pulleys or actuator mechanisms.
Voltage, Speed and Torque Customization
The representative models include 12V, 23V and 24V options, but Modar Motor can evaluate customized voltage, speed and torque according to the customer's application, controller and production quantity.
Cable and Connector Customization
Lead wire length, wire gauge, cable outlet direction, terminal type and connector model can be customized. For high-current models, cable and terminal selection should be carefully matched with the rated current.
Performance Matching Based on Real Load
Modar Motor can help evaluate the motor based on actual load torque, startup current, duty cycle, temperature rise and working environment. This is useful for OEM customers who need stable performance in mass production.
Key Product Advantages
Square Flange Design for Secure Installation
88ZYT brushed DC motor provides a square flange mounting structure, making it easier to install securely in equipment housings, pump brackets, actuator modules and industrial drive units.
12V, 23V and 24V Options
88ZYT brushed DC motor series covers multiple voltage platforms, allowing customers to choose a suitable motor for low-voltage, special-voltage or standard 24V DC systems.
Torque Options up to Approximately 1.0N·m
With rated torque up to approximately 1.0N·m, the 88ZYT series can support applications requiring stronger mechanical output.
Suitable for Both Moderate and Higher Load Applications
The product range includes lower-power 12V and 23V options as well as a higher-power 24V model. This gives OEM engineers more flexibility when balancing torque, power, current and installation size.
OEM Customization Support from Modar Motor
Modar Motor supports customized brushed DC motor solutions, including voltage, speed, torque, shaft, flange, cable, connector and performance curve adjustment.
Typical Application of 88mm 88ZYT Brushed DC Motor
Pump Drive Systems
88ZYT brushed DC motor can be used in pump systems that require stable speed, reliable torque and secure motor mounting. Typical uses may include circulation pumps, transfer pumps, cleaning pumps, spraying equipment and compact fluid drive units.
For pump projects, customers should provide flow rate, pressure condition, medium type, working speed, startup load and duty cycle for accurate motor selection.
Electric Actuators
88ZYT brushed DC motor series is suitable for actuator systems that require stable movement and stronger mounting support. It can be used in rotary actuators, valve actuators, lifting modules, locking systems and adjustment mechanisms.
Commercial Machinery
88ZYT brushed DC motor can be applied in commercial equipment such as cleaning machines, vending machines, packaging devices, service machines, display systems and office automation equipment. The square flange design helps simplify installation inside machine housings.
Industrial Transmission Modules
88ZYT brushed DC motor can be used in transmission systems involving belts, pulleys, couplings, gears or lead screws. Its flange structure helps maintain alignment with the transmission parts during operation.
Automation Equipment
88ZYT brushed DC motor is suitable for automation devices requiring controlled rotation, stable torque and repeatable assembly. Possible uses include feeding mechanisms, rotating platforms, compact conveyors and mechanical adjustment systems.
Customized OEM Replacement Projects
88ZYT brushed DC motor series can be used for replacement motor projects where the customer needs a similar voltage, speed, mounting interface or shaft design. Modar Motor can evaluate drawings and samples to support customized production.
Technical Specifications of 88mm 88ZYT Brushed DC Motor
The following technical data applies to the 88mm 88ZYT Brushed DC Motor.
Electrical Parameters
Rated voltage options: 12/24V etc.
Rated speed: 1700~3000rpm(customized)
Rated Torque: 0.25~1N.m(customized)
Output power range: 58~314W(customized)
Mechanical Parameters
Optional Configurations
![]()
Brushed DC Motor.pdf

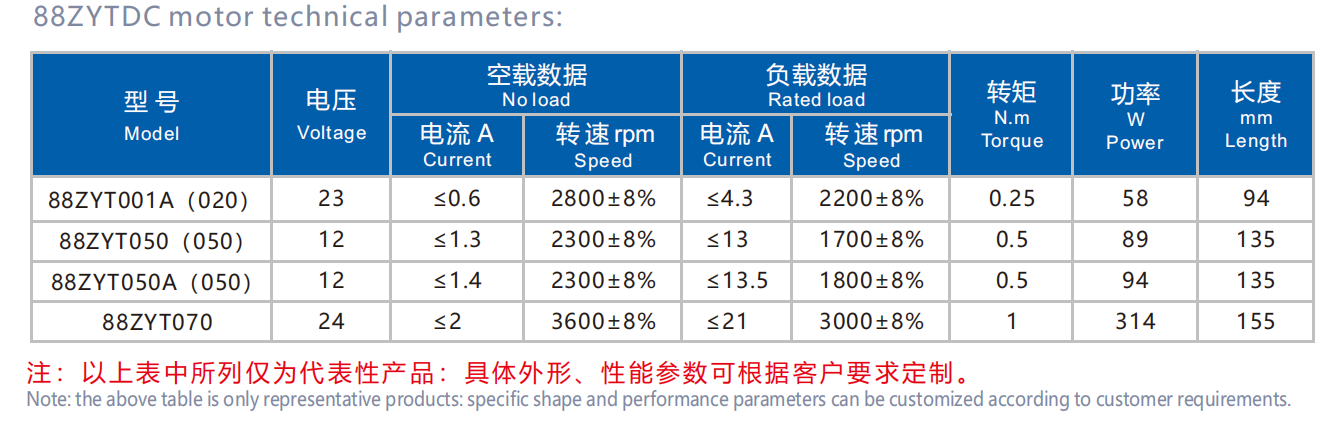

| Motor Characteristics |
![88ZYT brushed dc motor specification]( "88ZYT brushed dc motor specification") |

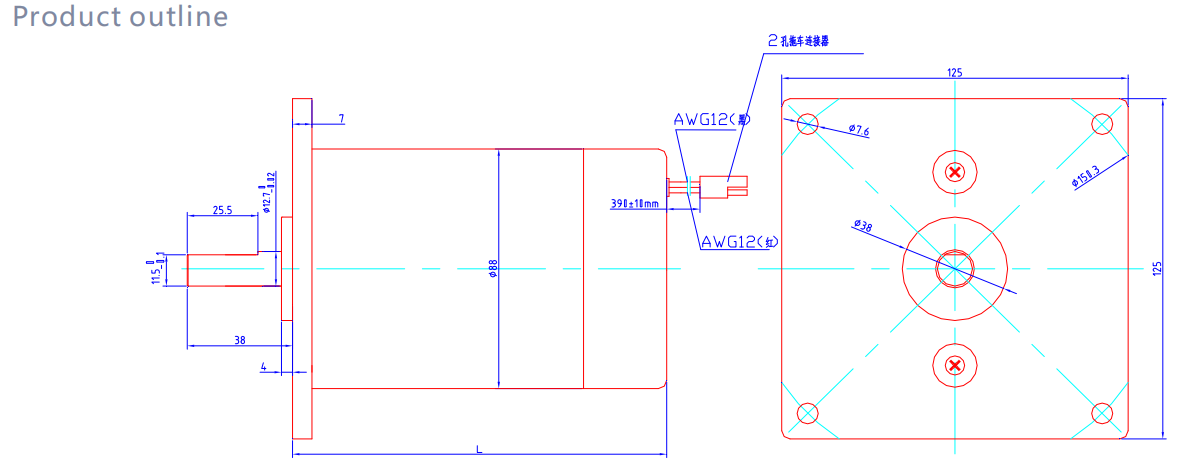

| 88ZYT brushed DC Motor Drawing |
![88ZYT brushed dc motor drawing]( "88ZYT brushed dc motor drawing") |

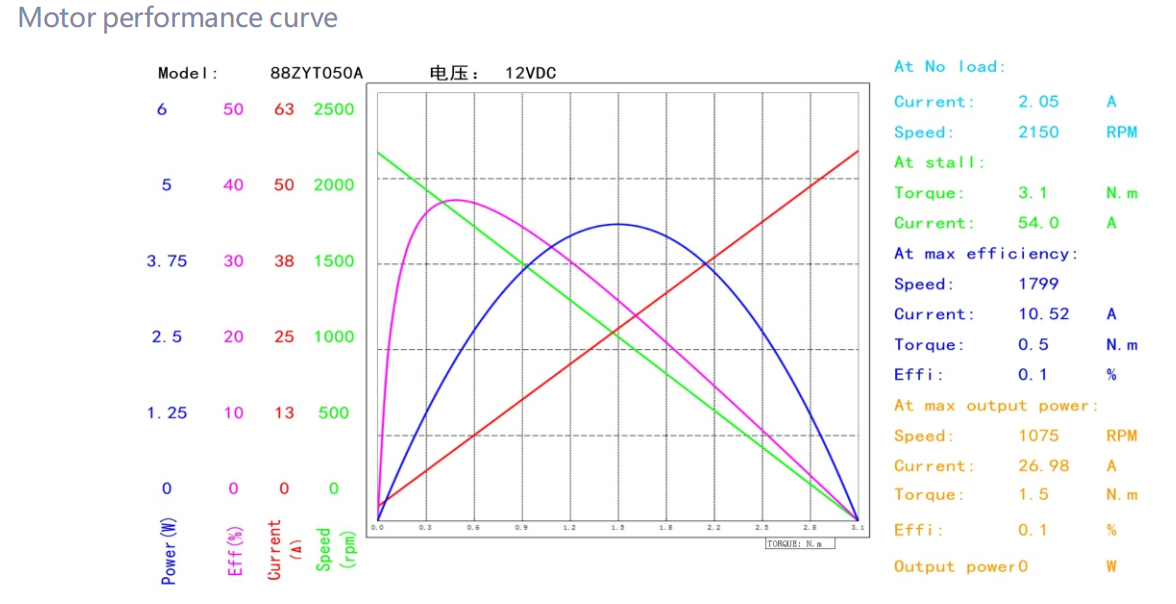

| 88ZYT Brushed DC Motor Performance Curve |
![88ZYT brushed dc motor performance curve]( "88ZYT brushed dc motor performance curve") |
FAQ – 88mm 88ZYT Brushed DC Motor
What is the 88ZYT brushed DC motor?
The 88ZYT brushed DC motor is a brushed DC motor with an 88mm body and square flange mounting structure. It is designed for pumps, actuators, commercial machinery, industrial drive modules and customized OEM equipment.
What voltage options are available for 88ZYT brushed DC motor series?
The representative models include 12V DC, 23V DC and 24V DC options. Other voltage requirements may be evaluated according to application needs and order quantity.
What is the rated torque range?
According to the listed technical data, the rated torque range is approximately 0.25N·m to 1.0N·m. The 24V model provides the highest listed torque.
What is the rated power range?
The representative rated power range is approximately 58W to 314W, depending on voltage, speed and selected model.
What is the difference between 88ZYT brushed DC motor and 88ZYN motors?
The 88ZYT brushed DC motor series uses a square flange mounting structure, making it suitable for equipment requiring firm positioning and clear installation holes. The 88ZYN series is more focused on a compact cylindrical structure with low-voltage high-output performance. The better choice depends on mounting space, voltage, torque and equipment design.
Is the 88ZYT brushed DC motor suitable for pump applications?
Yes. 88ZYT brushed DC motor can be used in pump drive systems where stable torque and secure installation are required. Customers should provide pump pressure, flow rate, working speed, medium type and duty cycle for accurate selection.
Can the square flange be customized?
Yes. Modar Motor can customize the flange size, mounting holes, locating boss and front cover structure according to customer drawings or samples.
Can the output shaft be customized?
Yes. Shaft length, diameter, D-cut, flat shaft, threaded shaft, keyway and special shaft structures can be customized according to the customer’s mechanical design.
Can 88ZYT brushed DC motor run continuously?
Continuous operation depends on load, current, cooling condition, temperature rise and duty cycle. For long-time operation, Modar Motor can help evaluate whether the selected motor is suitable.
What information should I provide for a quotation?
Please provide voltage, target speed, required torque, shaft drawing, mounting dimensions, load type, duty cycle, current limit, controller information, working environment and expected quantity.
Does Modar Motor support OEM customization?
Yes. Modar Motor supports OEM and ODM customization for 88ZYT brushed DC motor, including voltage, speed, torque, shaft, square flange, cable, connector, rotation direction and performance parameters.
