76mm 76ZYT Brushed DC Motor – Product Overview

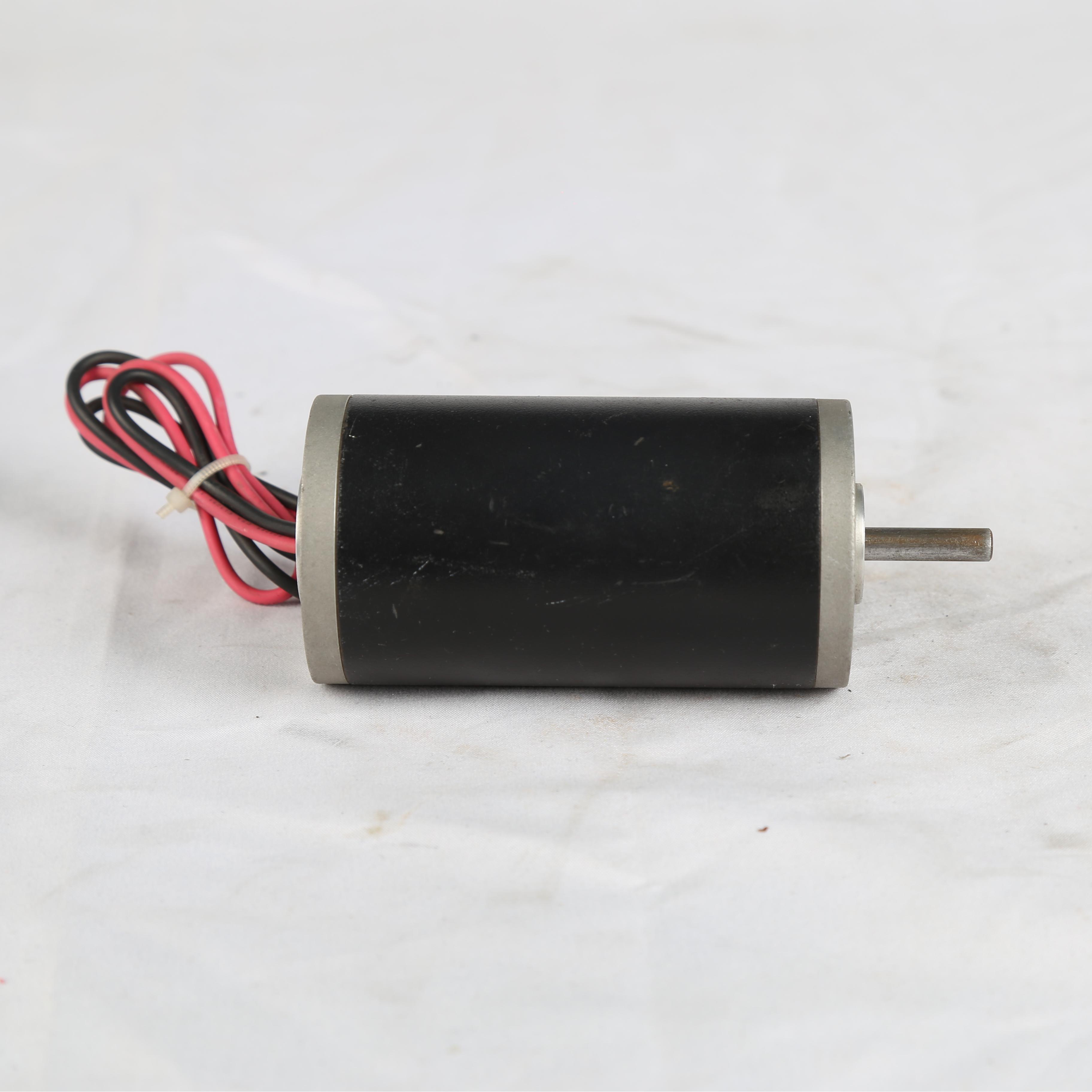

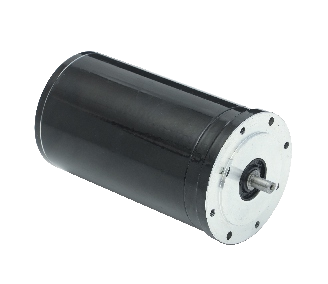

![76ZYT]( "76ZYT")

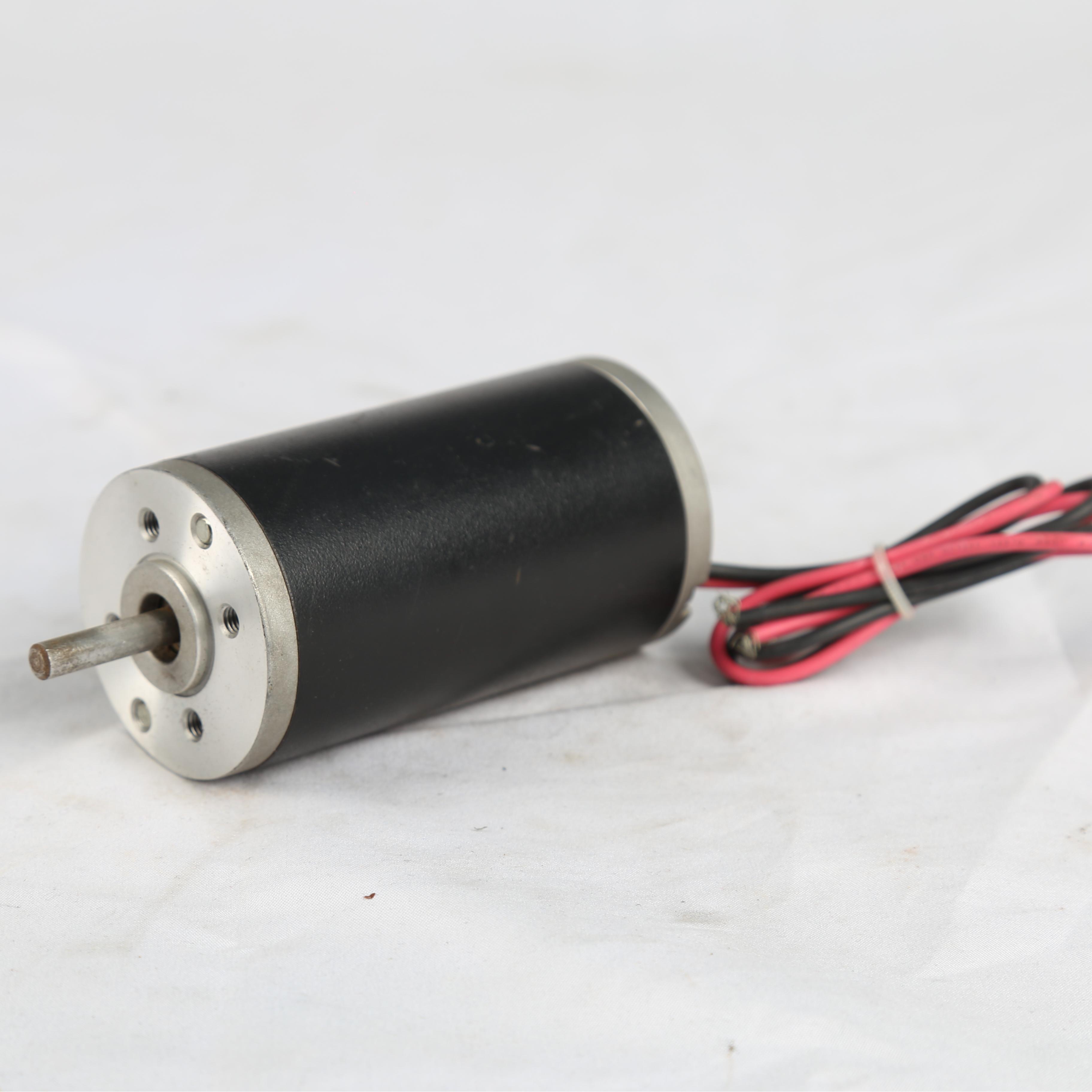

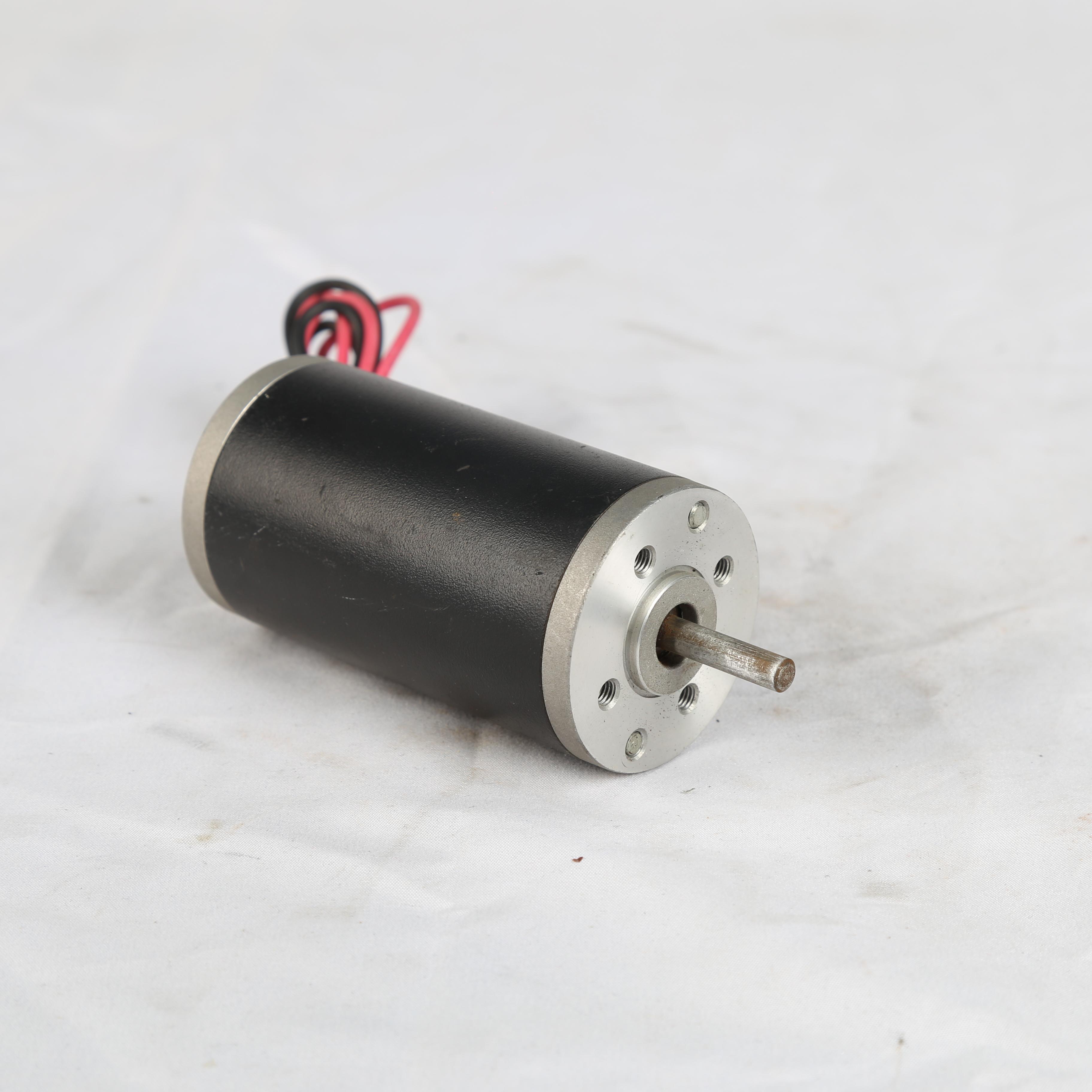

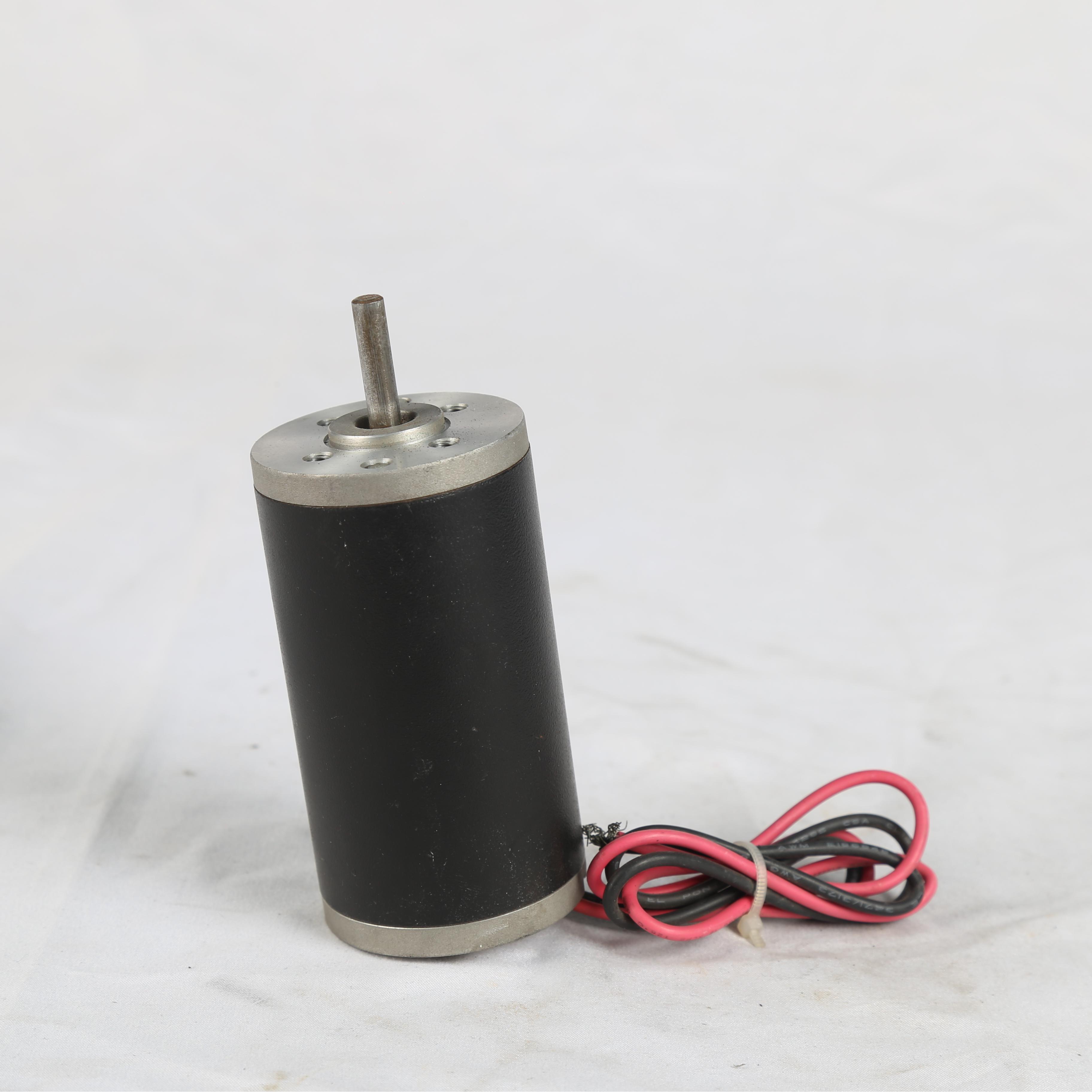

76mm Brushed DC Motor for High-Power Applications
The 76ZYT brushed DC motor is developed for drive systems that require stronger mechanical output than standard compact DC motors. Its larger 76mm frame allows the motor to provide higher torque and power while maintaining a practical structure for equipment integration.
This series is especially suitable for OEM products that need a dependable motor for heavier loads, repeated operation or higher starting torque. It can be used with gearboxes, pulleys, belts, couplings, pump heads, lead screws or customer-designed transmission assemblies.
For equipment manufacturers, the 76ZYT series provides a useful motor platform when the application requires more power reserve, better load capacity and a more robust mounting structure.
24V and 100V DC Options for Different Electrical Platforms
The representative product table includes both 24V DC and 100V DC models. This gives customers flexibility when matching the motor with different power supply systems and controllers.
24V DC Models for Common OEM Equipment
Most listed models are based on a 24V DC platform, which is widely used in automation equipment, actuator systems, pump devices and industrial control applications. These models provide different rated torque and power options, making them suitable for various load levels.
100V DC Models for Special High-Voltage Systems
The 100V DC options are suitable for equipment using a higher DC voltage platform. These models can be considered for special industrial systems, customized machinery or applications where a higher voltage supply is already available.

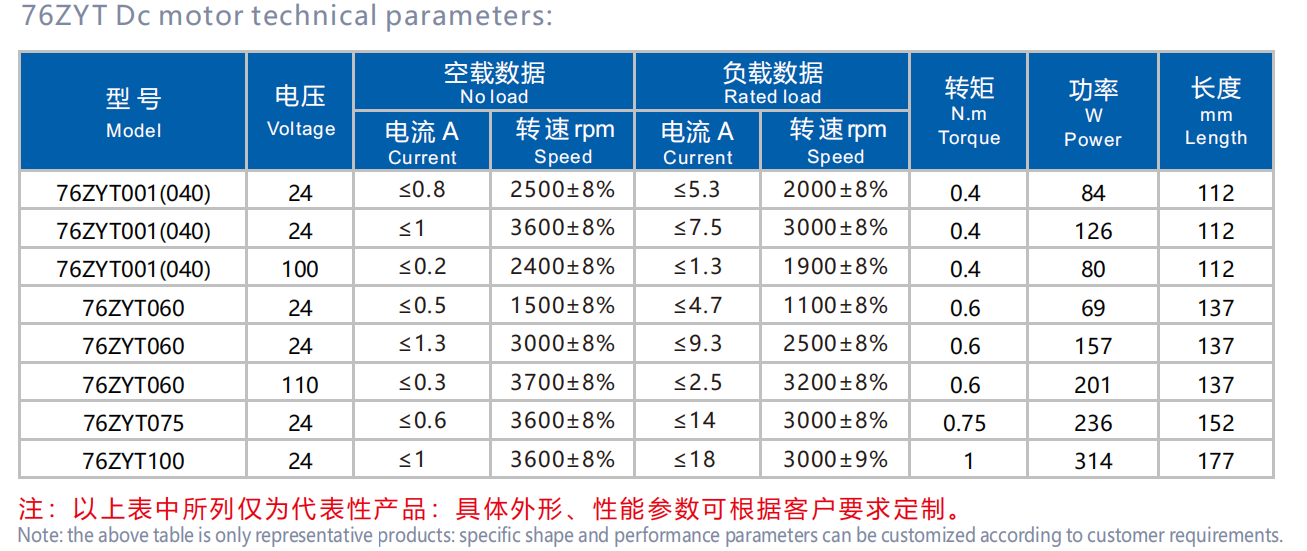

Representative Technical Parameters
76ZYT brushed DC motor series includes several representative models, including 76ZYT001, 76ZYT060, 76ZYT075 and 76ZYT100. These models cover different power levels, torque ranges and motor lengths.
76ZYT001 for 0.4N·m Torque Applications
The 76ZYT001 model provides approximately 0.4N·m rated torque. According to the listed table, this model has different speed and power configurations, including 24V and 100V options. It is suitable for equipment requiring moderate-to-high torque in a 76mm motor frame.
76ZYT060 for 0.6N·m Medium-High Load Applications
The 76ZYT060 model provides approximately 0.6N·m rated torque. The listed versions include 24V and 110V configurations, with rated power from approximately 69W to 201W. This model is suitable for applications that need stronger load capacity while maintaining stable rated speed.
76ZYT075 for 0.75N·m Higher Torque Requirements
The 76ZYT075 model offers approximately 0.75N·m rated torque and around 236W rated power. It is suitable for heavier-duty drive systems, larger actuator mechanisms and equipment requiring stronger mechanical output.
76ZYT100 for Maximum Output in the Series
The 76ZYT100 model provides approximately 1.0N·m rated torque and around 314W rated power. It is the highest-output model shown in the representative table and is suitable for applications where strong torque and high power are required within a 76mm brushed DC motor platform.

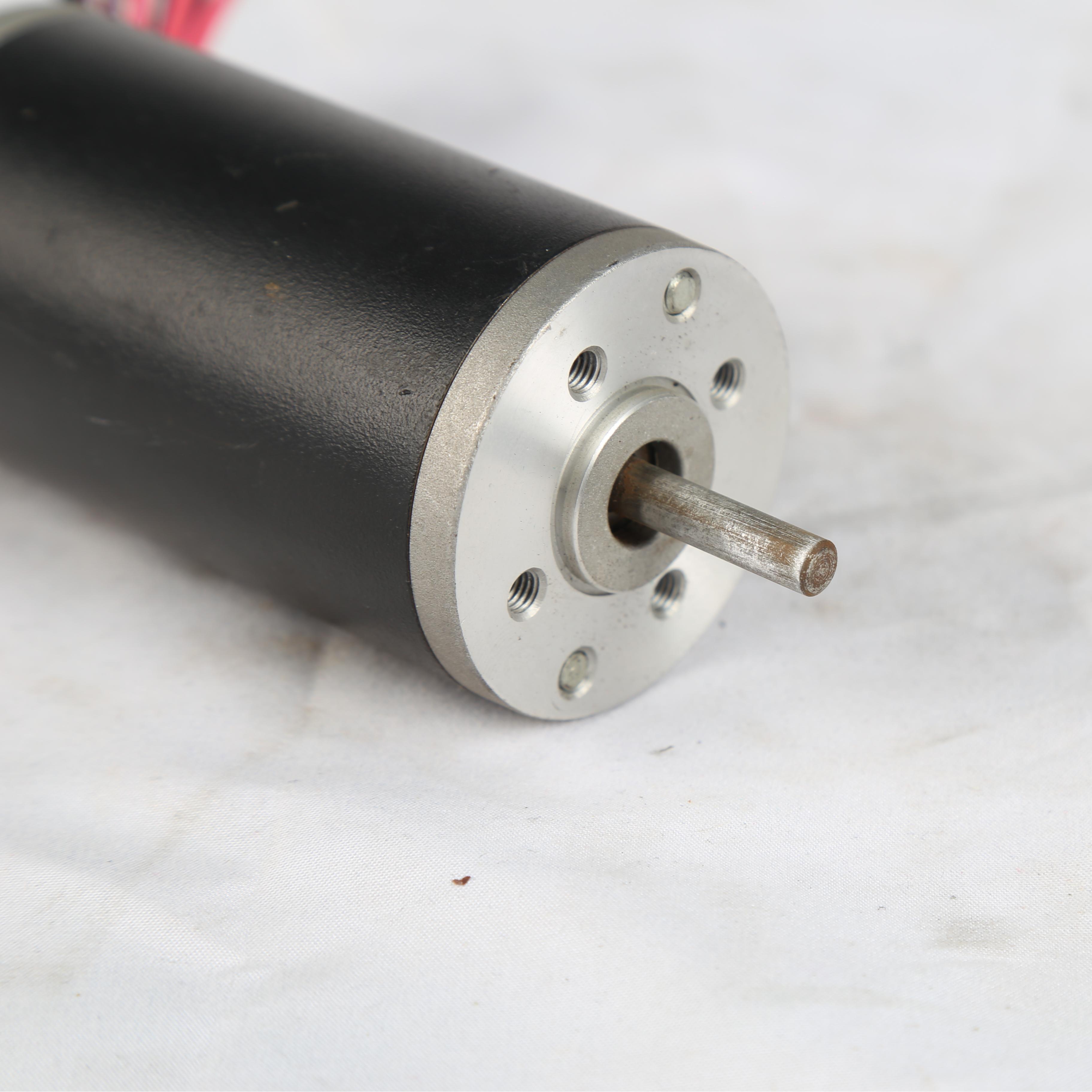

Square Flange Mounting for Stronger Mechanical Fixing
76ZYT brushed DC motor uses a square flange structure with a 76mm mounting interface. This design helps improve installation strength and alignment accuracy, especially in equipment where the motor must remain stable under load.
For heavy-duty OEM equipment, mounting stability is important. A stronger flange structure can help reduce vibration, improve alignment with transmission parts and support repeatable assembly during mass production. If the standard mounting interface does not match the customer's product, Modar Motor can evaluate customized flange, mounting hole and locating dimension requirements.
Engineering Selection Notes
Choose by Working Torque, Not Only No-Load Speed
For high-power brushed DC motors, no-load speed is only one reference point. The final motor should be selected according to the actual working torque, starting torque, current limit, rated speed, duty cycle and heat rise.
If the motor is selected too small, it may overheat or fail to provide enough output under load. If it is oversized, the equipment may have unnecessary cost, weight and current consumption. The 76ZYT series offers multiple torque and power levels, which helps engineers choose a better matched solution.
Consider Current and Controller Capacity
76ZYT brushed DC motor series includes models with relatively high rated current and stall current. For example, higher-power models require the controller and power supply to provide enough current during startup and load changes.
When selecting this motor, customers should confirm the controller current limit, cable capacity, protection setting and working environment. Modar Motor can support technical evaluation based on the customer’s actual system requirements.
Evaluate Heat Rise and Duty Cycle
High-power brushed DC motors generate heat during operation, especially under heavy load or frequent start-stop conditions. For continuous operation or long duty cycle applications, heat rise should be tested carefully.
Customers can provide working time, stop time, load torque, ambient temperature and cooling condition so that Modar Motor can recommend a suitable motor configuration or customization direction.
Customization Options
Shaft Customization
The output shaft can be customized to fit different transmission systems. Common options include round shaft, D-cut shaft, flat shaft, threaded shaft, keyway shaft, extended shaft, double shaft and special machined shaft.
This is useful when the motor needs to connect with gearboxes, couplings, pulleys, belts, lead screws, pump heads or customer-designed mechanical parts.
Mounting Interface Customization
The square flange, mounting holes, locating boss and front cover structure can be customized according to the customer's product design. This helps improve installation compatibility for new designs and replacement motor projects.
Voltage and Speed Customization
The representative models include 24V and 100V DC options. Other voltage and speed requirements may be evaluated based on the application, controller, power supply and expected quantity.
Cable and Connector Customization
Lead wire length, cable outlet direction, terminal type, connector model and wiring definition can be customized for easier installation and more consistent mass production.
Performance Curve Optimization
For OEM projects, Modar Motor can help adjust motor parameters according to the customer's target speed, working torque, current limit, duty cycle and temperature rise requirements. This helps improve product reliability in real operating conditions.
Key Product Advantages
High Rated Power up to Approximately 314W
76ZYT brushed DC motor series offers significantly higher power than smaller brushed DC motor platforms. With rated power options up to approximately 314W, it is suitable for equipment that requires stronger output capability and better load reserve.
Torque Range from 0.4N·m to 1.0N·m
76ZYT brushed DC motor series covers a practical torque range for medium-to-heavy-duty applications. Customers can choose a lower-torque model for compact drive systems or a higher-torque model for heavier mechanical loads.
Strong Square Flange for Industrial Installation
The square flange mounting structure improves mechanical stability and makes the motor easier to install in equipment housings, brackets and transmission modules.
Suitable for Higher Load OEM Equipment
76ZYT brushed DC motor can be used in equipment where smaller motors are not strong enough, such as industrial actuators, lifting mechanisms, pump systems and power transmission modules.
OEM Customization Support from Modar Motor
Modar Motor supports customized brushed DC motor development, including voltage, speed, torque, shaft, mounting structure, cable, connector and performance parameters. This helps OEM customers develop motors that better match their final equipment.
Typical Application of 76mm 76ZYT Brushed DC Motor
Heavy-Duty Electric Actuators
76ZYT brushed DC motor is suitable for electric actuator systems that require higher torque and stronger starting performance. It can be used in rotary actuators, lifting actuators, valve actuators, locking mechanisms and industrial movement systems.
For actuator projects, customers should evaluate rated load, peak load, duty cycle, limit position, controller current and heat rise before selecting the final model.
Pump Drive Systems
76ZYT brushed DC motor series can be used in pump applications that need stronger power output. It may be applied in circulation pumps, transfer pumps, cleaning equipment, spraying devices, pressure units and customized fluid drive systems.
For pump applications, motor selection should consider flow rate, pressure, medium viscosity, working speed, current limit and continuous running time.
Industrial Transmission Modules
76ZYT brushed DC motor can be integrated into industrial drive modules using belts, pulleys, couplings, gearboxes or lead screws. Its higher torque range makes it suitable for equipment that needs stable transmission under load.
Automation Equipment
The 76ZYT brushed DC motor can support automation systems requiring stronger drive capacity, such as feeding mechanisms, compact conveyors, rotating platforms, drive rollers, mechanical adjustment modules and auxiliary motion systems.
Lifting and Adjustment Mechanisms
76ZYT brushed DC motor series can be used in lifting devices, electric adjustment mechanisms, smart machinery, electric furniture and mechanical positioning systems. Its higher torque options are useful when the mechanism needs to move heavier parts.
Customized OEM Power Units
Many customers use 76ZYT brushed DC motor as the core component of a customized power unit. The motor can be matched with customer-designed brackets, gearboxes, pump heads, controllers or mechanical transmission parts. Modar Motor can support sample evaluation and parameter optimization based on test feedback.
Technical Specifications of 76mm 76ZYT Brushed DC Motor
The following technical data applies to the 76mm 76ZYT Brushed DC Motor.
Electrical Parameters
Rated voltage options: 24/100/110V etc.
Rated speed: 1100~3200rpm(customized)
Rated Torque: 0.4~1N.m(customized)
Output power range: 69~314W(customized)
Mechanical Parameters
Optional Configurations
![]()
Brushed DC Motor.pdf
| Motor Characteristics |
![76ZYT brushed dc motor specification]( "76ZYT brushed dc motor specification") |

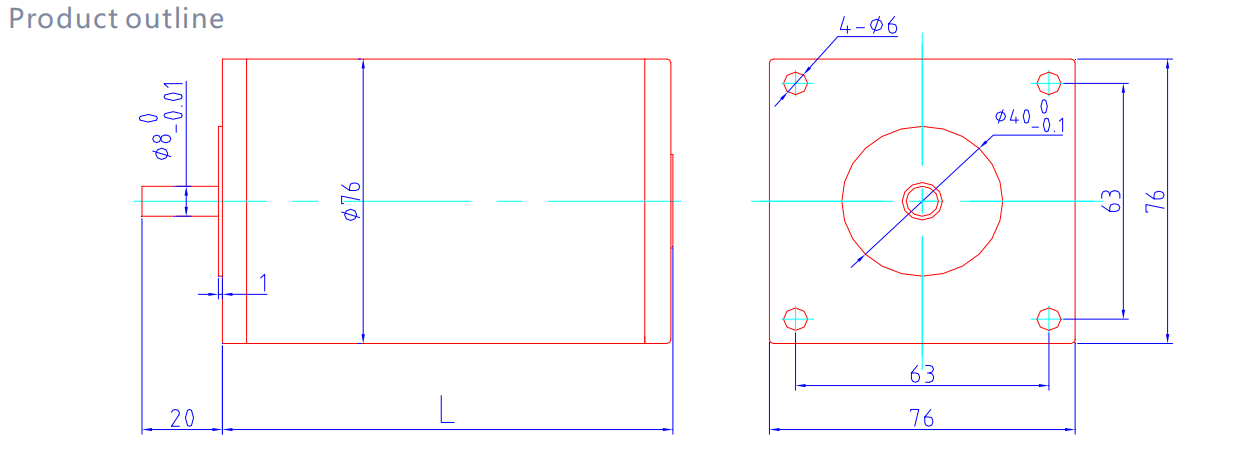

| 76ZYT brushed DC Motor Drawing |
![76ZYT brushed dc motor drawing]( "76ZYT brushed dc motor drawing") |

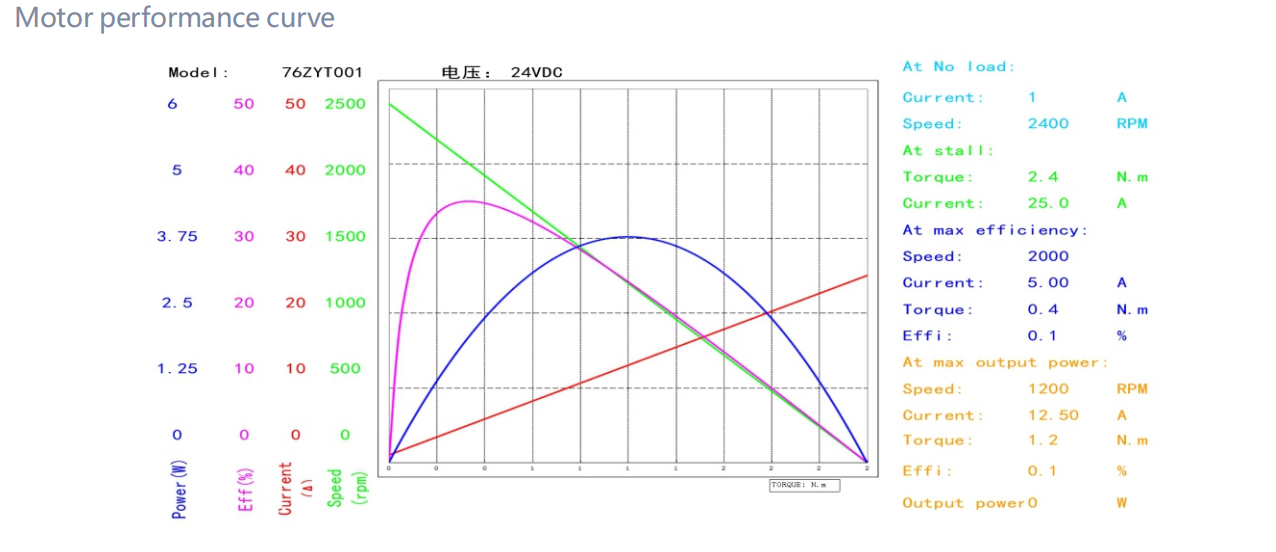

| 76ZYT Brushed DC Motor Performance Curve |
![76ZYT brushed dc motor performance curve]( "76ZYT brushed dc motor performance curve") |
FAQ – 76mm 76ZYT Brushed DC Motor
What is the 76ZYT brushed DC motor?
The 76ZYT brushed DC motor is a high-power brushed DC motor designed for OEM equipment requiring strong torque, stable speed and reliable mechanical installation. It is suitable for actuators, pumps, industrial transmission modules, automation equipment and customized drive systems.
What voltage options are available for the 76ZYT brushed DC motor series?
The representative table includes 24V DC and 100V DC models. Other voltage requirements may be evaluated according to the customer's application, controller and order quantity.
What is the rated torque range of 76ZYT brushed DC motor?
According to the listed technical data, the rated torque range is approximately 0.4N·m to 1.0N·m. The final torque depends on model selection, voltage, speed, winding design and load condition.
What is the rated power range?
The representative rated power range is approximately 69W to 314W. The 76ZYT100 model provides the highest listed rated power and torque.
What makes 76ZYT brushed DC motor different from 70ZYT or 73ZYT motors?
The 76ZYT brushed DC motor series provides a larger 76mm frame, stronger torque range and higher rated power. It is better suited for heavier-duty OEM applications where smaller 70mm or 73mm motors may not provide enough power or torque.
Is 76ZYT brushed DC motor suitable for heavy-duty actuators?
Yes. 76ZYT brushed DC motor is suitable for actuator systems that require strong torque, stable operation and reliable mounting. Customers should provide load torque, peak torque, working cycle and installation requirements for accurate selection.
Can the output shaft be customized?
Yes. Modar Motor can customize shaft length, diameter, flat shaft, D-cut shaft, threaded shaft, keyway shaft, extended shaft or special shaft structures according to customer drawings or samples.
Can the square flange be customized?
Yes. The flange size, mounting holes, locating diameter and front cover design can be customized for OEM projects or replacement motor applications.
Can 76ZYT brushed DC motor run continuously?
Continuous operation depends on working load, rated current, heat rise, cooling condition and duty cycle. For long-time operation, Modar Motor can help evaluate whether a standard motor or customized design is more suitable.
What information should I provide for a quotation?
Please provide voltage, target speed, required torque, peak load, shaft drawing, mounting dimensions, working cycle, current limit, controller information, operating environment and expected quantity.
Does Modar Motor support OEM customization?
Yes. Modar Motor supports OEM and ODM customization for 76ZYT DC motors, including voltage, speed, torque, shaft, mounting interface, cable, connector, rotation direction and performance curve adjustment.
