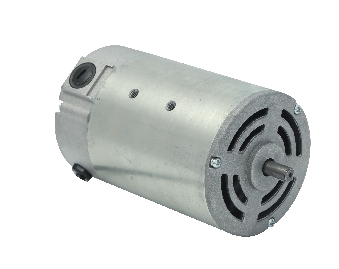

83mm 83ZYT Brushed DC Motor – Product Overview
![83ZYT]( "83ZYT")
High-Speed Brushed DC Motor for Fixed Equipment Platforms
The A83ZYT DC motor is designed for applications that require relatively high operating speed and stable output under a higher-voltage DC platform. Compared with low-voltage high-current motors, the A83ZYT series can achieve strong performance with lower current levels, especially in 110V and 220V DC systems.
This makes it a suitable motor platform for fixed equipment, industrial machines and commercial devices where a high-voltage DC supply is already available. The motor can be connected with pulleys, belts, couplings, pump heads, rollers, fans, gearboxes or customer-designed transmission systems.
110V and 220V DC Options for Industrial Integration
The representative models include both 110V DC and 220V DC versions. This gives OEM customers more flexibility when matching the motor with different control systems and power supply platforms.
110V DC Models for Medium-Voltage Equipment
The 110V models are suitable for equipment that requires stable speed and moderate current levels. These models can be considered for commercial machines, industrial modules and special DC-powered systems.
220V DC Models for High-Voltage Drive Systems
The 220V models are suitable for fixed industrial equipment or commercial machinery using a high-voltage DC power system. Compared with low-voltage motors, higher voltage models can reduce current demand for similar power levels, which may help simplify wiring and controller design in certain equipment.
Representative Technical Parameters
The A83ZYT series includes several representative models, such as A83ZYT001, A83ZYT002, A83ZYT004, A83ZYT005, A83ZYT006, B83ZYT001, B83ZYT002 and B83ZYT005. These models provide different combinations of voltage, speed, torque, power and motor length.
A83ZYT001 and A83ZYT002 for 262W High-Speed Output
The A83ZYT001 and A83ZYT002 models provide approximately 0.5N·m rated torque and around 262W rated power. The A83ZYT001 model operates on 220V DC, while A83ZYT002 operates on 110V DC. Both are suitable for high-speed equipment requiring rated speed around 5000rpm.
A83ZYT004 for Higher Speed 220V Applications
The A83ZYT004 model operates on 220V DC and provides approximately 0.5N·m rated torque, around 288W rated power and rated speed around 5500rpm. It is suitable for applications requiring slightly higher speed while maintaining stable torque output.
A83ZYT005 for Stronger 0.8N·m Output
The A83ZYT005 model provides approximately 0.8N·m rated torque, rated speed around 4500rpm and rated power around 377W. This model is suitable for equipment that requires more torque while still maintaining a relatively high operating speed.
A83ZYT006 for Maximum Listed Power
The A83ZYT006 model provides approximately 0.8N·m rated torque, rated speed around 6300rpm and rated power up to approximately 528W. It is the highest listed power option in the representative table and can be considered for demanding high-speed drive applications.
B83ZYT Series for Longer Body Configurations
The B83ZYT series includes models with longer body lengths, such as B83ZYT001, B83ZYT002 and B83ZYT005. These models provide rated torque from approximately 0.5N·m to 0.8N·m, with rated power from approximately 262W to 377W. They are suitable for OEM equipment where a longer housing and stable output structure are required.
Ventilated End Cover Structure for Heat Management
From the product outline drawing, the A83ZYT series uses a rear end cover structure with ventilation slots. This type of design is helpful for improving air circulation around the motor, especially in applications where the motor operates at higher speed or higher power.
For OEM equipment, heat management is an important factor. Even when the motor parameters are suitable, the final performance still depends on load condition, installation environment, cooling space and duty cycle. Modar Motor can help evaluate whether the selected model is suitable for the customer’s working conditions.
Engineering Selection Notes
Match Speed with the Actual Transmission Design
The A83ZYT series offers relatively high rated speeds, generally around 4500rpm to 6300rpm. When selecting this motor, engineers should confirm whether the connected transmission system can safely operate at the target speed.
For belt drives, pump heads, rollers and rotating mechanisms, the final working speed may need to be adjusted through pulleys, gear reduction or controller settings. Selecting the right motor speed can improve performance and reduce unnecessary vibration or wear.
Confirm Voltage and Controller Compatibility
Because the A83ZYT series includes 110V and 220V DC options, customers should confirm controller voltage, current rating, insulation requirements and safety design before final motor selection.
High-voltage DC motors should be matched with suitable control and protection systems. For replacement projects, it is also important to compare the original motor voltage, speed, mounting dimensions and shaft structure.
Evaluate Duty Cycle and Temperature Rise
High-speed brushed DC motors may generate heat during continuous operation, especially under heavy load. Customers should evaluate working time, stop time, ambient temperature, ventilation and installation space.
For continuous or long-duty applications, Modar Motor can help evaluate temperature rise and recommend suitable customization if needed.
Customization Options
Shaft Customization
The motor shaft can be customized according to the customer’s mechanical connection method. Options may include round shaft, D-cut shaft, flat shaft, threaded shaft, keyway shaft, extended shaft, double shaft or special machined shaft.
This helps the motor connect with pulleys, belts, couplings, fans, pump impellers, rollers or customized transmission parts.
Mounting Interface Customization
The front cover, mounting holes, locating diameter and installation interface can be adjusted according to customer drawings. This is useful for OEM projects where the motor must fit an existing housing, bracket or machine frame.
Voltage, Speed and Torque Customization
Although the representative models are based on 110V and 220V DC, Modar Motor can evaluate customized voltage, speed and torque requirements according to the customer’s application and order quantity.
Cable and Connector Customization
Lead wire length, cable outlet direction, terminal type, connector model and wiring definition can be customized to simplify production assembly and improve wiring consistency.
Motor Length and Performance Configuration
The A83ZYT and B83ZYT models provide different motor lengths and output levels. Customers can choose a shorter body for compact installation or a longer body for stronger performance and higher torque requirements.
Key Product Advantages
High-Speed Output for Industrial Drive Systems
The A83ZYT series is suitable for applications that require higher rated speed than typical low-speed brushed DC motors. With rated speeds up to approximately 6300rpm, it can support transmission systems, rotating mechanisms and commercial equipment requiring faster motion.
110V and 220V DC Voltage Platforms
The series supports higher-voltage DC systems, making it suitable for fixed equipment and industrial applications where 110V or 220V DC power is used.
Rated Power up to Approximately 528W
With rated power options up to approximately 528W, the A83ZYT series provides strong output capacity for demanding equipment while maintaining an 83mm motor frame.
Ventilated Rear Cover for Better Airflow
The ventilated end cover design supports airflow around the motor, which can help with heat management in suitable installation environments.
OEM Customization Support from Modar Motor
Modar Motor supports customized brushed DC motor development, including voltage, speed, torque, shaft, mounting structure, cable, connector and performance curve adjustment for OEM customers.
Typical Application of 83mm 83ZYT Brushed DC Motor
High-Speed Industrial Drive Modules
The A83ZYT motor can be used in industrial drive modules that require stable high-speed rotation. It can be connected with belts, pulleys, couplings, rollers or gear systems according to the customer’s mechanical design.
Commercial Machinery
Commercial equipment often needs motors that can provide stable speed and reliable output for repeated operation. The A83ZYT series can be used in cleaning machines, vending equipment, packaging machines, office devices, display machines and service equipment.
Pump and Fluid Equipment
The A83ZYT series can be applied in pump-related equipment where high-speed rotation and stable torque are required. For pump applications, customers should provide pressure, flow rate, medium type, speed requirement and duty cycle for accurate motor selection.
Rotating Mechanisms and Transmission Systems
This motor can be used in rotating platforms, rollers, belt-driven systems, mechanical transmission units and custom drive assemblies. Its high-speed output makes it suitable for applications where rotation speed is a key requirement.
Fixed Equipment with 110V or 220V DC Supply
The A83ZYT series is suitable for fixed equipment using 110V or 220V DC power. These applications may include industrial machines, commercial devices and special equipment platforms that require high-voltage DC motor operation.
Customized OEM Power Units
Many OEM customers use the A83ZYT motor as the main drive component inside a customized power unit. Modar Motor can support shaft customization, mounting adjustment, wiring design and sample testing according to customer requirements.
Technical Specifications of 83mm 83ZYT Brushed DC Motor
The following technical data applies to the 83mm 83ZYT Brushed DC Motor.
Electrical Parameters
Rated voltage options: 110/220V etc.
Rated speed: 4500~6300rpm(customized)
Rated Torque: 0.5~0.8N.m(customized)
Output power range: 262~528W(customized)
Mechanical Parameters
Optional Configurations
![]()
Brushed DC Motor.pdf

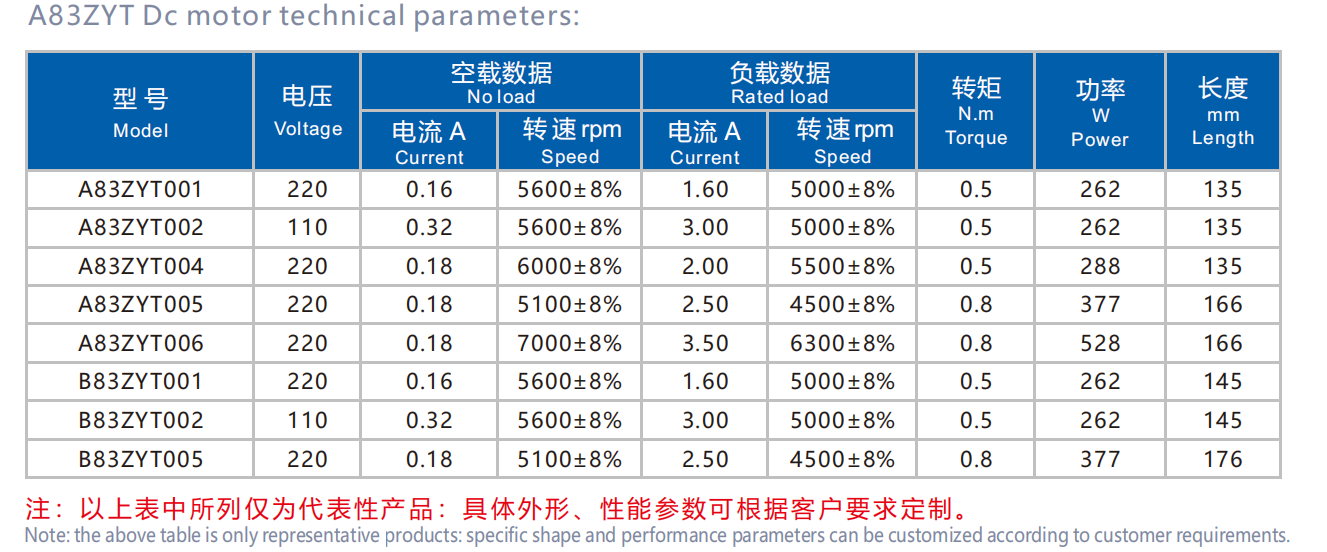

| Motor Characteristics |
![83ZYT brushed dc motor specification]( "83ZYT brushed dc motor specification") |

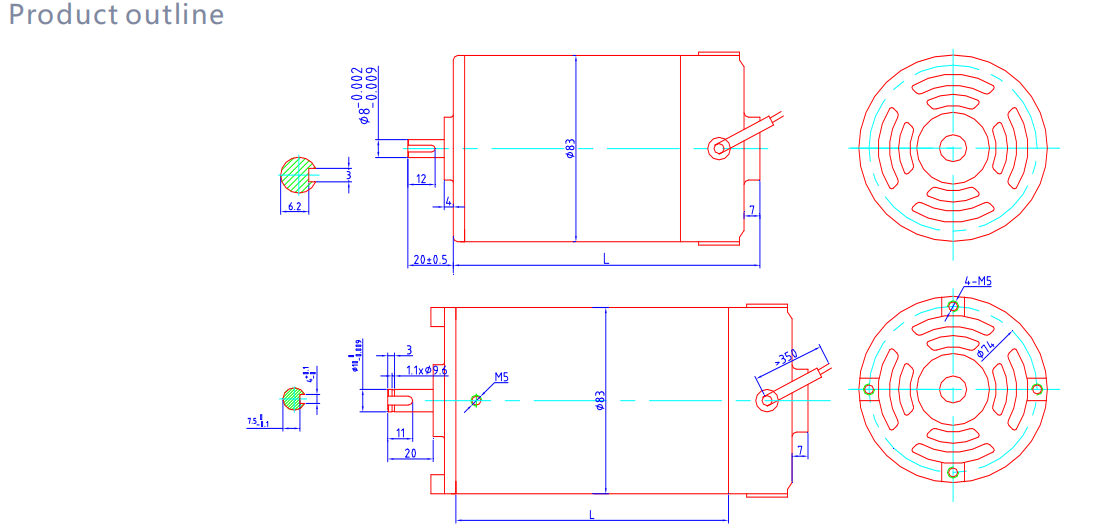

| 83ZYT brushed DC Motor Drawing |
![83ZYT brushed dc motor drawing]( "83ZYT brushed dc motor drawing") |

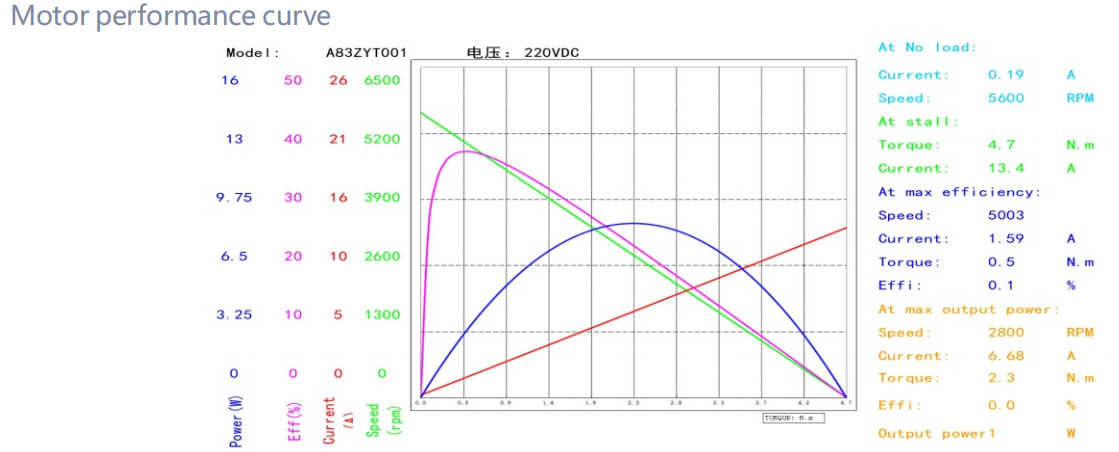

| 83ZYT Brushed DC Motor Performance Curve |
![83ZYT brushed dc motor performance curve]( "83ZYT brushed dc motor performance curve") |
FAQ – 83mm 83ZYT Brushed DC Motor
What is the 83ZYT brushed DC motor?
The 83ZYT brushed DC motor is a high-speed brushed DC motor designed for industrial and commercial OEM equipment. It is suitable for high-speed drive modules, pumps, rotating mechanisms, fixed equipment and customized power units.
What voltage options are available for 83ZYT brushed DC motor series?
The representative models include 110V DC and 220V DC options. These higher-voltage platforms are suitable for fixed equipment and industrial applications that require stable output with moderate current levels.
What is the rated torque range?
According to the listed technical data, the rated torque range is approximately 0.5N·m to 0.8N·m. The final torque depends on the selected model, speed, motor length and application load.
What is the rated power range?
The representative rated power range is approximately 262W to 528W. The 83ZYT brushed DC motor model provides the highest listed power in this series.
What is the rated speed range of 83ZYT brushed DC motor?
The listed rated speeds range from approximately 4500rpm to 6300rpm. This makes the 83ZYT brushed DC motor series suitable for high-speed applications compared with many low-speed brushed DC motors.
Is 83ZYT brushed DC motor suitable for continuous operation?
Continuous operation depends on load, current, temperature rise, cooling condition and duty cycle. For long-time operation, Modar Motor can help evaluate the working point and suggest a suitable model or customized design.
Can the shaft be customized?
Yes. Modar Motor can customize shaft length, diameter, D-cut, flat shaft, threaded shaft, keyway, extended shaft, double shaft or other special shaft structures according to customer drawings or samples.
Can the mounting structure be customized?
Yes. The mounting holes, locating diameter, front cover, rear cover and installation interface can be customized for OEM projects or replacement motor applications.
What information should I provide for a quotation?
Please provide voltage, target speed, required torque, load type, shaft drawing, mounting dimensions, duty cycle, controller information, operating environment and expected annual quantity.
Does Modar Motor support OEM and ODM customization?
Yes. Modar Motor supports OEM and ODM customization for A83ZYT DC motors, including voltage, speed, torque, shaft, mounting interface, cable, connector, rotation direction and performance parameters.
