82mm 82ZYT Brushed DC Motor – Product Overview

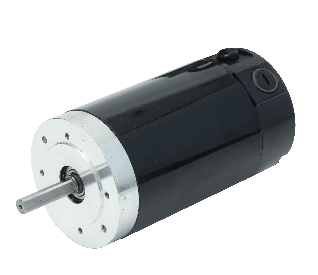

![82ZYT]( "82ZYT")
82mm Brushed DC Motor for Stable Equipment Drive
The 82ZYT brushed DC motor is designed for applications that need a larger brushed DC motor platform with stable running performance. Its 82mm frame provides a stronger body structure and a more robust installation base than smaller motor series, making it suitable for equipment that needs steady operation rather than ultra-compact size.
82ZYT brushed DC motor can be integrated into pump systems, transmission modules, commercial equipment, industrial machines, automation devices and customized drive assemblies. It can also be matched with gearboxes, couplings, pulleys, pump heads, rollers or other customer-designed mechanical components.
Multi-Voltage Design: 12V, 24V and 220V DC
A key feature of the 82ZYT brushed DC motor series is its wide voltage coverage. The representative table includes 12V DC, 24V DC and 220V DC motor options, allowing customers to choose a suitable model based on their power system and controller design.
12V DC Models for Low-Voltage Drive Systems
The 12V versions are suitable for low-voltage equipment, battery-powered systems, compact commercial devices and DC power platforms requiring stable output. These models are useful when the customer wants a larger motor frame while keeping the power supply at a lower voltage.
24V DC Model for Industrial and OEM Applications
The 24V model is suitable for automation equipment, industrial control devices, commercial machines and pump systems. Since 24V DC is commonly used in many OEM electrical systems, this version is easy to integrate into standard control platforms.
220V DC Models for Fixed Equipment Platforms
The 220V versions are suitable for fixed equipment or special DC systems where a higher voltage platform is required. These models provide lower current operation compared with low-voltage motors at similar power levels, which can be useful for certain equipment designs.
Representative Technical Parameters
The 82ZYT brushed DC motor series includes several representative models, including 82ZYT001, 82ZYT002D, B82ZYT001, B82ZYT001A, B82ZYT001B, B82ZYT001C and C82ZYT001. These models provide different voltage, torque, power, speed and motor length options.
82ZYT001 for 220V Low-Speed Operation
The 82ZYT001 model operates on 220V DC. According to the representative table, it provides approximately 0.4N·m rated torque, around 1000rpm rated speed and approximately 42W rated power. It is suitable for fixed equipment requiring stable low-speed output.
82ZYT002D for Higher Torque 220V Applications
The 82ZYT002D model is also a 220V DC version. It provides approximately 0.7N·m rated torque, around 1200rpm rated speed and approximately 88W rated power. This model is suitable for applications requiring higher torque under a high-voltage DC platform.
B82ZYT001 Series for 12V Equipment
The B82ZYT001 series includes several 12V DC models with rated torque around 0.2N·m and rated speeds from approximately 2300rpm to 3000rpm. These models are suitable for low-voltage equipment that requires an 82mm motor body with moderate torque and stable speed.
C82ZYT001 for 24V Medium-Power Drive
The C82ZYT001 model operates on 24V DC, with rated torque around 0.4N·m, rated speed approximately 2500rpm and rated power around 105W. This model is suitable for OEM applications that require higher power within a standard 24V DC platform.
Stable Output for Fixed and Commercial Equipment
The 82ZYT brushed DC motor series is well suited for equipment where stable output and installation reliability are more important than high-speed operation. For example, commercial machines, pump systems, industrial modules and fixed devices often require consistent speed, controlled current and reliable performance over repeated working cycles.
The motor performance curve can help engineers evaluate speed, torque, current, efficiency and power. When selecting an 82ZYT model, customers should consider actual load torque, starting condition, duty cycle, controller capacity, temperature rise and installation environment.
Engineering Selection Notes
Select Voltage According to the Equipment Platform
Because 82ZYT brushed DC motor series includes 12V, 24V and 220V options, voltage selection should be based on the existing power system, safety requirements, controller design and current capacity. Low-voltage models are easier to match with battery or DC power systems, while 220V models are more suitable for fixed equipment using a high-voltage DC platform.
Check Rated Speed Under Load
No-load speed should not be used as the only selection reference. The rated speed under load is more important for real equipment operation. Customers should compare the target working speed with the rated speed and confirm whether the motor can maintain the required performance under actual load.
Evaluate Heat Rise and Duty Cycle
For commercial and industrial equipment, motor temperature rise and duty cycle are important. If the motor runs for long periods, the working current and heat dissipation condition should be reviewed carefully. Modar Motor can help evaluate the suitable working point based on the customer's test conditions.
Customization Options
Shaft Customization
The output shaft can be customized to match different mechanical connections. Common options include round shaft, D-cut shaft, flat shaft, threaded shaft, keyway shaft, extended shaft, double shaft or special machined shaft.
Mounting Structure Customization
The motor front cover, mounting holes, locating diameter and installation interface can be adjusted according to customer drawings. This is useful for new OEM design projects and replacement motor applications.
Voltage, Speed and Torque Customization
Modar Motor can evaluate customized voltage, speed and torque requirements according to the final application. Customers can provide target speed, working torque, current limit and duty cycle for technical review.
Cable and Connector Customization
Lead wire length, cable outlet direction, terminal type, connector model and wiring definition can be customized to simplify final assembly and improve batch production consistency.
Performance Matching for OEM Projects
For customized equipment, Modar Motor can help match the motor performance curve with the customer’s real working load. This helps reduce the risk of insufficient torque, overheating or poor efficiency during actual operation.
Key Product Advantages
82mm Large Frame for Stable Installation
The 82ZYT brushed DC motor series provides a larger motor frame than many compact brushed DC motors. This helps improve installation stability and makes it suitable for equipment with more demanding mechanical structures.
Wide Voltage Coverage
With 12V, 24V and 220V DC options, the 82ZYT brushed DC motor series can support different electrical platforms. This makes the product useful for both low-voltage mobile systems and fixed high-voltage equipment.
Suitable for Low-Speed and Medium-Speed Output
The listed rated speeds range from around 1000rpm to 3000rpm, making this series suitable for applications that require stable low-speed or medium-speed output.
Practical Torque for Commercial and Industrial Use
With rated torque options from approximately 0.2N·m to 0.7N·m, the 82ZYT series can support pump systems, mechanical transmission units, adjustment mechanisms and commercial equipment.
OEM Customization Support from Modar Motor
Modar Motor supports customized brushed DC motor development, including voltage, speed, torque, shaft, mounting structure, wiring and connector options. This helps OEM customers develop a motor solution that better fits their final product.
Typical Application of 82mm 82ZYT Brushed DC Motor
Pump and Fluid Equipment
The 82ZYT brushed DC motor can be used in pump systems where stable speed and reliable torque are required. It is suitable for circulation pumps, transfer pumps, cleaning systems, fluid control modules and other pump-related equipment.
For pump selection, customers should provide working speed, pressure, flow rate, medium type, duty cycle and current limit for accurate motor matching.
Commercial Machinery
The 82ZYT brushed DC motor series can be applied in commercial machines requiring stable motor output, such as vending machines, cleaning equipment, packaging machines, office machines, display devices and service equipment.
In commercial equipment, customers usually care about reliability, noise, assembly consistency and stable supply. Modar Motor can support customization according to product structure.
Industrial Control Equipment
82ZYT brushed DC motor can be used in industrial control devices and auxiliary mechanisms that require controlled rotation and reliable mechanical performance. It may be integrated into adjustment modules, rotating units, compact drive assemblies and transmission mechanisms.
Fixed Equipment with High-Voltage DC Systems
The 220V DC models are suitable for fixed equipment where a high-voltage DC motor is required. These applications may include special industrial devices, commercial equipment or customized machinery with an existing 220V DC power platform.
Automation and Transmission Modules
The 82ZYT brushed DC motor can be used in automation equipment, drive rollers, compact conveyors, feeding mechanisms and rotating platforms. Its larger frame and flexible voltage options make it suitable for different OEM transmission designs.
Customized OEM Drive Units
Many OEM customers use 82ZYT brushed DC motor as the main drive component inside a customized unit. It can be combined with brackets, gearboxes, pulleys, couplings, pump heads or controllers. Modar Motor can support sample testing and parameter optimization based on customer feedback.
Technical Specifications of 82mm 82ZYT Brushed DC Motor
The following technical data applies to the 82mm 82ZYT Brushed DC Motor.
Electrical Parameters
Rated voltage options: 12/24/220V etc.
Rated speed: 1000~3000rpm(customized)
Rated Torque: 0.2~0.7N.m(customized)
Output power range: 42~105W(customized)
Mechanical Parameters
Optional Configurations
![]()
Brushed DC Motor.pdf

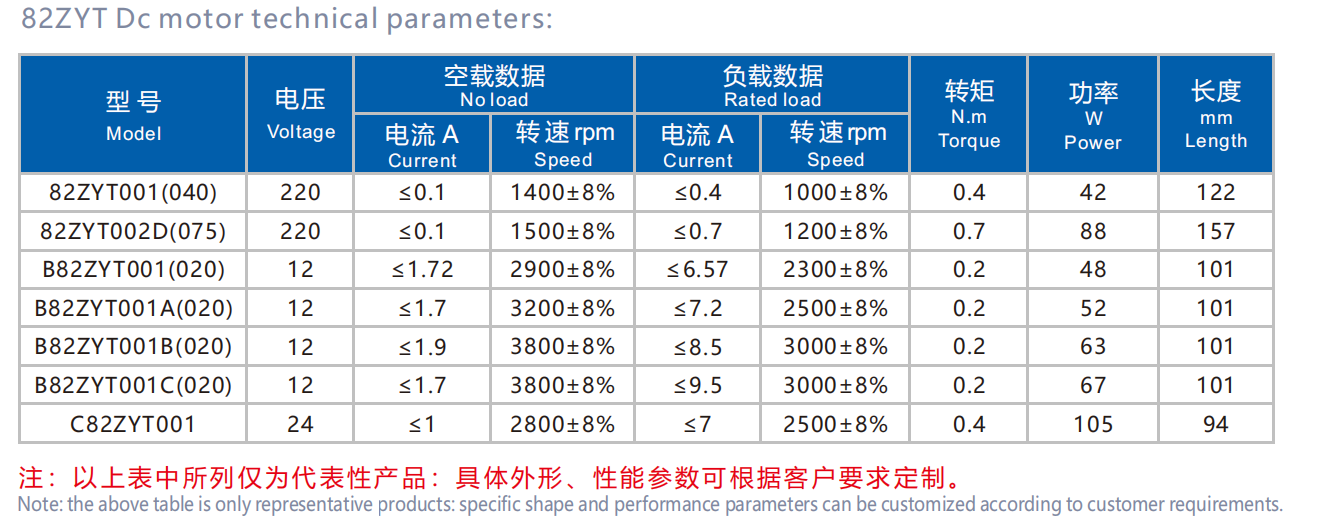

| Motor Characteristics |
![82ZYT brushed dc motor specification]( "82ZYT brushed dc motor specification") |

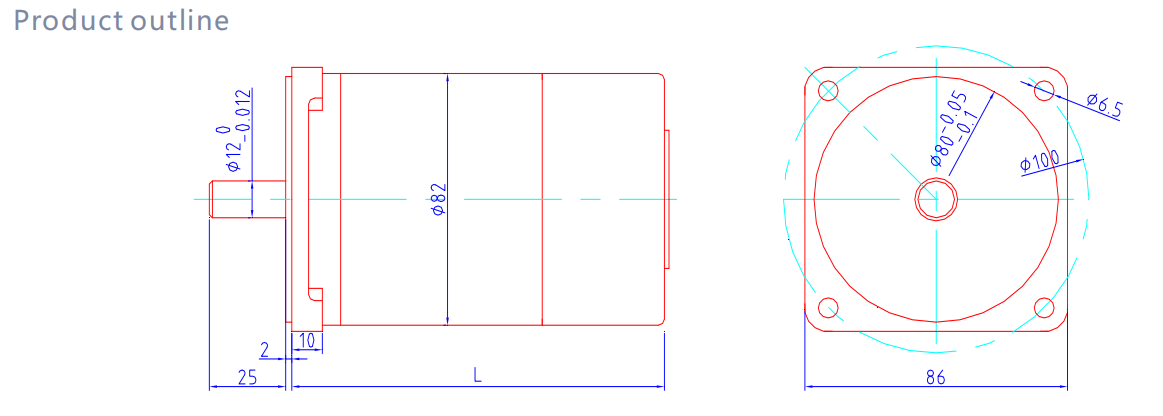

| 82ZYT brushed DC Motor Drawing |
![82ZYT brushed dc motor drawing]( "82ZYT brushed dc motor drawing") |

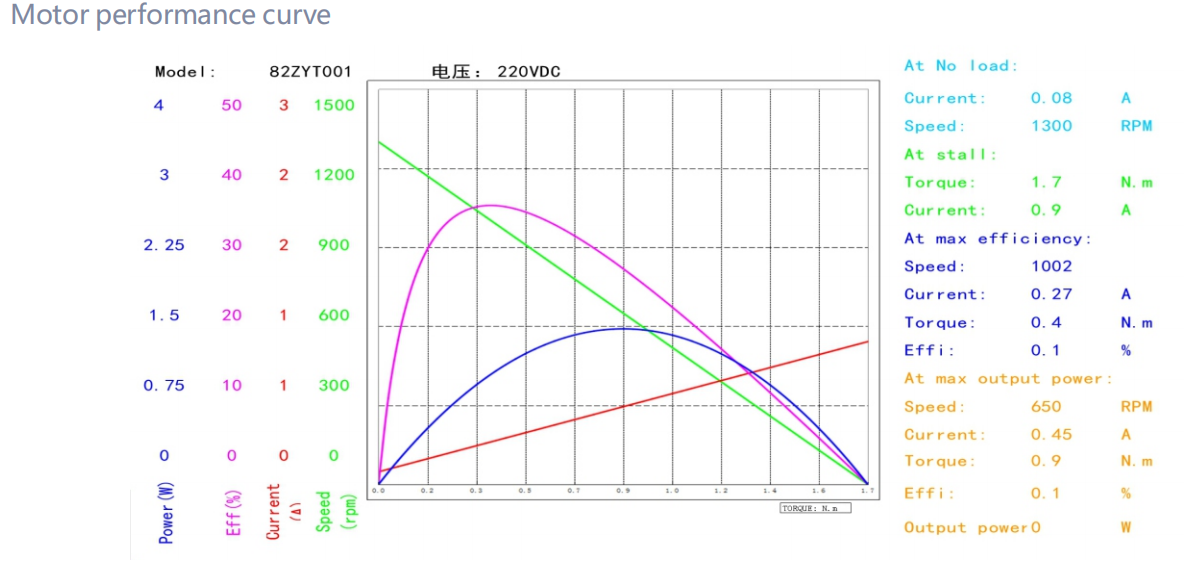

| 82ZYT Brushed DC Motor Performance Curve |
![82ZYT brushed dc motor performance curve]( "82ZYT brushed dc motor performance curve") |
FAQ – 82mm 82ZYT Brushed DC Motor
What is the 82ZYT brushed DC motor?
The 82ZYT brushed DC motor is a large-frame brushed DC motor designed for OEM equipment requiring stable speed, reliable torque and flexible voltage selection. It is suitable for pumps, commercial machines, industrial devices, automation equipment and customized drive systems.
What voltage options are available for 82ZYT brushed DC motor series?
The representative models include 12V DC, 24V DC and 220V DC options. Other voltage requirements may be evaluated according to the customer's equipment platform, speed requirement and order quantity.
What is the rated torque range?
According to the listed technical data, the rated torque range is approximately 0.2N·m to 0.7N·m. The higher torque option is available in the 220V DC model.
What is the rated power range?
The representative rated power range is approximately 42W to 105W, depending on voltage, speed and selected model.
What makes 82ZYT brushed DC motor different from 78ZYT?
The 78ZYT series is mainly shown as a 12V high-current, high-torque motor with much higher rated power. The 82ZYT brushed DC motor series focuses more on large-frame stability, multi-voltage options and low-to-medium speed output for fixed equipment, commercial machines and industrial drive applications.
Is the 82ZYT brushed DC motor suitable for 220V DC equipment?
Yes. The representative table includes 220V DC models, making the 82ZYT brushed DC motor series suitable for equipment using a high-voltage DC platform. Customers should confirm controller compatibility, insulation requirements and safety standards before selection.
Can the output shaft be customized?
Yes. Modar Motor can customize shaft length, diameter, D-cut, flat shaft, threaded shaft, keyway, extended shaft or special shaft structures according to customer drawings or samples.
Can the mounting interface be customized?
Yes. The front cover, mounting holes, locating diameter and installation interface can be customized to match customer equipment or replacement motor requirements.
Can 82ZYT brushed DC motor run continuously?
Continuous operation depends on load, current, temperature rise, cooling condition and duty cycle. For long-time operation, Modar Motor can evaluate whether the standard design is suitable or whether customization is needed.
What information should I provide for a quotation?
Please provide voltage, target speed, required torque, load type, shaft drawing, mounting dimensions, duty cycle, current limit, controller information, working environment and estimated annual quantity.
Does Modar Motor support OEM and ODM customization?
Yes. Modar Motor supports OEM and ODM customization for 82ZYT DC motors, including voltage, speed, torque, shaft, mounting interface, cable, connector, rotation direction and performance curve adjustment.
