8mm Slotless Brushless Motor – Micro BLDC Motor for Precision Systems

Typical Applications of 8mm Slotless Brushless DC Motor

8mm slotless brushless motor is commonly used in applications requiring smooth and reliable micro-motion with slightly higher load capability.

In medical and laboratory devices, 8mm slotless brushless motor enables controlled movement while maintaining quiet and stable performance.

In optical and sensing equipment, 8mm slotless brushless motor supports fine positioning and continuous micro-rotation tasks.

Typical applications include:

• Medical diagnostic instruments

• Precision laboratory equipment

• Optical positioning systems

• Portable medical devices

• Micro automation modules

Technical Specifications of 8mm Slotless Brushless DC Motor

The following technical data applies to the 8mm slotless brushless DC motor.

Electrical Parameters

• Rated voltage options: 12V etc.

• Rated speed: 38200rpm(customized)

• Rated Torque: 0.8mN.m(customized)


• Output power: 3.25W(customized)

Optional Configurations

• Hall sensors or encoder feedback

• Customized shaft or connector types

• Cable or terminal variations




Slotless motor.pdf

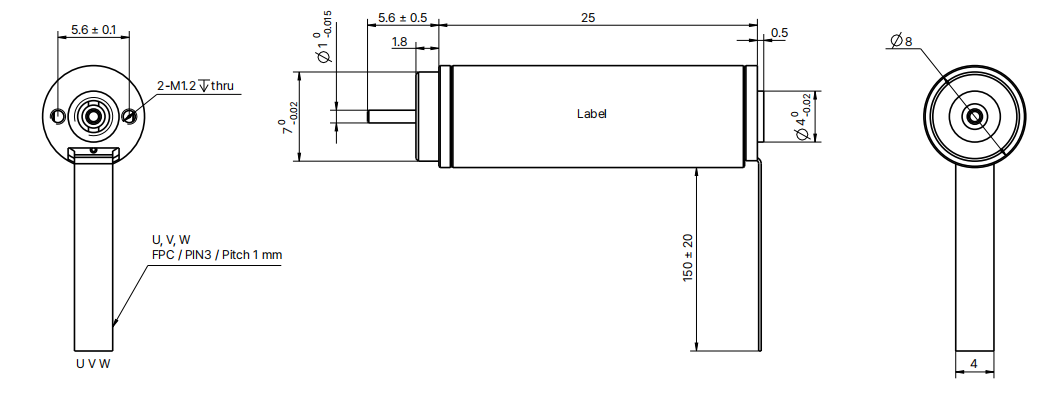

Dimension Drawing of 8mm slotless brushless motor 8ZWWC25

Performance Curve of 8mm slotless brushless motor 8ZWWC25

FAQ –8mm Slotless Brushless DC Motor

Q1: What differentiates the 8mm slotless brushless motor from the 6mm version?

8mm slotless brushless motor offers higher torque and better thermal capacity.

Q2: 8mm slotless brushless motor it still suitable for medical use?

Yes, 8mm slotless brushless motor is commonly used in medical and laboratory systems.

Q3: Is cogging torque present?

No, the slotless structure eliminates cogging.

Q4: Can 8mm slotless brushless motor be used for continuous operation?

Yes, under appropriate load conditions.

Q5: Are customization options available?

Yes, electrical and mechanical customization is supported.

Q6: Is long-term supply available?

Yes, for OEM and series production.
