Built-in Driver vs External Driver BLDC Motor: Pros, Cons, and Selection Guide for OEM Buyers

Introduction: Why the Driver Type Matters in a BLDC Motor Project

Brushless DC motors, commonly known as BLDC motors, are widely used in modern industrial, commercial, medical, and HVAC equipment. Compared with traditional brushed DC motors, BLDC motors offer higher efficiency, longer service life, lower maintenance, smoother operation, and better speed control. These advantages make them suitable for applications such as fans, pumps, gear motors, robotic systems, AGV and AMR drive units, medical devices, air conditioner motors, ventilation systems, smart appliances, and industrial automation equipment.

However, a BLDC motor cannot operate correctly by simply connecting it to a DC power supply. Unlike a brushed motor, which uses mechanical brushes and a commutator, a brushless motor requires electronic commutation. This means every BLDC motor needs a driver or controller to control phase switching, speed, direction, protection, and sometimes communication with the main system.

For OEM buyers, one important decision is whether to choose a built-in driver BLDC motor or an external driver BLDC motor.

A built-in driver BLDC motor integrates the driver electronics into the motor body or motor assembly. It is also called an integrated driver BLDC motor, brushless motor with built-in controller, or BLDC motor with integrated electronics.

An external driver BLDC motor uses a separate driver installed outside the motor. The motor and driver are connected by cables, and the driver may be placed in a control box, PCB area, electrical cabinet, or another suitable location.

Both designs are common, but they are suitable for different applications. Built-in driver motors are attractive because they simplify wiring, save space, and reduce assembly work. External driver motors are often preferred when the project requires higher power, better heat dissipation, advanced control, flexible tuning, or easier maintenance.

This article explains the advantages and disadvantages of built-in driver and external driver BLDC motors in detail. It also provides a practical selection guide for OEM buyers who need to choose the right brushless motor solution for real production projects.

What Is a Built-in Driver BLDC Motor?

Basic Definition

A built-in driver BLDC motor is a brushless motor that has the electronic driver integrated into the motor structure. The driver may be installed inside the motor housing, at the rear end of the motor, or inside an attached electronic module. Instead of connecting a separate controller, the buyer connects the motor directly to the power supply and control signals.

Depending on the design, a built-in driver motor may support functions such as start/stop, speed adjustment, forward and reverse rotation, PWM speed control, analog voltage control, FG speed signal, protection functions, and sometimes simple communication.

How a Built-in Driver BLDC Motor Works

The motor still uses a brushless structure with stator windings and permanent magnets. The difference is that the commutation circuit is already integrated with the motor. When the motor receives power and control commands, the internal driver controls the three-phase winding current and makes the rotor rotate.

Because the motor and driver are matched as one unit, the buyer does not need to separately select the driver, confirm phase matching, or debug basic commutation. This makes integration easier for many OEM projects.

Typical Applications

Built-in driver BLDC motors are commonly used in compact fans, small pumps, EC motors, air purification equipment, HVAC terminal units, household appliances, smart equipment, commercial machines, medical devices, compact actuators, and other products where simple installation and compact design are important.

They are especially suitable when the motor power is not too high, the control requirements are relatively simple, and the OEM buyer wants to reduce wiring and assembly complexity.

Advantages of Built-in Driver BLDC Motors

Simpler Wiring

One of the biggest advantages of a built-in driver BLDC motor is simpler wiring. A traditional external driver system may require three phase wires, Hall sensor wires, encoder wires, power wires, signal wires, and sometimes brake wires. Built-in driver motors reduce the number of external connections because the internal driver already handles commutation.

For OEM production, simpler wiring can reduce assembly mistakes, shorten production time, and make the final product more consistent. This is especially useful when workers need to assemble many units every day.

Compact and Clean Product Design

Built-in driver motors help save space because there is no separate driver box. This is valuable for compact equipment where internal space is limited. The product layout becomes cleaner, and cable routing becomes easier.

For example, in compact fans, pumps, medical devices, and commercial appliances, the motor area may not have enough space for a separate driver board. A built-in driver solution can make the mechanical design simpler and more attractive.

Faster Assembly for Mass Production

For standardized OEM products, assembly efficiency matters. A built-in driver motor can reduce the number of parts the factory needs to install. Instead of mounting a motor, mounting a separate driver, connecting multiple cables, and checking compatibility, the factory installs one integrated motor unit.

This can improve production speed and reduce quality risks caused by incorrect wiring.

Easier Basic Integration

Because the motor and driver are already matched by the supplier, the buyer does not need to spend as much time selecting and debugging a separate driver. For customers who do not have strong motor control engineering resources, this is a practical advantage.

If the application only requires basic speed control, start/stop, or direction control, a built-in driver motor can be easier to use.

Lower Risk of Motor-Driver Mismatch

In an external driver system, the motor and driver must match correctly. If phase order, Hall sensor sequence, current limit, voltage range, or control logic is wrong, the motor may fail to start, run roughly, overheat, or produce excessive noise.

Built-in driver motors reduce this risk because the supplier has already designed the motor and driver as one system.

Better for Compact Low-Power Products

For small and medium-power products, built-in driver BLDC motors are often a good option. They provide the benefits of brushless technology while keeping the system simple and compact.

This is why built-in driver motors are common in EC fans, small circulation pumps, air purifiers, medical air systems, smart appliances, and compact commercial devices.

Disadvantages of Built-in Driver BLDC Motors

Limited Heat Dissipation Space

The biggest disadvantage of built-in driver motors is thermal limitation. The motor itself generates heat during operation, and the driver electronics also generate heat. When both are integrated in the same compact structure, heat management becomes more difficult.

If the motor runs continuously under high load, the internal driver may experience high temperature. Excessive heat can shorten electronic component life, trigger protection, reduce reliability, or even cause failure.

For this reason, built-in driver motors are usually more suitable for small to medium-power applications rather than high-power continuous-duty systems.

Less Control Flexibility

Built-in drivers are usually designed for specific functions. They may support fixed control methods such as PWM, analog voltage, or simple speed feedback. If the OEM buyer later needs RS485, CAN, customized control logic, torque control, position control, special acceleration curves, or more advanced protection, the built-in driver may not support it.

Compared with external drivers, built-in drivers are less flexible for advanced motion control.

Harder to Repair Separately

If an external driver fails, the buyer may only need to replace the driver while keeping the motor. But if a built-in driver fails, the whole motor assembly may need to be replaced.

For small products, this may be acceptable because replacing one integrated module is simple. But for expensive equipment or field-service applications, replacing the entire motor may increase maintenance cost.

Higher Design Dependence on Supplier

Built-in driver motors depend heavily on the supplier’s electronic design capability. The supplier must properly design the PCB, heat dissipation, protection logic, insulation, sealing, component selection, and software control.

If the supplier’s design is weak, the motor may work well during short sample testing but fail during long-term operation. OEM buyers should therefore carefully evaluate supplier experience, testing process, and customization capability.

Limited Power Range

Built-in driver motors are usually not the best choice for high-current or high-power BLDC motor applications. The compact space limits the size of power components and heat sinks.

For AGV drive units, high-power pumps, industrial automation axes, large fans, or heavy-duty gear motors, an external driver solution is often safer and more practical.

Potential EMC Challenges

Because the driver electronics are close to the motor and other parts of the equipment, electromagnetic interference may need attention. Built-in driver design must consider PCB layout, grounding, shielding, and signal stability.

This is especially important for medical devices, communication equipment, or products with sensitive control electronics.

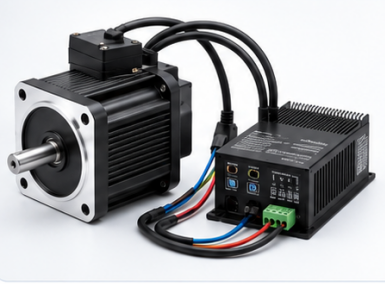

What Is an External Driver BLDC Motor?

Basic Definition

An external driver BLDC motor uses a separate controller outside the motor body. The motor contains the mechanical and electromagnetic parts, while the driver is installed separately. The driver controls phase switching, speed, torque, direction, feedback, protection, and communication.

This structure is very common in industrial equipment, robotics, AGV and AMR systems, pumps, servo-like motion systems, high-power fans, and customized automation projects.

How an External Driver BLDC Motor Works

The motor connects to the driver using phase wires and feedback wires. The driver receives power from the system, control commands from the main controller, and feedback from Hall sensors, encoders, or sensorless algorithms. It then controls the motor according to the required motion profile.

Depending on the driver, it may support speed control, torque control, position control, brake control, communication protocols, closed-loop feedback, current limiting, protection functions, and parameter tuning.

Typical Applications

External driver BLDC motors are often used in high-power or high-performance applications, such as AGV wheel drives, robot joints, automation conveyors, industrial pumps, medical motion platforms, packaging machines, CNC auxiliary systems, and customized motion control equipment.

They are also suitable when the buyer needs advanced control or wants to separate electronics from the motor for better thermal management and maintenance.

Advantages of External Driver BLDC Motors

Better Heat Dissipation

One of the biggest advantages of an external driver is better thermal management. The driver can be installed in a location with better airflow, larger heat sink, metal mounting plate, or control cabinet ventilation. Heat from the motor and heat from the driver can be separated.

This is very important for high-power motors, continuous-duty operation, and applications with high ambient temperature.

Higher Power Capability

External drivers can use larger power components and better cooling structures. They are more suitable for applications requiring higher current, stronger startup torque, frequent acceleration, or heavy loads.

For example, AGV motors, AMR motors, industrial pumps, large BLDC fans, and high-torque BLDC gear motors often use external drivers because they need higher power capacity and reliable protection.

More Control Flexibility

External drivers usually offer more control options. Depending on the model, they may support PWM control, analog voltage control, pulse control, RS485, CAN, UART, Modbus, closed-loop speed control, torque control, position control, encoder feedback, and brake control.

This flexibility is valuable for OEM projects with special control requirements.

Easier Maintenance and Troubleshooting

With an external driver, the motor and driver are separate components. If a problem occurs, engineers can test the motor, driver, wiring, power supply, and control board separately. This makes troubleshooting easier.

If only the driver fails, it can often be replaced separately. This is useful in industrial applications where downtime must be minimized.

Better for Harsh Motor Environments

Sometimes the motor is installed in a hot, wet, dusty, vibrating, or mechanically exposed area. In this case, placing the driver electronics away from the motor can protect the electronics and improve reliability.

For example, the motor may work near a pump, fan, wheel, or moving mechanism, while the driver is safely installed inside a control box.

Easier Parameter Adjustment

Many external drivers allow parameter adjustment, such as speed range, current limit, acceleration time, braking mode, protection threshold, and control mode. This helps OEM engineers tune the system during development.

For products with different versions or different loads, one external driver platform may be adapted to multiple motor configurations.

Disadvantages of External Driver BLDC Motors

More Complex Wiring

External driver systems usually require more wiring. The motor must be connected to the driver through phase wires and feedback wires. If there are encoders, brakes, temperature sensors, or communication signals, wiring becomes even more complex.

More wiring increases assembly time and may create more possible failure points.

Requires More Installation Space

An external driver requires additional space in the equipment. The designer must reserve space for the driver, heat dissipation, mounting, cable routing, and electrical protection.

For compact products, this may be difficult.

Higher System Integration Work

External driver systems require more engineering work. The buyer must confirm motor-driver matching, wiring sequence, Hall sensor logic, power supply, control signal, communication method, protection functions, and mechanical layout.

This is manageable for experienced OEM engineers, but it can be challenging for customers who want a simple plug-and-play solution.

More Components to Manage

Using an external driver means one more component in the bill of materials. The buyer must manage motor inventory, driver inventory, cables, connectors, and possibly additional mounting accessories.

For large-volume production, this may increase supply chain complexity.

Potential Wiring and EMC Issues

Long cables between the motor and driver can increase electromagnetic interference risk. Cable routing, grounding, shielding, and connector quality become important.

If not handled properly, the system may experience noise, unstable feedback, communication problems, or interference with nearby electronics.

Higher Assembly Cost

Even if the motor itself is cheaper without a built-in driver, the total system cost may increase because of the separate driver, cables, mounting work, labor, testing, and debugging.

OEM buyers should compare total installed cost, not only unit price.

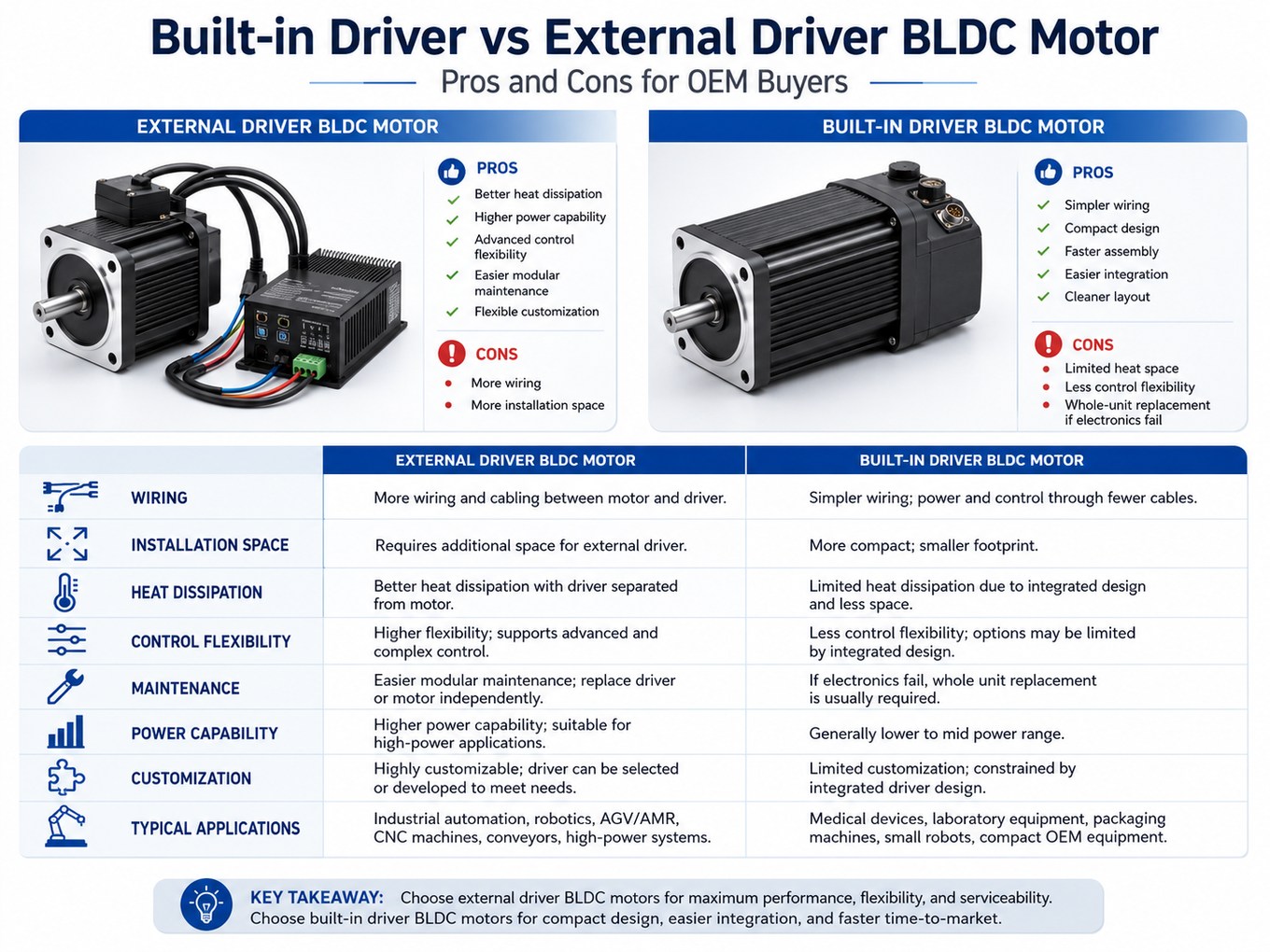

Built-in Driver vs External Driver BLDC Motor: Detailed Comparison

Wiring and Assembly

Built-in driver motors usually win in wiring simplicity. They reduce cables and make assembly faster. External driver motors require more wiring but provide more flexible installation.

For high-volume compact products, built-in driver motors may reduce assembly cost. For industrial systems, the additional wiring of external drivers may be acceptable because of better control and maintenance.

Heat Dissipation

External drivers usually have a clear advantage in heat dissipation. The driver can be placed in a cooler location and mounted to a heat sink. Built-in drivers must manage heat inside the motor assembly.

For continuous-duty or high-power applications, thermal testing is especially important.

Control Capability

External drivers usually offer stronger control capability. They are better for applications requiring communication, parameter tuning, torque control, position control, or encoder feedback.

Built-in drivers are better when the control requirement is simple and stable.

Maintenance

External driver systems are easier to troubleshoot and maintain at the component level. Built-in driver motors are easier to replace as a single module but harder to repair internally.

The better option depends on after-sales strategy.

Cost

Built-in driver motors may reduce wiring and assembly cost. External driver motors may require a separate controller and more labor. However, for high-power applications, external drivers may be more reliable and cost-effective over the full product lifetime.

Reliability

Reliability depends on application conditions. Built-in driver motors can be reliable in compact, low-to-medium power products if thermal design is good. External driver motors are usually more reliable in high-power, high-temperature, continuous-duty, or harsh environments.

Customization

External driver systems are generally easier to customize for advanced control. Built-in driver motors can also be customized, but changes may require PCB redesign or firmware adjustment.

When Built-in Driver BLDC Motors Are the Better Choice

Compact Equipment with Limited Space

If the final product has very limited internal space, built-in driver BLDC motors can simplify the design. This is common in fans, small pumps, appliances, compact medical modules, and commercial devices.

Simple Speed Control Is Enough

When the equipment only needs start/stop, direction control, or simple speed regulation, built-in drivers are practical. There is no need to add a more complex external driver.

Large-Volume Standardized Production

If the product design is stable and produced in large quantities, built-in driver motors can reduce assembly time and wiring errors. This can improve production efficiency.

Clean Internal Layout Is Important

Built-in driver motors reduce external cables and separate electronics, making the equipment cleaner and easier to assemble.

The Motor Power Is Not Too High

Built-in drivers are usually more suitable for small and medium-power motors. If the thermal load is manageable, integration can be a strong advantage.

When External Driver BLDC Motors Are the Better Choice

High-Power Applications

External drivers are usually better for high-current and high-power BLDC motors. They allow stronger power electronics and better heat dissipation.

Continuous-Duty Operation

If the motor runs for long periods under load, external drivers reduce thermal risk by separating driver heat from motor heat.

Advanced Control Is Required

External drivers are preferred for applications requiring encoder feedback, closed-loop control, torque control, position control, communication protocols, or parameter tuning.

Easy Maintenance Is Important

Industrial customers often prefer external drivers because they can replace the driver separately and troubleshoot more easily.

Harsh Working Environments

If the motor is exposed to heat, humidity, vibration, dust, or mechanical shock, keeping the driver in a protected location may improve system reliability.

Multiple Motor Versions Share One Platform

If an OEM equipment platform uses several motor sizes or gear ratios, external drivers may provide more flexibility for product series development.

Application Examples: Which Driver Type Should You Choose?

HVAC Fans and EC Motors

Built-in driver BLDC motors are common in compact EC fans because they simplify wiring and save space. However, external drivers may be used for higher-power fans or systems requiring special speed control and communication.

Pumps

Small water pumps and circulation pumps may use built-in drivers for compact design. Industrial pumps or high-power pump systems often use external drivers for better cooling and protection.

Robotics

Robotics usually benefits from external drivers because robots often need feedback control, torque control, position control, and communication. However, small robot modules may use built-in drivers when space-saving is more important.

AGV and AMR Drive Units

AGV and AMR motors usually use external drivers because they require high current, encoder feedback, braking, communication, and strong protection.

Medical Devices

Medical equipment may use both options. Built-in drivers are good for compact and quiet modules. External drivers are better for precision motion, thermal separation, and serviceable systems.

Smart Commercial Devices

Built-in driver motors are suitable for vending machines, kiosks, smart storage, and display equipment when the application is low-to-medium power and control is simple.

Industrial Automation

Industrial automation often prefers external drivers because of modular maintenance, advanced control, and stronger power capacity.

Common Mistakes OEM Buyers Should Avoid

Choosing Built-in Driver Only Because It Looks Easier

Built-in drivers are convenient, but they are not always suitable. If the motor runs continuously or under high load, heat may become a problem.

Choosing External Driver Without Planning Space

External drivers need installation space, cable routing, and cooling design. If these are ignored, the system may become difficult to assemble.

Ignoring Thermal Testing

Thermal testing should be done under real load conditions. No-load testing is not enough.

Not Confirming Control Signal

PWM, analog voltage, pulse, direction signal, FG signal, brake signal, RS485, CAN, and other interfaces must be confirmed before design.

Forgetting Protection Functions

Overcurrent, overvoltage, undervoltage, overtemperature, stall, short-circuit, and reverse polarity protection may be important depending on the application.

Not Considering EMC

Driver layout and cable routing can affect EMC performance. This is especially important for medical equipment, communication products, and equipment with sensitive electronics.

Comparing Only Motor Price

Built-in and external driver solutions should be compared based on total system cost, including driver, wiring, assembly labor, maintenance, reliability, and after-sales risk.

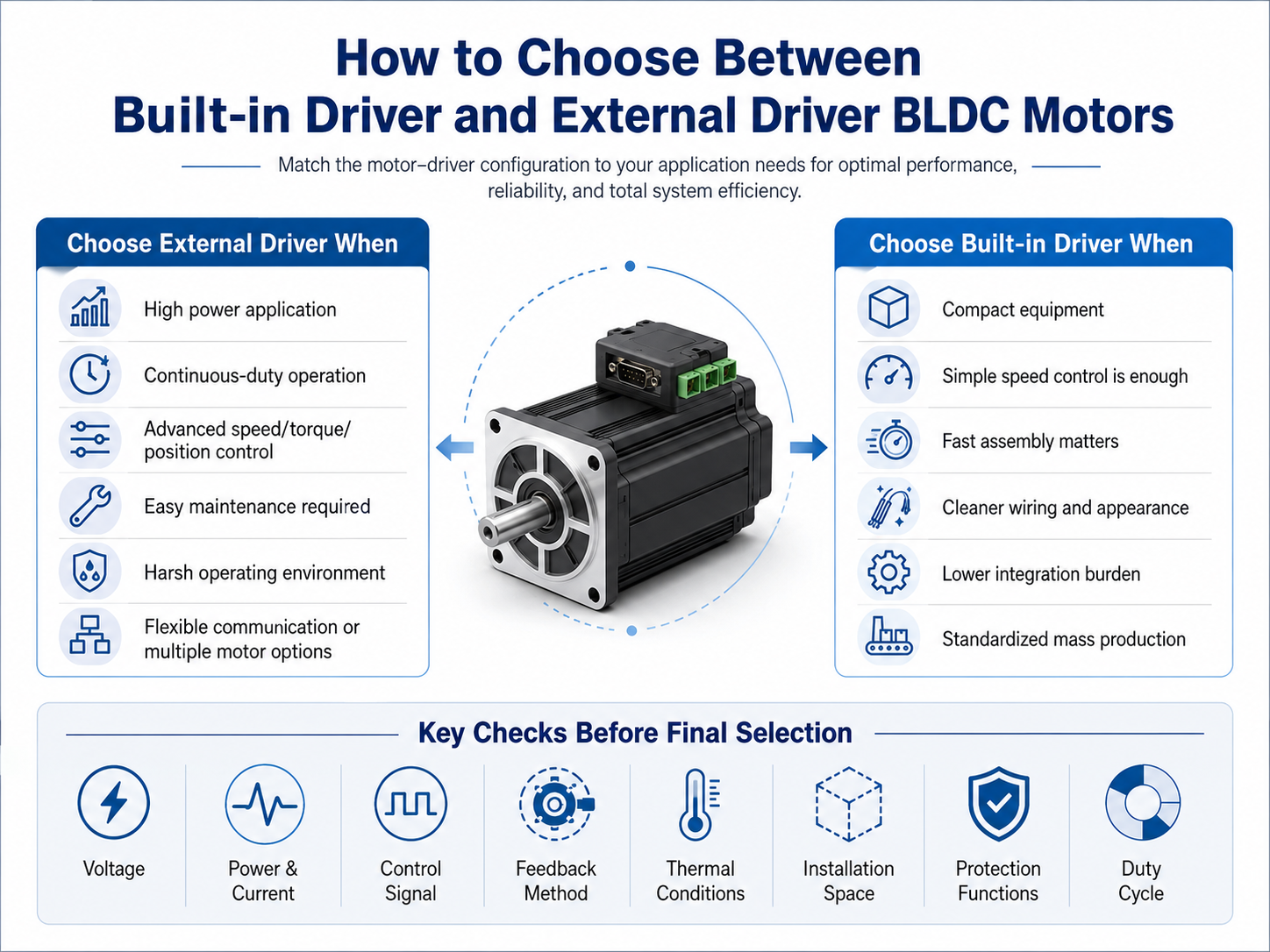

How OEM Buyers Should Choose the Right Driver Solution

Step 1: Define the Application

Start by identifying what the motor drives and how it operates. A fan, pump, gear motor, wheel drive, actuator, and robot joint may all need different driver strategies.

Step 2: Confirm Power and Current

Higher power and current usually push the design toward external drivers. Lower-power compact products may be suitable for built-in drivers.

Step 3: Evaluate Duty Cycle

Continuous-duty operation requires careful thermal design. External drivers often provide better reliability for long-running systems.

Step 4: Check Installation Space

If there is enough room for a separate driver, external control may be possible. If space is very limited, built-in control may be more practical.

Step 5: Define Control Requirements

Simple speed control may work well with built-in drivers. Advanced speed, torque, position, feedback, or communication control usually favors external drivers.

Step 6: Consider Maintenance Strategy

If field repair and component replacement are important, external drivers are better. If whole-module replacement is acceptable, built-in drivers may work well.

Step 7: Compare Total Cost

Include motor price, driver price, wiring, connectors, assembly labor, testing time, failure risk, and after-sales cost.

Step 8: Test Samples Under Real Conditions

Final selection should always be verified through real-load testing. Check speed, current, temperature rise, protection behavior, noise, vibration, and reliability.

How Modar Motor Supports Built-in and External Driver BLDC Projects

Practical BLDC Motor Customization

Modar Motor supports customized brushless motor solutions for OEM buyers, including both built-in driver BLDC motors and external driver BLDC motors. Depending on the application, Modar Motor can help customize voltage, power, speed, shaft structure, mounting method, lead wire, connector, feedback signal, and driver matching.

Motor and Driver Matching Support

For BLDC motor projects, motor-driver matching is critical. Modar Motor can help buyers review load requirements, power supply, control signal, duty cycle, installation space, and thermal condition before recommending a suitable solution.

This reduces the risk of startup failure, overheating, unstable speed, wiring mismatch, and controller compatibility issues.

Suitable for Multiple OEM Applications

Modar Motor can support BLDC motor solutions for HVAC systems, pumps, robotics, medical devices, AGV and AMR systems, automation equipment, smart commercial devices, and customized motion control products.

Support from Requirement Confirmation to Mass Production

A good BLDC project does not stop at sample selection. It also requires drawing confirmation, test standard confirmation, sample testing, adjustment, and mass production quality control. Modar Motor can support OEM buyers through these practical project stages.

Recommended Inquiry Information for OEM Buyers

Application

Describe what the motor drives and how it works.

Driver Preference

State whether you prefer built-in driver or external driver. If unsure, provide application details and ask for recommendation.

Voltage and Power

Provide rated voltage, operating voltage range, rated power, current, and peak current if available.

Speed and Control Requirement

Confirm rated speed, speed range, speed control method, direction control, and braking requirement.

Feedback Requirement

Mention Hall sensors, FG signal, encoder, position feedback, or sensorless control preference.

Duty Cycle

Provide running time, stop time, continuous or intermittent operation, and daily working hours.

Environment

Mention ambient temperature, humidity, dust, vibration, airflow, enclosure design, and protection requirement.

Installation Space

Provide motor space, driver space, mounting method, and cable routing limitations.

Quantity

Provide sample quantity, trial order quantity, and estimated annual demand.

Product FAQ: Built-in Driver vs External Driver BLDC Motor

What is a built-in driver BLDC motor?

A built-in driver BLDC motor is a brushless DC motor with the driver electronics integrated into the motor body or motor assembly. It reduces external wiring and simplifies installation.

What is an external driver BLDC motor?

An external driver BLDC motor uses a separate controller outside the motor. The driver controls commutation, speed, direction, protection, and feedback functions.

Which is better, built-in driver or external driver?

Neither is always better. Built-in drivers are better for compact, simple, low-to-medium power applications. External drivers are better for high-power, continuous-duty, advanced-control, and serviceable systems.

Why do BLDC motors need a driver?

BLDC motors use electronic commutation instead of brushes. The driver controls current switching in the motor windings so the motor can rotate correctly.

Are built-in driver motors easier to install?

Yes. Built-in driver motors usually require fewer external wires and no separate driver box, so they are easier to install.

Are external drivers better for heat dissipation?

Usually yes. External drivers can be installed away from the motor and mounted in a better cooling position, which helps high-power and continuous-duty applications.

Can built-in driver BLDC motors be customized?

Yes. They can be customized for voltage, speed, control signal, wiring, connector, protection logic, and mounting. However, customization may be more limited than external driver systems.

Which driver type is better for AGV or AMR motors?

External drivers are usually better for AGV and AMR motors because they need high power, encoder feedback, braking, communication, and strong thermal management.

Which driver type is better for compact fans or pumps?

Built-in driver motors are often better for compact fans and small pumps because they save space and simplify wiring.

What should I test before mass production?

You should test speed stability, current, temperature rise, noise, vibration, protection function, startup performance, load performance, and control signal compatibility under real working conditions.

Can Modar Motor help choose the right driver type?

Yes. Modar Motor can help OEM buyers compare built-in and external driver BLDC motor solutions based on power, duty cycle, control method, thermal condition, installation space, and application requirements.

Conclusion: The Best Driver Solution Depends on the Whole System

Built-in driver and external driver BLDC motors both have clear advantages. A built-in driver BLDC motor is compact, easy to install, simple to wire, and suitable for low-to-medium power products with stable control requirements. It is a strong choice for compact fans, pumps, appliances, smart commercial devices, and standardized OEM products.

An external driver BLDC motor offers better heat dissipation, higher power capability, more control flexibility, easier maintenance, and stronger adaptability for advanced applications. It is usually better for industrial automation, robotics, AGV and AMR systems, high-power pumps, large fans, and precision motion control equipment.

For OEM buyers, the right choice should not be based only on convenience or unit price. Voltage, power, current, speed, torque, duty cycle, control signal, feedback method, installation space, thermal condition, protection requirements, maintenance strategy, and total system cost should all be considered.

If you are developing a brushless motor project and need help choosing between built-in driver and external driver solutions, Modar Motor can provide practical OEM support from requirement confirmation to sample testing and mass production. With customized BLDC motor solutions and motor-driver matching support, Modar Motor helps buyers select a solution that truly fits the final application.
