What Is a BLDC Motor? Complete Guide to Brushless DC Motors, Working Principle, Types, Advantages and Applications

If you are researching electric motors for an HVAC system, pump, compressor, robot, automotive component, or industrial machine, you have probably come across the term BLDC motor.

But what exactly is a BLDC motor? How does it work? Why are brushless DC motors becoming so popular in modern equipment? And more importantly, how do you choose the right BLDC motor for an OEM project?

A BLDC motor, or Brushless DC Motor, is a permanent-magnet electric motor that uses electronic commutation instead of mechanical brushes and a commutator. The controller switches current through the stator windings in a controlled sequence, creating a rotating magnetic field that drives the permanent-magnet rotor.

Compared with traditional brushed DC motors, BLDC motors can provide high efficiency, long operating life, high-speed capability, compact power density, and precise electronic speed control.

Today, BLDC motors are widely used in automotive systems, EV applications, HVAC fans, blowers, pumps, compressors, robotics, industrial automation, medical equipment, drones, and other OEM equipment.

This guide explains what a BLDC motor is, how it works, the main types and control methods, its advantages and disadvantages, common applications, and how to choose a BLDC motor for an OEM project.

What Does BLDC Stand For?

BLDC stands for Brushless DC.

The full name is Brushless DC Motor.

The word “brushless” is important because it describes the biggest difference between a BLDC motor and a traditional brushed DC motor.

A brushed DC motor uses physical brushes and a mechanical commutator to switch current between the motor windings. A BLDC motor removes these mechanical components and uses an electronic controller to perform the commutation process.

In simple terms, the mechanical switching system is replaced by an electronic switching system.

This design makes BLDC motors particularly suitable for modern equipment where efficiency, reliability, speed control, and long operating life are important.

What Is a BLDC Motor?

A BLDC motor is a permanent-magnet electric motor that uses electronic commutation to produce continuous rotation without mechanical brushes.

A typical BLDC motor contains:

• A stationary stator

• Copper windings

• A permanent-magnet rotor

• A shaft

• Bearings

• A motor housing

• An electronic controller

• Hall sensors or another position-feedback system when required

The stator generates a magnetic field when current flows through its windings. The permanent magnets on the rotor interact with this magnetic field.

The controller continuously changes which stator windings are energized. This creates a rotating magnetic field, and the rotor follows it.

That is the basic operating principle of a brushless DC motor.

Microchip describes BLDC motors as permanent-magnet motors that rely on electronic commutation, with common control approaches including six-step commutation and more advanced control architectures.

BLDC Motor in Simple Terms

Think of a BLDC motor as a carefully synchronized magnetic system.

The rotor has permanent magnets. The stator has electromagnetic coils. The controller turns different coils on and off at precisely controlled moments.

The magnetic field essentially “moves” around the motor, and the rotor follows it.

There are no brushes physically rubbing against the rotating commutator.

That small structural difference changes the entire behavior of the motor.

Why Are BLDC Motors Becoming More Popular?

Modern equipment is becoming increasingly electrified and electronically controlled.

Engineers want motors that are:

• More efficient

• Smaller and lighter

• Easier to control

• Capable of higher speeds

• More reliable

• Suitable for automated systems

• Compatible with digital controllers

• Capable of customized mechanical integration

BLDC motors fit these requirements particularly well.

For example, a traditional motor may simply need to run continuously at one speed. A modern HVAC blower, robotic actuator, pump, or EV auxiliary system may need to change speed dynamically according to system requirements.

Electronic commutation makes this type of control much easier.

This is one reason BLDC motors have become an important motor technology for OEM equipment manufacturers.

How Does a BLDC Motor Work?

The BLDC motor working principle is based on the interaction between two magnetic fields:

1. The magnetic field generated by the stator windings

2. The magnetic field produced by the permanent magnets on the rotor

When the controller supplies current to specific stator windings, the windings create an electromagnetic field.

The rotor reacts to this magnetic field and moves toward the appropriate position.

The controller then switches the current to another combination of stator phases.

This process repeats continuously.

As a result, the magnetic field appears to rotate around the stator, while the permanent-magnet rotor follows that field and produces mechanical rotation.

In a typical three-phase BLDC motor, the controller needs information about the rotor's position. This can come from Hall sensors or can be estimated electronically using back-EMF in a sensorless system.

Permanent Magnet Rotor

The rotor is the rotating part of the BLDC motor.

Unlike many conventional motor designs, a BLDC rotor normally contains permanent magnets instead of energized rotor windings.

The magnets can be arranged in different configurations depending on the motor design.

The permanent magnets provide the rotor's magnetic field without requiring electrical current to pass through the rotating part.

This contributes to the motor's efficiency and compact structure.

However, magnet selection is an important part of motor engineering.

Factors such as:

• Magnet grade

• Operating temperature

• Magnetic strength

• Rotor speed

• Mechanical structure

• Required torque

must be considered together.

For high-temperature applications, for example, the magnet's temperature characteristics can become a critical design factor.

Stator Windings

The stator is the stationary part of the motor.

It normally consists of a laminated electrical steel core with copper windings installed into the stator slots.

When electrical current passes through the windings, a magnetic field is generated.

The controller changes the energized phases according to the rotor position.

The winding design has a major influence on:

• Rated speed

• Torque

• Current

• Power

• Efficiency

• Back-EMF

• Temperature rise

• Noise

• Operating range

This is why two motors with the same voltage and physical diameter can have completely different performance characteristics.

For OEM applications, the winding configuration is often one of the most important parts of motor customization.

Electronic Commutation

Commutation means changing the current between motor phases at the correct rotor position.

In a brushed DC motor, brushes and a mechanical commutator perform this task.

In a BLDC motor, electronic components perform it.

The controller determines when to energize each phase based on rotor-position information and the selected control strategy.

This electronic commutation is the defining feature of a brushless DC motor.

It also allows the motor to be integrated with sophisticated electronic control systems.

What Does a BLDC Motor Controller Do?

A BLDC motor normally requires an electronic controller or drive.

Depending on the system, the controller may manage:

• Phase commutation

• Motor speed

• Motor current

• Torque

• Acceleration

• Deceleration

• Braking

• Direction

• Overcurrent protection

• Overtemperature protection

• Stall protection

This means the motor and controller should generally be considered as a matched system.

For an OEM application, choosing a motor only by voltage and rated power can lead to problems.

The motor's electrical characteristics need to be compatible with the controller and the actual load.

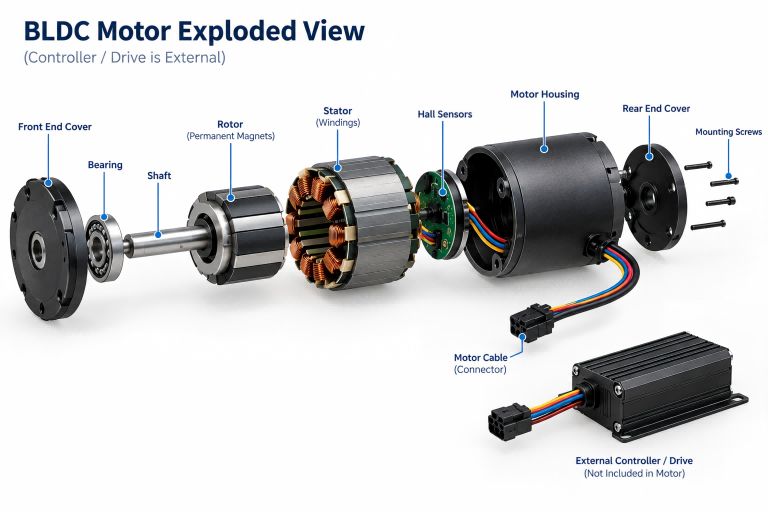

BLDC Motor Construction: Main Components

A typical BLDC motor consists of several major components.

Stator

The stator is responsible for generating the electromagnetic field.

Its design includes parameters such as:

• Stator diameter

• Stack length

• Slot number

• Winding arrangement

• Copper wire diameter

• Number of turns

• Phase connection

Changing these parameters can significantly affect motor performance.

For this reason, stator design is an important part of custom BLDC motor development.

Rotor and Permanent Magnets

The rotor provides the permanent magnetic field.

Rotor design can affect:

• Torque

• Speed

• Efficiency

• Vibration

• Noise

• Mechanical strength

For high-speed applications, rotor mechanical strength becomes particularly important.

The rotor must be able to safely withstand the required rotational speed while maintaining the correct air gap between rotor and stator.

Hall Sensors

Many sensored BLDC motors use three Hall sensors to detect rotor position.

The controller receives Hall signals and uses them to determine the rotor's position and select the appropriate commutation state.

Three Hall sensors are commonly arranged approximately 120 electrical degrees apart, allowing the controller to identify the six main commutation sectors used in conventional six-step BLDC control.

Hall sensors are especially useful when reliable starting and low-speed operation are important.

Shaft, Bearings and Housing

A motor is not only an electromagnetic component.

The mechanical design can be equally important.

For example, an OEM customer may require:

• A specific shaft diameter

• A specific shaft length

• A keyway

• A D-shaped shaft

• A threaded shaft

• Special mounting holes

• A customized flange

• A specific connector position

• Special housing dimensions

Even if the electrical specifications are correct, a motor may not be suitable if the mechanical interface does not match the customer's equipment.

This is why custom motor development often starts with a mechanical drawing or an existing motor sample.

Sensored vs Sensorless BLDC Motors

There are two common approaches to determining rotor position:

Sensored BLDC control and sensorless BLDC control.

Neither is automatically better.

The correct choice depends on the application.

Sensored BLDC Motor

A sensored BLDC motor uses Hall sensors or another position sensor to detect the rotor position.

The controller receives this position information and uses it to determine the appropriate commutation timing.

One major advantage is that rotor position information is available even when the motor is stationary.

This makes sensored BLDC motors attractive for applications requiring:

• Reliable startup

• Low-speed operation

• Starting torque

• Controlled acceleration

• Precise position information

They are commonly considered for pumps, actuators, robotics, industrial automation, and other systems where startup behavior matters.

Sensorless BLDC Motor

A sensorless BLDC motor does not require physical Hall sensors.

Instead, the controller estimates rotor position using electrical information, commonly including back electromotive force, or back-EMF.

Back-EMF is generated when the permanent-magnet rotor rotates.

However, back-EMF is very small or unavailable when the rotor is stationary.

This means a sensorless BLDC motor requires an appropriate startup strategy before normal back-EMF-based position detection can operate.

The advantages can include:

• Fewer components

• Less wiring

• Lower system complexity

• Potential cost reduction

• Easier mechanical integration

The main challenge is usually startup and low-speed control.

When Should You Choose Sensored or Sensorless?

A sensored BLDC motor is generally a good choice when startup reliability and low-speed performance are important.

A sensorless BLDC motor may be attractive when the application operates primarily at medium or high speed and reducing sensors and wiring is valuable.

For OEM projects, the motor, controller, and feedback method should ideally be evaluated together.

BLDC Motor Commutation Methods

Different BLDC motor applications require different control strategies.

Two commonly discussed approaches are:

• Six-step commutation

• Field-oriented control, or FOC

Six-Step BLDC Commutation

Six-step commutation is a widely used BLDC control method.

In a typical three-phase system, two phases are energized while the third phase is left floating.

The controller changes the energized phases according to rotor position.

In sensorless control, the controller can monitor the back-EMF of the floating phase and use the zero-crossing information to estimate rotor position.

Six-step control is relatively simple and cost-effective, making it suitable for many:

• Fans

• Blowers

• Pumps

• Appliances

• Cooling systems

• Industrial motors

Field-Oriented Control

Field-oriented control, commonly called FOC, is a more sophisticated motor-control technique.

FOC controls the motor currents in a rotating reference frame, allowing the controller to regulate torque and magnetic flux more precisely.

Compared with conventional six-step control, FOC can provide:

• Smoother torque

• Lower torque ripple

• Better low-speed performance

• More precise control

• Potentially improved efficiency

FOC is particularly useful for demanding applications such as robotics, electric mobility, precision equipment, and advanced industrial automation.

However, it generally requires more sophisticated control electronics and a properly designed motor.

Main Advantages of BLDC Motors

Why choose a BLDC motor instead of a brushed DC motor?

The answer usually comes down to several major advantages.

High Efficiency

One of the most important benefits of BLDC motors is their potential for high efficiency.

Because BLDC motors do not have mechanical brush contact, they avoid brush-related mechanical losses and wear.

Permanent-magnet rotor technology can also provide strong electromagnetic performance in a compact package.

Efficiency becomes particularly important in:

• Battery-powered equipment

• EV systems

• HVAC equipment

• Pumps

• Compressors

• Industrial machines

A few percentage points of efficiency can make a meaningful difference when a motor operates thousands of hours per year.

Long Service Life

Brushes are mechanical wear components.

As a brushed motor operates, the brushes and commutator gradually wear.

A BLDC motor eliminates this mechanical commutation system.

This can significantly extend operating life and reduce maintenance requirements.

However, a brushless motor is not maintenance-free in every sense.

Bearings, insulation, magnets, electronics, shaft interfaces, and thermal conditions still affect the actual service life of the complete motor system.

High Speed Capability

BLDC motors can be designed for high-speed operation.

The absence of mechanical brushes removes one important limitation associated with traditional brushed motors.

This makes BLDC motors useful for:

• High-speed blowers

• Fans

• Pumps

• Compressors

• Drones

• Spindles

• Compact cooling systems

However, high-speed motor design requires careful consideration of rotor strength, bearings, balance, thermal performance, and controller characteristics.

High Power Density

A BLDC motor can provide substantial output from a relatively compact package.

This is particularly valuable when equipment designers have limited installation space.

For example, robotics and automotive systems may need a motor to fit into a very restricted mechanical envelope while still providing sufficient torque.

In these cases, motor diameter, stack length, winding design, magnet selection, and cooling should be optimized together.

Precise Speed and Torque Control

Because BLDC motors use electronic commutation, they can easily be integrated with electronic speed-control systems.

Depending on the controller, the system can regulate:

• Speed

• Torque

• Current

• Acceleration

• Braking

• Direction

This makes BLDC motors well suited to automated equipment and intelligent machines.

BLDC Motor vs PMSM: What's the Difference?

BLDC motors and PMSM motors are closely related permanent-magnet motor technologies.

The terminology can sometimes be confusing.

A simplified distinction is that conventional BLDC motors are commonly associated with:

• Trapezoidal back-EMF

• Six-step commutation

• Electronic block commutation

PMSM systems are commonly associated with:

• More sinusoidal back-EMF

• Sinusoidal current

• Field-oriented control

However, real-world motor design is more complicated than simply labeling one motor “BLDC” and another “PMSM.”

The electromagnetic design, winding distribution, back-EMF waveform, controller, and control algorithm all influence how the motor behaves.

Therefore, when sourcing a motor for an OEM application, it is better to discuss the complete motor and control requirements rather than relying only on the BLDC or PMSM label.

Types of BLDC Motors

BLDC motors can be designed in different mechanical configurations.

The most common categories include inner-rotor, outer-rotor, and frameless BLDC motors.

Inner Rotor BLDC Motor

In an inner-rotor BLDC motor, the permanent-magnet rotor is located inside the stator.

This is one of the most common motor structures.

Inner-rotor motors are suitable for many:

• Industrial machines

• Pumps

• Compressors

• Automotive systems

• Robotics

• Actuators

• Fans and blowers

They can be designed in many different frame sizes and shaft configurations.

Outer Rotor BLDC Motor

In an outer-rotor BLDC motor, the rotor surrounds the stator.

This configuration can provide useful torque characteristics and is particularly common in fan and blower applications.

In some designs, the rotating housing can also be integrated directly with the fan blade assembly.

This can create a compact motor-and-fan solution.

Frameless BLDC Motor

A frameless BLDC motor is designed primarily as an integrated motor component rather than a complete standalone motor.

The stator and rotor are supplied separately so that the OEM can integrate them directly into its own mechanical structure.

Frameless motors are particularly useful for:

• Robot joints

• Robotic actuators

• Gimbals

• Medical equipment

• Precision machinery

• Industrial automation

For example, a robotic joint may have very limited internal space. Instead of installing a conventional motor with a standard housing, the OEM can integrate a frameless motor directly into the joint assembly.

This provides much greater mechanical design flexibility.

BLDC Motor Applications

BLDC motors are used in a wide range of industries.

Their combination of efficiency, electronic control, compactness, and reliability makes them suitable for many modern applications.

Automotive and EV Applications

The automotive industry uses electric motors in many systems beyond the main traction motor.

Examples include:

• Cooling fans

• HVAC blowers

• Pumps

• Compressors

• Thermal management systems

• Actuators

• Auxiliary systems

EV systems place particular importance on energy efficiency because electrical energy ultimately comes from a limited energy source.

This makes efficient BLDC motor technology attractive for many automotive auxiliary applications.

BLDC Motors for HVAC Fans and Blowers

HVAC is one of the most practical applications for BLDC motors.

A BLDC fan motor can provide electronically controlled speed while maintaining efficient operation.

Typical applications include:

• Indoor HVAC units

• Outdoor air-conditioning systems

• Fan-coil units

• Ventilation systems

• Air blowers

• Cooling systems

• Industrial ventilation

For an HVAC BLDC motor, engineers need to consider more than motor power.

Important factors include:

• Airflow

• Static pressure

• RPM

• Torque

• Noise

• Efficiency

• Mounting

• Operating temperature

• Duty cycle

This is where application-specific motor development can provide a real advantage.

BLDC Motors for Pumps

BLDC motors are also widely suitable for pump systems.

A pump motor may require:

• Reliable startup

• Stable speed

• High efficiency

• Compact dimensions

• Long operating life

• Good thermal performance

The required motor characteristics depend heavily on the pump design.

A motor that works perfectly for a centrifugal pump may not be the best choice for another pump architecture.

Therefore, an OEM motor supplier should ideally evaluate the motor together with the pump's load characteristics.

BLDC Motors for Compressors

Compressors can place demanding requirements on motors.

A compressor BLDC motor may need to operate efficiently across a wide speed range while handling changing loads.

Important parameters can include:

• Voltage

• Power

• RPM

• Torque

• Current

• Efficiency

• Temperature rise

• Starting characteristics

For compressor applications, motor and controller matching becomes especially important.

BLDC Motors for Robotics

Robotics is another important application for BLDC technology.

Robot manufacturers often require motors with:

• High torque density

• Compact size

• Low vibration

• Low noise

• Precise control

• High acceleration

• Position feedback

• Long service life

Standard BLDC motors can be suitable for some robotic mechanisms.

For integrated robot joints, however, frameless BLDC motors can provide greater design flexibility.

The stator and rotor can be integrated into the robot's own housing, allowing the OEM to optimize the entire joint assembly.

BLDC Motors for Industrial Automation

Industrial automation systems often require reliable motors that can operate continuously and respond quickly to changing commands.

BLDC motors can be used in:

• Automated machinery

• Actuators

• Conveyors

• Pumps

• Cooling systems

• Robotics

• Precision mechanisms

• Material-handling equipment

The correct motor depends on the required speed, torque, duty cycle, control system, and mechanical interface.

BLDC Motors for Medical and Precision Equipment

Medical and laboratory equipment often requires compact, quiet, reliable, and precisely controlled motors.

BLDC motors can be found in applications such as:

• Pumps

• Fans

• Laboratory equipment

• Centrifuges

• Analytical instruments

• Medical devices

• Air and fluid handling systems

For these applications, noise and vibration can be just as important as rated power.

A motor with slightly higher efficiency but excessive vibration may not be suitable for sensitive equipment.

BLDC Motors for Drones and Mobile Equipment

Drones require motors with high power density and high-speed capability.

Weight is extremely important because every additional gram affects the overall system.

BLDC motors are therefore widely used in:

• Drones

• RC aircraft

• Electric boards

• Small electric vehicles

• Mobile equipment

• Compact propulsion systems

The motor must be matched carefully to the propeller, battery, controller, and required operating point.

How to Choose a BLDC Motor for an OEM Project

Choosing a BLDC motor should never be based on voltage alone.

A proper selection should consider electrical, mechanical, thermal, and control requirements together.

Voltage and Power

Start with the required voltage and power.

Important questions include:

• What is the nominal voltage?

• What is the minimum voltage?

• What is the maximum voltage?

• What is the continuous power?

• What is the peak power?

• What is the maximum current?

For battery-powered equipment, the voltage can change during operation.

Therefore, the motor should be evaluated across the actual operating voltage range.

Speed and Torque

RPM alone is not enough.

You also need to know how much torque the motor must produce at that speed.

For example, a motor may reach 5,000 RPM with no load but fail to maintain the required speed when connected to the actual machine.

For OEM projects, a speed-torque curve is much more useful than a single RPM specification.

Motor Dimensions and Mounting

Mechanical compatibility is critical.

Check:

• Motor diameter

• Motor length

• Mounting holes

• Flange dimensions

• Shaft diameter

• Shaft length

• Keyway

• Connector position

• Installation direction

If you are replacing an existing motor, providing a drawing or sample can greatly improve the evaluation process.

Feedback and Control

Determine whether you need:

• Hall sensors

• Sensorless control

• Encoder

• Other position feedback

Also determine the required controller and control method.

For precision applications, an encoder may be necessary.

For simple fan applications, Hall or sensorless control may be sufficient.

Operating Environment

Environmental conditions can significantly affect motor selection.

Consider:

• Ambient temperature

• Humidity

• Dust

• Water exposure

• Vibration

• Installation altitude

• Duty cycle

• Continuous operation

• Startup frequency

A motor running for 30 seconds several times per day has very different thermal requirements from one operating continuously for 20 hours per day.

When Should You Choose a Custom BLDC Motor?

A standard motor is usually the fastest and most economical choice when it already meets the application requirements.

But what if the standard motor is almost correct?

Maybe the voltage is right, but the shaft is too long.

Maybe the RPM is correct, but the torque is insufficient.

Maybe the motor fits mechanically, but there is no suitable Hall configuration.

Maybe the customer needs a special connector or mounting structure.

This is where a custom BLDC motor becomes valuable.

Instead of forcing an existing motor into the machine, the motor can be developed around the actual equipment requirements.

Standard BLDC Motor vs Custom BLDC Motor

A standard BLDC motor is usually appropriate when:

• Voltage matches

• Power matches

• RPM matches

• Torque matches

• Mounting dimensions match

• Shaft dimensions match

• Feedback requirements match

• Environmental conditions are acceptable

A custom BLDC motor may be better when:

• Installation space is limited

• Shaft dimensions are unusual

• Torque-speed requirements are specific

• Special winding is required

• Hall sensors need to be customized

• Encoder integration is required

• Noise or vibration needs optimization

• The motor must integrate directly into an OEM assembly

For long-term production projects, customization can sometimes be more economical than repeatedly compromising the equipment design around an unsuitable standard motor.

What Can Be Customized in a BLDC Motor?

Depending on the manufacturer and project requirements, a BLDC motor can potentially be customized in many areas.

These include:

• Motor diameter

• Motor length

• Stator stack length

• Rated voltage

• Rated power

• Rated speed

• Rated torque

• Winding design

• Copper wire specification

• Magnet specification

• Shaft diameter

• Shaft length

• Shaft shape

• Mounting holes

• Flange

• Housing

• Connector

• Cable

• Hall sensors

• Encoder

• Bearing configuration

• Rotation direction

• Thermal protection

This is why an experienced BLDC motor OEM manufacturer can be particularly valuable for equipment manufacturers.

The goal is not simply to manufacture a motor.

The goal is to manufacture a motor that works correctly inside the customer's machine.

What to Look for in a BLDC Motor Manufacturer

When sourcing BLDC motors, unit price is obviously important.

But for an OEM project, it should not be the only factor.

A supplier that offers a low price but cannot handle engineering changes may ultimately cost more through repeated samples, delays, redesigns, and quality problems.

Here are several important factors to consider.

Engineering and Customization Capability

Ask whether the supplier can actually develop customized motors.

Useful questions include:

• Can you customize the winding?

• Can you change the shaft?

• Can you modify the mounting dimensions?

• Can you integrate Hall sensors?

• Can you integrate an encoder?

• Can you optimize the motor for a specific load?

• Can you provide engineering samples?

• Can you provide test data?

For OEM customers, these capabilities can be more important than simply having a large product catalog.

Production and Quality Control

Once the motor moves into mass production, consistency becomes critical.

A professional motor manufacturer should have controlled production and inspection processes for components such as:

• Stator assemblies

• Rotors

• Magnets

• Windings

• Shafts

• Bearings

• Housings

• Finished motors

Depending on the application and target market, customers may also require performance testing, reliability testing, traceability, quality documentation, and relevant management-system certifications.

Prototype to Mass Production

A typical OEM BLDC motor development process may look like this:

Requirement → Technical Evaluation → Motor Design → Prototype → Testing → Customer Approval → Pilot Production → Mass Production

The first prototype is not the final goal.

A successful prototype should demonstrate that the motor can meet the customer's actual requirements.

The next challenge is making sure the same performance can be reproduced consistently during mass production.

This is especially important for B2B customers planning recurring production orders.

Why Application-Specific BLDC Motor Development Matters

There is a common mistake when purchasing motors:

“The voltage and power are the same, so the motor should work.”

Not necessarily.

Two BLDC motors can both be rated at 24 V and 100 W while having very different:

• Torque curves

• RPM

• Winding resistance

• Back-EMF

• Starting characteristics

• Thermal performance

• Shaft dimensions

• Controller requirements

For this reason, professional OEM motor selection should start with the application, not just the nameplate.

For example, a BLDC motor for an HVAC blower has different priorities from a BLDC motor for a robotic joint.

A compressor motor has different requirements from a small cooling fan.

A pump motor may need strong starting torque, while a high-speed fan may prioritize efficiency and RPM.

This application-oriented approach is one of the reasons OEM customers often prefer working directly with a specialized motor manufacturer.

Modar Motor for Custom BLDC Motor Projects

For companies looking for a BLDC motor manufacturer, BLDC motor supplier, or custom BLDC motor OEM partner in China, engineering capability and production flexibility can be more important than simply choosing the largest supplier.

Modar Motor focuses on motor solutions for OEM applications including HVAC, pumps, compressors, automotive systems, robotics, industrial automation, medical equipment, and other specialized equipment.

Its BLDC motor solutions can be developed around different combinations of:

• Voltage

• Power

• Speed

• Torque

• Motor dimensions

• Shaft configuration

• Mounting requirements

• Hall sensors

• Encoder feedback

• Application environment

This is particularly useful when an OEM customer cannot find a suitable off-the-shelf motor.

Instead of asking the customer to redesign the machine around a standard motor, the motor can be evaluated according to the machine's actual requirements.

For B2B projects, this approach can help connect motor design, prototype development, testing, and eventual mass production into one development process.

If you are sourcing a BLDC motor for an OEM product, providing a motor drawing, specification sheet, existing motor sample, load curve, or target performance requirements can give the engineering team a much clearer starting point.

Frequently Asked Questions About BLDC Motors

1. What is a BLDC motor used for?

BLDC motors are used in many applications including HVAC fans, blowers, pumps, compressors, automotive systems, EV auxiliary equipment, robotics, industrial automation, medical equipment, drones, and other electrically driven systems.

They are particularly attractive when high efficiency, long operating life, high speed, compact size, and electronic speed control are important.

2. Does a BLDC motor need a controller?

Yes.

A BLDC motor normally requires an electronic controller or drive to perform commutation and control motor operation.

The controller determines how current is supplied to the motor phases.

The motor and controller should therefore be selected as a compatible system.

3. Are BLDC motors more efficient than brushed DC motors?

BLDC motors can achieve higher efficiency because they eliminate mechanical brush losses and can be optimized through electronic control.

However, actual efficiency depends on the complete system, including motor design, controller, operating speed, load, voltage, and thermal conditions.

4. What is the difference between sensored and sensorless BLDC motors?

A sensored BLDC motor uses Hall sensors or another position sensor to detect rotor position.

A sensorless BLDC motor estimates rotor position using electrical information such as back-EMF.

Sensored motors can offer better startup and low-speed behavior, while sensorless motors can reduce components and wiring.

5. Can a BLDC motor be customized?

Yes.

Depending on the manufacturer, a BLDC motor can be customized for voltage, power, speed, torque, dimensions, winding, magnets, shaft configuration, mounting, Hall sensors, encoders, connectors, housing, and other requirements.

Custom BLDC motors are particularly useful for OEM equipment where standard motors cannot meet all electrical and mechanical requirements.

6. What information should I provide when requesting a custom BLDC motor?

The more technical information you can provide, the faster a manufacturer can evaluate the project.

Useful information includes:

• Rated voltage

• Operating voltage range

• Rated power

• Rated RPM

• Required torque

• Maximum torque

• Duty cycle

• Motor dimensions

• Shaft dimensions

• Mounting dimensions

• Hall or encoder requirements

• Controller information

• Operating temperature

• Application

• Expected annual quantity

A motor drawing or existing sample is even better because it gives the manufacturer both mechanical and electrical reference information.

7. Is a BLDC motor suitable for HVAC applications?

Yes.

BLDC motors are widely suitable for HVAC fans, blowers, ventilation equipment, and cooling systems.

Their electronic speed control and efficiency make them attractive for variable-speed HVAC applications.

The correct motor should be selected based on the required airflow, static pressure, RPM, torque, noise, efficiency, and installation requirements.

8. Is a BLDC motor suitable for robotics?

Yes.

BLDC motors can be used in robotic actuators, joints, mobile robots, industrial robots, and other automated equipment.

For compact integrated joints, frameless BLDC motors can be especially useful because the motor can be incorporated directly into the mechanical structure.

Final Takeaway: What Is a BLDC Motor?

So, what is a BLDC motor?

A BLDC motor, or Brushless DC Motor, is a permanent-magnet electric motor that uses electronic commutation instead of mechanical brushes and a commutator.

Its basic system consists of a permanent-magnet rotor, stator windings, and an electronic controller.

Depending on the application, the motor may use Hall sensors, sensorless back-EMF detection, an encoder, six-step commutation, or more advanced control such as FOC.

The main advantages of BLDC motors include:

• High efficiency

• Long operating life

• Low maintenance

• High-speed capability

• High power density

• Precise electronic control

• Flexible OEM customization

These characteristics make BLDC motors suitable for an increasingly wide range of applications, from HVAC fans and pumps to compressors, automotive systems, robotics, industrial automation, and medical equipment.

However, selecting the right BLDC motor requires more than matching voltage and wattage.

The motor must be matched to the actual speed, torque, load, dimensions, controller, feedback system, thermal conditions, duty cycle, and operating environment.

For OEM customers, this is where working with an experienced BLDC motor manufacturer can make a significant difference.

If you are developing a new product or replacing an existing motor, the best starting point is usually to provide the motor's technical specifications, drawing, sample, or target performance requirements.

Looking for a BLDC motor for your OEM project? Modar Motor supports standard and customized BLDC motor solutions for applications including HVAC, pumps, compressors, automotive systems, robotics, industrial automation, and other specialized equipment. A motor drawing, specification sheet, existing sample, or target performance curve can be used as the starting point for a technical evaluation.
