Forward Curved Fan vs Backward Curved Fan: Differences, Advantages, and How to Choose the Right Centrifugal Fan

Introduction: Why Centrifugal Fan Selection Matters in HVAC and Industrial Applications

Centrifugal fans are one of the most important airflow components used in modern HVAC systems, ventilation equipment, air handling units, fan coil units, industrial machines, and commercial equipment.

Unlike axial fans that move air parallel to the shaft direction, centrifugal fans change the airflow direction by using centrifugal force. Air enters the center of the impeller and is accelerated outward through the fan housing.

Because of their ability to generate higher pressure, centrifugal fans are widely used in applications requiring:

• Higher static pressure

• Stable airflow

• Compact installation

• Reliable continuous operation

However, not all centrifugal fans have the same performance characteristics.

The two most common centrifugal fan designs are:

• Forward curved centrifugal fan

• Backward curved centrifugal fan

Although both designs perform the same basic function, their blade structures create significant differences in:

• Airflow capacity

• Pressure performance

• Efficiency

• Noise level

• Motor requirements

• Operating characteristics

• Application suitability

For HVAC manufacturers, choosing between a forward curved fan and a backward curved fan directly affects:

• System energy consumption

• Fan noise

• Equipment size

• Motor selection

• Product lifetime

• Operating cost

This article provides a detailed comparison between forward curved and backward curved centrifugal fans, explains their advantages and disadvantages, and helps OEM engineers select the most suitable fan and motor solution for their applications.

What Is a Centrifugal Fan?

Basic Working Principle of Centrifugal Fans

A centrifugal fan uses a rotating impeller to increase air pressure and move airflow.

The working process includes:

1. Air enters through the fan inlet.

2. The rotating impeller accelerates the air outward.

3. Centrifugal force increases air velocity.

4. The fan housing converts velocity into pressure.

5. Pressurized air exits through the outlet.

The performance of a centrifugal fan depends mainly on:

• Impeller design

• Blade shape

• Rotation speed

• Fan diameter

• Motor power

• Housing design

Among these factors, the blade direction is one of the most important factors affecting fan performance.

What Is a Forward Curved Centrifugal Fan?

Forward Curved Fan Definition

A forward curved centrifugal fan, also called a forward curved blower, uses blades that curve in the same direction as the rotation of the impeller.

When the impeller rotates, the blade tips move forward relative to the direction of rotation.

This design allows the fan to move a large volume of air at relatively low rotational speed.

Forward curved fans are commonly used in HVAC systems where high airflow volume and compact design are important.

Advantages of Forward Curved Fans

1. High Airflow Capacity

One of the biggest advantages of forward curved fans is their ability to provide high airflow volume.

The large number of blades creates strong air movement even at relatively low RPM.

This makes them suitable for:

• Fan coil units

• Indoor air conditioning systems

• Ventilation equipment

• Air handling units

2. Compact Size

Forward curved fans can achieve high airflow within a relatively small diameter.

This is important for HVAC products where installation space is limited.

Examples:

• Ceiling fan coil units

• Compact air conditioners

• Commercial HVAC equipment

3. Lower Rotational Speed

Because of their blade design, forward curved fans usually operate at lower speeds compared with some other centrifugal fan types.

Lower speed can provide:

• Lower mechanical stress

• Reduced vibration

• Better acoustic performance

4. Cost Advantage

Forward curved fans usually have a simpler manufacturing structure.

Advantages include:

• Lower production cost

• Easier manufacturing

• Suitable for mass production

For cost-sensitive HVAC products, forward curved fans are widely selected.

Disadvantages of Forward Curved Fans

1. Lower Efficiency

Compared with backward curved fans, forward curved fans generally have lower efficiency.

More airflow energy is lost due to:

• Higher turbulence

• Blade design characteristics

• Increased airflow resistance

2. Higher Power Consumption at Certain Conditions

Forward curved fans can consume more energy when operating outside the ideal working range.

Proper fan selection is important to avoid inefficient operation.

3. Limited High Pressure Capability

Forward curved fans are usually better suited for:

• Medium pressure applications

• High airflow requirements

They are not the best choice for very high-pressure systems.

What Is a Backward Curved Centrifugal Fan?

Backward Curved Fan Definition

A backward curved centrifugal fan uses blades that curve opposite to the direction of impeller rotation.

This blade design creates a more efficient airflow path and reduces turbulence.

Backward curved fans are widely used where efficiency, pressure capability, and energy saving are priorities.

Advantages of Backward Curved Fans

1. Higher Efficiency

The biggest advantage of backward curved fans is efficiency.

Their aerodynamic blade design reduces airflow losses.

Benefits include:

• Lower energy consumption

• Reduced operating cost

• Better long-term efficiency

2. High Pressure Capability

Backward curved fans can generate higher static pressure compared with forward curved fans.

They are suitable for systems with:

• Longer air ducts

• Higher resistance

• Complex ventilation systems

3. Stable Operating Performance

Backward curved fans usually have a wider stable operating range.

They are less sensitive to changes in system resistance.

4. Lower Motor Load Risk

A major advantage is that backward curved fans usually have non-overloading characteristics.

If airflow resistance changes, motor power does not continuously increase.

This provides better protection for the motor system.

Disadvantages of Backward Curved Fans

1. Higher Initial Cost

Backward curved fans usually require:

• More precise manufacturing

• More complex impeller design

Therefore, the initial cost is higher.

2. Larger Size Requirement

For the same airflow:

Backward curved fans may require a larger impeller diameter.

This can increase installation space requirements.

3. Higher Design Requirements

Backward curved fans require accurate matching between:

• Fan

• Motor

• Control system

Incorrect selection may reduce expected efficiency.

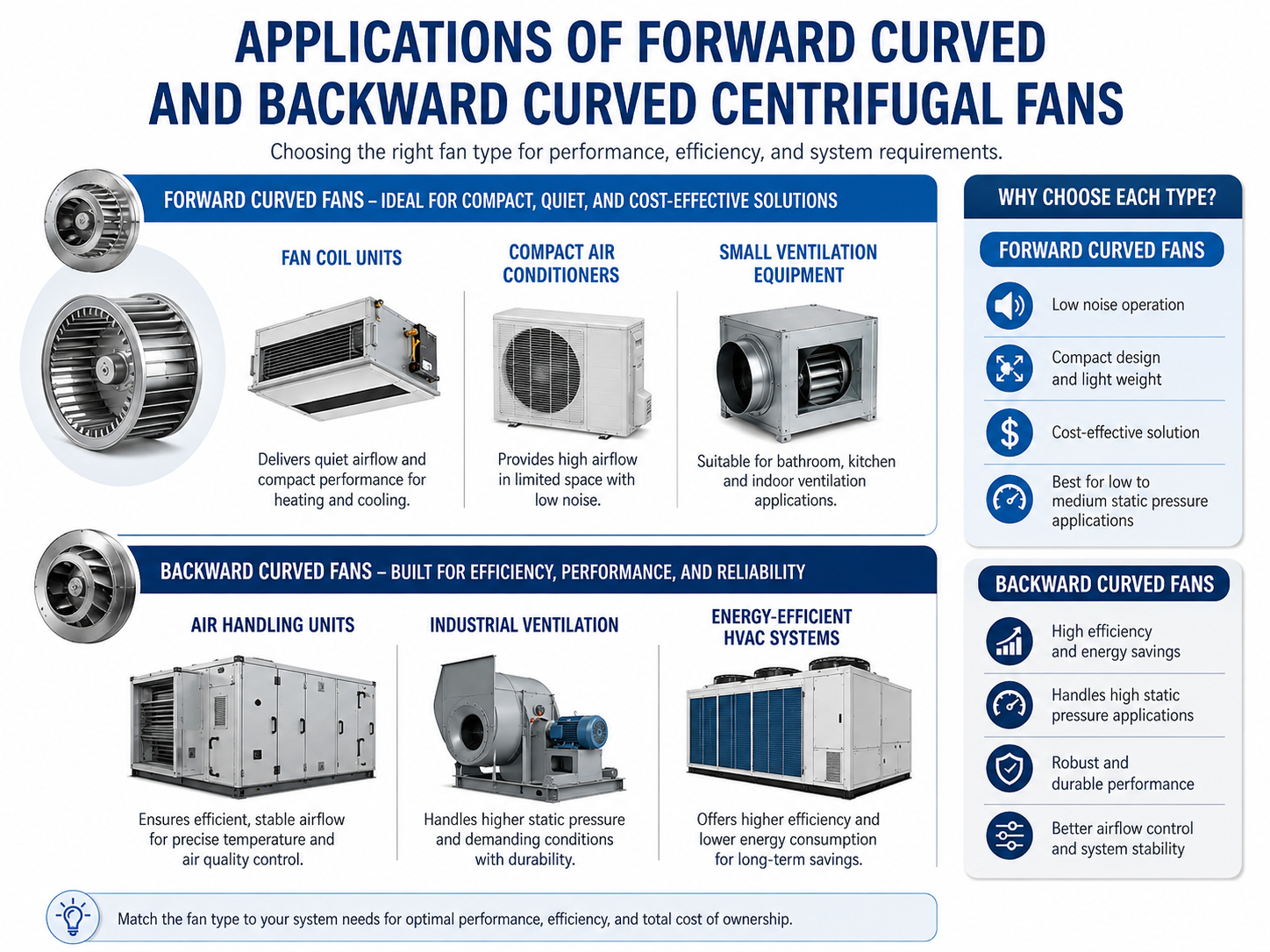

Forward Curved Fan Applications

Fan Coil Units

Forward curved fans are widely used in fan coil units because they provide:

• Compact structure

• Stable airflow

• Cost efficiency

Typical systems include:

• Ceiling fan coil units

• Indoor air conditioners

• Commercial HVAC systems

Indoor Air Conditioning Equipment

Many indoor HVAC products prioritize:

• Low noise

• Compact size

• Affordable cost

Forward curved fans are suitable for these requirements.

Ventilation Equipment

Applications include:

• Small ventilation systems

• Air circulation equipment

• Commercial buildings

Backward Curved Fan Applications

Air Handling Units

Backward curved fans are widely used in AHU systems requiring:

• High pressure

• Long duct systems

• Energy efficiency

Industrial Ventilation

Industrial applications often require:

• Continuous operation

• Stable airflow

• High pressure

Backward curved fans are commonly selected.

Energy-Efficient HVAC Systems

Modern HVAC systems increasingly focus on reducing operating costs.

Backward curved fans provide advantages in:

• Energy saving

• Efficiency improvement

• Long-term operation

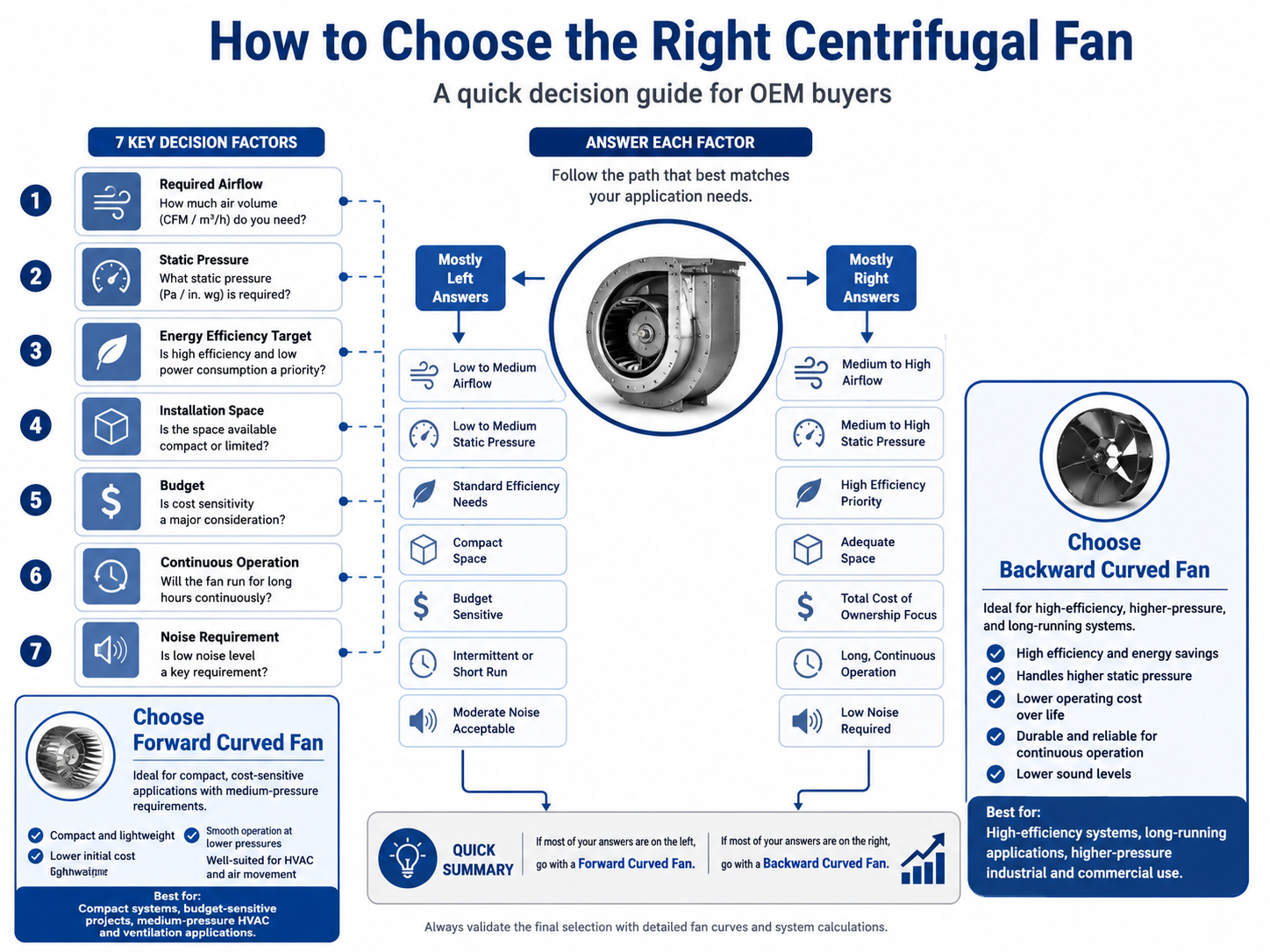

How to Choose Between Forward and Backward Curved Fans?

1. Consider Airflow Requirement

If the priority is:

High airflow in compact space

Choose:

Forward curved fan

High airflow with high efficiency

Choose:

Backward curved fan

2. Consider Static Pressure

Low to medium pressure:

→ Forward curved fan

High pressure:

→ Backward curved fan

3. Consider Energy Consumption

For equipment operating continuously:

Backward curved fans are usually preferred.

Examples:

• Commercial HVAC

• Industrial ventilation

• Large air handling systems

4. Consider Equipment Cost

For cost-sensitive products:

Forward curved fans often provide better value.

Examples:

• Residential HVAC

• Standard fan coil units

5. Consider Motor Selection

The fan and motor must be matched correctly.

Important motor parameters include:

• Power

• Speed

• Torque

• Voltage

• Frequency

• Duty cycle

Motor Solutions for Centrifugal Fans

The motor is another critical factor affecting centrifugal fan performance.

Common motor solutions include:

AC Motors

Advantages:

• Simple structure

• Reliable operation

• Competitive cost

Common applications:

• Fan coil units

• HVAC equipment

BLDC Motors

Advantages:

• Higher efficiency

• Variable speed control

• Better energy saving

Applications:

• Premium HVAC systems

• Smart ventilation equipment

Customized Fan Motors

OEM manufacturers often require customization:

• Shaft size

• Mounting structure

• Voltage

• Power

• Wiring

• Speed

Modar Motor provides customized motor solutions for centrifugal fan applications.

Why Choose Modar Motor for Fan Motor Solutions?

Customized Motor Development

Modar Motor supports OEM customers with:

• AC fan motors

• YSK motors

• YDK motors

• BLDC motors

Application-Based Selection

Instead of simply providing a motor, Modar Motor helps customers match:

• Fan type

• Airflow requirement

• Load condition

• Operating environment

OEM Manufacturing Capability

Support includes:

• Prototype development

• Performance testing

• Customized design

• Mass production

Forward vs Backward Curved Fan FAQ

Which fan is more efficient?

Backward curved fans are generally more efficient because of their aerodynamic blade design.

Which fan is better for HVAC?

It depends on the application.

Forward curved fans are common for fan coil units.

Backward curved fans are preferred for high-efficiency HVAC systems.

Are backward curved fans more expensive?

Yes. They usually have higher manufacturing costs but provide better long-term efficiency.

Which fan produces less noise?

Both can provide low noise when properly designed. Backward curved fans often have advantages in high-performance applications.

Can the same motor be used for both fan types?

Not always.

Motor power, speed, and torque must be matched according to fan characteristics.

Which fan is better for energy saving?

Backward curved fans generally provide better energy efficiency.

What information should OEM buyers provide when selecting a fan motor?

Important information includes:

• Fan type

• Airflow

• Static pressure

• Voltage

• Frequency

• Power

• Speed

• Installation requirements

Conclusion: Choosing the Right Centrifugal Fan Improves System Performance

Forward curved and backward curved centrifugal fans both play important roles in HVAC and industrial airflow systems.

Forward curved fans provide:

• Compact design

• High airflow

• Lower cost

They are ideal for fan coil units and cost-sensitive HVAC products.

Backward curved fans provide:

• Higher efficiency

• Higher pressure capability

• Lower operating cost

They are suitable for advanced HVAC systems and industrial applications.

The best choice depends on:

• Airflow requirement

• Pressure demand

• Energy target

• Installation space

• Cost expectation

By combining the correct centrifugal fan design with a suitable motor solution, OEM manufacturers can achieve better airflow performance, lower energy consumption, and improved product reliability.

With experience in AC motors, BLDC motors, and customized HVAC motor solutions, Modar Motor helps global customers develop reliable airflow systems for residential, commercial, and industrial applications.
