YSK Motor Explained: A Complete Guide To Dual Shaft AC Fan Coil Motors for HVAC Applications
Views: 0 Author: Site Editor Publish Time: 2026-08-04 Origin: Site
Introduction: Why YSK Motors Are Widely Used in HVAC Fan Coil Systems
In modern HVAC systems, the motor is one of the most important components determining airflow performance, energy efficiency, noise level, and system reliability.
Among various AC motor designs used in air conditioning equipment, the YSK motor is a widely adopted solution for fan coil units, indoor air handling systems, ventilation equipment, and commercial HVAC applications.
A YSK motor is typically a type of single-phase AC capacitor motor designed for fan applications. One of its most recognizable features is the dual shaft structure, meaning the motor has output shafts extending from both sides.
This unique structure allows one motor to drive two fan wheels or two airflow components simultaneously, making it highly suitable for compact HVAC systems where space efficiency and airflow balance are important.
For HVAC OEM manufacturers, choosing the right fan motor directly affects:
Airflow performance
Energy consumption
Noise level
Equipment reliability
Product lifetime
Maintenance cost
Compared with other AC motors such as YDK motors, BLDC motors, or traditional shaded pole motors, YSK motors have their own advantages in terms of structure, cost, reliability, and application flexibility.
This article explains:
What a YSK motor is
How a dual shaft AC motor works
Why YSK motors are used in fan coil units
Advantages and disadvantages of YSK motors
YSK motor vs YDK motor comparison
How OEM buyers select the right HVAC motor
Common customization options
Frequently asked questions about YSK motors
What Is a YSK Motor?
Definition of YSK AC Motor
A YSK motor is a type of single-phase AC induction motor commonly used in HVAC fan coil units and air circulation equipment.
The motor typically includes:
Stator winding
Rotor
Shaft system
Bearing structure
Capacitor
Mounting bracket
Electrical lead wires
The motor operates using AC power and generates rotating magnetic fields through the stator winding. The rotor follows this rotating magnetic field and produces mechanical rotation.
Unlike brushless DC motors, YSK motors do not require electronic controllers. They can operate directly from AC power with a capacitor-assisted starting system.
This simple structure makes them reliable and cost-effective for many HVAC applications.
Why Is YSK Motor Called a Dual Shaft Motor?
Double Output Shaft Design
The most important characteristic of YSK motors is the dual shaft design.
A standard motor usually has one output shaft. However, a YSK motor provides two shaft outputs:
Front shaft
Rear shaft
These two shafts rotate together because they are connected through the same rotor structure.
This allows one motor to drive two components simultaneously.
Advantages of Dual Shaft Structure
Driving Two Fans with One Motor
One of the biggest advantages is that one motor can operate two fan wheels.
For example:
Double centrifugal fans
Fan coil units
Indoor air conditioning systems
Air handling units
Instead of installing two independent motors, manufacturers can use one dual shaft motor.
This reduces:
Component quantity
Wiring complexity
Assembly cost
Equipment space
Better Airflow Balance
Using one motor to drive both sides of the fan system helps maintain synchronized airflow.
This improves:
Air distribution
Fan balance
System stability
Space Saving Design
For compact HVAC equipment, installation space is always limited.
A dual shaft YSK motor allows designers to achieve higher airflow output without increasing motor quantity.
How Does a YSK Motor Work?
AC Induction Principle
YSK motors operate based on electromagnetic induction.
When AC power is supplied:
Current flows through stator windings.
A rotating magnetic field is created.
The rotor reacts to the magnetic field.
Mechanical rotation is produced.
The shaft drives the fan wheel.
Because there are no brushes or electronic commutation components, the structure is relatively simple.
Role of Capacitor in YSK Motors
Single-phase AC motors require a capacitor to create phase differences between windings.
The capacitor helps:
Generate starting torque
Improve running performance
Maintain stable rotation
The correct capacitor selection is important because it affects:
Starting ability
Motor current
Efficiency
Noise

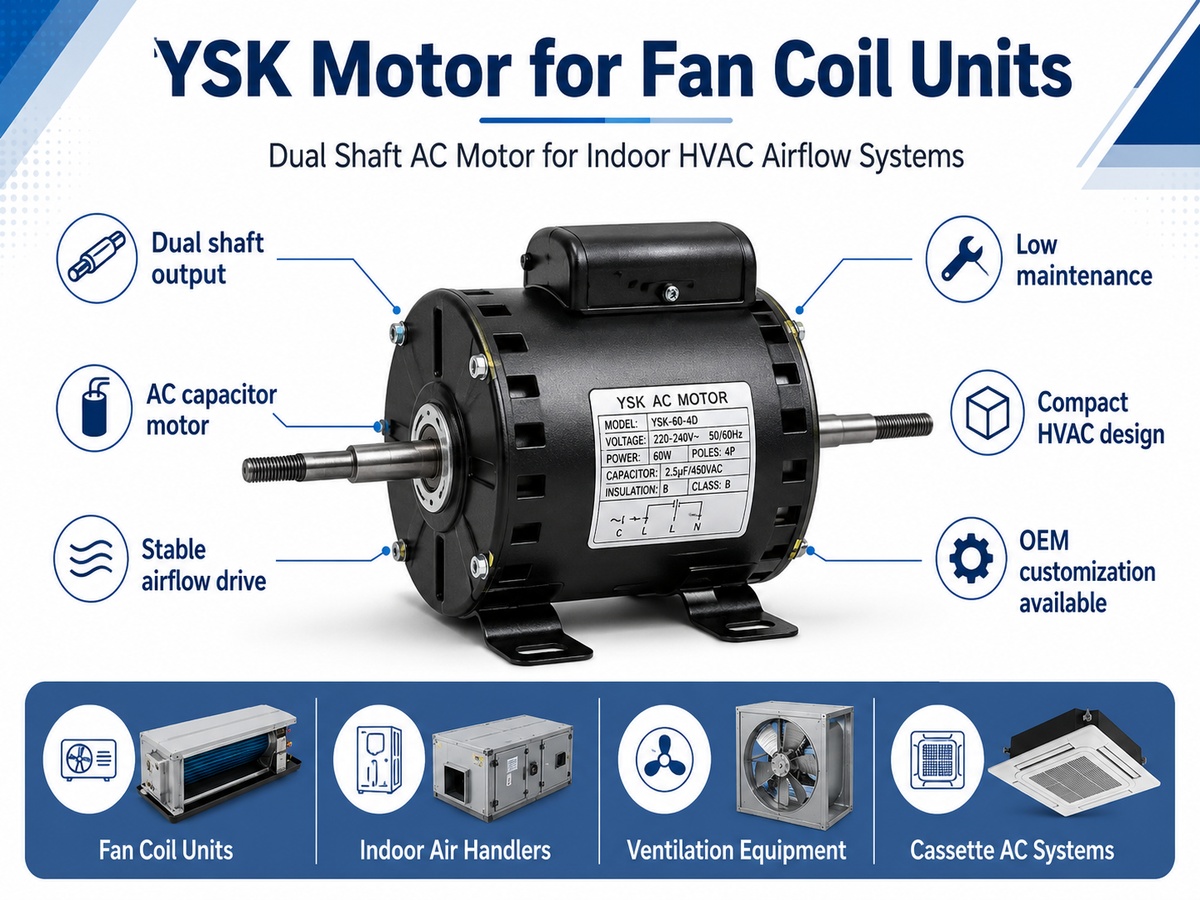

Main Applications of YSK Motors
Fan Coil Units
Fan coil units are one of the most common applications.
A fan coil unit typically includes:
Heat exchanger
Fan wheel
Motor
Control system
The YSK motor drives the fan assembly to circulate conditioned air.
Advantages:
Reliable operation
Low maintenance
Compact structure
Suitable cost
Indoor HVAC Units
YSK motors are widely used in:
Indoor air handling units
Commercial air conditioners
Ventilation systems
The dual shaft design helps create balanced airflow.
Air Curtain Systems
Some air curtain systems require long airflow structures.
A dual shaft motor can support multiple fan wheels.
Ventilation Equipment
YSK motors can also be used in:
Exhaust fans
Air circulation equipment
Industrial ventilation systems
Advantages of YSK Motors for HVAC Applications
Simple and Reliable Structure
One of the biggest advantages of YSK motors is their mechanical simplicity.
Compared with electronically controlled motors, YSK motors have:
Fewer electronic components
Simple control method
Easy maintenance
This improves reliability.
Cost Effective Solution
For many HVAC OEM applications, cost is an important factor.
YSK motors provide:
Stable performance
Competitive cost
Mature manufacturing process
They are especially suitable for high-volume HVAC products.
Easy Integration
Because YSK motors operate directly with AC power, OEM manufacturers do not need additional motor controllers.
This simplifies:
Electrical design
Assembly
Production testing
Suitable for Continuous Operation
HVAC systems often operate for long periods.
YSK motors are designed for continuous fan operation and can provide stable performance when properly selected.
Dual Shaft Advantage
The dual shaft design provides:
Two-sided fan connection
Balanced airflow
Compact installation
This is one of the key reasons why YSK motors remain popular in fan coil systems.
Disadvantages of YSK Motors
Lower Efficiency Compared with BLDC Motors
One limitation of traditional AC motors is efficiency.
Compared with modern BLDC motors:
YSK motors generally have:
Lower efficiency
Higher energy consumption
For energy-saving HVAC systems, BLDC motors are increasingly considered.
Fixed Speed Control
Traditional YSK motors usually operate at fixed speeds.
Speed adjustment may require:
Voltage control
Frequency control
Additional control methods
Compared with BLDC motors, speed control flexibility is limited.
Larger Size Compared with Some Modern Motors
For the same power level, BLDC motors can sometimes achieve:
Smaller size
Higher efficiency
Better controllability
Noise Performance
YSK motors can provide acceptable noise performance, but premium HVAC systems may require more advanced motor solutions.

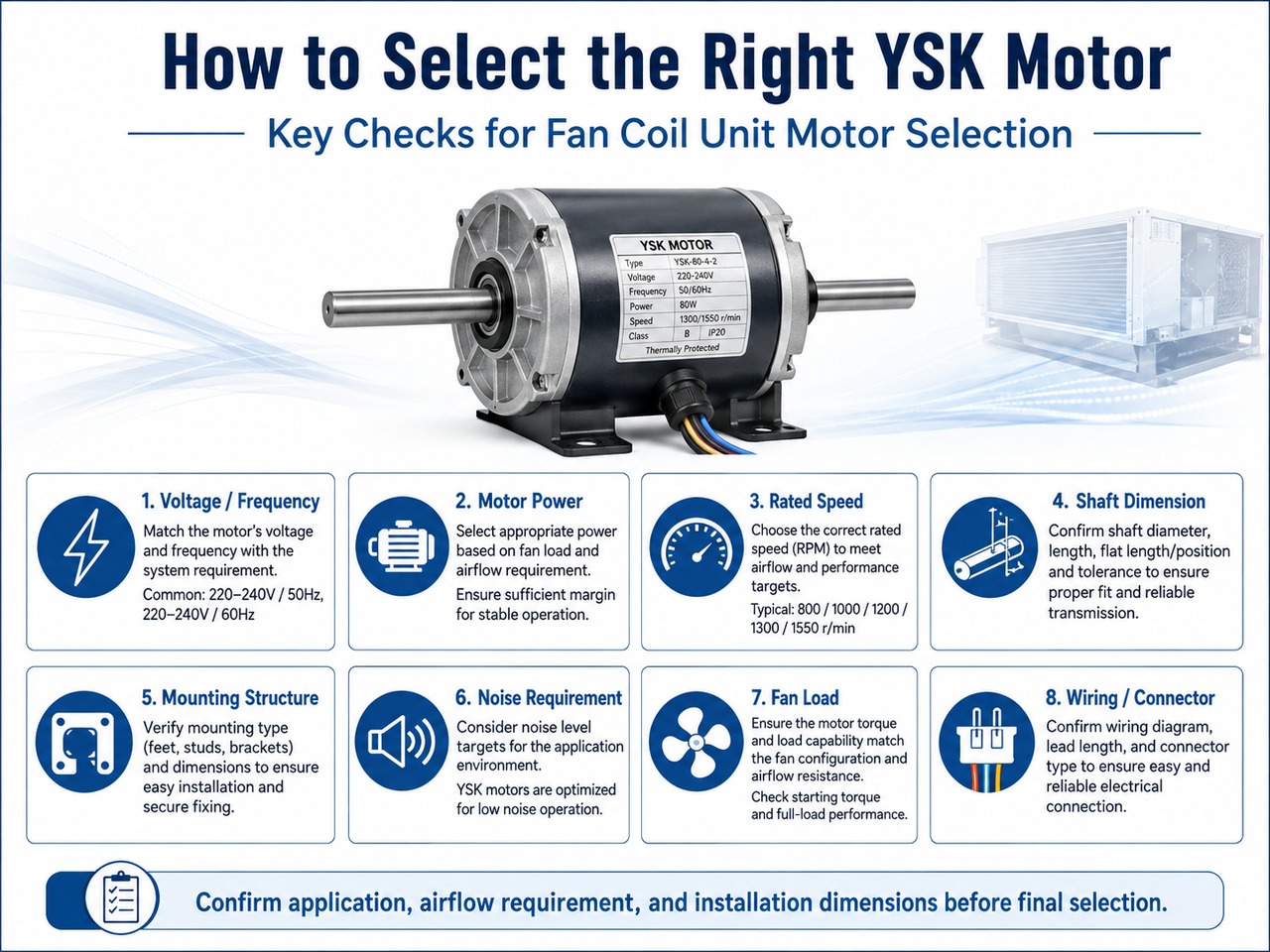

How OEM Buyers Choose the Right YSK Motor
Confirm Voltage and Frequency
The first step is confirming:
Voltage
Frequency
Phase
Common HVAC requirements include:
110V / 60Hz
220V / 50Hz
220V / 60Hz
Confirm Motor Power
YSK motors are available in different power levels.
Common specifications include:
50W
90W
100W
150W
240W
The correct power depends on:
Fan size
Airflow requirement
Static pressure
System design
Confirm Speed Requirement
Motor speed affects:
Airflow
Noise
Energy consumption
OEM buyers should confirm:
Rated RPM
Operating speed range
Required airflow
Confirm Shaft Dimensions
For dual shaft motors, shaft design is extremely important.
Confirm:
Shaft diameter
Shaft length
Shaft shape
Shaft tolerance
Shaft direction
Incorrect shaft dimensions may cause installation problems.
Confirm Mounting Structure
YSK motors can have different mounting designs:
Metal bracket
Base mounting
Customized fixing structure
The mounting method should match the HVAC housing design.
Confirm Noise Requirement
For indoor HVAC applications, noise is critical.
Important factors include:
Bearing quality
Rotor balance
Manufacturing precision
Fan matching
YSK Motor Customization Options
For OEM HVAC manufacturers, standard motors may not always fit the product design.
For HVAC manufacturers, we support customization of:
Voltage
Power
Speed
Shaft structure
Mounting
Wiring
Quality Control
Motor reliability depends on manufacturing consistency.
Important testing includes:
Electrical performance testing
Insulation testing
Noise testing
Balance testing
Running performance testing
One-Stop Motor Solution
Besides YSK motors, Modar Motor also provides:
YDK motors
BLDC motors
DC motors
Gear motors
Customized motor solutions
This allows customers to select the most suitable motor technology according to their product requirements.
YSK Motor FAQ
What is a YSK motor?
A YSK motor is a single-phase AC capacitor motor commonly used in HVAC fan coil units. It usually features a dual shaft structure for driving two fans.
Why does a YSK motor have two shafts?
The dual shaft design allows one motor to drive two fan wheels simultaneously, improving airflow balance and saving installation space.
What is the difference between YSK and YDK motors?
YSK motors are commonly used for fan coil and indoor HVAC systems with dual shafts, while YDK motors are typically used for condenser fans with single shafts.
Are YSK motors suitable for fan coil units?
Yes. YSK motors are widely used in fan coil units because of their reliable operation, compact design, and dual shaft structure.
Can YSK motors be customized?
Yes. OEM customization options include voltage, power, speed, shaft dimensions, mounting brackets, and wiring.
Are YSK motors energy efficient?
YSK motors provide reliable performance, but BLDC motors usually offer higher efficiency and better speed control.
What information should OEM buyers provide when selecting a YSK motor?
Customers should provide:
Voltage
Frequency
Power
Speed
Shaft dimensions
Mounting requirements
Fan load
Quantity requirement
Can Modar Motor provide samples before mass production?
Yes. Sample development and testing are available before mass production.
Conclusion: YSK Motors Remain a Reliable HVAC Motor Solution
Although HVAC technology continues moving toward higher-efficiency BLDC solutions, YSK motors remain an important choice for many fan coil and indoor air handling applications.
Their advantages include:
Simple structure
Reliable operation
Cost effectiveness
Easy integration
Dual shaft airflow capability
For HVAC OEM manufacturers looking for a stable AC motor solution, YSK motors provide a practical balance between performance, reliability, and cost.
The correct motor selection depends on the complete system design, including airflow requirements, fan structure, power supply, installation space, noise requirements, and production goals.
With experience in customized AC motors and HVAC motor solutions, Modar Motor supports OEM customers from initial specification analysis to prototype testing and mass production, helping customers develop reliable and efficient air movement solutions.
